uuPower System Won’t Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected

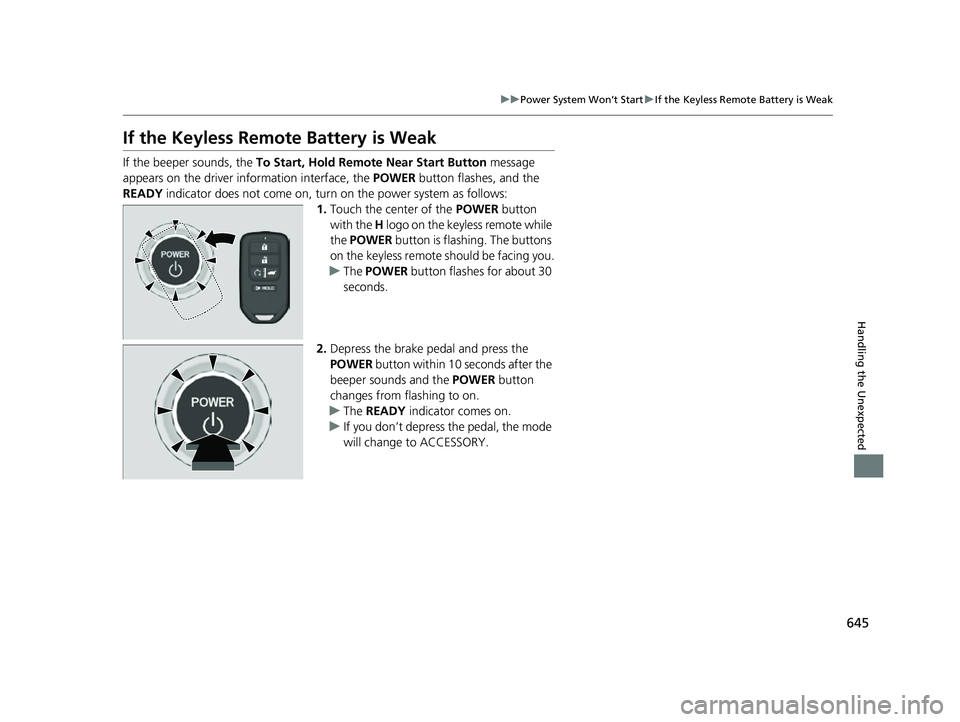

If the Keyless Remo te Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the POWER button flashes, and the
READY indicator does not come on, turn on the power system as follows:
1.Touch the center of the POWER button
with the H logo on the keyless remote while
the POWER button is flashing. The buttons
on the keyless remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u The READY indicator comes on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
22 CR-V HEV ELP-31TPG6200.book 645 ページ ２０２１年６月３０日　水曜日　午前１１時６分

661
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACCESSORY10 A
2ACC KEY LOCK5 A
3IG1 P-DRV5 A
4IG1 OPTION 25 A
5IG1 OPTION10 A
6IG1 SRS 210 A
7IG1 METER10 A
8IG1 FUEL PUMP15 A
9IG2 A/C10 A
10CTR ACCESSORY SOCKET(20 A)
11IG1 MONITOR5 A
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14P/W RR L20 A
15P/W AS20 A
16DOOR LOCK20 A
17IG1 TCU(10 A)
18DR POWER LUMBAR*(10 A)
19MOONROOF*(20 A)
20IG1 STARTER10 A
21IG1 ACG10 A
22IG2 DAYTIME LIGHT10 A
23USB CHARGER*(7.5 A)
24+B OPTION5 A
25DR DOOR LOCK(10 A)
26R SIDE DOOR UNLOCK10 A
27P/W RR R20 A
28P/W DR20 A
29FR ACCESSORY SOCKET*20 A
30SMART10 A
31DR P/SEAT RECLINE*(20 A)
32FR HEATED SEAT*(20 A)
33DR P/SEAT SLIDE*(20 A)
34IG1 ABS/VSA10 A
35IG1 SRS10 A
36HAC OPTION20 A
37+B TRAILER15 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK(10 A)
aPTG*(20 A)
bAS P/SEAT SLIDE*(20 A)
cAS P/SEAT RECLINE*(20 A)
dSUNSHADE*(20 A)
eIMA 110 A
fRR HEATED SEAT*(20 A)
gHEATED STRG*(10 A)
hSBW15 A
Circuit ProtectedAmps
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 661 ページ ２０２１年６月３０日　水曜日　午前１１時６分

683
Index
Clock......................................................... 150
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 506
Coat Hook ................................................ 224
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 506
Compass .................................................... 456
Continuously Variable Transmission
Creeping................................................. 476
Kickdown ............................................... 476
Controls .................................................... 149
Coolant (Engine) ...................................... 593
Adding to the Radiator ........................... 594
Adding to the Reserve Tank .................... 593
Overheating ............................................ 649
Creeping (Continuously Variable Transmission) .......................................... 476
Cross Traffic Monitor ............................... 566
Cup Holders .............................................. 222
Customer Service Information ................ 679
Customized Features ............... 140, 362, 369
D
Daytime Running Lights .......................... 194
Deceleration Paddle Selector .................. 484
Indicator ................................................... 95
Defaulting All the Settings ...................... 394
Deflation Warning System Indicator ................................................... 99 Defrosting the Windshield and
Windows ................................................. 238
Detachable Anchor ..................................... 53
Devices that Emit Radio Waves ............... 671
Dimming
Headlights ............................................... 190
Rearview Mirror ....................................... 206
Dipstick (Engine Oil) ................................. 589
Directional Signals (Turn Signal) ............. 189
Display Setup .................................... 257, 295
Display/Information Button ..................... 128
Door Mirrors ............................................. 207
Doors ......................................................... 152
Auto Door Locking .................................. 166
Auto Door Unlocking ............................... 166
Keys ........................................................ 152
Locking/Unlocking the Doors from
the Inside............................................... 163
Locking/Unlocking the Doors from
the Outside............................................ 155
Lockout Prevention System ...................... 162
DOT Tire Quality Grading ........................ 609
Driver Information Interface ................... 128
Driver’s Seat Lumbar Support .................. 209
Driving ....................................................... 459
Braking .................................................... 551
Off-Highway Driving Guidelines ............... 467
Shifting ................................................... 477
Transmission ............................................ 476
Driving Position Memory System ............. 203
Dust and Pollen Filter ............................... 618
E
Eco Assist® System ...................................... 18
Eco Drive Display ................................ 19, 132
ECON Mode .............................................. 487
Elapsed Time ............................................. 130
Electric Power Steering (EPS) System Indicator............................................ 98, 656
Electronic Stability Control (ESC) ............. 489
Emergency ................................................ 663
Emissions Testing (Readiness Codes) ....... 673
Engine
Coolant ................................................... 593
If the 12-Volt Battery Is Dead................... 647
Number................................................... 670
Oil ........................................................... 588
Switch Buzzer.......................................... 187
Engine Coolant ......................................... 593
Adding to the Radiator ............................ 594
Adding to the Reserve Tank..................... 593
Overheating ............................................ 649
Engine Oil ................................................. 588
Adding .................................................... 590
Checking................................................. 589
Displaying Oil Life .................................... 582
Low Oil Pressure Indicator ................. 93, 652
Recommended Engine Oil ....................... 588
EPS (Electric Power Steering) System ............................................... 98, 656
EV Button .................................................... 14
EV Indicator ................................................ 94
EV Mode Indicator ..................................... 94
22 CR-V HEV ELP-31TPG6200.book 683 ページ ２０２１年６月３０日　水曜日　午前１１時６分

685

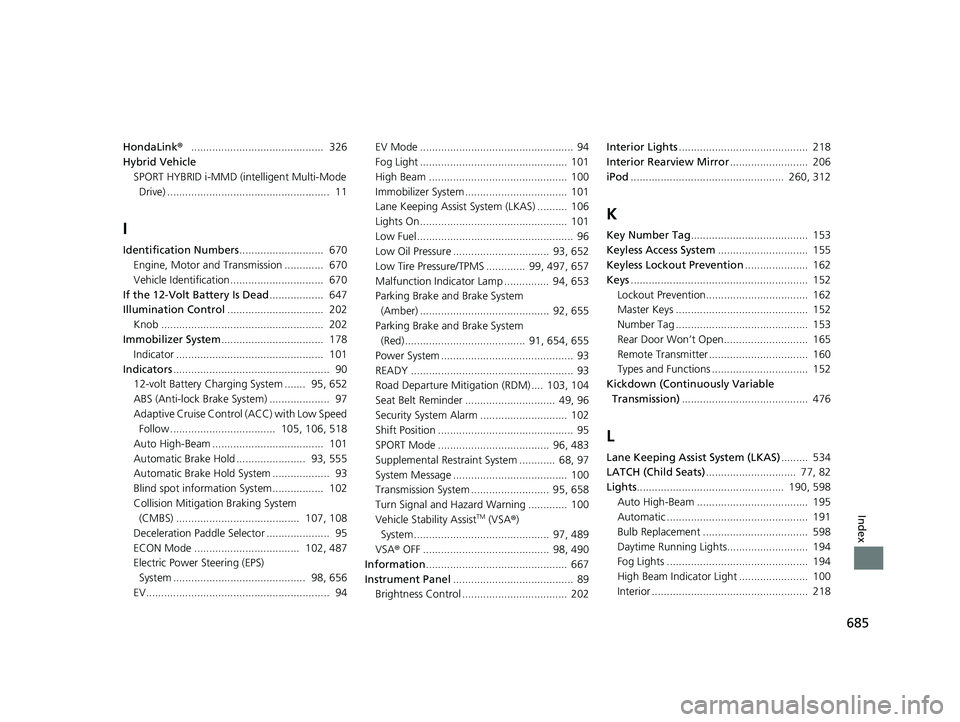

Index
HondaLink®............................................ 326
Hybrid Vehicle
SPORT HYBRID i-MMD (int elligent Multi-Mode
Drive) ...................................................... 11
I
Identification Numbers ............................ 670
Engine, Motor and Transmission ............. 670
Vehicle Identification............................... 670
If the 12-Volt Battery Is Dead .................. 647
Illumination Control ................................ 202
Knob ...................................................... 202
Immobilizer System .................................. 178
Indicator ................................................. 101
Indicators .................................................... 90
12-volt Battery Charging System ....... 95, 652
ABS (Anti-lock Brake System) .................... 97
Adaptive Cruise Control (ACC) with Low Speed Follow ................................... 105, 106, 518
Auto High-Beam ..................................... 101
Automatic Brake Hold ....................... 93, 555
Automatic Brake Hold System ................... 93
Blind spot information System................. 102
Collision Mitigati on Braking System
(CMBS) ......................................... 107, 108
Deceleration Paddle Selector ..................... 95
ECON Mode ................................... 102, 487
Electric Power Steering (EPS) System ............................................ 98, 656
EV............................................................. 94 EV Mode ................................................... 94
Fog Light ................................................. 101
High Beam .............................................. 100
Immobilizer System .................................. 101
Lane Keeping Assist System (LKAS) .......... 106
Lights On ................................................. 101
Low Fuel .................................................... 96
Low Oil Pressure ................................ 93, 652
Low Tire Pressure/TPMS ............. 99, 497, 657
Malfunction Indicator Lamp ............... 94, 653
Parking Brake and Brake System
(Amber) ........................................... 92, 655
Parking Brake and Brake System (Red)........................................ 91, 654, 655
Power System ............................................ 93
READY ...................................................... 93
Road Departure Mitigation (RDM) .... 103, 104
Seat Belt Reminder .............................. 49, 96
Security System Alarm ............................. 102
Shift Position ............................................. 95
SPORT Mode ..................................... 96, 483
Supplemental Restraint System ............ 68, 97
System Message ...................................... 100
Transmission System .......................... 95, 658
Turn Signal and Haza rd Warning ............. 100
Vehicle Stability Assist
TM (VSA ®)
System............................................. 97, 489
VSA ® OFF .......................................... 98, 490
Information ............................................... 667
Instrument Panel ........................................ 89
Brightness Control ................................... 202 Interior Lights
........................................... 218
Interior Rearview Mirror .......................... 206
iPod ................................................... 260, 312
K
Key Number Tag ....................................... 153
Keyless Access System .............................. 155
Keyless Lockout Prevention ..................... 162
Keys ........................................................... 152
Lockout Prevention.................................. 162
Master Keys ............................................ 152
Number Tag ............................................ 153
Rear Door Won’t Open............................ 165
Remote Transmitter ................................. 160
Types and Functions ................................ 152
Kickdown (Continuously Variable Transmission) .......................................... 476
L
Lane Keeping Assist System (LKAS) ......... 534
LATCH (Child Seats) .............................. 77, 82
Lights ................................................. 190, 598
Auto High-Beam ..................................... 195
Automatic ............................................... 191
Bulb Replacement ................................... 598
Daytime Running Lights........................... 194
Fog Lights ............................................... 194
High Beam Indicator Light ....................... 100
Interior .................................................... 218
22 CR-V HEV ELP-31TPG6200.book 685 ページ ２０２１年６月３０日　水曜日　午前１１時６分

686
Index
Light Switches ......................................... 190
Lights On Indicator .................................. 101
Turn Signals ............................................. 189
Load Limits ................................................ 463
Locking/Unlocking .................................... 152
Auto Door Locking/Unlocking .................. 166
Childproof Door Locks ............................. 165
From Inside .............................................. 163
From Outside ........................................... 155
Keys ........................................................ 152
Using a Key ............................................. 161
Lockout Prevention System ...................... 162
Low Battery Charge .................................. 652
Low Fuel Indicator ...................................... 96
Low Oil Pressure Indicator ................. 93, 652
Low Smart Entry Remote Signal Strength ................................................... 154
Low Tire Pressure/TPMS Indicator .............. 99
Lower Anchors ............................................ 77
Luggage (Maximum Load Limit) .............. 463
Lumbar Support ........................................ 209
Lumbar Support Adjustment Switch ....... 209
M
Maintenance............................................. 577
12-volt Battery ......................................... 615
Brake Fluid............................................... 596
Cleaning .................................................. 619
Coolant ................................................... 593 Maintenance Minder
TM............................ 581
Oil ........................................................... 589
Precautions ............................................. 578
Radiator .................................................. 594
Remote Transmitter ................................. 617
Replacing Light Bulbs .............................. 598
Safety...................................................... 579
Service Items ........................................... 584
Tires ........................................................ 606
Transmission Fluid ................................... 595
Under the Hood ...................................... 586
Maintenance Minder ....................... 131, 581
Malfunction Indicator Lamp .............. 94, 653
Map Lights ................................................ 219
Maximum Load Limit ............................... 463
Meters, Gauges ......................................... 126
Mirrors ...................................................... 206
Adjusting ................................................ 206
Door ....................................................... 207
Exterior ................................................... 207
Interior Rearview ..................................... 206
Modifications (and Accessories) .............. 624
Moonroof ................................................. 185
MP3 ................................................... 265, 321
Multi-View Rear Camera .......................... 570
N
Navigation................................................ 139
Numbers (Identification) .......................... 670
O
Odometer................................................. 129
Off-Highway Driving Guidelines ............. 467
Oil (Engine) .............................................. 588
Adding ................................................... 590
Checking ................................................ 589
Displaying Oil Life ................................... 582
Low Oil Pressure Indicator ................. 93, 652
Recommended Engine Oil ....................... 588
Viscosity.................................................. 588
Open Source Licenses .............................. 361
Opening/Closing Hood ...................................................... 587
Moonroof ............................................... 185
Power Windows...................................... 181
Tailgate................................................... 167
Outside Temperature Display ................. 138
Overheating ............................................. 649
P
Pandora®......................................... 263, 319
Panic Mode ............................................... 180
Parking ..................................................... 559
Parking Brake ........................................... 551
Parking Brake and Brake System Indicator (Amber) ............................................. 92, 655
Parking Brake and Brake System Indicator (Red) .......................................... 91, 654, 655
Parking Sensor System ............................. 561
22 CR-V HEV ELP-31TPG6200.book 686 ページ ２０２１年６月３０日　水曜日　午前１１時６分
