uuBluetooth ® HandsFreeLink ®u HFL Menus
444
Features
■To make a call using the imported
phonebook
1. Select .
2. Select Phonebook .
3. Select a name.
u You can also search by letter. Select
Search .
u Use the keyboard on the touch screen for
entering name, if multiple numbers exist
select a number.
4. Select a number.
u Dialing starts automatically.1To make a call using the imported phonebook
You can also select Phonebook on the Phone
Menu screen.
You can call a stored voice-tagged speed dial number
using voice commands. 2 Speed Dial P. 436
22 CR-V HEV ELP-31TPG6200.book 444 ページ ２０２１年６月３０日　水曜日　午前１１時６分

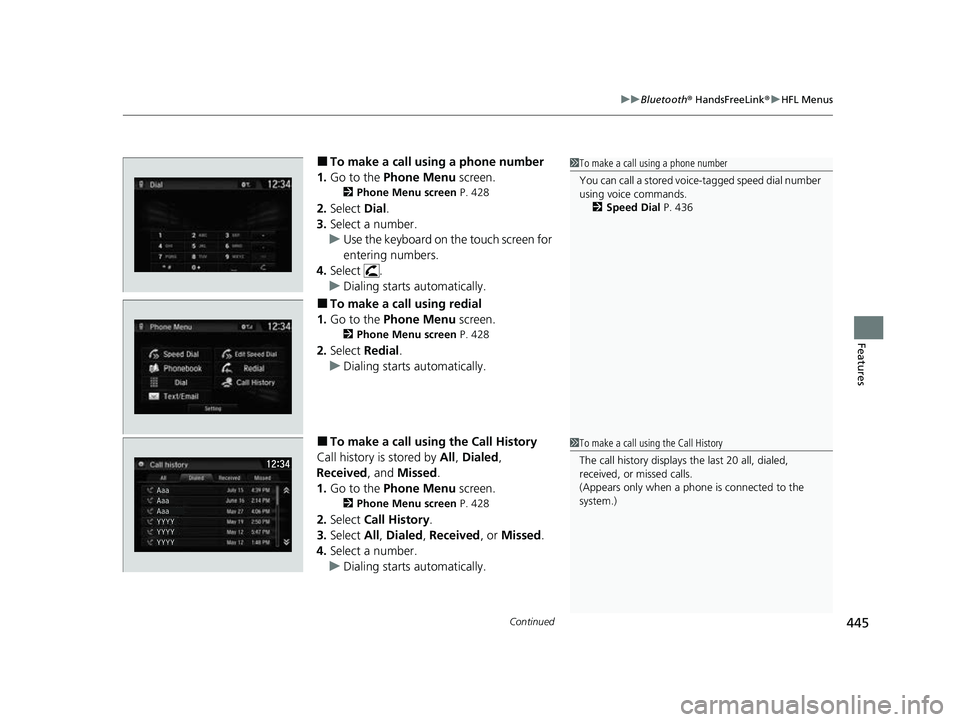

Continued445
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To make a call using a phone number
1. Go to the Phone Menu screen.
2Phone Menu screen P. 428
2.Select Dial.
3. Select a number.
u Use the keyboard on the touch screen for
entering numbers.
4. Select .
u Dialing starts automatically.
■To make a call using redial
1. Go to the Phone Menu screen.
2Phone Menu screen P. 428
2.Select Redial .
u Dialing starts automatically.
■To make a call using the Call History
Call history is stored by All, Dialed ,
Received , and Missed .
1. Go to the Phone Menu screen.
2Phone Menu screen P. 428
2.Select Call History .
3. Select All, Dialed , Received , or Missed .
4. Select a number.
u Dialing starts automatically.
1To make a call using a phone number
You can call a stored voice-tagged speed dial number
using voice commands.
2 Speed Dial P. 436
1To make a call using the Call History
The call history displays the last 20 all, dialed,
received, or missed calls.
(Appears only when a phone is connected to the
system.)
22 CR-V HEV ELP-31TPG6200.book 445 ページ ２０２１年６月３０日　水曜日　午前１１時６分

460
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid , remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the hood is securely closed.
u If the hood opens while driving, your front view will be blocked.
• Make sure the tires are in good condition.
u Check air pressures, and check for damage and excessive wear.
2Checking and Maintaining Tires P. 606
•Make sure there are no people or ob jects behind or around the vehicle.
u There are blind spots from the inside.
■Exterior Checks1Exterior Checks
NOTICE
When doors are frozen s hut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable material s left under the hood, causing a
fire. If you've parked y our vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also, check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.
22 CR-V HEV ELP-31TPG6200.book 460 ページ ２０２１年６月３０日　水曜日　午前１１時６分

uuWhen Driving uTurning on the Power
470
Driving
3. Without depressing th e accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the READY indicator.
u Keep depressing the brake pedal until
the READY indicator comes on.
u The READY indicator comes on when
the power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the READY
indicator does not come on and a
warning message appears on the driver
information interface.
2 Driver Information Interface
Warning and Information Messages
P. 109
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P.
2. Press the POWER button.
■Stopping the Power System
1Turning on the Power
Bring the keyless remote close to the POWER button
if the battery in the keyless remote is weak.
2 If the Keyless Remote Battery is Weak
P. 645
The power system may not activate if the keyless
remote is subjected to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 30
seconds before trying again.
The engine may not run when the vehicle is ready for
driving.
You can start driving with the READY indicator on.
If you press the POWER button while depressing the
brake pedal with the READY indicator on, the power
mode is set to VEHICLE OFF and you cannot start
driving. 2 READY Indicator P. 93
22 CR-V HEV ELP-31TPG6200.book 470 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued471
uuWhen Driving uTurning on the Power
Driving
You can remotely turn the power system on using the keyless remote.
■To turn the power system on
The power system is on for up to 10 minutes without you starting the vehicle.
To extend the time for another 10 minutes during the first 10 minutes, press the
button, then press and hold the button.
u Some exterior lights flash six times if a 10-minute extension request was
transmitted successfully.
■Remote Engine Start1 Remote Engine Start
The remote engine start may violate local laws.
Before using the remote e ngine start, check your
local laws.
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
This distance may vary by external electrical
interference.
3WARNING
Carbon monoxide ga s is toxic and can
rapidly accumulate in closed or even partly
enclosed areas.
Breathing it can cause unconsciousness and
even kill you.
Never use the remote engine starter with
the vehicle parked in a garage or other
areas with limited ventilation.
Press the button, th en press and hold
the button.
Some exterior lights flash once.
Go within the range,
and try again.
LED: Blinks when any button is pressed.
Some exterior lights flash six
times if the power system
starts successfully. Exterior lights will not flash
if the power system does
not start.
22 CR-V HEV ELP-31TPG6200.book 471 ページ ２０２１年６月３０日　水曜日　午前１１時６分

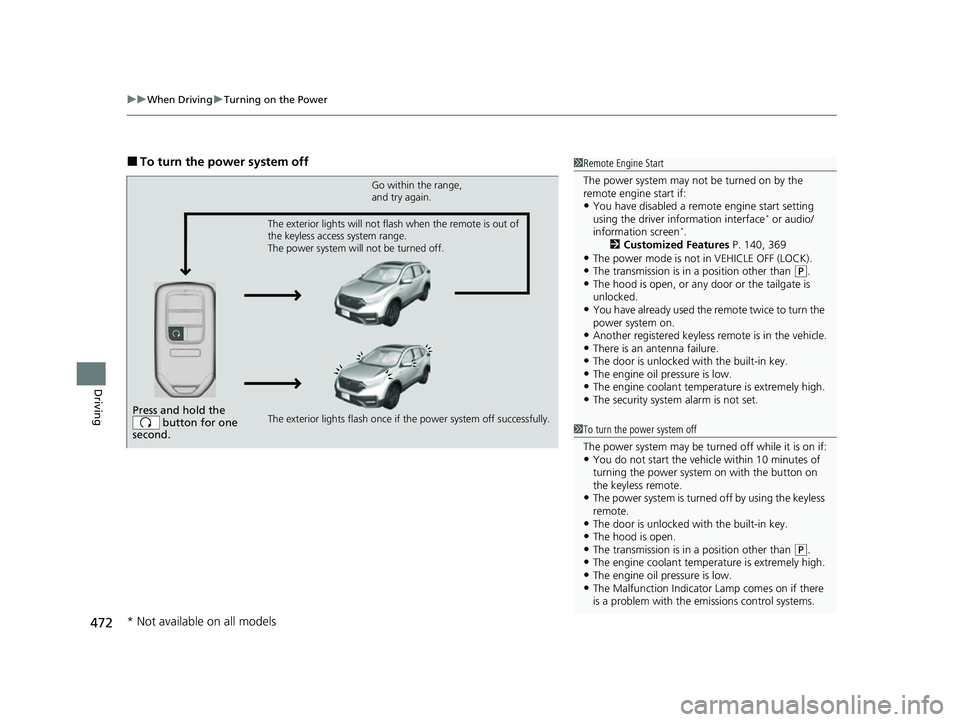

uuWhen Driving uTurning on the Power
472
Driving
■To turn the power system off1Remote Engine Start
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the driver information interface* or audio/
information screen*.
2 Customized Features P. 140, 369
•The power mode is not in VEHICLE OFF (LOCK).•The transmission is in a position other than (P.•The hood is open, or any door or the tailgate is
unlocked.
•You have already used the remote twice to turn the
power system on.
•Another registered keyless remote is in the vehicle.•There is an antenna failure.•The door is unlocked with the built-in key.•The engine oil pressure is low.•The engine coolant temper ature is extremely high.•The security system alarm is not set.Press and hold the
button for one
second.
Go within the range,
and try again.
The exterior lights flash once if the power system off successfully. The exterior lights will not flash when the remote is out of
the keyless access system range.
The power system will not be turned off.
1 To turn the power system off
The power system may be turned off while it is on if:
•You do not start the vehicl e within 10 minutes of
turning the power system on with the button on
the keyless remote.
•The power system is turned off by using the keyless
remote.
•The door is unlocked with the built-in key.•The hood is open.•The transmission is in a position other than ( P.•The engine coolant temper ature is extremely high.•The engine oil pressure is low.•The Malfunction Indicator Lamp comes on if there
is a problem with the emissions control systems.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 472 ページ ２０２１年６月３０日　水曜日　午前１１時６分

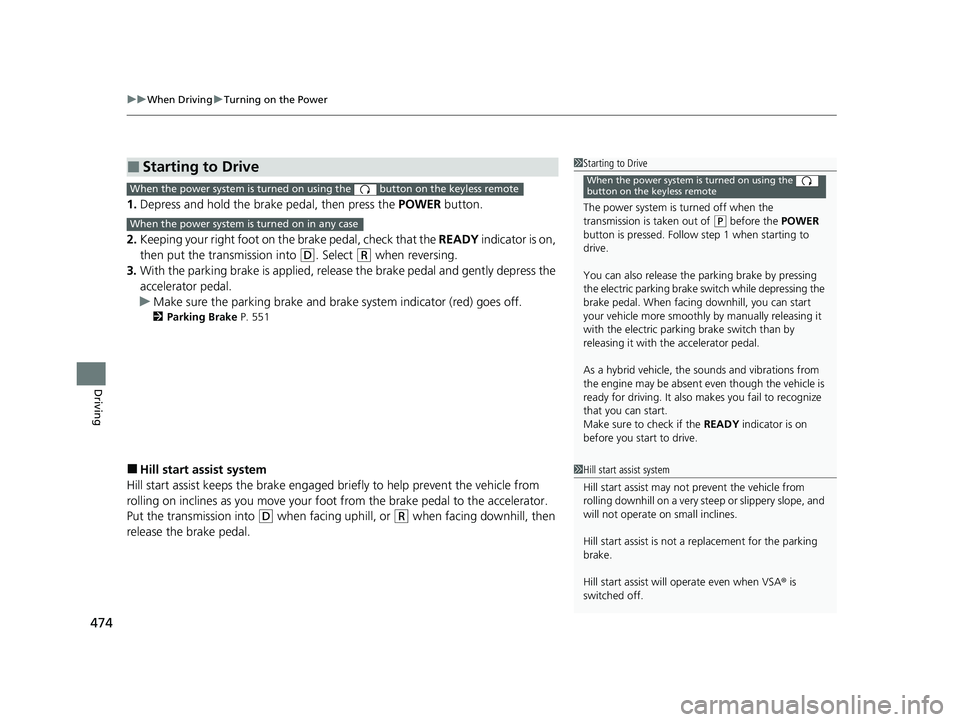

uuWhen Driving uTurning on the Power
474
Driving
1. Depress and hold the brake pedal, then press the POWER button.
2. Keeping your right foot on the brake pedal, check that the READY indicator is on,
then put the tra nsmission into
(D. Select (R when reversing.
3. With the parking brake is applied, releas e the brake pedal and gently depress the
accelerator pedal.
u Make sure the parking brake and brake system indicator (red) goes off.
2 Parking Brake P. 551
■Hill start assist system
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your fo ot from the brake pedal to the accelerator.
Put the transmission into
(D when facing uphill, or (R when facing downhill, then
release the brake pedal.
■Starting to Drive1 Starting to Drive
The power system is turned off when the
transmission is taken out of
(P before the POWER
button is pressed. Follow step 1 when starting to
drive.
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal. When facing downhill, you can start
your vehicle more smoothly by manually releasing it
with the electric parki ng brake switch than by
releasing it with th e accelerator pedal.
As a hybrid vehicle, the sounds and vibrations from
the engine may be absent even though the vehicle is
ready for driving. It also makes you fail to recognize
that you can start.
Make sure to check if the READY indicator is on
before you start to drive.
When the power system is turned on using the
button on the keyless remoteWhen the power system is turned on using the button on the keyless remote
When the power system is turned on in any case
1 Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very st eep or slippery slope, and
will not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
Hill start assist will operate even when VSA ® is
switched off.
22 CR-V HEV ELP-31TPG6200.book 474 ページ ２０２１年６月３０日　水曜日　午前１１時６分

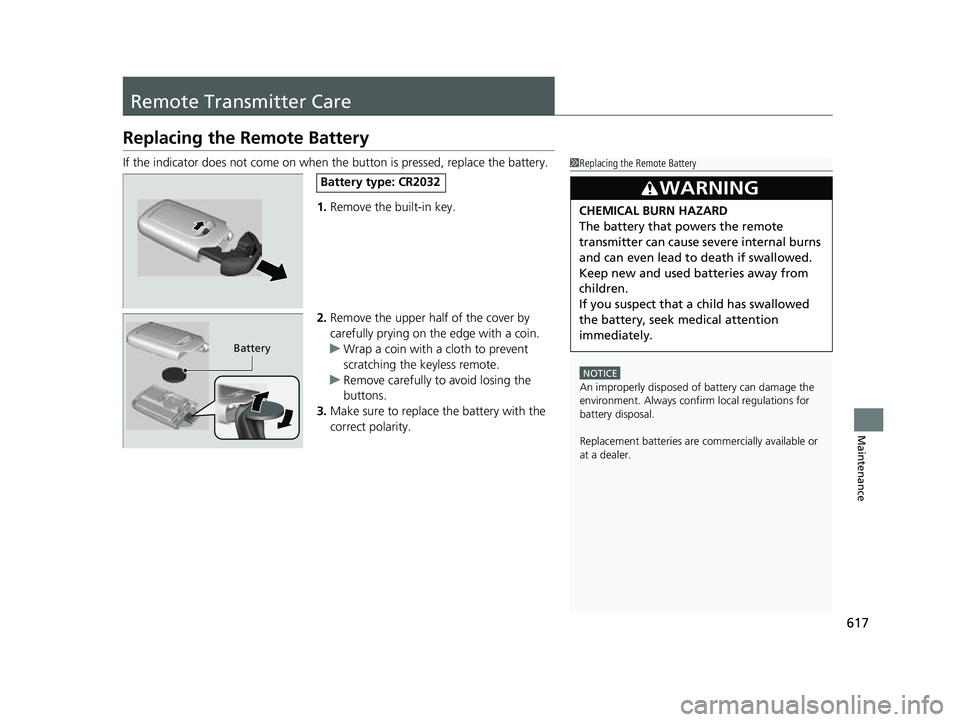

617
Maintenance
Remote Transmitter Care
Replacing the Remote Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the keyless remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Remote Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposalM
Replacement batteries are commercially available or
at a dealer.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
Battery
22 CR-V HEV ELP-31TPG6200.book 617 ページ ２０２１年６月３０日　水曜日　午前１１時６分

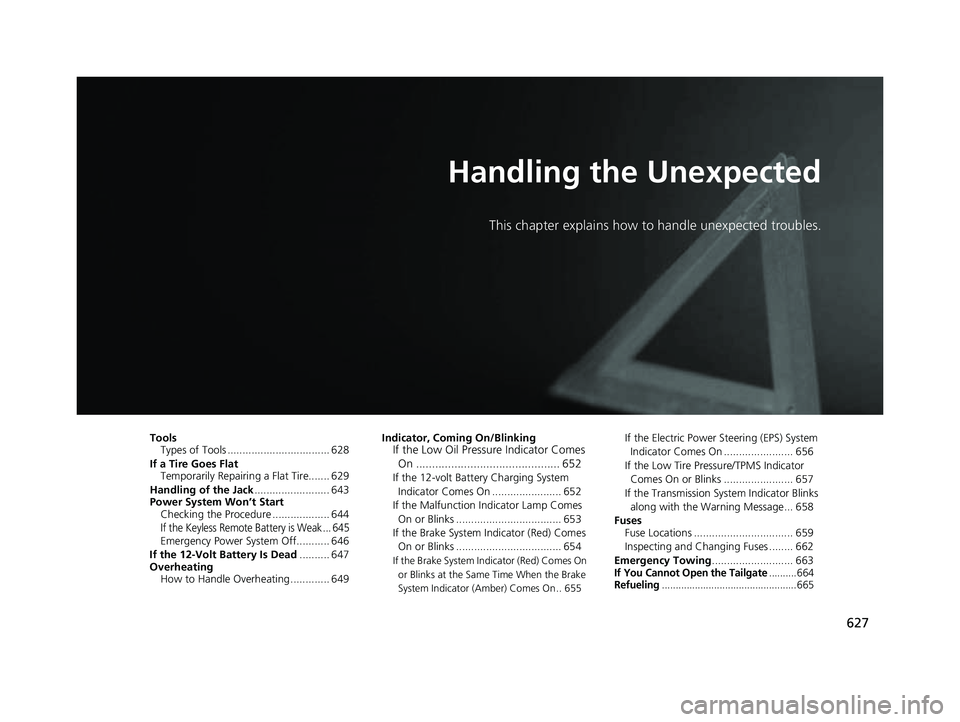

627
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 628
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 629
Handling of the Jack ......................... 643
Power System Won’t Start Checking the Procedure ................... 644
If the Keyless Remote Battery is Weak ... 645Emergency Power System Off........... 646
If the 12-Volt Battery Is Dead .......... 647
Overheating How to Handle Overheating ............. 649 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 652
If the 12-volt Batt ery Charging System
Indicator Comes On ....................... 652
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 653
If the Brake System Indicator (Red) Comes On or Blinks ................................... 654
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 655
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 656
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 657
If the Transmission System Indicator Blinks along with the Warning Message... 658
Fuses Fuse Locations ................................. 659
Inspecting and Changing Fuses ........ 662
Emergency Towing ........................... 663
If You Cannot Open the Tailgate.......... 664Refueling................................................. 665
22 CR-V HEV ELP-31TPG6200.book 627 ページ ２０２１年６月３０日　水曜日　午前１１時６分

644
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready To Drive message
does not appear on the driver information interface, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature Is Too Cold For Vehicle To Operate
message appears.2 Driver Information Interface Warning and
Information Messages P. 109
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless remote is in its operating range.
2POWER Button Operating Range P. 186
2If the Keyless Remote Battery is Weak
P. 645
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission system indicator blinks and Transmission
Problem. Apply Parking Brake When Parked message
appears.2 If the Transmission System Indicator Blinks
along with the Warning Message P. 658
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 662
Check the shift
position.The transmission is not in (P.Put the transmission into (P.
Check the
immobilizer system
indicator. When the immobilizer system indicator is blinking, the power
system cannot be turned on.
2
Immobilizer System Indicator P. 101
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the 12-Volt Battery Is Dead P. 647
22 CR-V HEV ELP-31TPG6200.book 644 ページ ２０２１年６月３０日　水曜日　午前１１時６分
