HONDA ELEMENT 2005 1.G Owners Manual

Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 220
................................
Specif ications .222
DOT Tire Quality Grading ......................
(U.S. Vehicles) .224
Unif orm Tire Quality ..................................
Grading .224
.................................
Treadwear .224
......................................
Traction .224
.............................
Temperature .225
.................................
Tire Labeling .226 .......................
Emissions Controls .227
.....................
The Clean Air Act .227
Crankcase Emissions Control ....................................
System .227
Evaporative Emissions Control ....................................
System .227
Onboard Ref ueling Vapor ................................
Recovery .227
...
Exhaust Emissions Controls . 228
....................
PGM-FI System .228
Ignition Timing Control ................................
System .228
Three Way Catalytic ...........................
Converter .228
....................
Replacement Parts . 228
..
Three Way Catalytic Converter . 229
..............
State Emissions Testing . 230
T echnical Inf ormat ion
T echnical Inf ormation
219

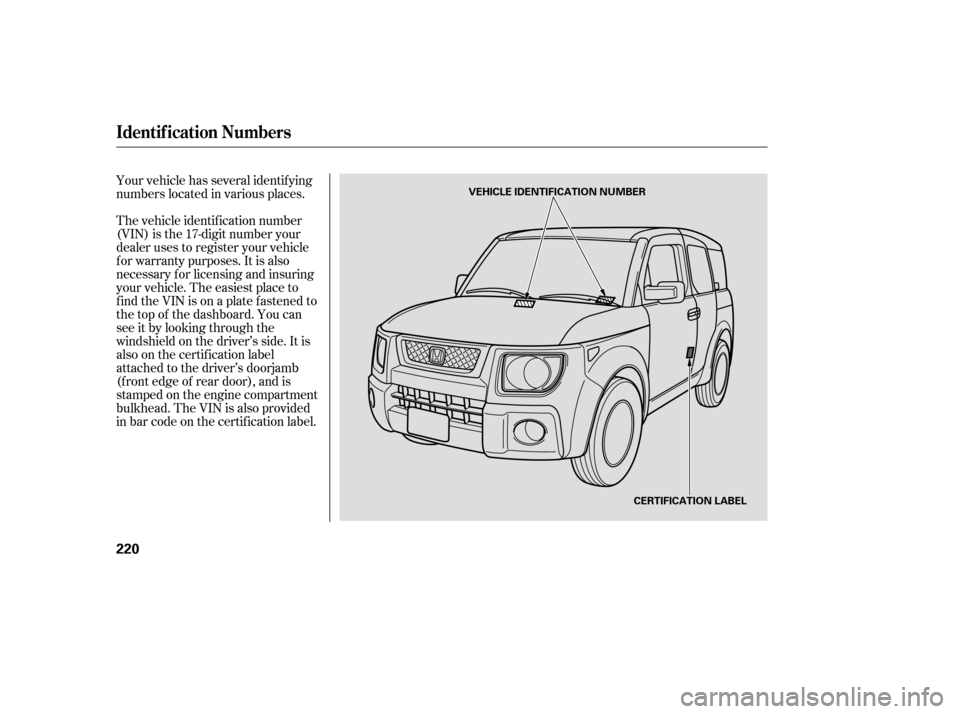

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb
(f ront edge of rear door), and is
stamped on the engine compartment
bulkhead. The VIN is also provided
in bar code on the certif ication label.
Identif ication Numbers
220
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

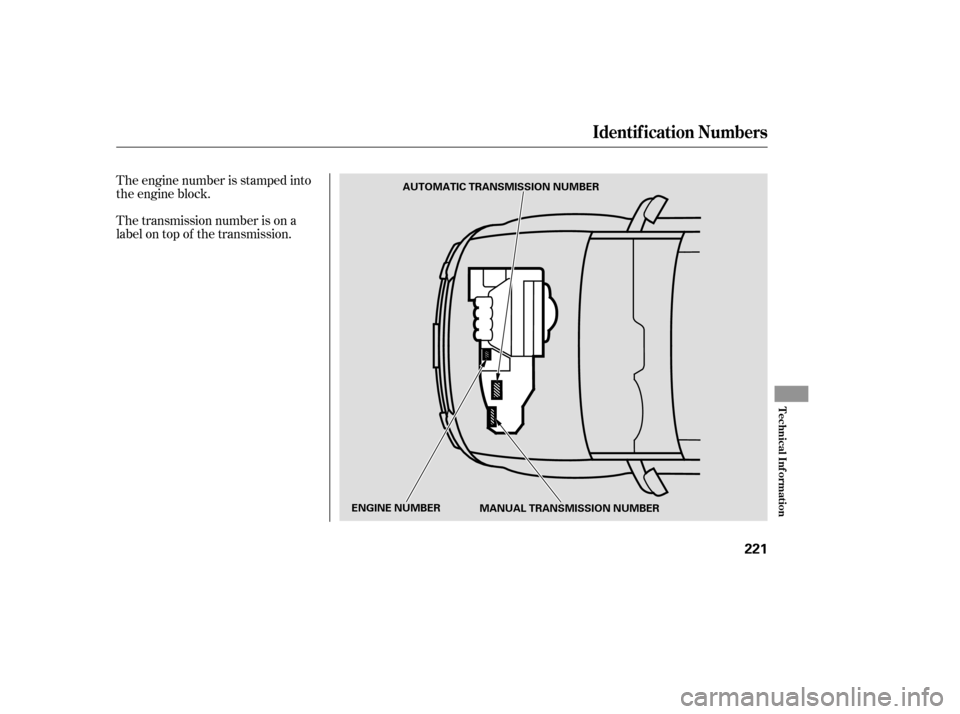

The transmission number is on a
label on top of the transmission. The engine number is stamped into
the engine block.
Identif ication Numbers
T echnical Inf ormation
221
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER MANUAL TRANSMISSION NUMBER

ÎÎ
ÎÎ
Î
Specif ications
222
Dimensions
Weights
Engine
Capacities
169.3 in (4,300 mm)
71.5 in (1,815 mm)
70.4 in (1,788 mm)
101.4 in (2,575 mm)
62.1 in (1,577 mm)
62.3 in (1,582 mm)
1.88 US gal (7.1
)
1.90 US gal (7.2
)
3.3 US qt (3.1
)
7.6 US qt (7.2
)
2.0 US qt (1.9
)
1.43 US gal (5.4
)
3.1 US qt (2.9
)
1.45 US gal (5.5
)
6.9 US qt (6.5
)
5.6 US qt (5.3
)
4.2 US qt (4.0)
4.4 US qt (4.2)
15.9 US gal (60
)
9.7 : 1
144 cu-in (2,354 cm
)
3.43 x 3.90 in (87.0 x 99.0 mm)
0.145 US gal (0.55
)1.3 US qt (1.2
)
1.1 US qt (1.0)
2.4 US qt (2.3
)
2.3 US qt (2.2)
Excluding the oil remaining in the engine.
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Fuel tank
Engine oil
See the certification label attached
to the driver’s doorjamb (front
edge of rear door).
Water cooled 4-stroke DOHC
VTEC 4-cylinder gasoline engine Engine
coolant
Automatic
transmission
fluid
Manual
transmission
fluid
Rear
differential
fluid (4WD)
Windshield
washer
reservoir
IZFR6K-11
SKJ20DR-M11
4.8 US qt (4.5
)
Approx.
Front
Rear
Change
Without filter
Total 1:
2:
NGK:
DENSO: Change
Total
Change
Total
Change
4WD
2WD
Total 4WD
2WD
Change
Total 4WD
2WD
Change
Total
Automatic Transmission
Manual Transmission
1 2
2
Including filter

µµµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
T echnical Inf ormation
223
Air Conditioning
Lights
Battery Fuses
Alignment
Tires
HFC-134a (R-134a)
16.9 18.7 oz (480 530 g) SP-10
12 V 60/55 W (H4/HB2)
12 V 12 V
12 V
12 V
12 V
12 V
12 V
8W
4CP
8W
5W
18 W (21 CP)
21/5 W
21 W P215/70R16 99S1°50’
1°
0°13’
0.08 in (2.0 mm) 0.0in(0mm)
12 V 21/5 W
12 V 3 CP
12 V 21 W
32 psi (220 kPa , 2.2 kgf/cm
)
34 psi (235 kPa , 2.4 kgf/cm)
45 AH/20 HR
12 V
Refrigerant type
Charge quantity
Lubricant type
Headlights
Front turn signal/parking
lights
Front side marker lights
Rear turn signal lights
Brake/Taillights
Back-up lights
License plate lights
Ceiling light
Spotlights
Cargo area light
High-mount brake light
Capacity Interior
Under-hood
Toe-in
Camber
Caster
Size
Pressure
60 psi (420 kPa , 4.2 kgf/cm)
See page
215or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 216or the fuse box
cover.
Front
Rear
Front
Rear
Front
Front/Rear
Front
Rear
Spare

µ
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear
Traction AA, A, B, C
DOT T ire Quality Grading (U.S. Vehicles)
224

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance, which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Saf ety
Standard No. 109. Grades B and A
represent higher levels of
perf ormance on the laboratory test
wheel than the minimum required by
law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
Temperature A,B,C
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
225

µ
µ
µ
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark.
Tire type code.
Date of manufacture. The maximum air
pressurethetirecan
hold.
The maximum load the
tire can carry at
maximum air pressure.
P
R
16 DOT
B97R
FW6X
2202Max Press
Max Load
215
70 99
S
Tire Labeling
Tire Labeling
Tire Size
T ire Ident if icat ion NumberMaximum T ire Pressure
Maximum T ire L oad
226
DOT B97R FW6X 2202
P215/70R16 99S

Î
ÎThe burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons.
Controlling the production of NOx,
CO, and HC is important to the
environment. Under certain
conditions of sunlight and climate,
NOx and HC react to f orm
photochemical ‘‘smog.’’ Carbon
monoxide does not contribute to
smog creation, but it is a poisonous
gas. The United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specif ied in an
agreement with Environment
Canada, at the time they are
manuf actured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The positive crankcase ventilation valve routes
them from the crankcase back to the
intake manif old. They are then
drawn into the engine and burned.
As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard ref ueling vapor
recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
163
Emissions Cont rols
The Clean Air Act
Crankcase Emissions Control
System Evaporative Emissions Control
System
Onboard Ref ueling Vapor
Recovery
T echnical Inf ormation
227

The PGM-FI system uses sequential
multiport f uel injection. It has three
subsystems: air intake, engine
control, and f uel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It
then controls how much f uel to inject
under all operating conditions.The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The exhaust emissions controls
include three systems: PGM-FI,
ignition timing control, and three
way catalytic converter. These three
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual f or more informa-
tion.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor. This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
Exhaust Emissions Controls Replacement PartsPGM-FI Syst em
Three Way Catalytic Converter
Ignit ion T iming Cont rol Syst em
Emissions Cont rols
228
