Light Control SwitchOn EX modelThe light control switch has three
positions: OFF, Door Activated, and
ON.When the switch is in the OFF position:●The individual map lights can be
turned on and off by pressing the
lenses.●The ceiling light cannot be turned
on.
When the switch is in the door activatedposition:●The individual map lights come on
when any door is opened, or when
the remote transmitter is used to
unlock the doors (see page 77).
When the doors are closed, each
light can be turned on and off by
pushing the lens.
After all doors are closed tightly, the
lights dim slightly, then fade out in
about 30 seconds.
With any door left open, the lights stay
on about 3 minutes, then go out.
The lights also come on when the key
is removed from the ignition switch.When the light control switch is in the ON position:●All the individual map lights and
ceiling light come on and stay on as
long as the switch remains in the ON
position.
Individual Map LightsOn EX modelTurn on the individual map lights by
pushing the lens. Push the lens again
to turn it off.
OFF ON
DOOR ACTIVATED POSITION
Interior Lights
95
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Ceiling LightThe ceiling light has a three-position
switch: ON, Door Activated, and
OFF.
In the Door Activated (center)
position, the light comes on when
you:
●Open any door.●Remove the key from the ignition.
If you do not open a door, the light
fades out in about 30 seconds.●Unlock the doors with the key or
remote transmitter.Cargo Area Light
The cargo area light has a three-
position switch. In the center
position, the light comes on when
you open the hatch.
Ignition Switch Light
The ignition switch light comes on
when you unlock the driver's door,
and fades out about 30 seconds after
you close the door.
ON
OFF DOOR ACTIVATED
Interior Lights9610/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

ꭧ: If equipped.
CARGO AREA CARGO AREA
SIDE POCKET COIN TRAY
DOOR POCKETS
BEVERAGE HOLDERS LX model EX modelOVERHEAD CONSOLE
ꭧ
ACCESSORY
POWER
SOCKET
GLOVE BOX
CENTER LOWER
POCKET
ꭧ
SEAT-BACK POCKET
ꭧ
VANITY MIRRORS
ꭧ
BEVERAGE
HOLDERS
EX model is shown.
Interior Convenience Items
97
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Cooler BoxOn EX modelThere is a cooler box between the
driver's and passenger's seats.
To open the cooler box, slide the tab
backward, and pull up the lid.
The lid has a breakaway feature. If
the lid is rotated back too far it will
break away from the box without
damage.To reinstall the lid, vertically set the
rear lid hinge to the pins on the box
and push down. The lid must be
vertical as shown in the illustration.
To remove the cooler box, rotate the
handle up to the unlocked position.
Slide the console towards the rear of
the vehicle then lift the console.
TAB
Interior Convenience Items9810/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

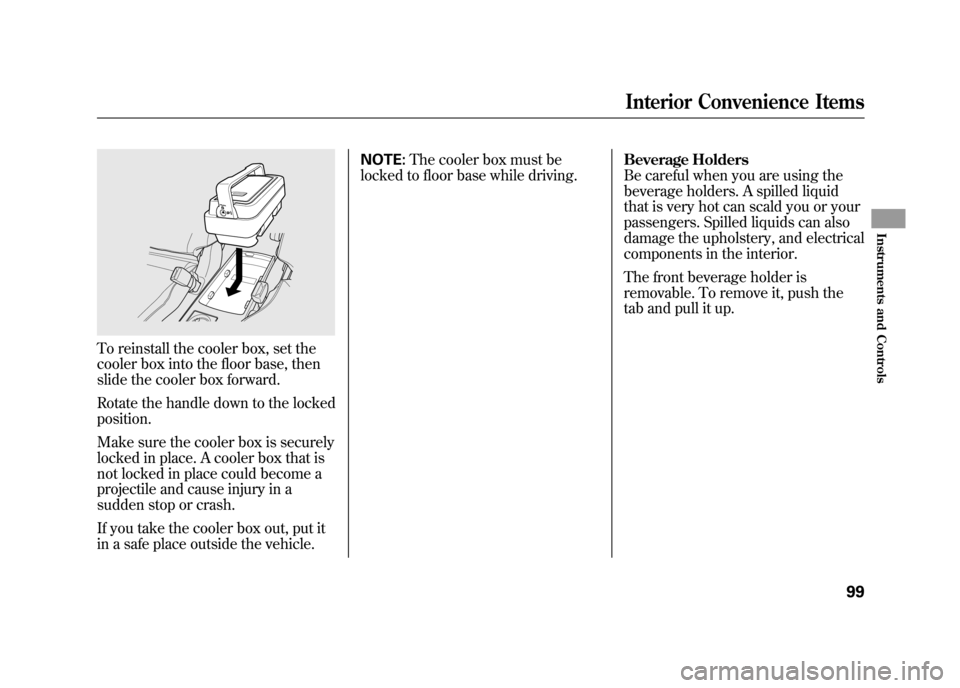

To reinstall the cooler box, set the
cooler box into the floor base, then
slide the cooler box forward.
Rotate the handle down to the locked
position.
Make sure the cooler box is securely
locked in place. A cooler box that is
not locked in place could become a
projectile and cause injury in a
sudden stop or crash.
If you take the cooler box out, put it
in a safe place outside the vehicle.NOTE:
The cooler box must be
locked to floor base while driving. Beverage Holders
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, and electrical
components in the interior.
The front beverage holder is
removable. To remove it, push the
tab and pull it up.
Interior Convenience Items
99
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Accessory Power Sockets
Your vehicle has one or two
accessory power sockets, depending
on the model. All models have a front
accessory power socket on the
dashboard above the glove box.
EX model has an accessory power
socket in the cargo area on the
passenger's side.
These sockets are intended to supply
power for 12 volt DC accessories that
are rated 120 watts or less (10 amps).
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less (10
amps).Glove Box
Open the glove box by pulling the
bottom of the handle. Close it with a
firm push. Lock or unlock the glove
box with the master key.
An open glove box can cause
serious injury to your passenger
in a crash, even if the
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Sun Visor
To use the sun visor, pull it down.
When using the sun visor for the
side window, remove the support rod
from the clip, and swing it out.
In this position, the sun visor can be
adjusted by moving it on its slider.
Do not use the extended sun visor
over the inside mirror.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Slide
Interior Convenience Items10010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Vanity MirrorOn EX modelTo use the vanity mirror on the back
of the sun visor, pull up the cover.Overhead Console
On EX modelTo open the overhead console, push
on the rear edge or slide the tab as
shown in the illustration. It will
unlatch and swing down. To close it,
push it until it latches. Make sure the
holder is closed while you are
driving.You may also store small items in
this holder. Make sure they are small
enough to let the holder close and
latch, and that they are not heavy
enough to cause the holder to pop
open while driving.
Push
Slide
Slide
Interior Convenience Items
101
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

10210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

The heating and air conditioning
system in your vehicle provides a
comfortable driving environment in
all weather conditions.
The standard audio system has many
features. This section describes
those features and how to use them.
(If you have an optional audio
system, refer to the operating
instructions that came with it.)On EX modelYour vehicle has an anti-theft audio
system that requires a code number
to enable it.Vents, Heating, and A/C
.............
104
Air Flow Controls
....................
105
Ventilation
...............................
106
Using the Heater
.....................
106
Using the A/C
.........................
106
Dehumidify the Interior
..........
107
To Defog and Defrost
..............
107
To Remove Exterior Frost or Ice From the Windows
........
108
To Turn Everything Off
...........
108
Audio System
..............................
109
Playing the AM/FM Radio
..........
110
Playing the XM
®Radio
................
113
Playing a Disc
.............................
119
Disc Player Error Messages
.......
125
Disc Changer Error Messages
................................
126
Protecting Your Discs
.................
127
FM/AM Radio Reception
............
130
Radio Theft Protection
................
132
Setting the Clock
.........................
133
Remote Audio Controls
...............
135
Auxiliary Input Jack
....................
136
Cruise Control
............................
137
Features
103
Features
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

FAN CONTROL DIAL TEMPERATURECONTROL DIALMODE CONTROL DIAL
DEFROST POSITION
REAR WINDOW DEFOGGER
BUTTON
MAX A/C POSITION
A/C (AIR CONDITIONING)
BUTTON
RECIRCULATION BUTTON
Vents, Heating, and A/C10410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
