HONDA ELEMENT 2011 1.G Owners Manual

Front Seat ArmrestsOn EX modelEach front seat has an armrest on the
side of the seat-back. To use it, pivot
it down.Head Restraints
See page 13 for important safety
information and a warning aboutimproperly positioning head restraints.Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from the likelihood of
whiplash and other injuries.
They are most effective when you
adjust them so the center of the back
of the occupant's head rests against
the center of the restraint.
CONTINUED
Seats
85
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Adjusting the Head RestraintThe head restraints in the front and
rear seating positions adjust for
height. You need both hands to
adjust the restraint. To raise it, pull
upward. To lower the restraint, push
the release button sideways and
push the restraint down.
Removing the Head RestraintTo remove a head restraint for
cleaning or repair, pull it up as far as
it will go. Push the release button,
then pull the restraint out of the seat-
back.
Failure to reinstall the head
restraints can result in severe
injury during a crash.
Always replace the head
restraints before driving.
When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
Make sure the head restraint locks in
position when you reinstall it.
RELEASE BUTTON
Front
Rear
CUSHION
RELEASE
BUTTON
SEAT-BACK
LEGS
Seats8610/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Reclining the Front SeatsYou can recline the seat-backs on the
front seats so they are level with the
rear seat cushions, making a large
cushioned area. To do this:
1. Remove the head restraints fromthe front seats (see page 85), and
store them in the side pockets of
the cargo area. 2. Adjust the front seats forward as
far as possible. Pull up the seat-
back angle adjustment lever and
pivot the seat-back backward until
it is level with the rear seat
cushion.
3. Move the front seat backward until it touches the rear seat.
4. Adjust the rear seat-back to the desired position.
Reverse this procedure to return the
front and rear seats to the upright
position. Make sure you install the
head restraints and the seats are
locked securely before driving.
When you return the seat-back to its
upright position, hold the seat-back
to keep it from going up too quickly.
Seats
87
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Folding the Rear Seats
To create more cargo space, you can
fold up each rear seat to each side
wall separately.1. Lower the head restraint to its lowest position.
2. Pull the seat-back adjustment strapat the inside edge of the seat
cushion and push the seat-back
backward as far as it will go.
3. Pull the release strap on the seatsupport, and pivot the seat toward
the vehicle's side wall.
SEAT-BACK ADJUSTMENT STRAP
RELEASE STRAP
Seats8810/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

4. A fastening strap is attached to theinside of the seat cushion. While
pushing the seat up and toward the
side wall, hook the fastening strap
to the grab rail.
5. Fold down the seat support. Reverse this procedure to return the
rear seat to the upright position.
When not in use, store the fastening
strap hook in the fabric pocket on the
bottom of the seat cushion. Make
sure the seat is locked securely.
GRAB RAIL
FASTENING STRAP
SEAT SUPPORT
Seats
89
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Removing the Rear SeatsBoth seats can be removed to give
more cargo capacity. To remove a
seat:1. Pull the release strap on the seat support to unlock the seat support.
2. Remove the cover between theseat cushion and the side wall by
pulling the tab and pulling the
cover straight up.
3. Push the lock lever forward tounlock the seat and fold down the
seat support.
RELEASE STRAP
TAB
COVER
LOCK LEVER STEEL HANDLE
Seats9010/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

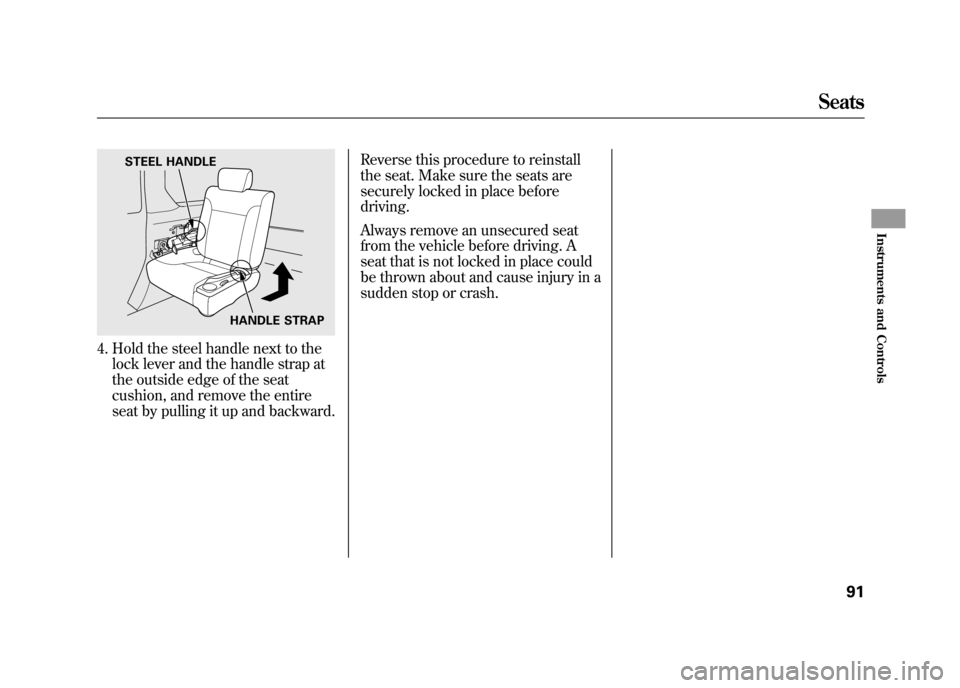

4. Hold the steel handle next to thelock lever and the handle strap at
the outside edge of the seat
cushion, and remove the entire
seat by pulling it up and backward. Reverse this procedure to reinstall
the seat. Make sure the seats are
securely locked in place before
driving.
Always remove an unsecured seat
from the vehicle before driving. A
seat that is not locked in place could
be thrown about and cause injury in a
sudden stop or crash.
STEEL HANDLE
HANDLE STRAP
Seats
91
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Turn the ignition switch to the ON
(II) position to raise or lower either
window. To open a window, push the
switch down and hold it. Release the
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window.
Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passengers are
away from the window before
closing them.
AUTO －To open/close the driver's
window, push the window switch
firmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch briefly.
If the MAIN switch is OFF, the
passenger's window cannot be raised
or lowered. Keep the MAIN switch
off when you have children in the
vehicle so they do not injure
themselves by operating the
passenger's window unintentionally.
AUTO REVERSE －If the driver's
window senses any obstacle while it is
closing automatically, it will reverse
direction, and then stop. To close the
window, remove the obstacle, then use
the window switch again.
If your vehicle's battery is disconnected
or goes dead, or the driver's window
fuse is removed, the AUTO function
may be disabled. If this happens, the
power window system will need to be
reset after reconnecting the battery or
installing the fuse.
1. Start the engine. Push down and hold the driver's window switch until
the window is fully open.
2. Pull and hold the driver's window switch to close the window
completely, then hold the switch for
about 2 seconds.
If the power windows do not operate
properly after resetting, have your
vehicle checked by your dealer.
DRIVER'S WINDOW SWITCH
MAIN SWITCH
Power Windows9210/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Keep the inside and outside mirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.Adjusting the Power Mirrors
1. Turn the ignition switch to the ON
(II) position.
2. Move the selector switch to L (driver's side) or R (passenger's
side). 3. Push the appropriate edge of the
adjustment switch to move the
mirror right, left, up, or down.
4. When you finish, move the selector switch to the center (off)
position. This turns the adjustment
switch off to keep your settings.
TAB
SELECTOR SWITCH
ADJUSTMENT SWITCH
Mirrors
93
Instruments and Controls
10/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu

Rear WindowsTo open a rear window, pull the lever
towards you, then push it out until it
locks. To close the rear window pull
the lever towards you, then push it
back. Make sure the window is fully
closed and locked.Parking Brake
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page 58).
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound if
the vehicle is driven with the parking
brake on.
PARKING BRAKE LEVER
Rear Windows, Parking Brake9410/08/06 08:34:41 11 ELEMENT MMC North America Owner's Man 50 31SCV680 enu
