70
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal Indicators
●The turn signal indicators blink when you
operate the turn signal lever.
● If you press the hazard warning button,
both indicators and all turn signals blink
at the same time.●Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately. 2Replacing Light Bulbs P. 213, 216
High Beam Indicator
●
Comes on when the high beam
headlights are on.
● Comes on with reduced brightness when DRL (daytime running lights) are on.
—
Lights On Indicator
●Comes on whenever the light switch is
on when the exterior lights are on.●If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s door is opened.
Fog Light Indicator *
●
Comes on when the fog lights are on.
—
Immobilizer System
Indicator
●Comes on briefly when you turn the
ignition switch to ON
(w , then goes off.
● Comes on if the immobilizer system
cannot recognize the key information.
●Blinks - You cannot start the engine. Turn the
ignition switch to LOCK
(0 , pull the key out, and
then insert the key and turn it to ON
(w again.
● Repeatedly blinks - The system may be
malfunctioning. Have the vehicle checked by a dealer.
● Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
* Not available on all models
Main Menu
Main MenuTable of Contents

71
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Security System
Alarm Indicator*
●
Blinks when the security system alarm has been set.
2 Security System Alarm *
P. 90
CRUISE MAIN
Indicator *●
Comes on when you press the CRUISE
button.
2 Cruise Control *
P. 173
CRUISE CONTROL
Indicator *●
Comes on if y ou have set a speed for
cruise control.2 Cruise Control *
P. 173
Washer Level
Indicator *●
Comes on when the washer fluid is low.● Refill washer fluid.
2Refilling Window Washer Fluid P. 211
Maintenance Minder Indicator●
Comes on when the scheduled
maintenance is due soon.2 Maintenance Minder TM
P. 195
Daytime Running
Lights Indicator
● Comes on for a few seconds when you
turn the ignition switch to ON
(w , then
goes off.
● Comes on if there is a problem with the
DRL system.
● Have your vehicle checked by a dealer.
2Daytime Running Lights P. 96
Indicator
* Not available on all models
Main Menu
Main MenuTable of Contents

72
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w.
Displays your driving sp eed in mph (U.S.) or km/h (Canada).
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Tachometer
■Fuel Gauge1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.
The actual amount of remaining fuel may differ from the fuel gauge reading.E
Main Menu
Main MenuTable of Contents

73
uuGauges and DisplaysuInformation Display
Continued
Instrument Panel
Information Display
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
Shows the total number of miles or kilometers that your vehicle has accumulated.
Shows the total number of miles or kilometers driven since the last reset. ■ Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Trip Meter
Instant Fuel Economy,
Average Fuel Economy
Engine Oil Life
Instant Fuel Economy, Odometer
■Odometer
■Trip Meter
Main Menu
Main MenuTable of Contents

74
uuGauges and DisplaysuInformation Display
Instrument Panel
Shows the estimated average fuel economy of the trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance MinderTM
.
2 Maintenance Minder TM
P. 195
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
Appears when the fuel fill cap is loose or is not installed. 2 Check/Tighten Fuel Cap Message P. 257
■Average Fuel Economy
■Engine Oil Life
■Instant Fuel Economy
■Check Fuel Cap
Main Menu
Main MenuTable of Contents

75

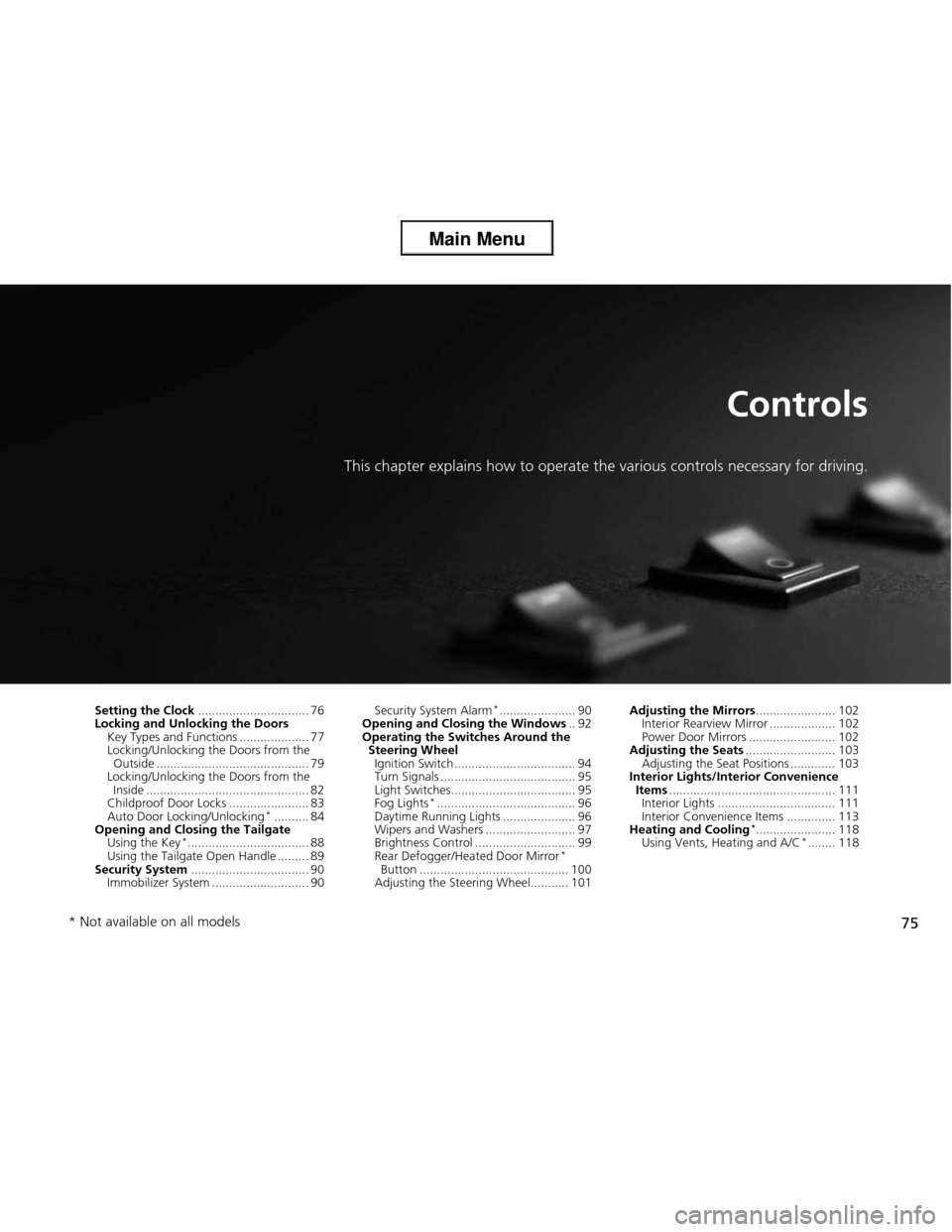

Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 76
Locking and Unlocking the Doors
Key Types and Functions .................... 77
Locking/Unlocking the Doors from the Outside ............................................ 79
Locking/Unlocking the Doors from the Inside ............................................... 82
Childproof Door Locks ....................... 83
Auto Door Locking/Unlocking *
.......... 84
Opening and Closing the Tailgate Using the Key *
................................... 88
Using the Tailgate Open Handle ......... 89
Security System .................................. 90
Immobilizer System ............................ 90 Security System Alarm
*
...................... 90
Opening and Closing the Windows .. 92
Operating the Switches Around the
Steering Wheel Ignition Switch ................................... 94
Turn Signals ....................................... 95
Light Switches.................................... 95 Fog Lights *
........................................ 96
Daytime Running Lights ..................... 96
Wipers and Washers .......................... 97
Brightness Control ............................. 99
Rear Defogger/Heated Door Mirror *

Button ........................................... 100
Adjusting the Steering Wheel........... 101 Adjusting the Mirrors
....................... 102
Interior Rearview Mirror ................... 102
Power Door Mirrors ......................... 102
Adjusting the Seats .......................... 103
Adjusting the Seat Positions ............. 103
Interior Lights/Interior Convenience Items ................................................ 111
Interior Lights .................................. 111
Interior Convenience Items .............. 113
Heating and Cooling *
....................... 118
Using Vents, Heating and A/C *
........ 118
* Not available on all models
Main Menu
Main Menu

76
Controls
Setting the Clock
Clock
You can adjust the time in the clock display, using the CLOCK button with the
ignition switch in ACCESSORY
(q or ON (w.
1. Press and hold the CLOCK button until the clock dis play begins to blink.
2. Press the
(1 (Hour) button to change the hours.
3. Press the
(2 (Minute) button to change the minutes.
4. Press the CLOCK button to go back to the normal display.
■Adjusting the Time
1Clock
Press and hold the CLOCK button until the clock
display begins to blink, then press the
(3 (Reset)
button.
Depending on the displayed time, the clock sets
forward or backward.
Example: 1:06 will reset to 1:001:53 will reset to 2:00
The clock is automatically updated through the navigation system, so the time does not need to be
adjusted.
Models without navigation system
Models with navigation system
Models without navigation system
(1 Button
(3 Button Clock Display
CLOCK Button
(2 Button
Main Menu
Main MenuTable of Contents

77
Continued
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the keys to start and stop the engine, and
to lock and unlock all the doors, and tailgate.
You can also use the remote transmitter *
to
lock and unlock the doors, and tailgate.
■Keys
1Key Types and Functions
All of the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 90
The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:
• Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
• Do not drop the keys or set heavy objects on them.
• Keep the keys away from liquids.
• Do not take the keys apa rt except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the re mote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Ignition Keys *
Ignition Keys with Remote Transmitter
*
* Not available on all models
Main Menu
Main MenuTable of Contents

uuLocking and Unlocking the DoorsuKey Types and Functions
78
Controls
Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of a vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
Main Menu
Main MenuTable of Contents

79
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Continued
Controls
Locking/Unlocking the Doors from the Outside■Locking the doors
Press the lock button.
Once:
uSome exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five seconds after the first push):
uA beeper sounds and verifies the security system is set.
■ Unlocking the doors
Press the unlock button.
Once:
uSome exterior lights flash twice, and the
driver’s door unlocks.
Twice:
uThe remaining doors and tailgate unlock.
■Using the Remote Transmitter *1Using the Remote Transmitter
*
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter, the doors will automatically relock.
If the interior light switch is in the door activated
position, the interior light comes on when you press the unlock button.
No doors opened: The light fades out after 30
seconds.
Doors relocked with the remote: The light goes off
immediately.
The remote transmitter uses low-power signals, so
the operating range may vary depending on the surroundings.
The remote will not lock the vehicle when a door or tailgate is open.
If the distance at which it works varies, the battery is
probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Battery P. 232
LED
Unlock
Button Lock Button
* Not available on all models
