HONDA FIT 2019 Owner's Manual (in English)

569
Handling the Unexpected

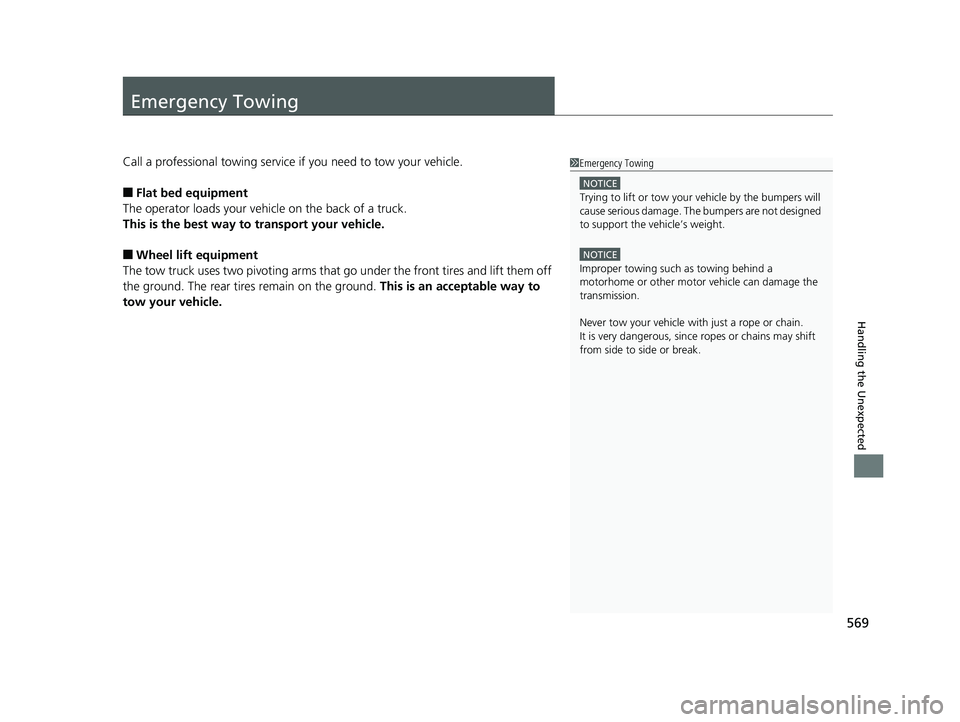

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
19 FIT JAZZ-31T5A6400.book 569 ページ ２０１８年２月２６日　月曜日　午後４時３０分

570
Handling the Unexpected

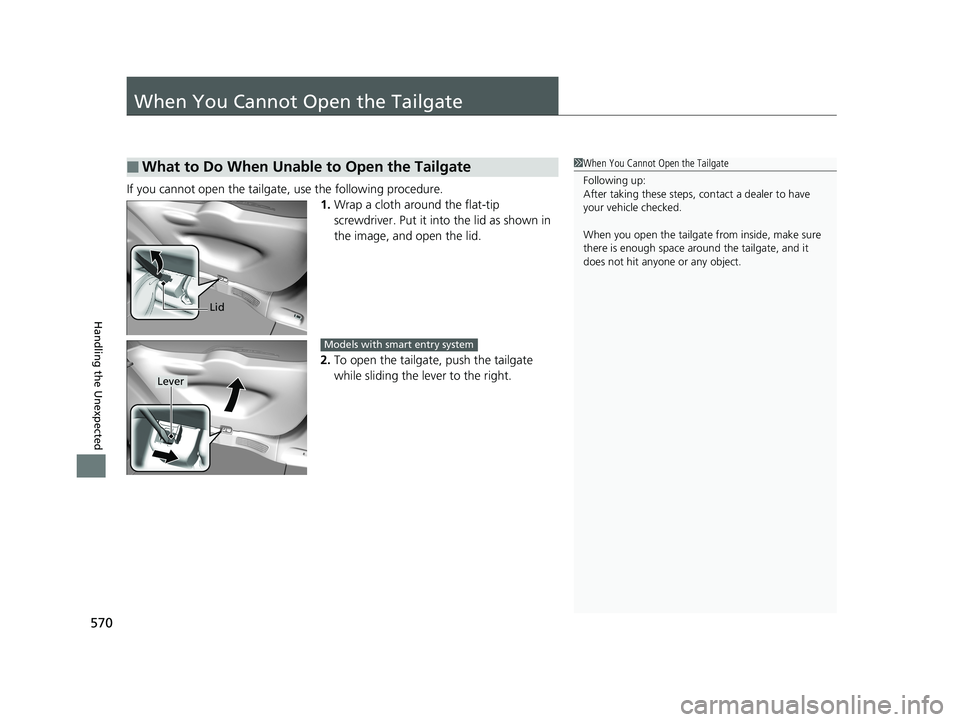

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Wrap a cloth around the flat-tip
screwdriver. Put it into the lid as shown in
the image, and open the lid.
2. To open the tailgat e, push the tailgate
while sliding the le ver to the right.
■What to Do When Unable to Open the Tailgate1When You Cannot Open the Tailgate
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Lid
Lever
Models with smart entry system
19 FIT JAZZ-31T5A6400.book 570 ページ ２０１８年２月２６日　月曜日　午後４時３０分

571
uuWhen You Cannot Open the Tailgate u
Handling the Unexpected

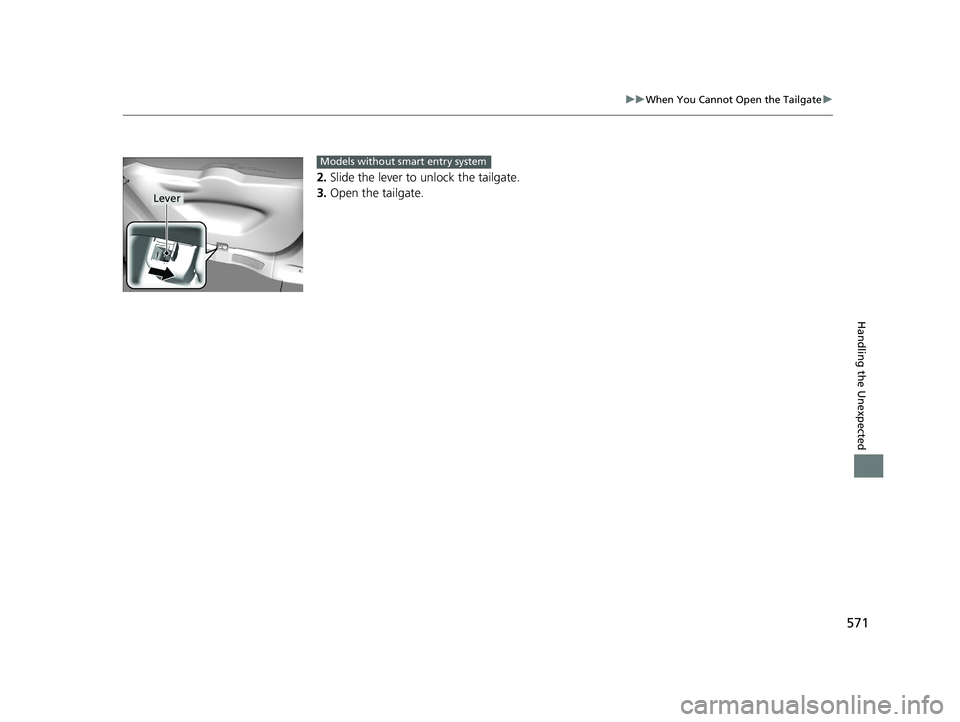

2.Slide the lever to unlock the tailgate.
3. Open the tailgate.
Lever
Models without smart entry system
19 FIT JAZZ-31T5A6400.book 571 ページ ２０１８年２月２６日　月曜日　午後４時３０分

572
19 FIT JAZZ-31T5A6400.book 572 ページ ２０１８年２月２６日　月曜日　午後４時３０分

573

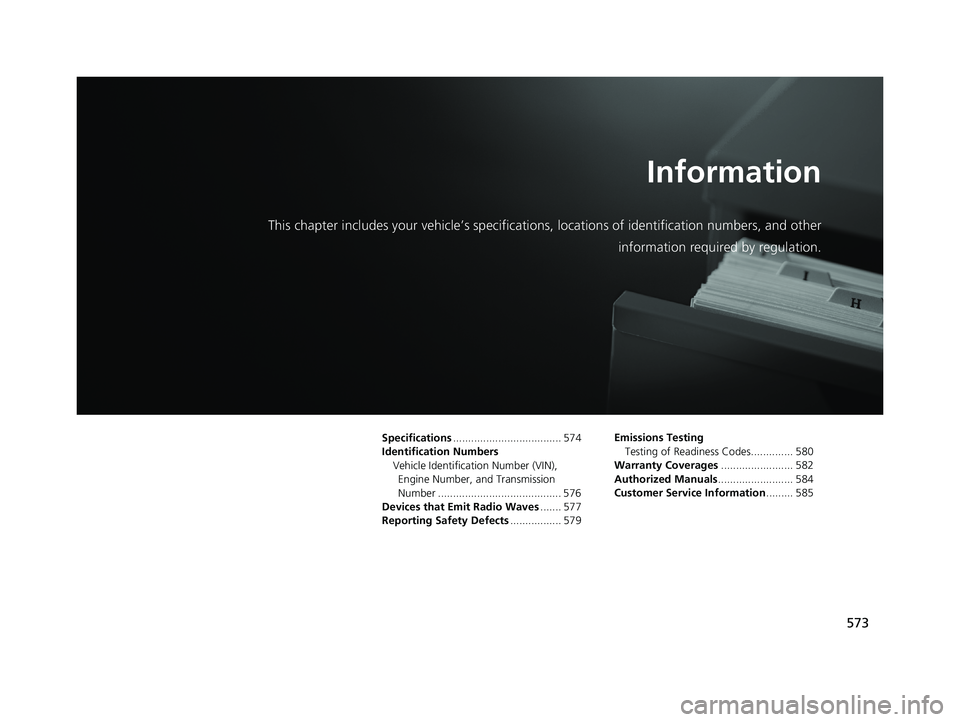

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 574
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 576
Devices that Emit Radio Waves ....... 577
Reporting Safety Defects ................. 579Emissions Testing
Testing of Readiness Codes.............. 580
Warranty Coverages ........................ 582
Authorized Manuals ......................... 584
Customer Service Information ......... 585
19 FIT JAZZ-31T5A6400.book 573 ページ ２０１８年２月２６日　月曜日　午後４時３０分

574
Information

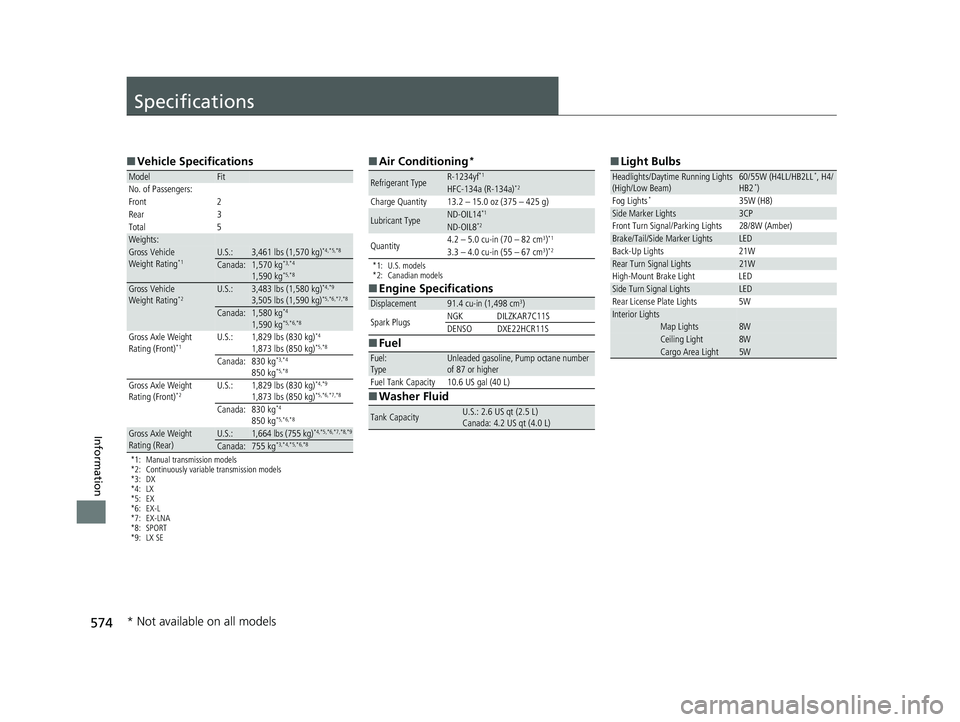

Specifications
■Vehicle Specifications
*1: Manual transmission models
*2: Continuously variable transmission models
*3: DX
*4: LX
*5: EX
*6: EX-L
*7: EX-LNA
*8: SPORT
*9: LX SE
ModelFitNo. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating*1U.S.:3,461 lbs (1,570 kg)*4,*5,*8
Canada:1,570 kg*3,*4
1,590 kg*5,*8
Gross Vehicle
Weight Rating*2U.S.:3,483 lbs (1,580 kg)*4,*9
3,505 lbs (1,590 kg)*5,*6,*7,*8
Canada:1,580 kg*4
1,590 kg*5,*6,*8
Gross Axle Weight
Rating (Front)*1U.S.:1,829 lbs (830 kg)*4
1,873 lbs (850 kg)*5,*8
Canada:830 kg*3,*4
850 kg*5,*8
Gross Axle Weight
Rating (Front)*2U.S.:1,829 lbs (830 kg)*4,*9
1,873 lbs (850 kg)*5,*6,*7,*8
Canada:830 kg*4
850 kg*5,*6,*8
Gross Axle Weight
Rating (Rear)U.S.:1,664 lbs (755 kg)*4,*5,*6,*7,*8,*9
Canada:755 kg*3,*4,*5,*6,*8
■ Air Conditioning*
*1: U.S. models
*2: Canadian models
■Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type R-1234yf*1
HFC-134a (R-134a)*2
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeND-OIL14*1
ND-OIL8*2
Quantity 4.2 – 5.0 cu-in (70 – 82 cm3)*1
3.3 – 4.0 cu-in (55 – 67 cm3)*2
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11S
DENSODXE22HCR11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.2 US qt (4.0 L)
■ Light Bulbs
Headlights/Daytime Running Lights
(High/Low Beam)60/55W (H4LL/HB2LL*, H4/
HB2*)
Fog Lights*35W (H8)Side Marker Lights3CP
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 21W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Side Turn Signal LightsLED
Rear License Plate Lights 5W
Interior LightsMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
19 FIT JAZZ-31T5A6400.book 574 ページ ２０１８年２月２６日　月曜日　午後４時３０分

575
uuSpecifications u
Information

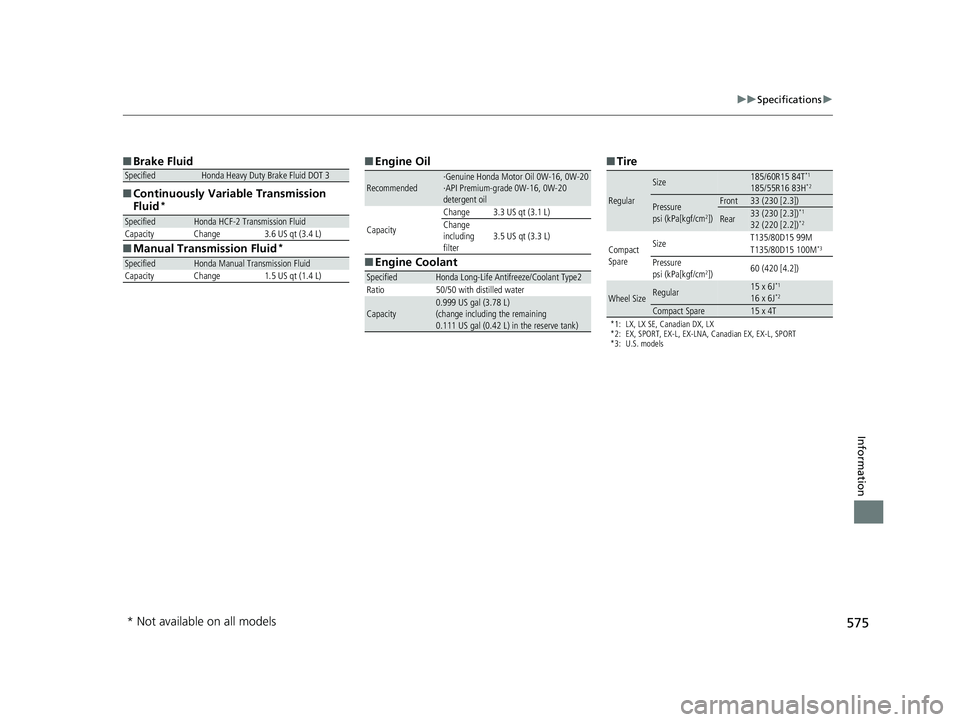

■Brake Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.6 US qt (3.4 L)
SpecifiedHonda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-16, 0W-20
·API Premium-grade 0W-16, 0W-20
detergent oil
Capacity Change 3.3 US qt (3.1 L)
Change
including
filter
3.5 US qt (3.3 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.999 US gal (3.78 L)
(change including the remaining
0.111 US gal (0.42 L) in the reserve tank)
■ Tire
*1: LX, LX SE, Canadian DX, LX
*2: EX, SPORT, EX-L, EX-LNA, Canadian EX, EX-L, SPORT
*3: U.S. models
Regular
Size185/60R15 84T*1
185/55R16 83H*2
Pressure
psi (kPa[kgf/cm2])
Front33 (230 [2.3])
Rear33 (230 [2.3])*1
32 (220 [2.2])*2
Compact
Spare Size
T135/80D15 99M
T135/80D15 100M*3
Pressure
psi (kPa[kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular15 x 6J*1
16 x 6J*2
Compact Spare15 x 4T
* Not available on all models
19 FIT JAZZ-31T5A6400.book 575 ページ ２０１８年２月２６日　月曜日　午後４時３０分

576
Information

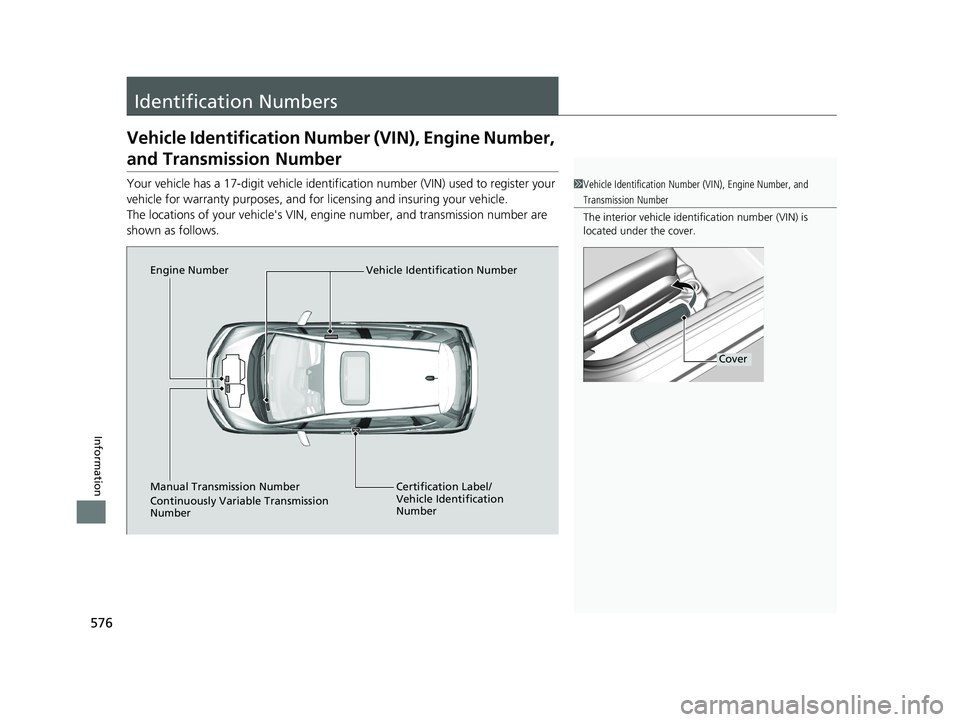

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, engine number, and transmission number are
shown as follows.1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission Number
Continuously Variable Transmission
Number
19 FIT JAZZ-31T5A6400.book 576 ページ ２０１８年２月２６日　月曜日　午後４時３０分

577Continued
Information

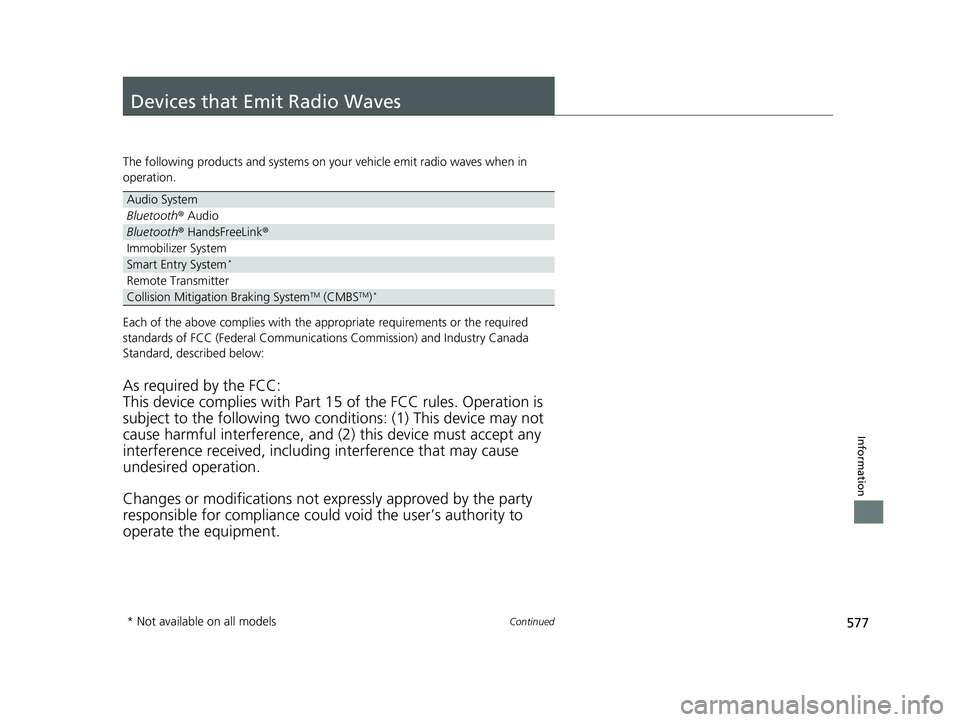

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Immobilizer System
Smart Entry System*
Remote Transmitter
Collision Mitigation Braking SystemTM (CMBSTM)*
* Not available on all models
19 FIT JAZZ-31T5A6400.book 577 ページ ２０１８年２月２６日　月曜日　午後４時３０分

578
uuDevices that Emit Radio Waves u
Information

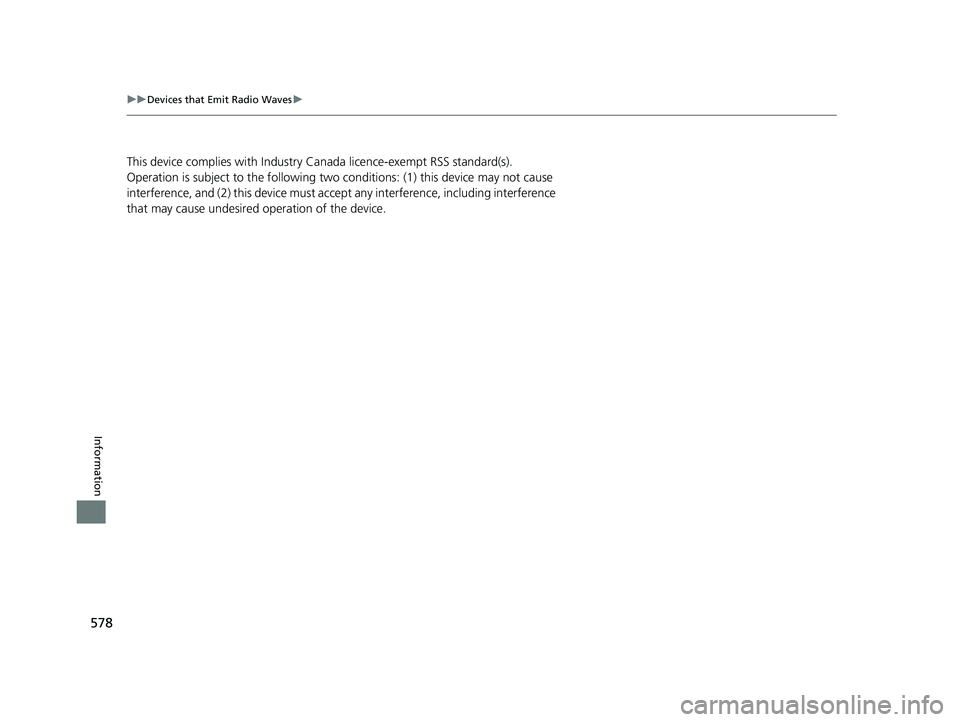

This device complies with Industry Ca nada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must acce pt any interference, including interference
that may cause undesired operation of the device.
