HONDA FIT 2019 Owner's Manual (in English)

579
Information

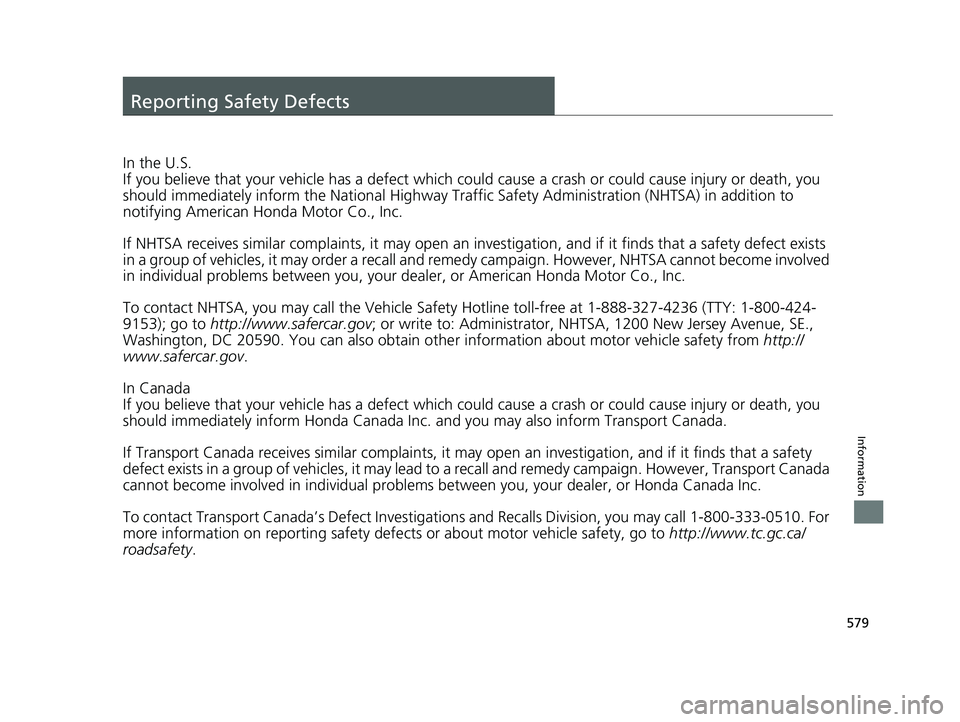

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Admi nistration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and reme dy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defe cts or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 FIT JAZZ-31T5A6400.book 579 ページ ２０１８年２月２６日　月曜日　午後４時３０分

580
Information

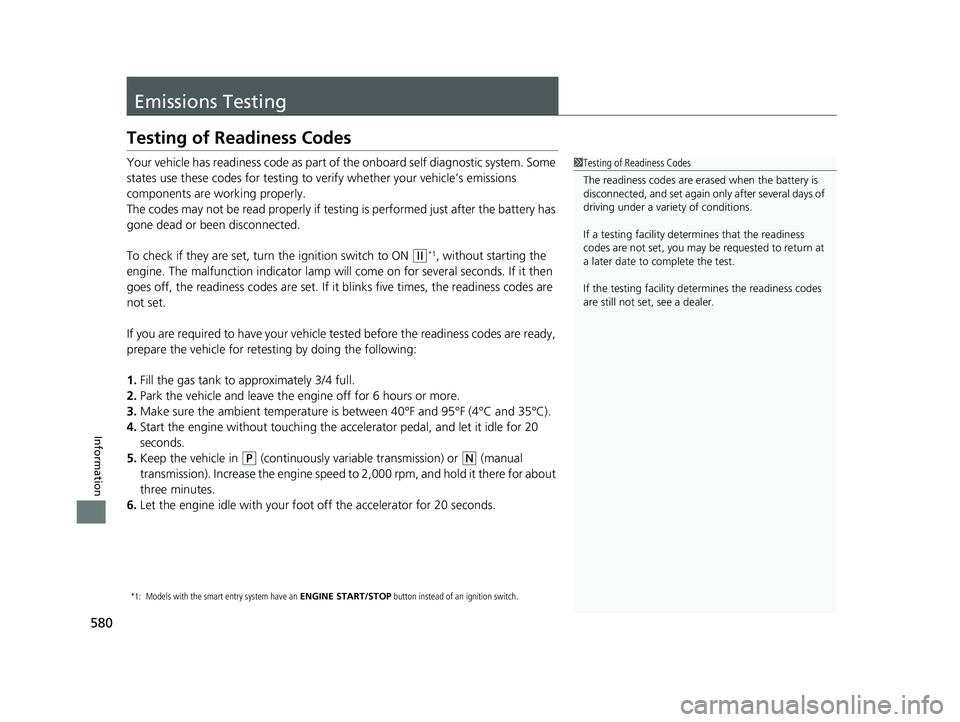

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testi ng is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
19 FIT JAZZ-31T5A6400.book 580 ページ ２０１８年２月２６日　月曜日　午後４時３０分

581
uuEmissions Testing uTesting of Readiness Codes
Information

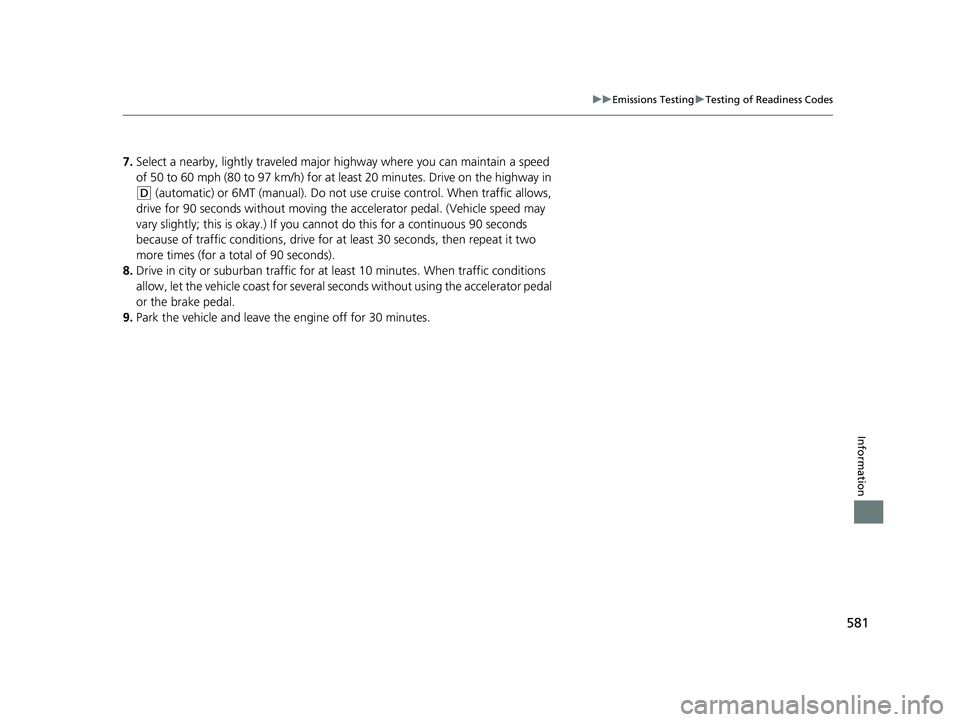

7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (automatic) or 6MT (manual). Do not use cruise control. When traffic allows,
drive for 90 seconds without moving the accelerator pedal. (Vehicle speed may
vary slightly; this is okay.) If you ca nnot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at l east 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
19 FIT JAZZ-31T5A6400.book 581 ページ ２０１８年２月２６日　月曜日　午後４時３０分

582
Information

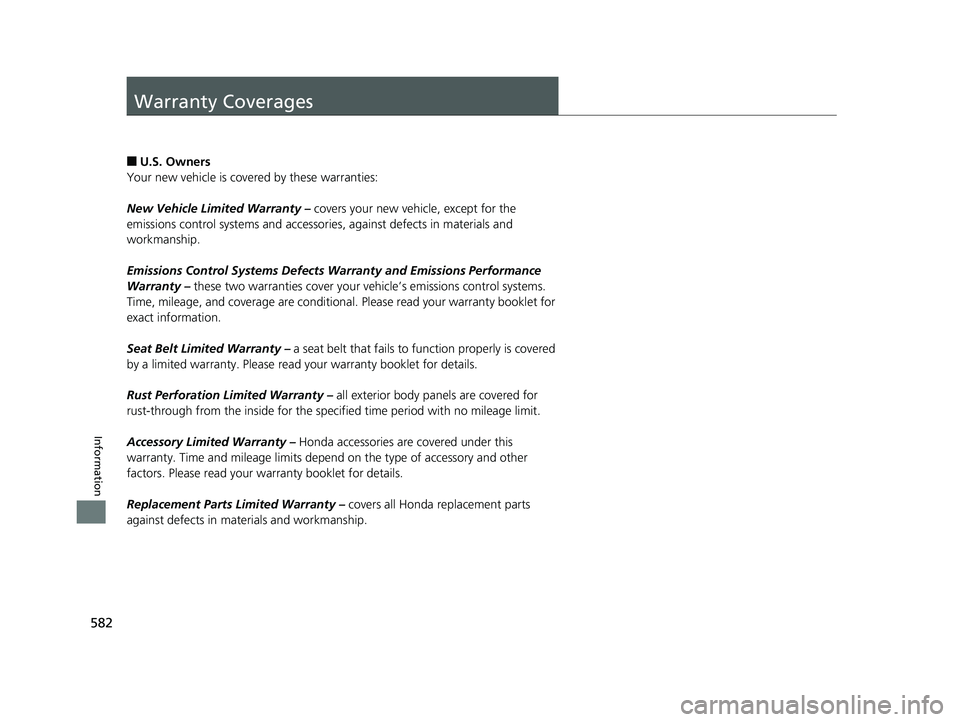

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessori es, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.
19 FIT JAZZ-31T5A6400.book 582 ページ ２０１８年２月２６日　月曜日　午後４時３０分

583
uuWarranty Coverages u
Information

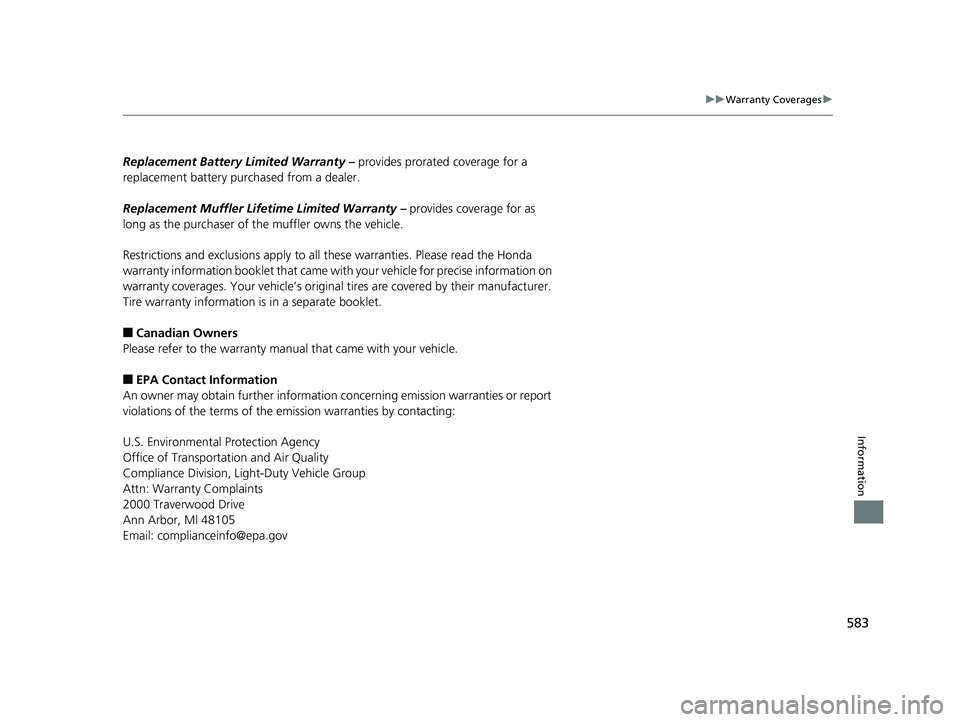

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifeti me Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet th at came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information conc erning emission warranties or report
violations of the terms of the emission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Light-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, Ml 48105
Email: complianc [email protected]
19 FIT JAZZ-31T5A6400.book 583 ページ ２０１８年２月２６日　月曜日　午後４時３０分

584
Information

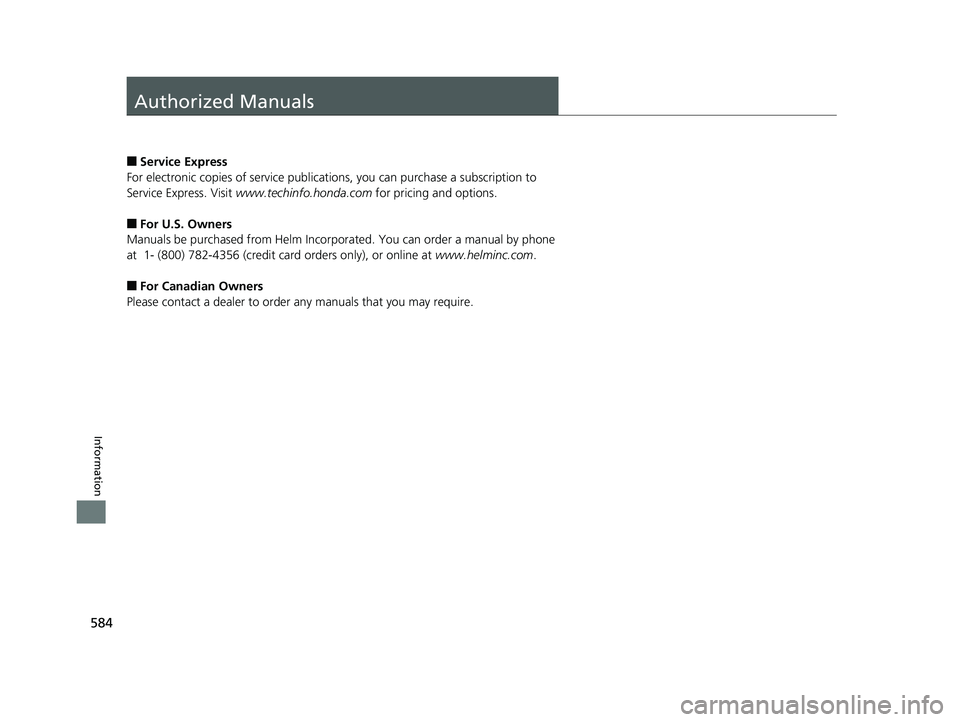

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals be purchased from Helm Incorpor ated. You can order a manual by phone
at 1- (800) 782-4356 (credit card orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
19 FIT JAZZ-31T5A6400.book 584 ページ ２０１８年２月２６日　月曜日　午後４時３０分

585Continued
Information

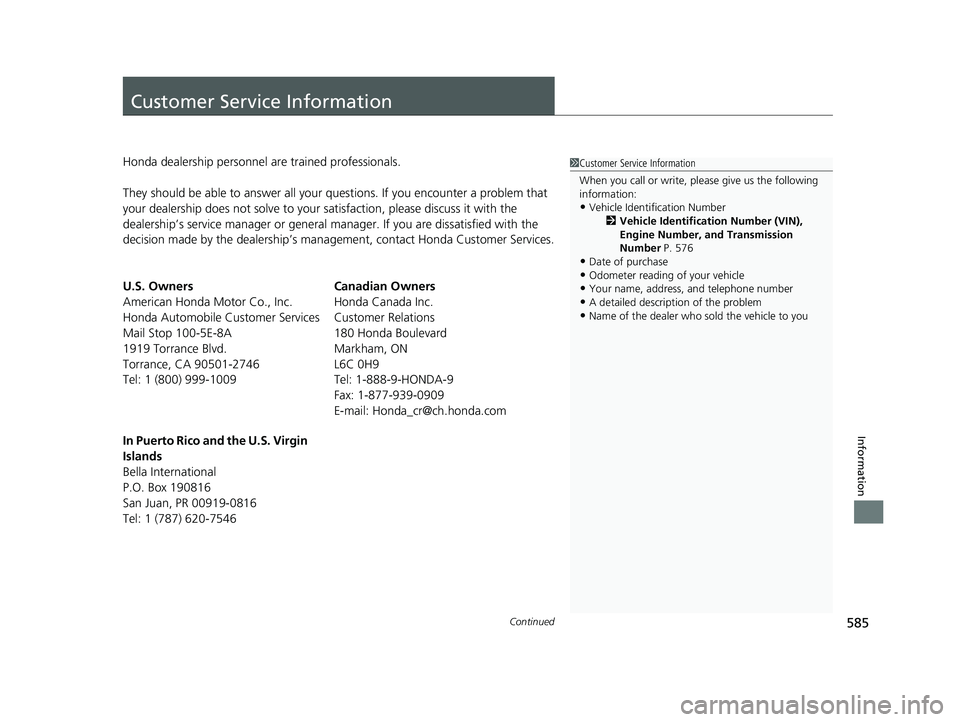

Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not so lve to your satisfaction, please discuss it with the
dealership’s service manager or general ma nager. If you are dissatisfied with the
decision made by the dealership’s mana gement, contact Honda Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 576
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
19 FIT JAZZ-31T5A6400.book 585 ページ ２０１８年２月２６日　月曜日　午後４時３０分

586
uuCustomer Service Information u
Information

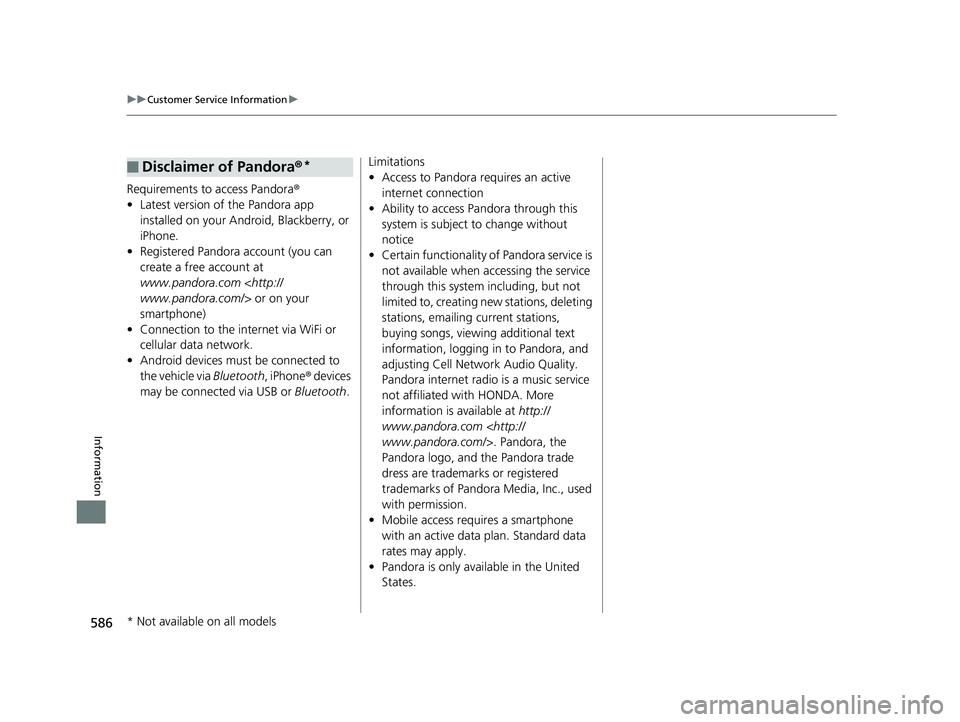

Requirements to access Pandora®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the internet via WiFi or
cellular data network.
• Android devices must be connected to
the vehicle via Bluetooth, iPhone® devices
may be connected via USB or Bluetooth.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying songs, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only available in the United
States.
* Not available on all models
19 FIT JAZZ-31T5A6400.book 586 ページ ２０１８年２月２６日　月曜日　午後４時３０分

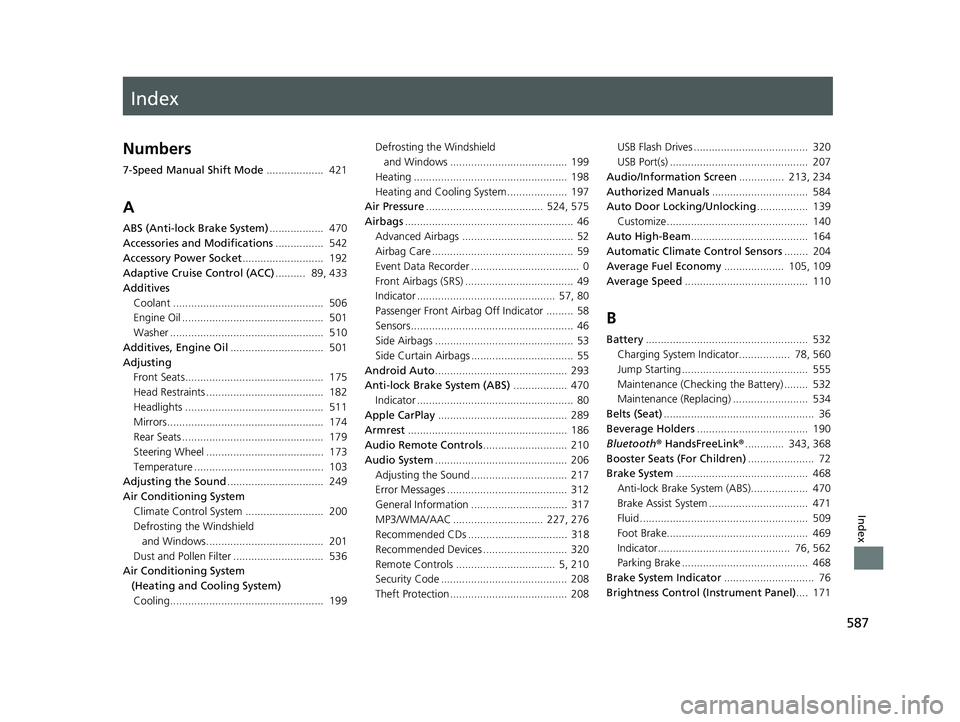

Index
587
Index
Index
Numbers
7-Speed Manual Shift Mode................... 421
A
ABS (Anti-lock Brake System) .................. 470
Accessories and Modifications ................ 542
Accessory Power Socket ........................... 192
Adaptive Cruise Control (ACC) .......... 89, 433
Additives
Coolant .................................................. 506
Engine Oil ............................................... 501
Washer ................................................... 510
Additives, Engine Oil ............................... 501
Adjusting Front Seats.............................................. 175
Head Restraints ....................................... 182
Headlights .............................................. 511
Mirrors.................................................... 174
Rear Seats ............................................... 179
Steering Wheel ....................................... 173
Temperature ........................................... 103
Adjusting the Sound ................................ 249
Air Conditioning System
Climate Control System .......................... 200
Defrosting the Windshield and Windows....................................... 201
Dust and Pollen Filter .............................. 536
Air Conditioning System (Heating and Cooling System)
Cooling................................................... 199 Defrosting the Windshield
and Windows ....................................... 199
Heating ................................................... 198
Heating and Cooling System .................... 197
Air Pressure ....................................... 524, 575
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 80
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
Android Auto ............................................ 293
Anti-lock Brake System (ABS) .................. 470
Indicator .................................................... 80
Apple CarPlay ........................................... 289
Armrest ..................................................... 186
Audio Remote Controls ............................ 210
Audio System ............................................ 206
Adjusting the Sound ................................ 217
Error Messages ........................................ 312
General Information ................................ 317
MP3/WMA/AAC .............................. 227, 276
Recommended CDs ................................. 318
Recommended Devices ............................ 320
Remote Controls ................................. 5, 210
Security Code .......................................... 208
Theft Protection ....................................... 208 USB Flash Drives ...................................... 320
USB Port(s) .............................................. 207
Audio/Information Screen ............... 213, 234
Authorized Manuals ................................ 584
Auto Door Locking/Unlocking ................. 139
Customize ............................................... 140
Auto High-Beam ....................................... 164
Automatic Climate Control Sensors ........ 204
Average Fuel Economy .................... 105, 109
Average Speed ......................................... 110
B
Battery...................................................... 532
Charging System Indicator................. 78, 560
Jump Starting .......................................... 555
Maintenance (Checki ng the Battery) ........ 532
Maintenance (Replacing) ......................... 534
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 190
Bluetooth ® HandsFreeLink ®............. 343, 368
Booster Seats (For Children) ...................... 72
Brake System ............................................ 468
Anti-lock Brake System (ABS)................... 470
Brake Assist System ................................. 471
Fluid ........................................................ 509
Foot Brake............................................... 469
Indicator............................................ 76, 562
Parking Brake .......................................... 468
Brake System Indicator .............................. 76
Brightness Control (Instrument Panel) .... 171
19 FIT JAZZ-31T5A6400.book 587 ページ ２０１８年２月２６日　月曜日　午後４時３０分

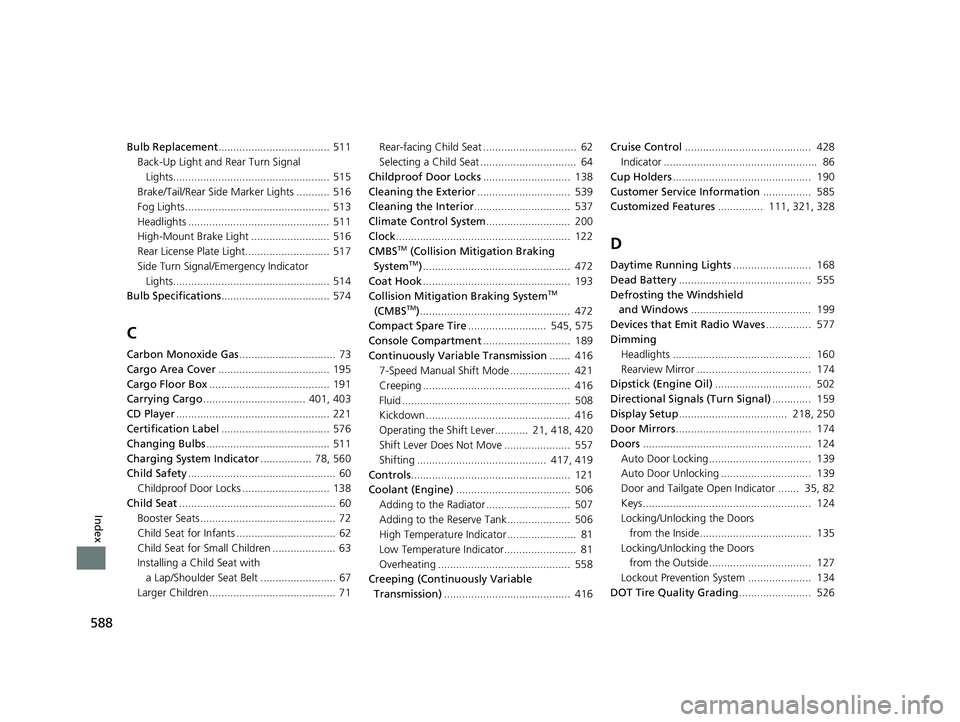

588
Index
Bulb Replacement..................................... 511
Back-Up Light and Rear Turn Signal
Lights.................................................... 515
Brake/Tail/Rear Side Marker Lights ........... 516
Fog Lights ................................................ 513
Headlights ............................................... 511
High-Mount Brake Light .......................... 516
Rear License Plate Light............................ 517
Side Turn Signal/Emergency Indicator Lights.................................................... 514
Bulb Specifications .................................... 574
C
Carbon Monoxide Gas ................................ 73
Cargo Area Cover ..................................... 195
Cargo Floor Box ........................................ 191
Carrying Cargo .................................. 401, 403
CD Player ................................................... 221
Certification Label .................................... 576
Changing Bulbs ......................................... 511
Charging System Indicator ................. 78, 560
Child Safety ................................................. 60
Childproof Door Locks ............................. 138
Child Seat .................................................... 60
Booster Seats ............................................. 72
Child Seat for Infants ................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................... 67
Larger Children .......................................... 71 Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Childproof Door Locks ............................. 138
Cleaning the Exterior ............................... 539
Cleaning the Interior ................................ 537
Climate Control System ............................ 200
Clock .......................................................... 122
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 472
Coat Hook ................................................. 193
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 472
Compact Spare Tire .......................... 545, 575
Console Compartment ............................. 189
Continuously Variable Transmission ....... 416
7-Speed Manual Shift Mode .................... 421
Creeping ................................................. 416
Fluid ........................................................ 508
Kickdown ................................................ 416
Operating the Shift Lever........... 21, 418, 420
Shift Lever Does Not Move ...................... 557
Shifting ........................................... 417, 419
Controls ..................................................... 121
Coolant (Engine) ...................................... 506
Adding to the Radiator ............................ 507
Adding to the Reserve Tank..................... 506
High Temperature Indicator ....................... 81
Low Temperature Indicator........................ 81
Overheating ............................................ 558
Creeping (Continuously Variable Transmission) .......................................... 416 Cruise Control
.......................................... 428
Indicator ................................................... 86
Cup Holders .............................................. 190
Customer Service Information ................ 585
Customized Features ............... 111, 321, 328
D
Daytime Running Lights .......................... 168
Dead Battery ............................................ 555
Defrosting the Windshield and Windows ........................................ 199
Devices that Emit Radio Waves ............... 577
Dimming Headlights .............................................. 160
Rearview Mirror ...................................... 174
Dipstick (Engine Oil) ................................ 502
Directional Signals (Turn Signal) ............. 159
Display Setup .................................... 218, 250
Door Mirrors ............................................. 174
Doors ........................................................ 124
Auto Door Locking.................................. 139
Auto Door Unlocking .............................. 139
Door and Tailgate Open Indicator ....... 35, 82
Keys........................................................ 124
Locking/Unlocking the Doors from the Inside..................................... 135
Locking/Unlocking the Doors from the Outside.................................. 127
Lockout Prevention System ..................... 134
DOT Tire Quality Grading ........................ 526
19 FIT JAZZ-31T5A6400.book 588 ページ ２０１８年２月２６日　月曜日　午後４時３０分
