HONDA FIT 2020 Owner's Manual (in English)

Continued129
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the vehicle (Walk away auto
lock)
When you walk away from the vehicle while
carrying the smart entry remote, the doors will
automatically lock.
The auto lock function activates when all
doors and tailgate are closed, and the smart
entry remote is within about 5 feet (1.5 m)
radius of the outside door handle.
Exit vehicle while carry ing smart entry remote
and close door(s).
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range for 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.1Locking the vehicle (Walk away auto lock)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the audio/inform ation screen or multi-
information display.
If you set the auto lock function to ON using the
audio/information screen or the multi-information
display, only the smart entry remote that was used to
unlock the driver’s door prio r to the setting change
can activate auto lock. 2 Customization flow P. 112
After the auto lock function has been activated, when
you stay within the lockin g/unlocking operation range,
the indicator on the smart en try remote will continue
to flash until the doors are locked.
When you stay beside the vehicle within the
operation range, the doors wi ll automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.
When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until all doors and tailgate are closed.
Under the following circumstances, the auto-lock
function will not activate:
•The remote is inside the vehicle.
•The remote is taken out of its operational range
before all the doors are closed. u The beeper will not sound.
u The beeper will sound.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
20 FIT-31T5A6500.book 129 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
130
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock  Unlock  Lock  Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock
function
• Walk away at least more than about 5 feet
(1.5 m) away from the vehicle while
carrying the smart entry remote.1 Locking the vehicle (Walk away auto lock)
The auto lock function does not operate when any of
the following conditions are met.
•The smart entry remote is inside the vehicle.
•A door or the hood is not closed.•The power mode is set to any mode other than
OFF.
•The smart entry remote is not located within a
radius of about 5 feet (1 .5 m) from the vehicle
when you get out of the vehicle and close the
doors.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The smart entry remote is put inside the vehicle
through a window.
•You are located too close to the vehicle.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.
20 FIT-31T5A6500.book 130 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Continued131
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

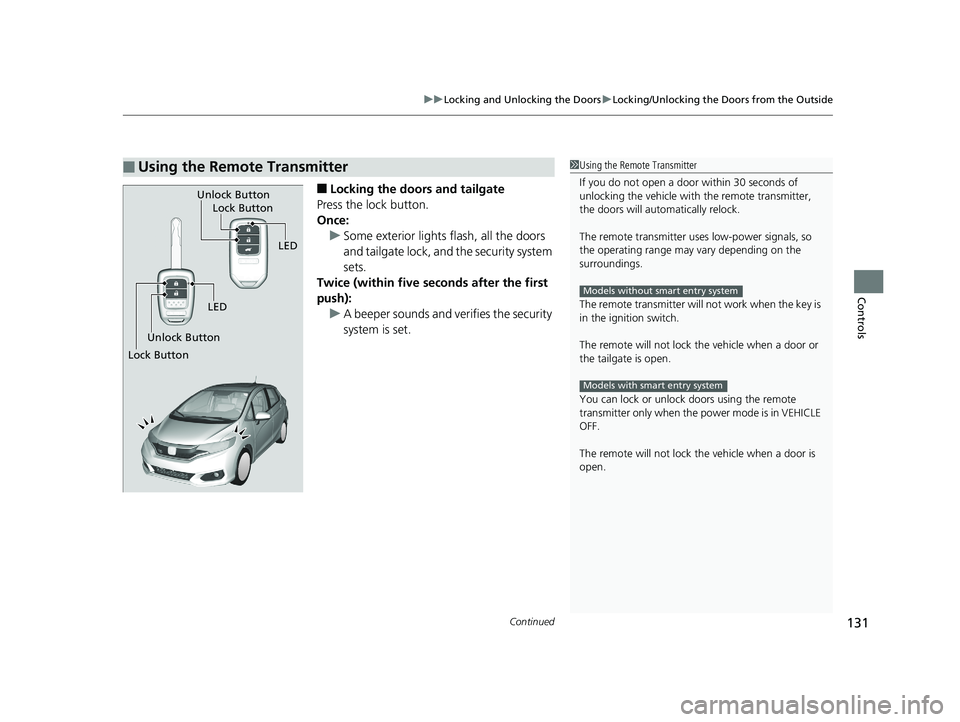

■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not work when the key is
in the ignition switch.
The remote will not lock th e vehicle when a door or
the tailgate is open.
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote will not lock th e vehicle when a door is
open.
Models without smart entry system
Models with smart entry system
LED
Unlock Button Lock Button
Unlock Button
LED
Lock Button
20 FIT-31T5A6500.book 131 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
132
Controls
■Unlocking the doors and tailgate
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door unlocks.
Twice: u The remaining doors and tailgate unlock.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 536
You can customize the door unlock mode setting. 2 Customized Features P. 111
Models with multi-information display
* Not available on all models
20 FIT-31T5A6500.book 132 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Continued133
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
If the lock or unlock button of the remo te transmitter does not work, use the key
instead. Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and tail gate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 111
Models with multi-information display
Lock
Unlock
* Not available on all models
20 FIT-31T5A6500.book 133 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
134
Controls

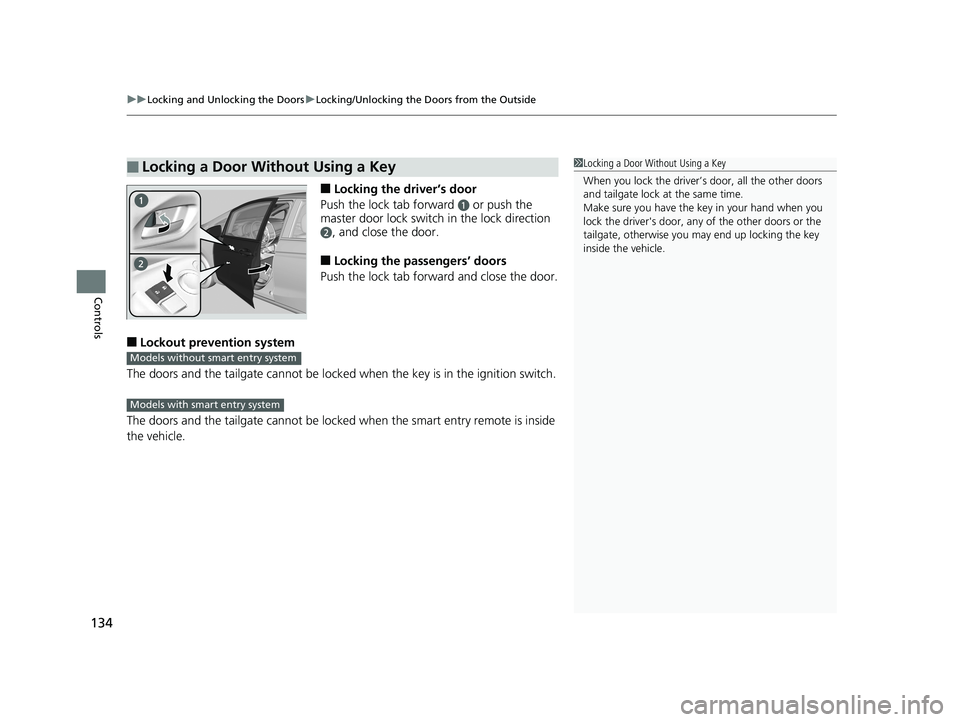

■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passengers’ doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and the tailgate can not be locked when the key is in the ignition switch.
The doors and the tailgate cannot be locked when the smart entry remote is inside
the vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Make sure you have the key in your hand when you
lock the driver's door, any of the other doors or the
tailgate, otherwise you may end up locking the key
inside the vehicle.
Models without smart entry system
Models with smart entry system
20 FIT-31T5A6500.book 134 ページ ２０１９年９月２６日　木曜日　午後４時４１分

135
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Continued
Controls

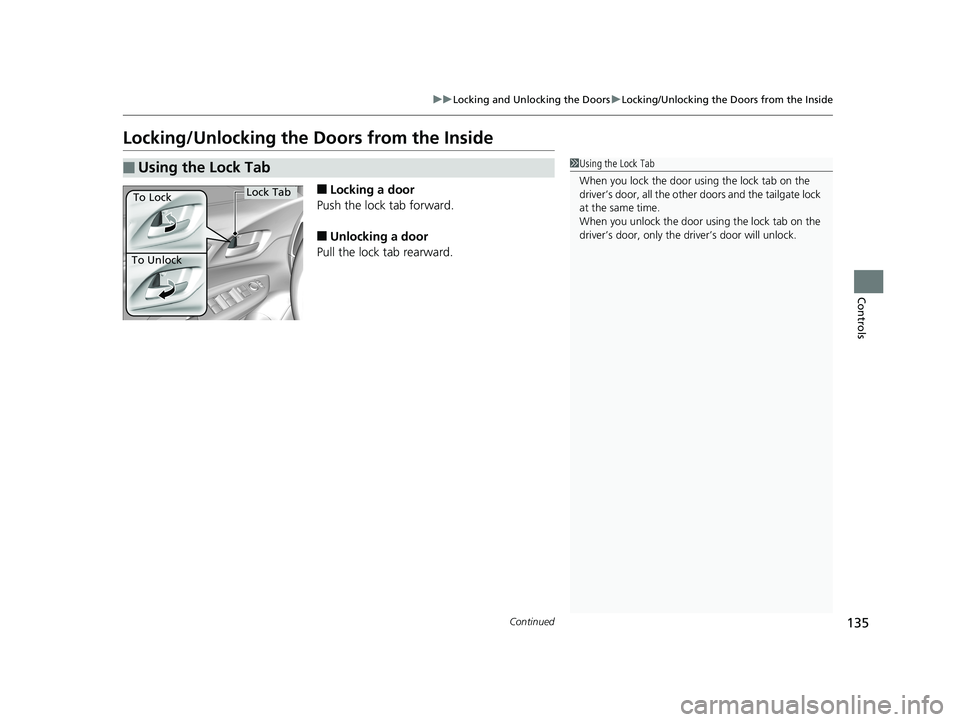

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all the other doors and the tailgate lock
at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock Tab
To Lock
20 FIT-31T5A6500.book 135 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
136
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. This setting works for one time only. u If you do not want all the doors to be unlocked all the time, customize the
Auto Door Unlock setting to Off using the master door lock switch, multi-
information display
*, or audio/information screen*.
2 Auto Door Locking/Unlocking* P. 139
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 138
Inner Handle
Models with auto door locking/unlocking
* Not available on all models
20 FIT-31T5A6500.book 136 ページ ２０１９年９月２６日　木曜日　午後４時４１分

137
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

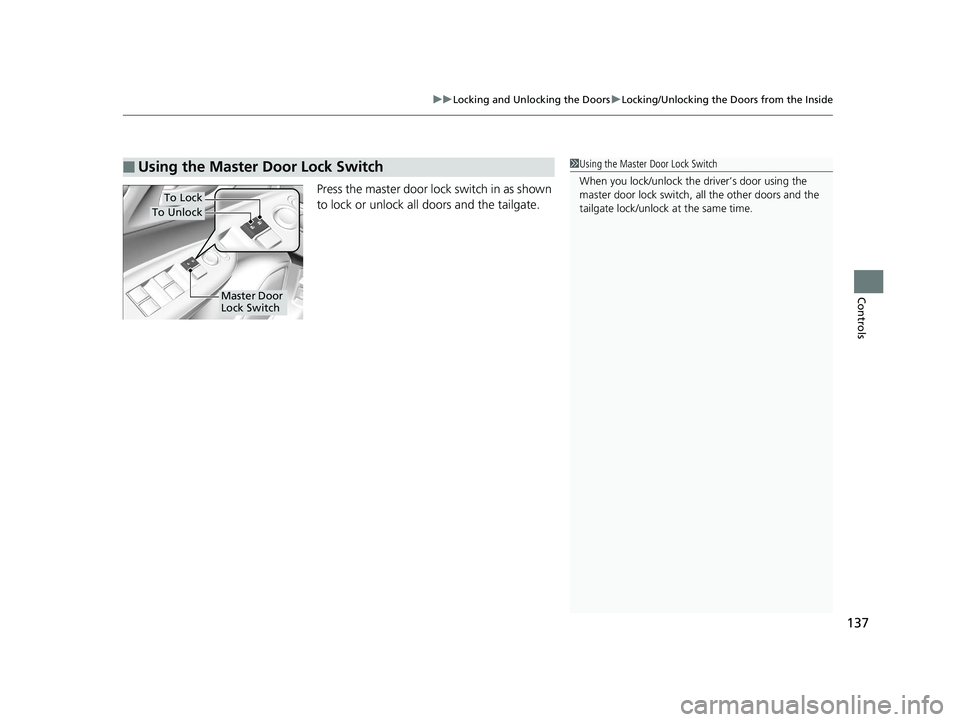

Press the master door lo ck switch in as shown
to lock or unlock all doors and the tailgate.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
To Lock
To Unlock
Master Door
Lock Switch
20 FIT-31T5A6500.book 137 ページ ２０１９年９月２６日　木曜日　午後４時４１分

138
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls

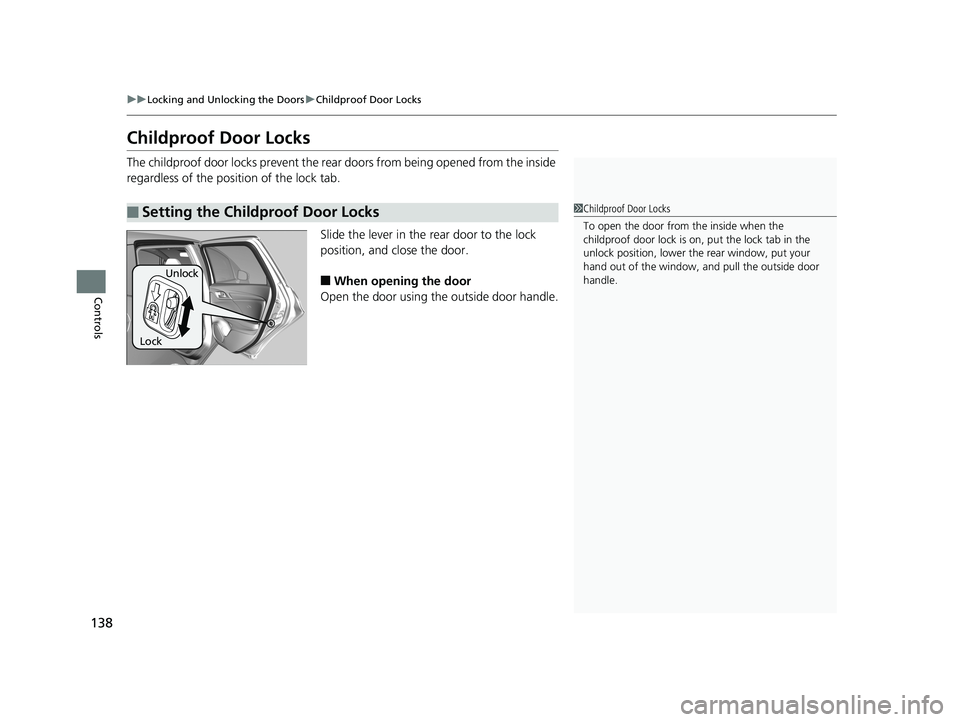

Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Setting the Childproof Door Locks1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock Unlock
20 FIT-31T5A6500.book 138 ページ ２０１９年９月２６日　木曜日　午後４時４１分
