HONDA FIT 2020 Owner's Manual (in English)

579
Information

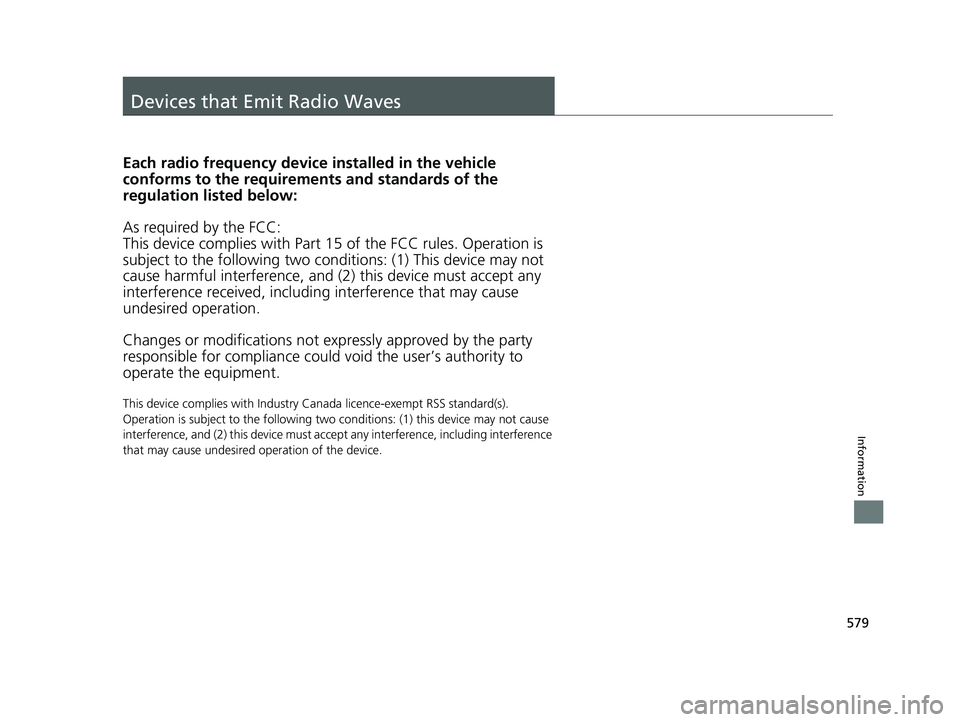

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle
conforms to the requirements and standards of the
regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
20 FIT-31T5A6500.book 579 ページ ２０１９年９月２６日　木曜日　午後４時４１分

580
Information

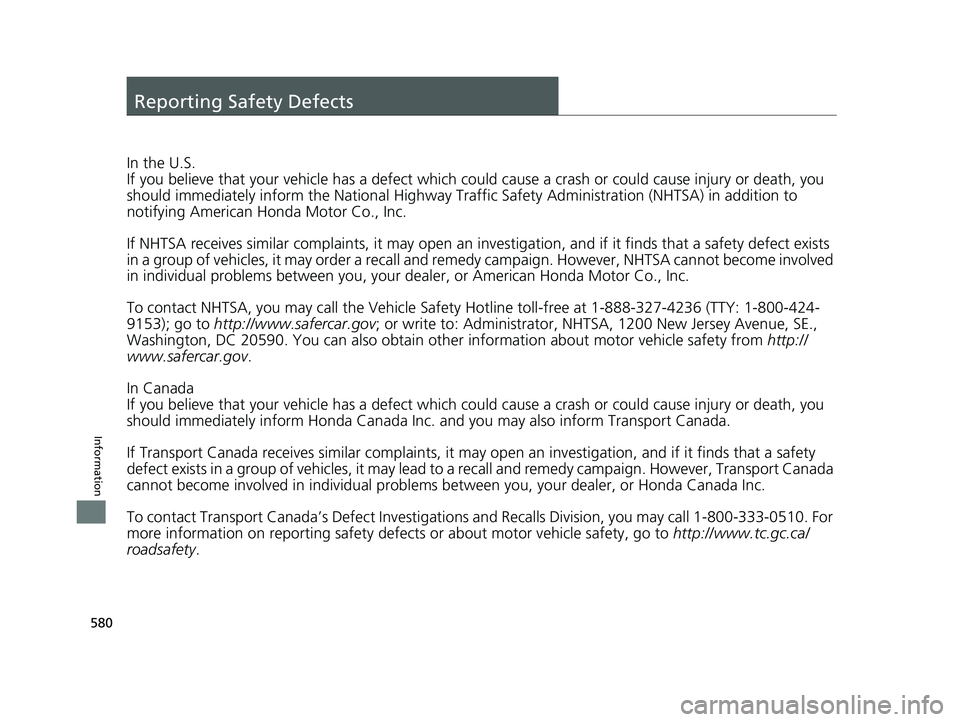

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
20 FIT-31T5A6500.book 580 ページ ２０１９年９月２６日　木曜日　午後４時４１分

581Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to ve rify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 FIT-31T5A6500.book 581 ページ ２０１９年９月２６日　木曜日　午後４時４１分

582

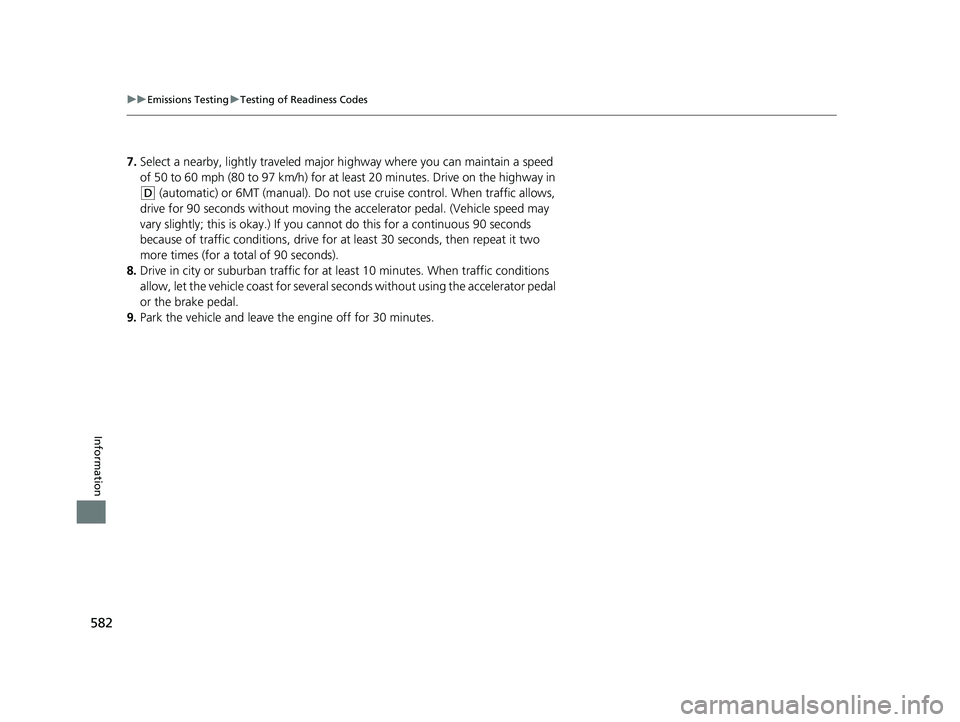

uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (automatic) or 6MT (manual). Do not use cruise control. When traffic allows,
drive for 90 seconds without moving the accelerator pedal. (Vehicle speed may
vary slightly; this is okay.) If you cannot do this for a continuous 90 seconds
because of traffic conditions, drive for at least 30 seconds, then repeat it two
more times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
20 FIT-31T5A6500.book 582 ページ ２０１９年９月２６日　木曜日　午後４時４１分

583Continued
Information

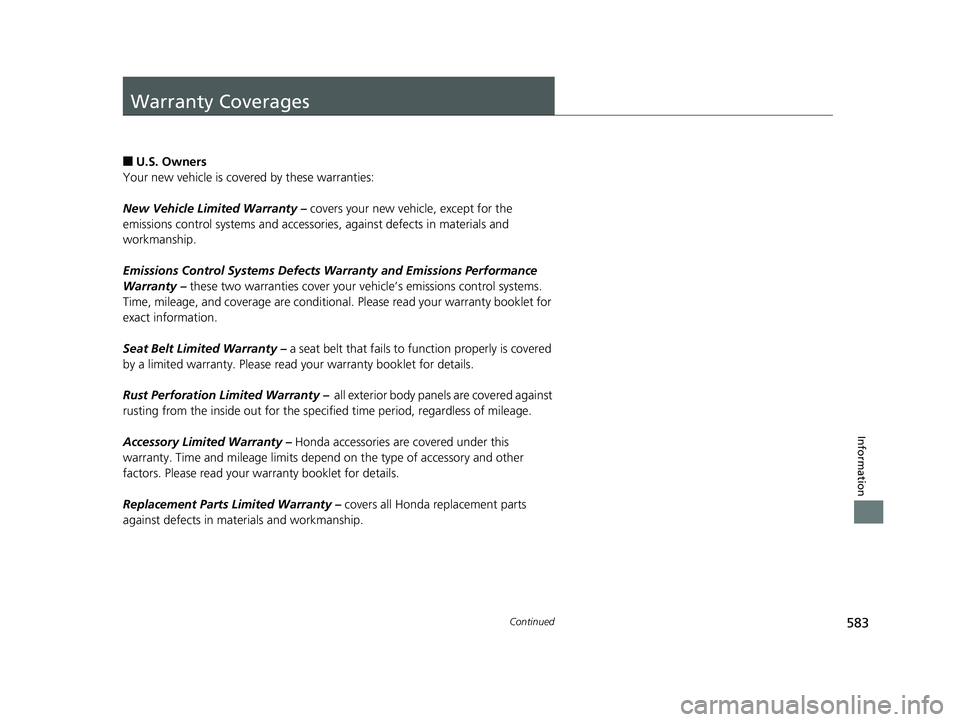

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
20 FIT-31T5A6500.book 583 ページ ２０１９年９月２６日　木曜日　午後４時４１分

584

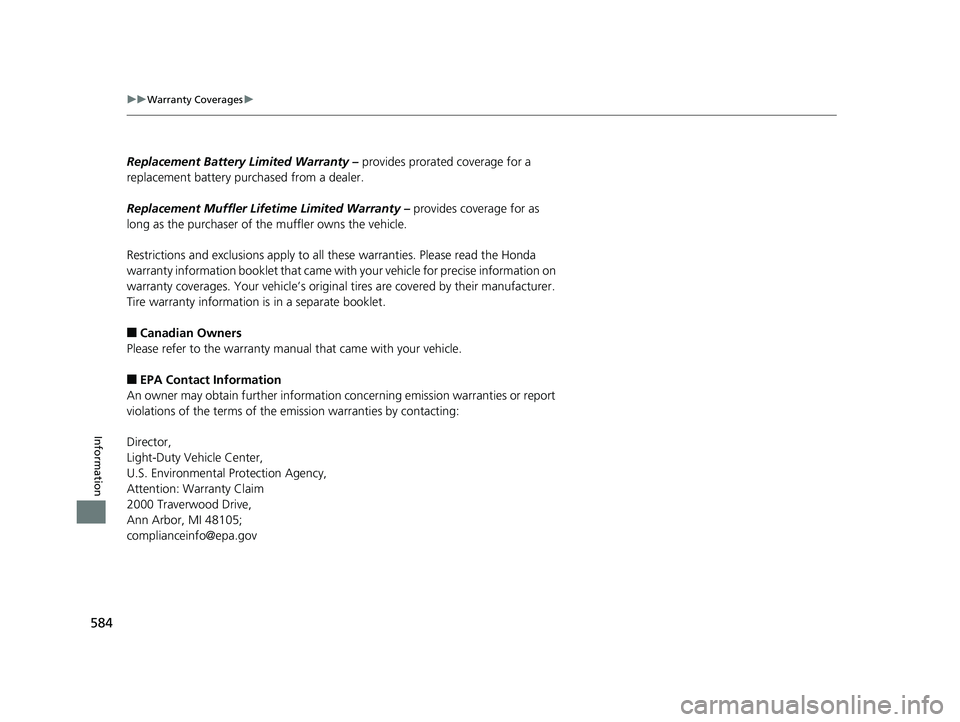

uuWarranty Coverages u
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
20 FIT-31T5A6500.book 584 ページ ２０１９年９月２６日　木曜日　午後４時４１分

585
Information

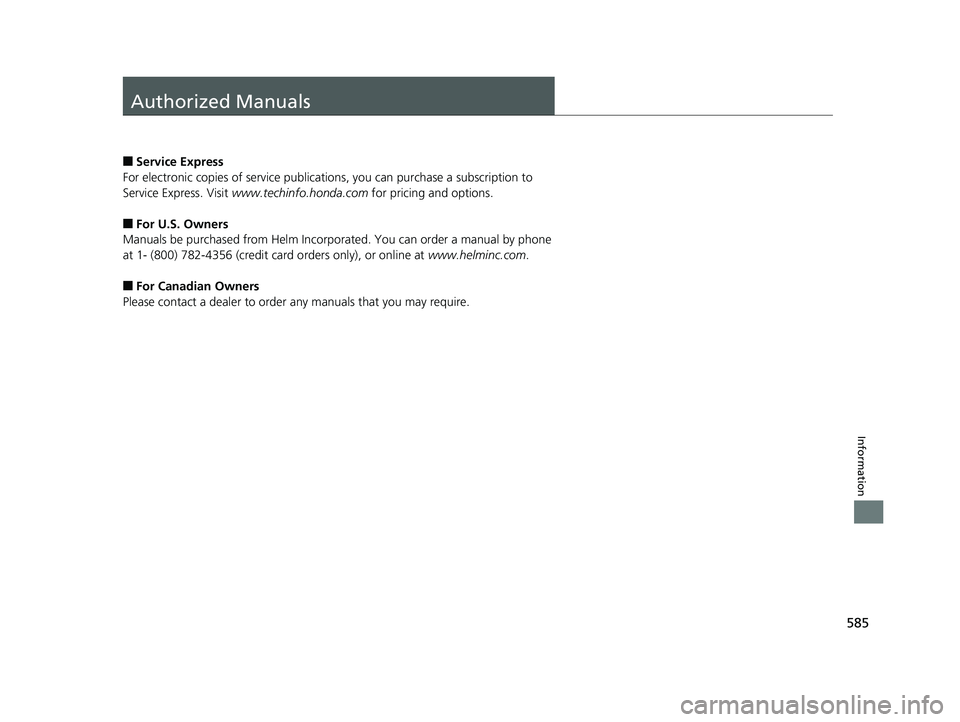

Authorized Manuals
■Service Express
For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.
■For U.S. Owners
Manuals be purchased from Helm Incorpor ated. You can order a manual by phone
at 1- (800) 782-4356 (credit card orders only), or online at www.helminc.com.
■For Canadian Owners
Please contact a dealer to order any manuals that you may require.
20 FIT-31T5A6500.book 585 ページ ２０１９年９月２６日　木曜日　午後４時４１分

586
Information

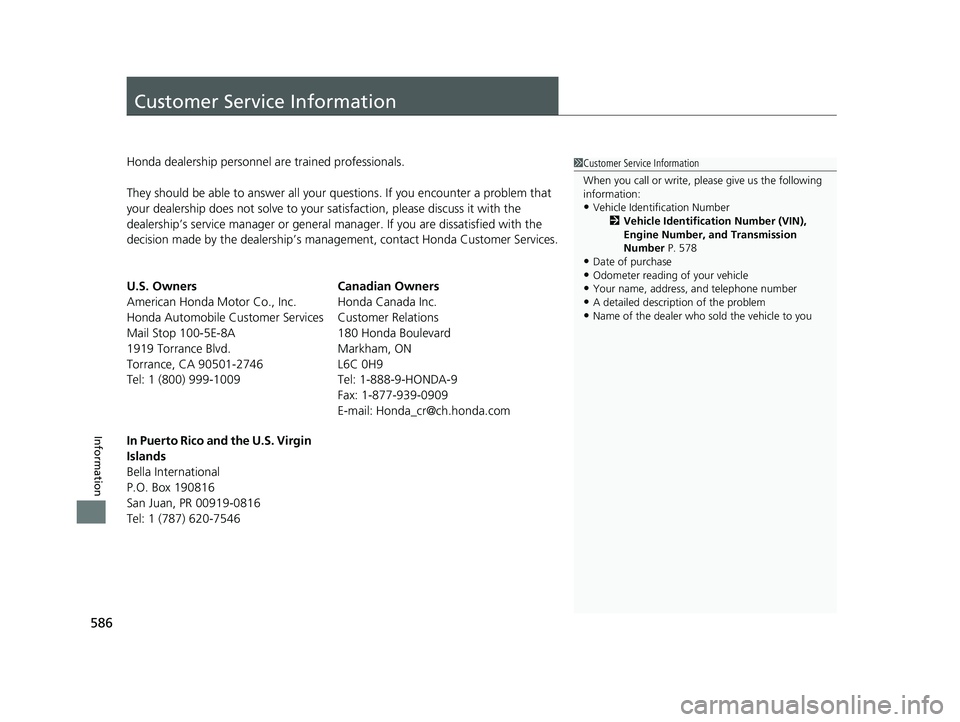

Customer Service Information
Honda dealership personnel are trained professionals.
They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general manager. If you are dissatisfied with the
decision made by the dealership’s management, contact Honda Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 100-5E-8A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 578
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
20 FIT-31T5A6500.book 586 ページ ２０１９年９月２６日　木曜日　午後４時４１分

587
uuCustomer Service Information u
Information

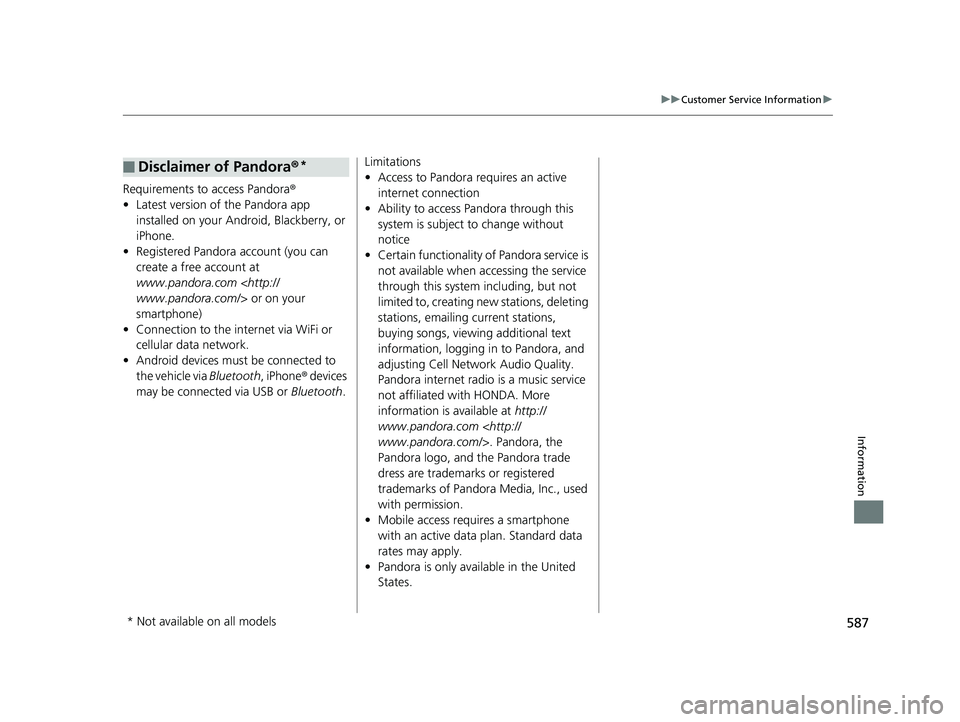

Requirements to access Pandora®
• Latest version of the Pandora app
installed on your Android, Blackberry, or
iPhone.
• Registered Pandora account (you can
create a free account at
www.pandora.com www.pandora.com/ > or on your
smartphone)
• Connection to the in ternet via WiFi or
cellular data network.
• Android devices must be connected to
the vehicle via Bluetooth, iPhone® devices
may be connected via USB or Bluetooth.
■Disclaimer of Pandora ®*Limitations
•Access to Pandora requires an active
internet connection
• Ability to access Pandora through this
system is subject to change without
notice
• Certain functionality of Pandora service is
not available when accessing the service
through this system including, but not
limited to, creating new stations, deleting
stations, emailing current stations,
buying songs, viewing additional text
information, logging in to Pandora, and
adjusting Cell Network Audio Quality.
Pandora internet radio is a music service
not affiliated with HONDA. More
information is available at http://
www.pandora.com www.pandora.com/ >. Pandora, the
Pandora logo, and the Pandora trade
dress are trademarks or registered
trademarks of Pandora Media, Inc., used
with permission.
• Mobile access requires a smartphone
with an active data plan. Standard data
rates may apply.
• Pandora is only available in the United
States.
* Not available on all models
20 FIT-31T5A6500.book 587 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Index
588
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 421
A
ABS (Anti-lock Brake System) ................... 471
Accessories and Modifications ................. 544
Accessory Power Socket ........................... 191
Adaptive Cruise Control (ACC) ........... 89, 433
Additives
Coolant ................................................... 508
Engine Oil ................................................ 503
Washer .................................................... 512
Additives, Engine Oil ................................ 503
Adjusting Front Seats .............................................. 174
Head Restraints........................................ 181
Headlights ............................................... 513
Mirrors .................................................... 173
Rear Seats................................................ 178
Steering Wheel ........................................ 172
Temperature ............................................ 103
Adjusting the Sound ................................. 249
Air Conditioning System
Climate Control System ........................... 199
Defrosting the Windshield and Windows ....................................... 200
Dust and Pollen Filter ............................... 538
Air Conditioning System (Heating and Cooling System)
Cooling ................................................... 198 Defrosting the Windshield
and Windows ....................................... 198
Heating ................................................... 197
Heating and Cooling System ................... 196
Air Pressure ....................................... 526, 577
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
Airbag Care............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator.............................................. 57, 80
Passenger Front Airbag Off Indicator ......... 58
Sensors ..................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags.................................. 55
Android Auto ........................................... 293
Anti-lock Brake System (ABS) .................. 471
Indicator.................................................... 80
Apple CarPlay ........................................... 289
Armrest ..................................................... 185
Audio Remote Controls ........................... 210
Audio System ............................................ 206
Adjusting the Sound................................ 217
Error Messages ........................................ 312
General Information ................................ 317
MP3/WMA/AAC .............................. 227, 276
Recommended CDs ................................. 318
Recommended Devices............................ 320
Remote Controls ................................. 5, 210
Security Code .......................................... 208
Theft Protection ...................................... 208 USB Flash Drives...................................... 320
USB Port(s) .............................................. 207
Audio/Information Screen ............... 213, 234
Authorized Manuals ................................ 585
Auto Door Locking/Unlocking ................ 139
Customize .............................................. 140
Auto High-Beam ...................................... 164
Automatic Climate Control Sensors ........ 203
Average Fuel Economy .................... 105, 109
Average Speed ......................................... 110
B
Battery...................................................... 534
Charging System Indicator ................ 78, 562
Jump Starting ......................................... 557
Maintenance (Checking the Battery) ....... 534
Maintenance (Replacing) ......................... 536
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Bluetooth ® HandsFreeLink ®............. 343, 368
Booster Seats (For Children) ...................... 72
Brake System ............................................ 469
Anti-lock Brake System (ABS) .................. 471
Brake Assist System................................. 472
Fluid ....................................................... 511
Foot Brake .............................................. 470
Indicator ........................................... 76, 564
Parking Brake.......................................... 469
Brake System Indicator .............................. 76
Brightness Control (Instrument Panel) ... 170
20 FIT-31T5A6500.book 588 ページ ２０１９年９月２６日　木曜日　午後４時４１分
