Quick Reference Guide
Maintenance (P489)
Under the Hood (P501)
● Check engine oil, engine coolant, and window washer
fluid. Add when necessary.
● Check brake/clutch
* fluid
● Check the battery condition monthly.
aPull the hood release handle under the corner of
the dashboard.
bLocate the hood latch lever, push it to the side, and
then raise the hood. Once you have raised the hood
slightly, you can release the lever.
cWhen finished, close the hood and make sure it is
firmly locked in place.
Lights (P513)
● Inspect all lights regularly.
Wiper Blades (P520)
● Replace blades if they leave streaks
across the windshield.
Tires (P524)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
20 FIT-31T5A6500.book 25 ページ ２０１９年９月２６日　木曜日　午後４時４１分

164
uuOperating the Switches Around the Steering Wheel uAuto High-Beam*
Controls

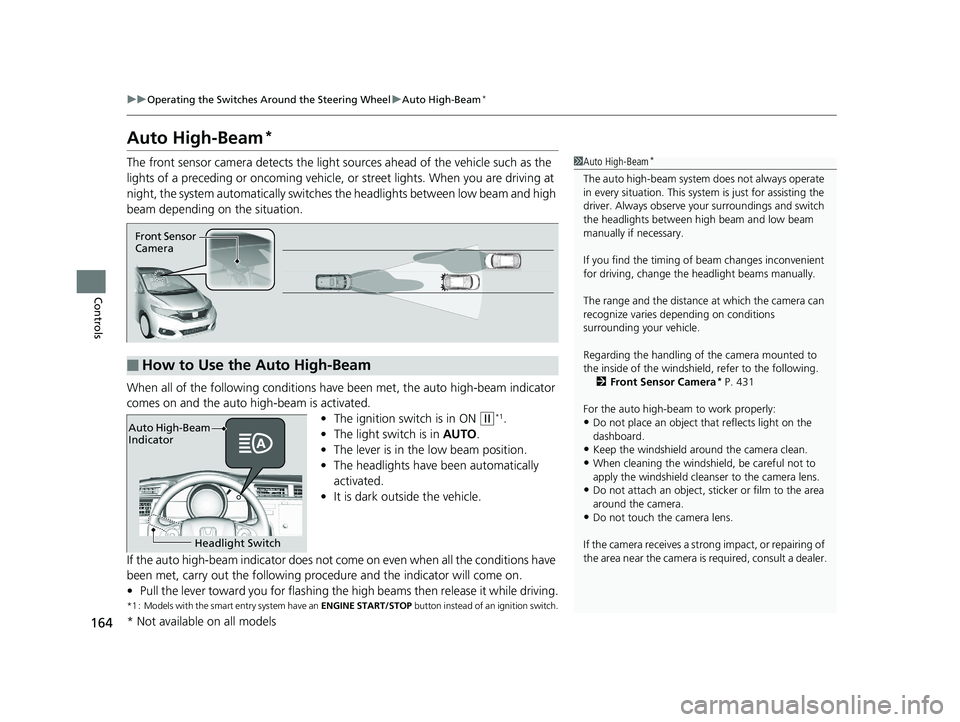

Auto High-Beam*
The front sensor camera detects the light sources ahead of the vehicle such as the
lights of a preceding or oncoming vehicle, or street lights. When you are driving at
night, the system automati cally switches the headlight s between low beam and high
beam depending on the situation.
When all of the following conditions have been met, the auto high-beam indicator
comes on and the auto high-beam is activated. •The ignition switch is in ON
(w*1.
• The light switch is in AUTO.
• The lever is in the low beam position.
• The headlights have been automatically
activated.
• It is dark outside the vehicle.
If the auto high-beam indicator does not come on even when all the conditions have
been met, carry out the following procedure and the indicator will come on.
• Pull the lever toward you for flashing the high beams then release it while driving.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
1Auto High-Beam*
The auto high-beam system does not always operate
in every situation. This syst em is just for assisting the
driver. Always observe your surroundings and switch
the headlights between high beam and low beam
manually if necessary.
If you find the timing of beam changes inconvenient
for driving, change the headlight beams manually.
The range and the distance at which the camera can
recognize varies de pending on conditions
surrounding your vehicle.
Regarding the handling of the camera mounted to
the inside of the windshiel d, refer to the following.
2 Front Sensor Camera
* P. 431
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.
•When cleaning the windshield, be careful not to
apply the windshield cleans er to the camera lens.
•Do not attach an object, sticker or film to the area
around the camera.
•Do not touch the camera lens.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
■How to Use the Auto High-Beam
Front Sensor
Camera
Headlight Switch
Auto High-Beam
Indicator
* Not available on all models
20 FIT-31T5A6500.book 164 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuOperating the Switches Around the Steering Wheel uAuto High-Beam*
166
Controls
You can turn the auto high-beam system off. If you want to turn the system off or
on, turn the ignition switch to ON
(w*1, then carry out the following procedures
while the vehicle is stationary.
To turn the system off:
With the light switch is in AUTO, pull the lever
toward you and hold it for at least 40 seconds.
After the auto high-beam indicator light blinks
twice, release the lever.
To turn the system on:
With the light switch is in AUTO, pull the lever
toward you and hold it for at least 30 seconds.
After the auto high-beam indicator light blinks
once, release the lever.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■How to Turn Off the Auto High-Beam1How to Use the Auto High-Beam
If the Some Driver Assist Systems Cannot
Operate :
Camera Temperature Too High message appears:
•Use the heating and cooling system*/climate
control system* to cool down the interior and, if
necessary, also use defroster mode with the airflow
directed toward the camera.
•Start driving the vehicle to lower the windshield
temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate :
Clean Front Windshield message appears:
•Park your vehicle in a safe place, and clean the
windshield. If the message does not disappear after
you have cleaned the windshield and driven for a
while, have your vehicle checked by a dealer.
1 How to Turn Off the Auto High-Beam
If you turn the auto high-b eam system off, the system
does not operate until you turn the system on.
Park in a safe place before turning the system off or
on.
AUTO Position
U.S. models
Canadian models
AUTO Position
* Not available on all models
20 FIT-31T5A6500.book 166 ページ ２０１９年９月２６日　木曜日　午後４時４１分

168
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls

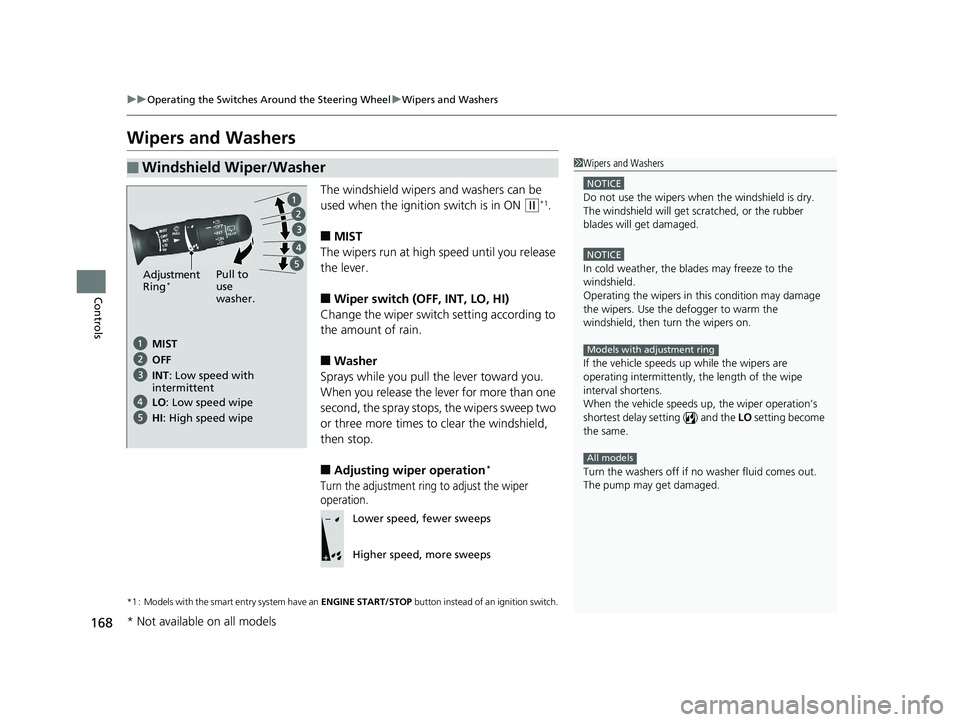

Wipers and Washers
The windshield wipers and washers can be
used when the ignition switch is in ON
(w*1.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting ( ) and the LO setting become
the same.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
Models with adjustment ring
All models
Pull to
use
washer.
MIST
INT: Low speed with
intermittent OFF
LO : Low speed wipe
HI: High speed wipe
Adjustment
Ring*
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
20 FIT-31T5A6500.book 168 ページ ２０１９年９月２６日　木曜日　午後４時４１分

169
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls

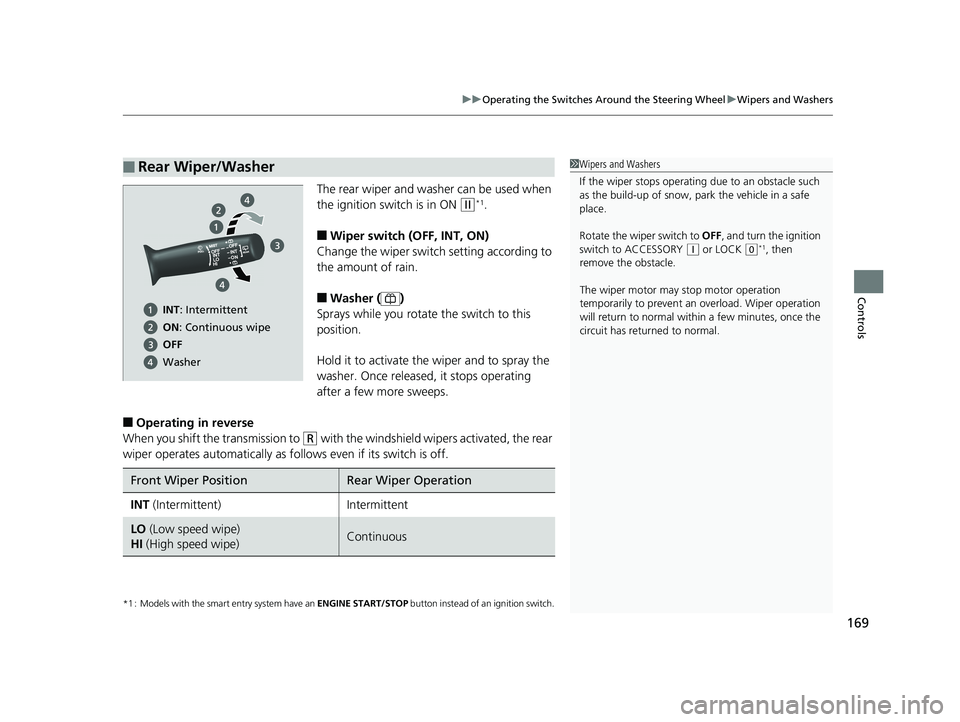

The rear wiper and washer can be used when
the ignition switch is in ON
(w*1.
■Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate th e wiper and to spray the
washer. Once released , it stops operating
after a few more sweeps.
■Operating in reverse
When you shift the transmission to
(R with the windshield wipers activated, the rear
wiper operates automati cally as follows even if its switch is off.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Rear Wiper/Washer1Wipers and Washers
If the wiper stops operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and turn the ignition
switch to ACCESSORY
( q or LOCK (0*1, then
remove the obstacle.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
INT: Intermittent
ON : Continuous wipe
OFF
Washer
Front Wiper PositionRear Wiper Operation
INT (Intermittent)Intermittent
LO (Low speed wipe)
HI (High speed wipe)Continuous
20 FIT-31T5A6500.book 169 ページ ２０１９年９月２６日　木曜日　午後４時４１分

199Continued
Controls
Climate Control System*

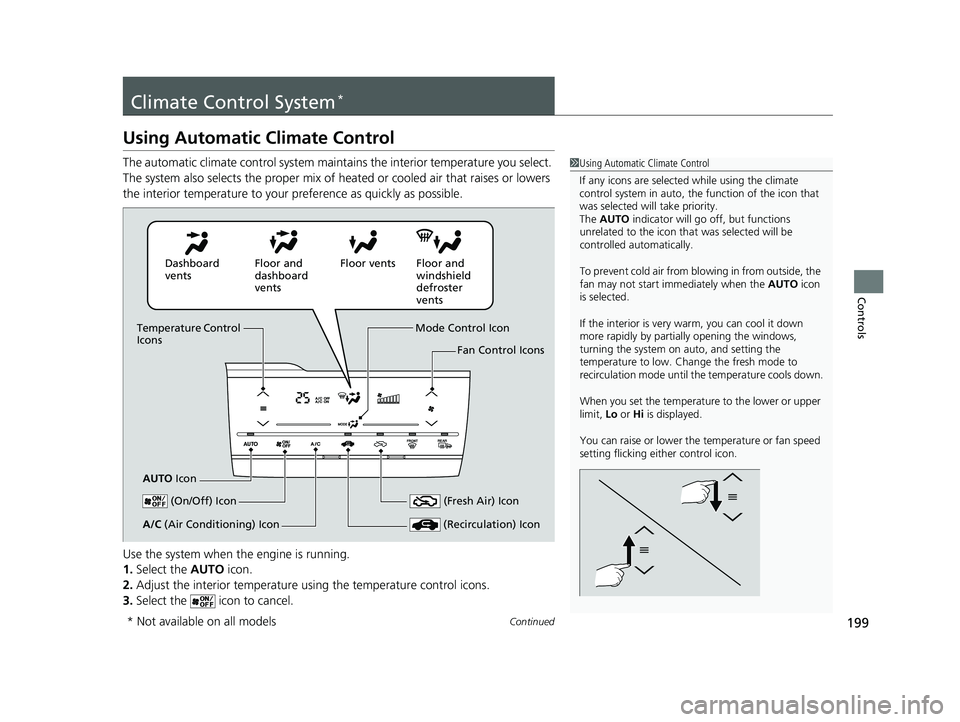

Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heat ed or cooled air that raises or lowers
the interior temperature to your pr eference as quickly as possible.
Use the system when the engine is running.
1. Select the AUTO icon.
2. Adjust the interior temperature us ing the temperature control icons.
3. Select the icon to cancel.1Using Automatic Climate Control
If any icons are selected while using the climate
control system in auto, the function of the icon that
was selected will take priority.
The AUTO indicator will go off, but functions
unrelated to the icon that was selected will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO icon
is selected.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
You can raise or lower the temperature or fan speed
setting flicking either control icon.
Dashboard
vents Floor and
dashboard
ventsFloor vents Floor and
windshield
defroster
vents
Temperature Control
Icons
AUTO Icon Mode Control Icon
Fan Control Icons
(On/Off) Icon
(Recirculation) IconA/C (Air Conditioning) Icon (Fresh Air) Icon
* Not available on all models
20 FIT-31T5A6500.book 199 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuWhen Driving uAdaptive Cruise Control (ACC)*
444
Driving
■Automatic cancellation
The beeper sounds and a me ssage appears on the multi-information display when
ACC is automatically canceled. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor inside the front grille gets dirty.
• The vehicle ahead of you cannot be detected.
• An abnormal tire condition is detected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When you manually apply the parking brake.
• When the detected vehicle within the ACC range is too close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• When you do not shift down about for ten seconds after the shift down indicator
coming on
• When the engine speed reache s the tachometer’s red zonen
• When the engine speed reaches 1,000 rpm or less
• When you keep
(N while driving
• When you put the transmission into
(N without depressing the clutch pedal
1Automatic cancellation
Even though ACC has been automatically canceled,
you can still resume the prior set speed.
Wait until the condition that caused ACC to cancel
improves, then press the RES/+ button.
Models with manual transmission
20 FIT-31T5A6500.book 444 ページ ２０１９年９月２６日　木曜日　午後４時４１分

Index
588
Index
Index
Numbers
7-Speed Manual Shift Mode.................... 421
A
ABS (Anti-lock Brake System) ................... 471
Accessories and Modifications ................. 544
Accessory Power Socket ........................... 191
Adaptive Cruise Control (ACC) ........... 89, 433
Additives
Coolant ................................................... 508
Engine Oil ................................................ 503
Washer .................................................... 512
Additives, Engine Oil ................................ 503
Adjusting Front Seats .............................................. 174
Head Restraints........................................ 181
Headlights ............................................... 513
Mirrors .................................................... 173
Rear Seats................................................ 178
Steering Wheel ........................................ 172
Temperature ............................................ 103
Adjusting the Sound ................................. 249
Air Conditioning System
Climate Control System ........................... 199
Defrosting the Windshield and Windows ....................................... 200
Dust and Pollen Filter ............................... 538
Air Conditioning System (Heating and Cooling System)
Cooling ................................................... 198 Defrosting the Windshield
and Windows ....................................... 198
Heating ................................................... 197
Heating and Cooling System ................... 196
Air Pressure ....................................... 526, 577
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
Airbag Care............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator.............................................. 57, 80
Passenger Front Airbag Off Indicator ......... 58
Sensors ..................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags.................................. 55
Android Auto ........................................... 293
Anti-lock Brake System (ABS) .................. 471
Indicator.................................................... 80
Apple CarPlay ........................................... 289
Armrest ..................................................... 185
Audio Remote Controls ........................... 210
Audio System ............................................ 206
Adjusting the Sound................................ 217
Error Messages ........................................ 312
General Information ................................ 317
MP3/WMA/AAC .............................. 227, 276
Recommended CDs ................................. 318
Recommended Devices............................ 320
Remote Controls ................................. 5, 210
Security Code .......................................... 208
Theft Protection ...................................... 208 USB Flash Drives...................................... 320
USB Port(s) .............................................. 207
Audio/Information Screen ............... 213, 234
Authorized Manuals ................................ 585
Auto Door Locking/Unlocking ................ 139
Customize .............................................. 140
Auto High-Beam ...................................... 164
Automatic Climate Control Sensors ........ 203
Average Fuel Economy .................... 105, 109
Average Speed ......................................... 110
B
Battery...................................................... 534
Charging System Indicator ................ 78, 562
Jump Starting ......................................... 557
Maintenance (Checking the Battery) ....... 534
Maintenance (Replacing) ......................... 536
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Bluetooth ® HandsFreeLink ®............. 343, 368
Booster Seats (For Children) ...................... 72
Brake System ............................................ 469
Anti-lock Brake System (ABS) .................. 471
Brake Assist System................................. 472
Fluid ....................................................... 511
Foot Brake .............................................. 470
Indicator ........................................... 76, 564
Parking Brake.......................................... 469
Brake System Indicator .............................. 76
Brightness Control (Instrument Panel) ... 170
20 FIT-31T5A6500.book 588 ページ ２０１９年９月２６日　木曜日　午後４時４１分

589
Index
Bulb Replacement.................................... 513
Back-Up Light and Rear Turn Signal
Lights ................................................... 517
Brake/Tail/Rear Side Marker Lights........... 518
Fog Lights ............................................... 515
Headlights .............................................. 513
High-Mount Brake Light.......................... 518
Rear License Plate Light ........................... 519
Side Turn Signal/Emergency Indicator Lights ................................................... 516
Bulb Specifications ................................... 576
C
Carbon Monoxide Gas ............................... 73
Cargo Area Cover ..................................... 194
Cargo Floor Box ....................................... 190
Carrying Cargo ................................. 401, 403
CD Player .................................................. 221
Certification Label ................................... 578
Changing Bulbs ........................................ 513
Charging System Indicator ................ 78, 562
Child Safety ................................................ 60
Childproof Door Locks ............................ 138
Child Seat ................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder Seat Belt......................... 67
Larger Children ......................................... 71 Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Childproof Door Locks ............................. 138
Cleaning the Exterior ............................... 541
Cleaning the Interior ................................ 539
Climate Control System ............................ 199
Clock .......................................................... 122
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 473
Coat Hook ................................................. 192
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 473
Compact Spare Tire .......................... 547, 577
Console Compartment ............................. 188
Continuously Variable Transmission ....... 416
7-Speed Manual Shift Mode .................... 421
Creeping ................................................. 416
Fluid ........................................................ 510
Kickdown ................................................ 416
Operating the Shift Lever ........... 21, 418, 420
Shift Lever Does Not Move ...................... 559
Shifting ........................................... 417, 419
Controls ..................................................... 121
Coolant (Engine) ....................................... 508
Adding to the Radiator ............................ 509
Adding to the Reserve Tank ..................... 508
High Temperature Indicator ....................... 81
Low Temperature Indicator ........................ 81
Overheating ............................................ 560
Creeping (Continuously Variable Transmission) .......................................... 416 Cruise Control
........................................... 428
Indicator.................................................... 86
Cup Holders .............................................. 189
Customer Service Information ................. 586
Customized Features ................ 111, 321, 328
D
Daytime Running Lights .......................... 167
Dead Battery ............................................. 557
Defrosting the Windshield and Windows ......................................... 198
Devices that Emit Radio Waves ............... 579
Dimming Headlights ............................................... 160
Rearview Mirror....................................... 173
Dipstick (Engine Oil) ................................. 504
Directional Signals (Turn Signal) ............. 159
Display Setup .................................... 218, 250
Door Mirrors ............................................. 173
Doors ......................................................... 124
Auto Door Locking .................................. 139
Auto Door Unlocking .............................. 139
Door and Tailgate Open Indicator ........ 35, 82
Keys ........................................................ 124
Locking/Unlocking the Doors from the Inside ..................................... 135
Locking/Unlocking the Doors from the Outside .................................. 127
Lockout Prevention System ...................... 134
DOT Tire Quality Grading ........................ 528
20 FIT-31T5A6500.book 589 ページ ２０１９年９月２６日　木曜日　午後４時４１分

590
Index
Driving....................................................... 399
Adaptive Cruise Control (ACC) ................ 433
Braking .................................................... 469
Continuously Variable Transmission ......... 416
Cruise Control ......................................... 428
Shifting Gear ........................... 417, 419, 423
Starting the Engine .......................... 409, 411
Dust and Pollen Filter ............................... 538
E
ECON Button............................................. 427
ECON Mode Indicator ................................. 85
Elapsed Time ............................................. 109
Electric Power Steering (EPS) System Indicator ............................................ 82, 564
Electronic Stability Control (ESC) ............. 459
Emergency ................................................. 571
Emissions Testing (Readiness Codes) ....... 581
Engine Coolant ................................................... 508
Jump Starting .......................................... 557
Number ................................................... 578
Oil ........................................................... 503
Starting ........................................... 409, 411
Switch Buzzer .......................................... 154
Engine Coolant ......................................... 508
Adding to the Radiator ............................ 509
Adding to the Reserve Tank ..................... 508
High Temperature Indicator ....................... 81
Low Temperature Indicator ........................ 81 Overheating ............................................ 560
Engine Oil ................................................. 503
Adding .................................................... 505
Checking................................................. 504
Displaying Oil Life ............................ 493, 497
Low Oil Pressure Indicator ................. 77, 562
Recommended Engine Oil ....................... 503
EPS (Electric Power Steering)
System .............................................. 82, 564
Exhaust Gas Hazard (Carbon Monoxide) ................................. 73
Exterior Care (Cleaning) ........................... 541
Exterior Mirrors ........................................ 173
F
Features.................................................... 205
Filters
Dust and Pollen ....................................... 538
Oil ........................................................... 506
Flat Tire ..................................................... 547
Floor Mats ................................................. 540
Fluids Brake ...................................................... 511
Continuously Variable Transmission ......... 510
Engine Coolant ....................................... 508
Manual Transmission ............................... 510
Windshield Washer ................................. 512
FM/AM Radio ............................................ 219
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats .................. 179Foot Brake
................................................ 470
Front Airbags (SRS) .................................... 49
Front Seats ................................................ 174
Adjusting ................................................ 174
Front Sensor Camera ............................... 431
Fuel ..................................................... 23, 484
Economy................................................. 487
Gauge .................................................... 106
Instant Fuel Economy .............................. 110
Low Fuel Indicator..................................... 80
Range ..................................................... 109
Recommendation.................................... 484
Refueling .......................................... 23, 484
Fuel Economy ........................................... 487
Fuel Fill Cap ........................................ 23, 486
Message ................................................. 563
Fuel Fill Door ...................................... 23, 485
Fuses ......................................................... 566
Inspecting and Changing ........................ 570
Locations ................................................ 566
G
Gasoline (Fuel)
Economy................................................. 487
Gauge .................................................... 106
Information............................................. 484
Instant Fuel Economy .............................. 110
Low Fuel Indicator..................................... 80
Refueling ................................................ 484
Gauges ...................................................... 103
20 FIT-31T5A6500.book 590 ページ ２０１９年９月２６日　木曜日　午後４時４１分
