SPARK PLUGS HONDA FIT 2020 Owner's Manual (in English)

495
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/(VSA®))●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
20 FIT-31T5A6500.book 495 ページ ２０１９年９月２６日　木曜日　午後４時４１分

499
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message Maintenance does not appear more than 12 months after the display is reset, change
the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/(VSA®))●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
20 FIT-31T5A6500.book 499 ページ ２０１９年９月２６日　木曜日　午後４時４１分

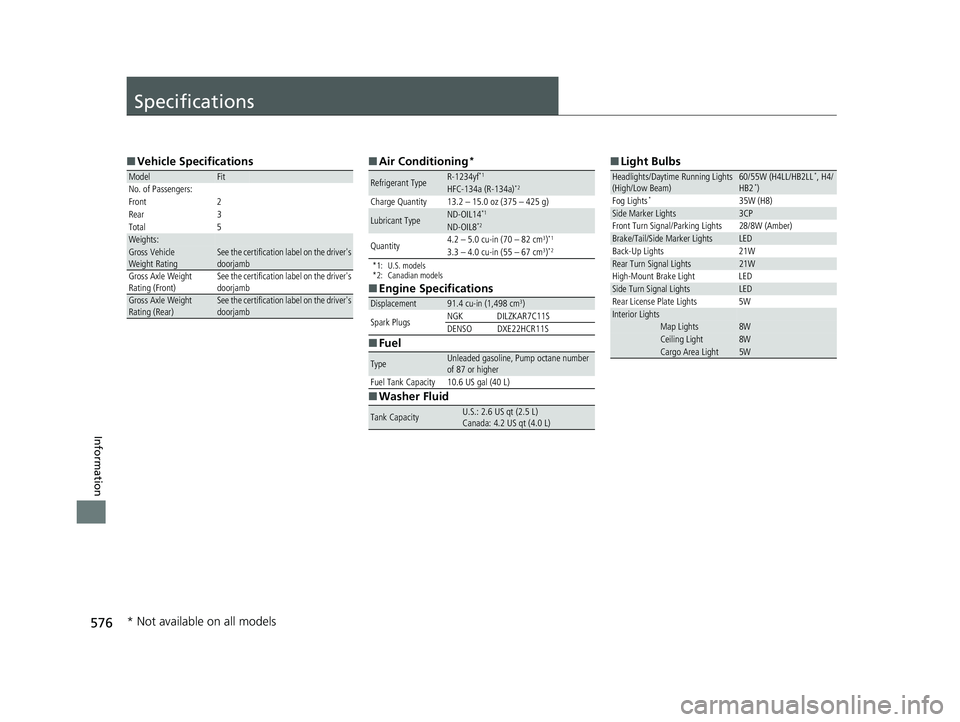

576
Information
Specifications
■Vehicle Specifications
ModelFitNo. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
■ Air Conditioning*
*1: U.S. models
*2: Canadian models
■Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant Type R-1234yf*1
HFC-134a (R-134a)*2
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeND-OIL14*1
ND-OIL8*2
Quantity 4.2 – 5.0 cu-in (70 – 82 cm3)*1
3.3 – 4.0 cu-in (55 – 67 cm3)*2
Displacement91.4 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11S
DENSODXE22HCR11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.2 US qt (4.0 L)
■ Light Bulbs
Headlights/Daytime Running Lights
(High/Low Beam)60/55W (H4LL/HB2LL*, H4/
HB2*)
Fog Lights*35W (H8)Side Marker Lights3CP
Front Turn Signal/Parking Lights 28/8W (Amber)
Brake/Tail/Side Marker LightsLED
Back-Up Lights 21W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Side Turn Signal LightsLED
Rear License Plate Lights 5W
Interior LightsMap Lights8WCeiling Light8WCargo Area Light5W
* Not available on all models
20 FIT-31T5A6500.book 576 ページ ２０１９年９月２６日　木曜日　午後４時４１分

594
Index
Seats.......................................................... 174
Adjusting ................................................. 174
Front Seats .............................................. 174
Rear Seats................................................ 178
Security System ......................................... 148
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................. 86
SEL/RESET Button ...................................... 108
Select Lever ................................. 21, 417, 419
Operation .................................. 21, 418, 420
Releasing ................................................. 559
Won’t Move ............................................ 559
Select/Reset Knob ..................................... 104
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 212
Setting the Clock ...................................... 122
Shift Lever ........................... 21, 417, 419, 423
Shift Lever Position Indicator ..... 78, 418, 420
Shifting (Transmission) ............. 417, 419, 423
Shoulder Anchor ......................................... 42
Side Airbags ................................................ 53
Side Curtain Airbags ................................... 55
Siri Eyes Free ............................................. 288
SiriusXM ® Radio ........................................ 259
Snow Tires ................................................. 533
Spare Tire .......................................... 547, 577
Spark Plugs ................................................ 576
Specifications ............................................ 576
Specified Fuel .................................... 484, 576
Speedometer ............................................. 103
SRS Airbags (Airbags) ................................. 49 Starter System Indicator
............................. 96
Starting the Engine .......................... 409, 411
Does Not Start......................................... 554
Engine Switch Buzzer .............................. 154
Jump Starting .......................................... 557
Steering Wheel ......................................... 172
Adjusting ................................................ 172
Stopping ................................................... 481
Summer Tires ............................................ 533
Supplemental Restraint System (SRS) ........ 49
Switches
(Around the Steering Wheel) ....... 4, 5, 154
T
Tachometer............................................... 103
Tailgate ..................................................... 145
Temperature
High Temperature Indicator ....................... 81
Low Temperature Indicator........................ 81
Outside Temperature Display ................... 103
Temperature Sensor ................................. 103
Tie-down Hooks ....................................... 193
Time (Setting) ........................................... 122
Tire Pressure Monitoring System (TPMS) .................................................... 463
Indicator.................................................... 83
Tires ........................................................... 524
Air Pressure ..................................... 526, 577
Checking and Maintaining ...................... 524
Inspection ............................................... 525 Labeling .................................................. 526
Puncture (Flat Tire) .................................. 547
Regulations ............................................. 528
Rotation.................................................. 532
Spare Tire ....................................... 547, 577
Summer .................................................. 533
Tire Chains.............................................. 533
Wear Indicators....................................... 530
Winter .................................................... 533
Tools ......................................................... 546
Towing a Trailer ....................................... 405
Towing Your Vehicle Emergency .............................................. 571
TPMS (Tire Pressure Monitoring
System) ................................................... 463
Indicator ................................................... 83
Transmission ............................. 417, 419, 423
7-Speed Manual Shift Mode ................... 421
Continuously Variable ............................. 416
Fluid ....................................................... 510
Manual ................................................... 423
Number .................................................. 578
Shift Position Indicator .............. 78, 418, 420
Trip Meter ........................................ 105, 109
Troubleshooting ...................................... 545
Blown Fuse ..................................... 566, 568
Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 28
Emergency Towing ................................. 571
Engine Won’t Start ................................. 554
Noise When Braking ................................. 29
