engine coolant HONDA FIT 2020 Owner's Manual (in English)

25
Quick Reference Guide
Maintenance (P489)
Under the Hood (P501)
● Check engine oil, engine coolant, and window washer
fluid. Add when necessary.
● Check brake/clutch
* fluid
● Check the battery condition monthly.
aPull the hood release handle under the corner of
the dashboard.
bLocate the hood latch lever, push it to the side, and
then raise the hood. Once you have raised the hood
slightly, you can release the lever.
cWhen finished, close the hood and make sure it is
firmly locked in place.
Lights (P513)
● Inspect all lights regularly.
Wiper Blades (P520)
● Replace blades if they leave streaks
across the windshield.
Tires (P524)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
20 FIT-31T5A6500.book 25 ページ ２０１９年９月２６日　木曜日　午後４時４１分

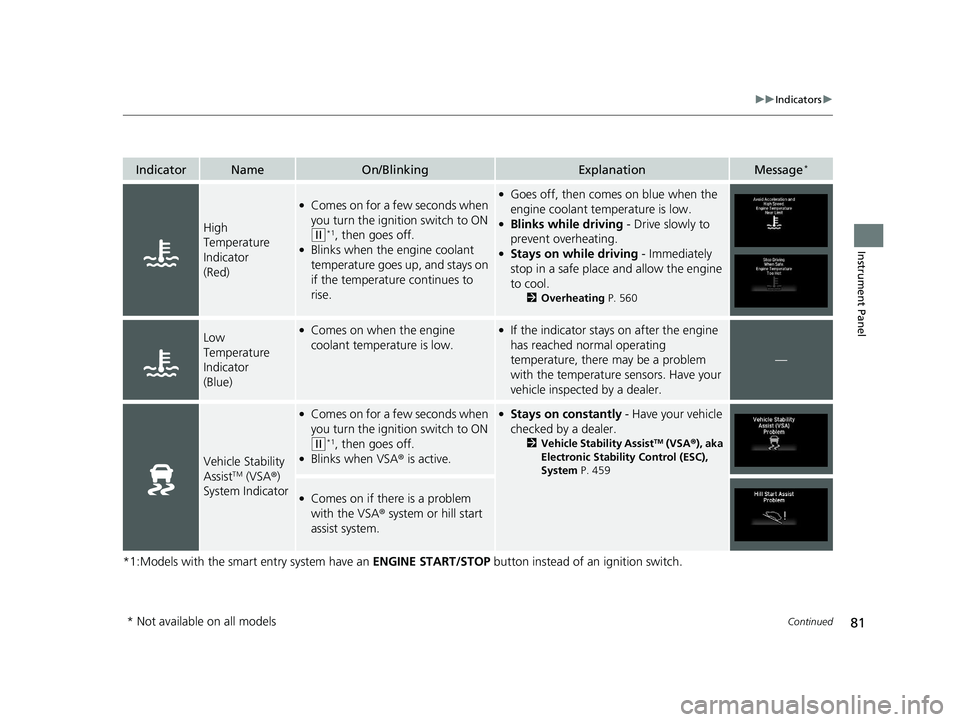

81
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
High
Temperature
Indicator
(Red)
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Blinks when the engine coolant
temperature goes up, and stays on
if the temperature continues to
rise.
●Goes off, then come s on blue when the
engine coolant temperature is low.
●Blinks while driving - Drive slowly to
prevent overheating.
●Stays on while driving - Immediately
stop in a safe place and allow the engine
to cool.
2 Overheating P. 560
Low
Temperature
Indicator
(Blue)●Comes on when the engine
coolant temperature is low.●If the indicator stays on after the engine
has reached normal operating
temperature, there may be a problem
with the temperature sensors. Have your
vehicle inspected by a dealer.
—
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Comes on for a fe w seconds when
you turn the igniti on switch to ON
(w*1, then goes off.●Blinks when VSA® is active.
●Stays on constantly - Have your vehicle
checked by a dealer.
2Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 459
●Comes on if there is a problem
with the VSA ® system or hill start
assist system.
* Not available on all models
20 FIT-31T5A6500.book 81 ページ ２０１９年９月２６日　木曜日　午後４時４１分

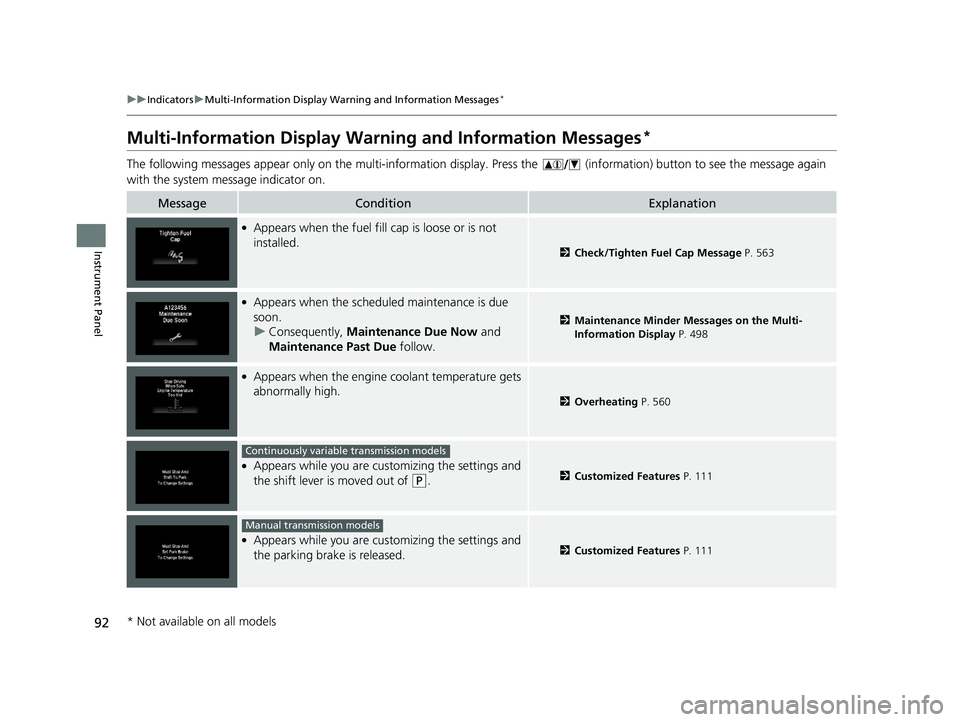

92
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
Multi-Information Display Warn ing and Information Messages*
The following messages appear only on the mu lti-information display. Press the (information) button to see the message again
with the system me ssage indicator on.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not
installed.
2Check/Tighten Fuel Cap Message P. 563
●Appears when the scheduled maintenance is due
soon. u Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 498
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 560
●Appears while you are customizing the settings and
the shift lever is moved out of
(P.2Customized Features P. 111
●Appears while you are customizing the settings and
the parking brake is released.2Customized Features P. 111
Continuously variable transmission models
Manual transmission models
* Not available on all models
20 FIT-31T5A6500.book 92 ページ ２０１９年９月２６日　木曜日　午後４時４１分

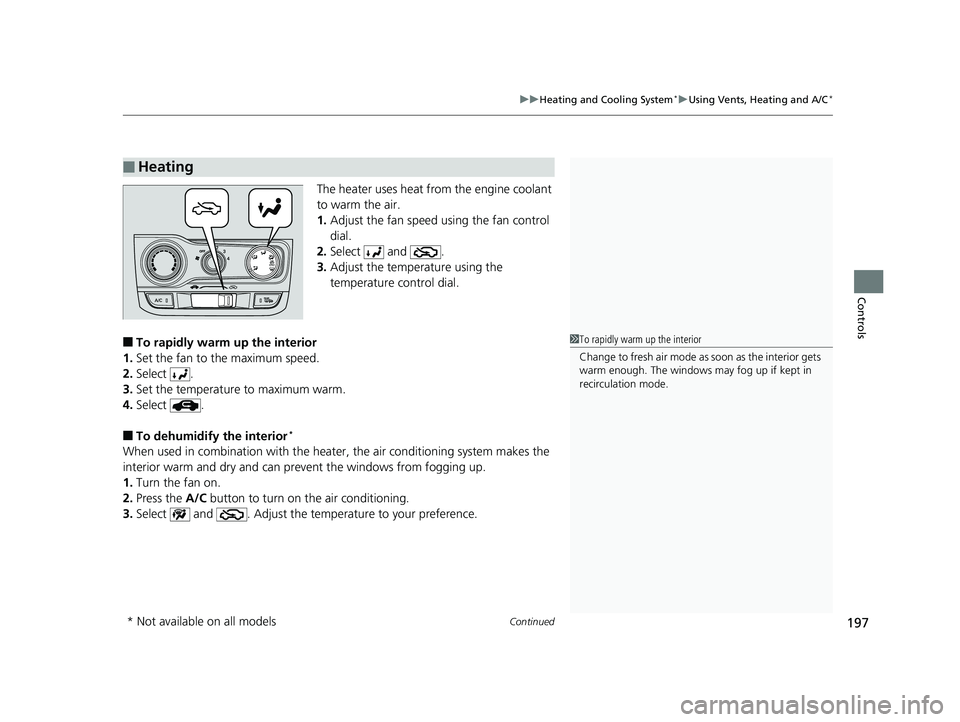

Continued197
uuHeating and Cooling System*uUsing Vents, Heating and A/C*
Controls
The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
dial.
2. Select and .
3. Adjust the temperature using the
temperature control dial.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum warm.
4. Select .
■To dehumidify the interior*
When used in combination with the heat er, the air conditioning system makes the
interior warm and dry and can prev ent the windows from fogging up.
1. Turn the fan on.
2. Press the A/C button to turn on the air conditioning.
3. Select and . Adjust the temperature to your preference.
■Heating
1To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.
* Not available on all models
20 FIT-31T5A6500.book 197 ページ ２０１９年９月２６日　木曜日　午後４時４１分

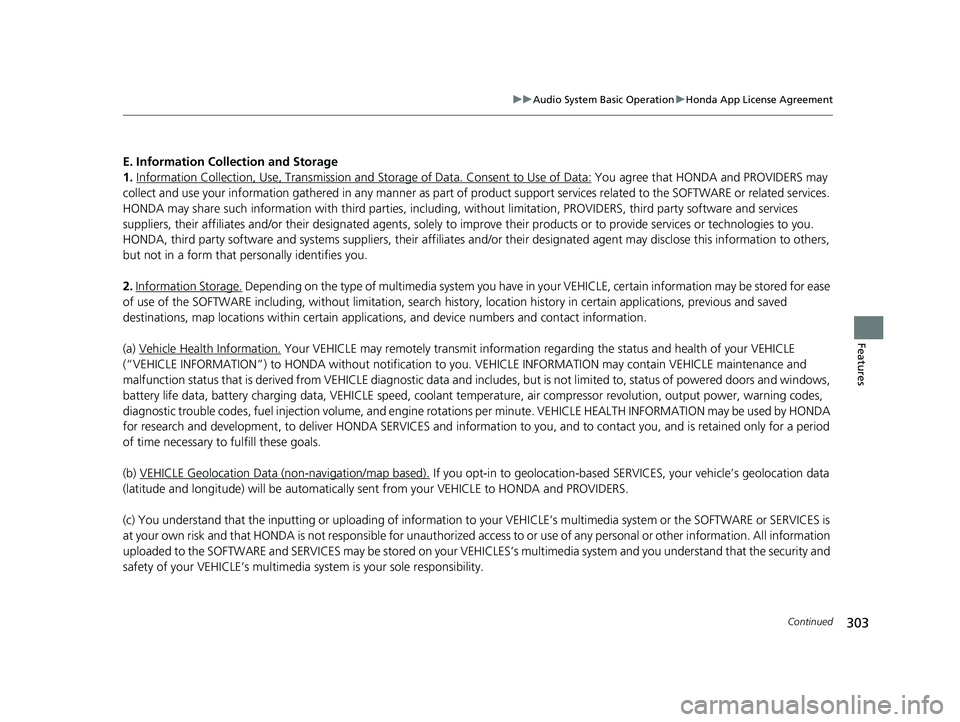

303
uuAudio System Basic Operation uHonda App License Agreement
Continued
Features
E. Information Collection and Storage
1. Information Collection, Use, Transmission a nd Storage of Data. Consent to Use of Data:
You agree that HONDA and PROVIDERS may
collect and use your information gathered in any manner as part of product support services related to the SOFTWARE or related services.
HONDA may share such information with third parties, including, without limitation, PR OVIDERS, third party software and service s
suppliers, their affiliates and/or their designated agents, solely to improve their products or to provide services or technolo gies to you.
HONDA, third party software and systems supplie rs, their affiliates and/or their designated agent may disclose this information to others,
but not in a form that pe rsonally identifies you.
2. Information Storage.
Depending on the type of multimedia system you have in your VEHICLE, certain information may be stored for ease
of use of the SOFTWARE including, without limitation, search history, location history in certain applications, previous and sa ved
destinations, map locations within certain applications, and device numbers and contact information.
(a) Vehicle Health Information.
Your VEHICLE may remotely transmit information re garding the status and health of your VEHICLE
(“VEHICLE INFORMATION”) to HO NDA without notification to you. VEHICLE INFO RMATION may contain VEHICLE maintenance and
malfunction status that is derived from VEHICLE diagnostic data and includes, but is not limited to, status of powered doors and windows,
battery life data, battery charging data, VE HICLE speed, coolant temperature, air comp ressor revolution, output power, warning codes,
diagnostic trouble codes, fuel injection volume, and engine rota tions per minute. VEHICLE HEALTH INFORMATION may be used by HON DA
for research and development, to deliver HONDA SERVICES and informat ion to you, and to contact you, and is retained only for a period
of time necessary to fulfill these goals.
(b) VEHICLE Geolocation Data (non-navigation/map based).
If you opt-in to geolocation-based SERVICES, your vehicle’s geolocation data
(latitude and longitude) will be automatically sent from your VEHICLE to HONDA and PROVIDERS.
(c) You understand that the inputting or uploading of information to your VEHICLE’s multimedia system or the SOFTWARE or SERVIC ES is
at your own risk and that HONDA is not responsible for unauthori zed access to or use of any personal or other information. All information
uploaded to the SOFTWARE and SERVICES may be stored on your VEHICLES’s multimedia system and you understand that the security and
safety of your VEHICLE’s multimedia system is your sole responsibility.
20 FIT-31T5A6500.book 303 ページ ２０１９年９月２６日　木曜日　午後４時４１分

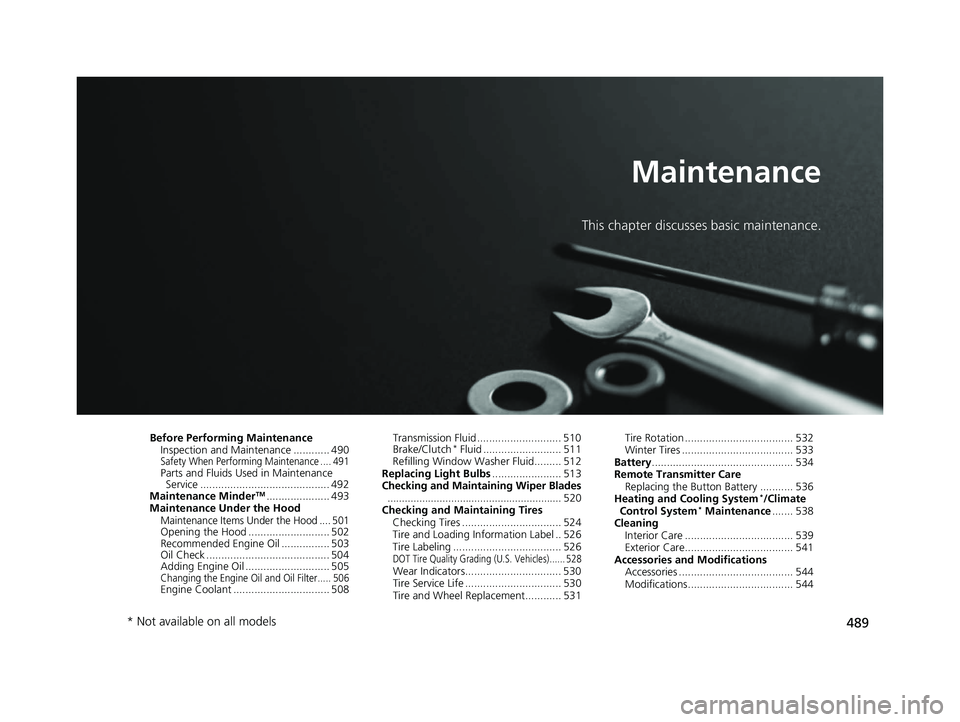

489
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 490
Safety When Performing Maintenance .... 491Parts and Fluids Used in Maintenance Service ........................................... 492
Maintenance Minder
TM..................... 493
Maintenance Under the Hood
Maintenance Items Under the Hood .... 501Opening the Hood ........................... 502
Recommended Engine Oil ................ 503
Oil Check ......................................... 504
Adding Engine Oil ............................ 505
Changing the Engine Oil and Oil Filter..... 506Engine Coolant ................................ 508 Transmission Fluid ............................ 510
Brake/Clutch
* Fluid .......................... 511
Refilling Window Wa sher Fluid......... 512
Replacing Light Bulbs ....................... 513
Checking and Maintaining Wiper Blades ............................................................ 520
Checking and Maintaining Tires Checking Tires ................................. 524
Tire and Loading Information Label .. 526
Tire Labeling .................................... 526
DOT Tire Quality Grading (U.S. Vehicles) ...... 528Wear Indicators................................ 530
Tire Service Life ................................ 530
Tire and Wheel Replacement............ 531 Tire Rotation .................................... 532
Winter Tires ..................................... 533
Battery ............................................... 534
Remote Transmitter Care Replacing the Button Battery ........... 536
Heating and Cooling System
*/Climate
Control System* Maintenance ....... 538
Cleaning Interior Care .................................... 539
Exterior Care.................................... 541
Accessories and Modifications Accessories ...................................... 544
Modifications................................... 544
* Not available on all models
20 FIT-31T5A6500.book 489 ページ ２０１９年９月２６日　木曜日　午後４時４１分

495
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/(VSA®))●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
20 FIT-31T5A6500.book 495 ページ ２０１９年９月２６日　木曜日　午後４時４１分

499
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message Maintenance does not appear more than 12 months after the display is reset, change
the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/(VSA®))●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
20 FIT-31T5A6500.book 499 ページ ２０１９年９月２６日　木曜日　午後４時４１分

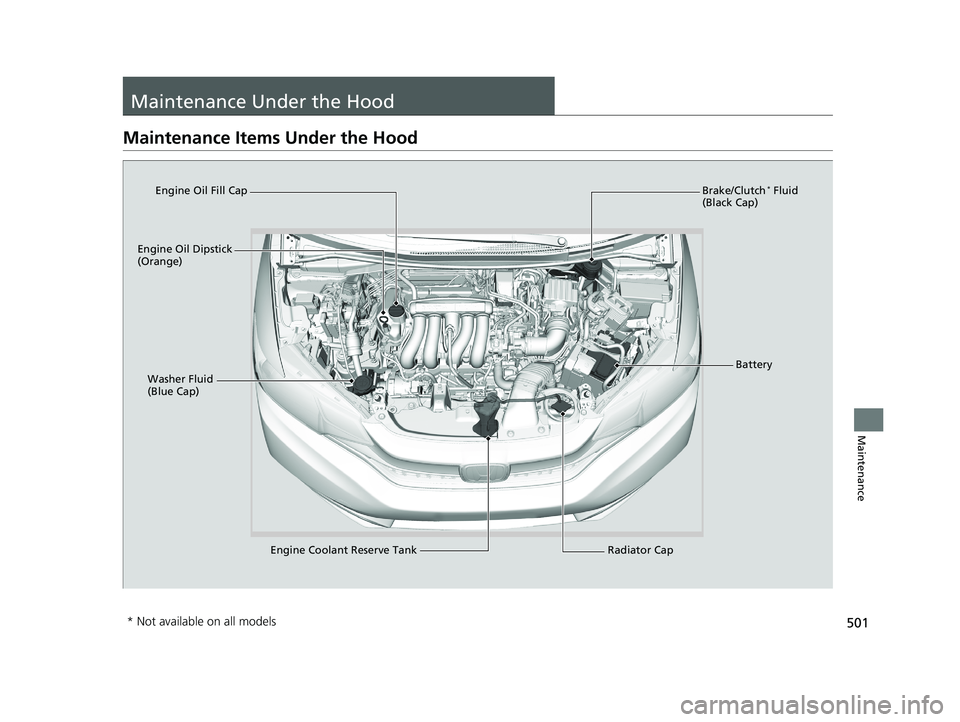

501
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
Brake/Clutch* Fluid
(Black Cap)
Engine Coolant Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap)
Engine Oil Dipstick
(Orange)
Engine Oil Fill Cap
Battery
* Not available on all models
20 FIT-31T5A6500.book 501 ページ ２０１９年９月２６日　木曜日　午後４時４１分

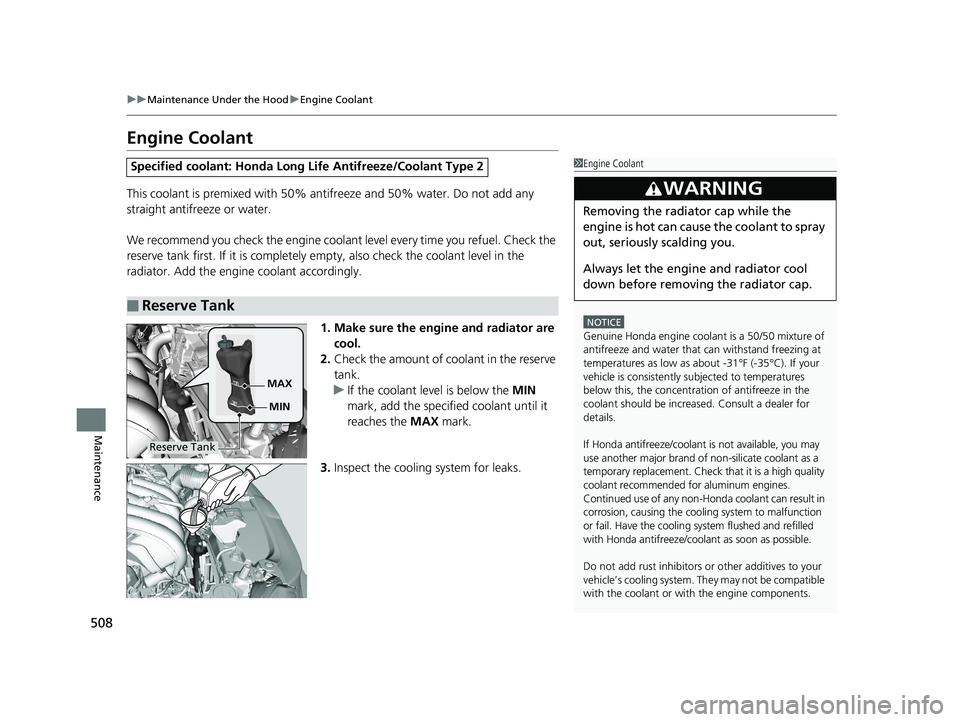

508
uuMaintenance Under the Hood uEngine Coolant
Maintenance
Engine Coolant
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Honda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Engine Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended fo r aluminum engines.
Continued use of any non-Ho nda coolant can result in
corrosion, causing the cool ing system to malfunction
or fail. Have the cooling system flushed and refilled
with Honda antifreeze/cool ant as soon as possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve Tank MAX
MIN
20 FIT-31T5A6500.book 508 ページ ２０１９年９月２６日　木曜日　午後４時４１分
