HONDA HR-V 2018 Navigation Manual (in English)

9

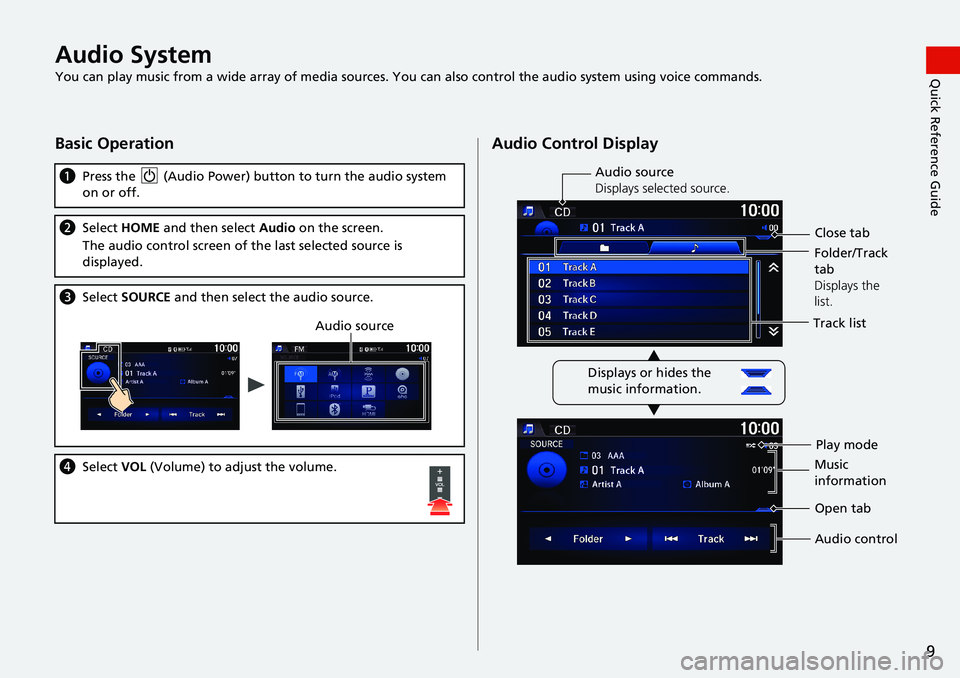

Quick Reference GuideAudio System
You can play music from a wide array of media sources. You can also control the audio system using voice commands.
Basic Operation
aPress the (Audio Power) button to turn the audio system
on or off.
bSelect HOME and then select Audio on the screen.
The audio control screen of the last selected source is
displayed.
cSelect SOURCE and then select the audio source.
dSelect VOL (Volume) to adjust the volume.
Audio source
Audio Control Display
Track list
Play mode Audio source
Displays selected source.
Displays or hides the
music information.Close tab
Music
information
Open tab
Audio control
Folder/Track
tab
Displays the
list.

10

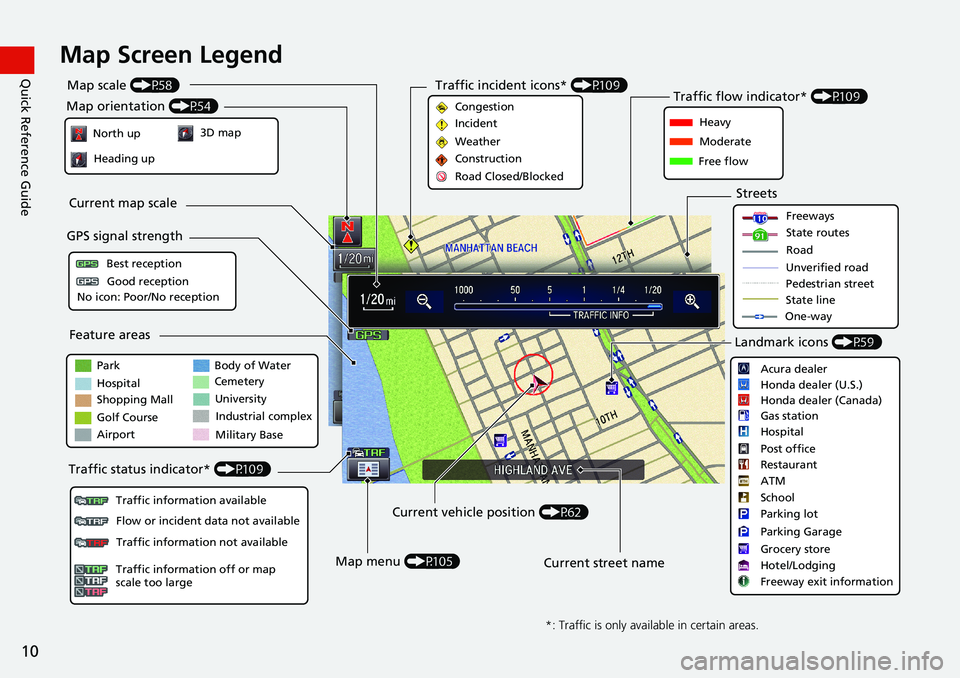

Quick Reference GuideMap Screen Legend
Park
Hospital
Golf CourseBody of Water
Cemetery
University
Airport
Industrial complex
Feature areas
Traffic status indicator* (P109)
Map orientation (P54)
GPS signal strength
North up
Heading up
Best reception
Good reception
No icon: Poor/No reception
Traffic information available
Flow or incident data not available
Traffic information not available
Traffic information off or map
scale too large
Current map scale
Current street name Map menu (P105) Map scale (P58)
Current vehicle position (P62)Streets
Landmark icons (P59)
Shopping MallFreeways
State routes
Road
Unverified road
Pedestrian street
Acura dealer
Honda dealer (U.S.)
Gas station
Hospital
Post office
Restaurant
ATM
School
Parking lot
Parking Garage
Grocery store
Hotel/Lodging
Freeway exit information
Congestion
Incident
Weather
Construction
Road Closed/Blocked
Traffic incident icons* (P109)
Traffic flow indicator* (P109)
Heavy
Moderate
Free flow
3D map
Honda dealer (Canada)
*: Traffic is only available in certain areas.
Military Base
State line
One-way

11

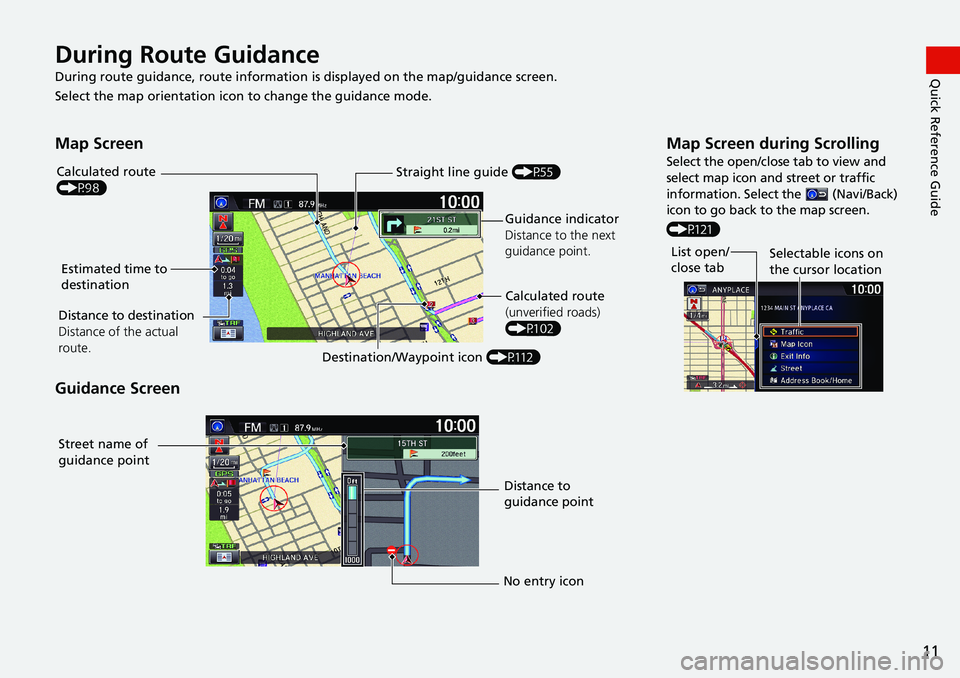

Quick Reference GuideDuring Route Guidance
During route guidance, route information is displayed on the map/guidance screen.
Select the map orientation icon to change the guidance mode.
Map Screen
Guidance Screen
Distance to destination
Distance of the actual
route.
Straight line guide (P55) Calculated route
(P98)
Guidance indicator
Distance to the next
guidance point.
Estimated time to
destination
Destination/Waypoint icon (P112)Calculated route
(unverified roads)
(P102)
Street name of
guidance point
Distance to
guidance point
No entry icon
Map Screen during Scrolling
Select the open/close tab to view and
select map icon and street or traffic
information. Select the (Navi/Back)
icon to go back to the map screen.
(P121)
List open/
close tabSelectable icons on
the cursor location

12

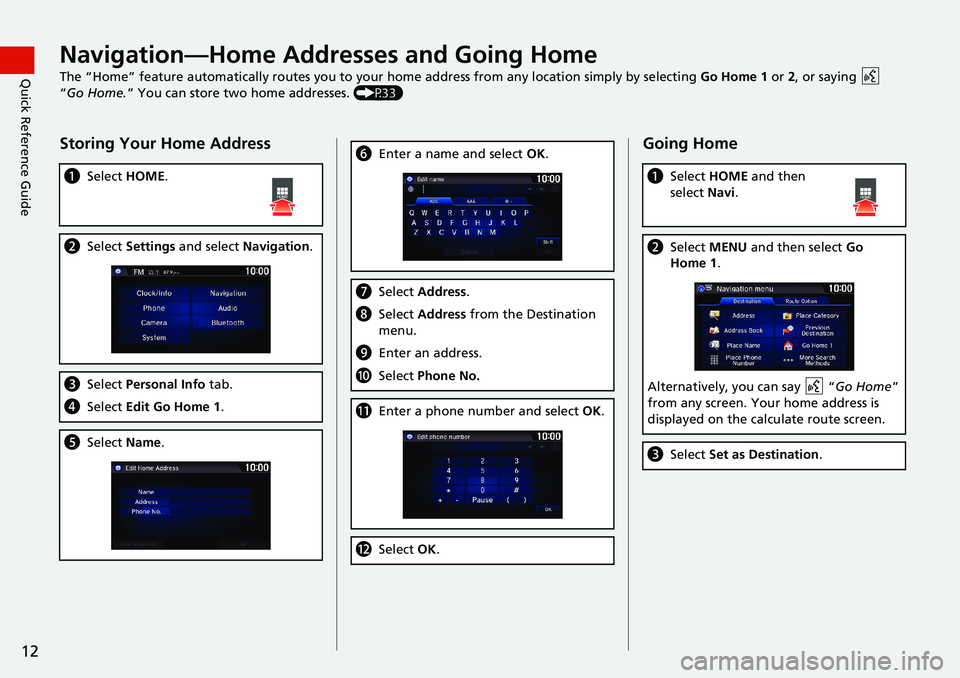

Quick Reference GuideNavigation—Home Addresses and Going Home
The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home 1 or 2, or saying
“Go Home.” You can store two home addresses. (P33)
Storing Your Home Address
aSelect HOME.
bSelect Settings and select Navigation.
cSelect Personal Info tab.
dSelect Edit Go Home 1.
eSelect Name.
fEnter a name and select OK.
gSelect Address.
hSelect Address from the Destination
menu.
iEnter an address.
jSelect Phone No.
kEnter a phone number and select OK.
lSelect OK.
Going Home
aSelect HOME and then
select Navi.
bSelect MENU and then select Go
Home 1.
Alternatively, you can say “Go Home”
from any screen. Your home address is
displayed on the calculate route screen.
cSelect Set as Destination.

13

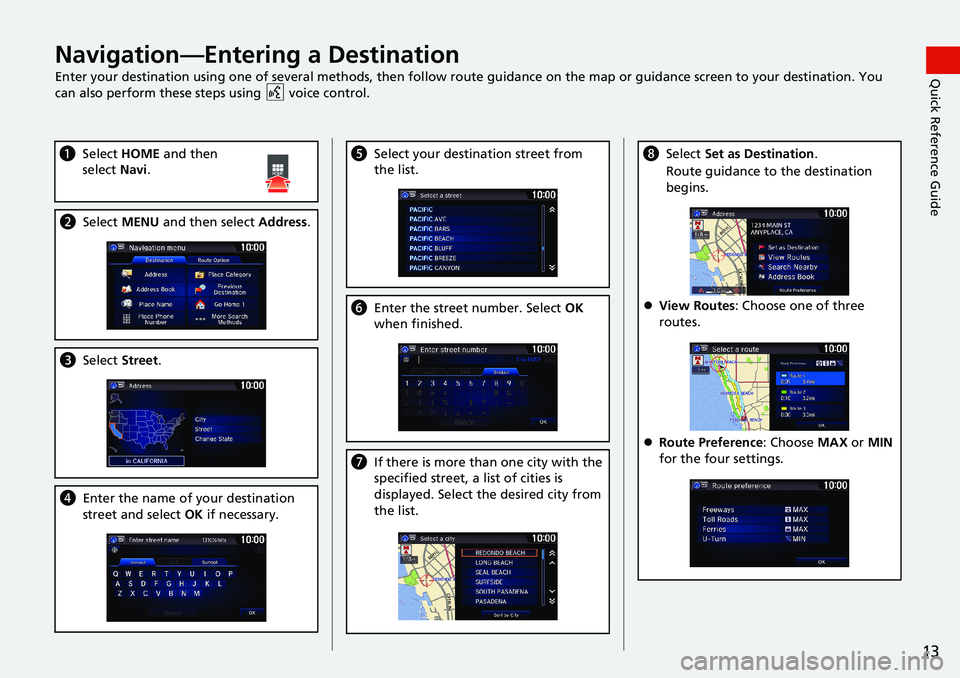

Quick Reference GuideNavigation—Entering a Destination
Enter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destination. You
can also perform these steps using voice control.
aSelect HOME and then
select Navi.
bSelect MENU and then select Address.
cSelect Street.
dEnter the name of your destination
street and select OK if necessary.
eSelect your destination street from
the list.
fEnter the street number. Select OK
when finished.
gIf there is more than one city with the
specified street, a list of cities is
displayed. Select the desired city from
the list.
hSelect Set as Destination.
Route guidance to the destination
begins.
View Routes: Choose one of three
routes.
Route Preference: Choose MAX or MIN
for the four settings.

14

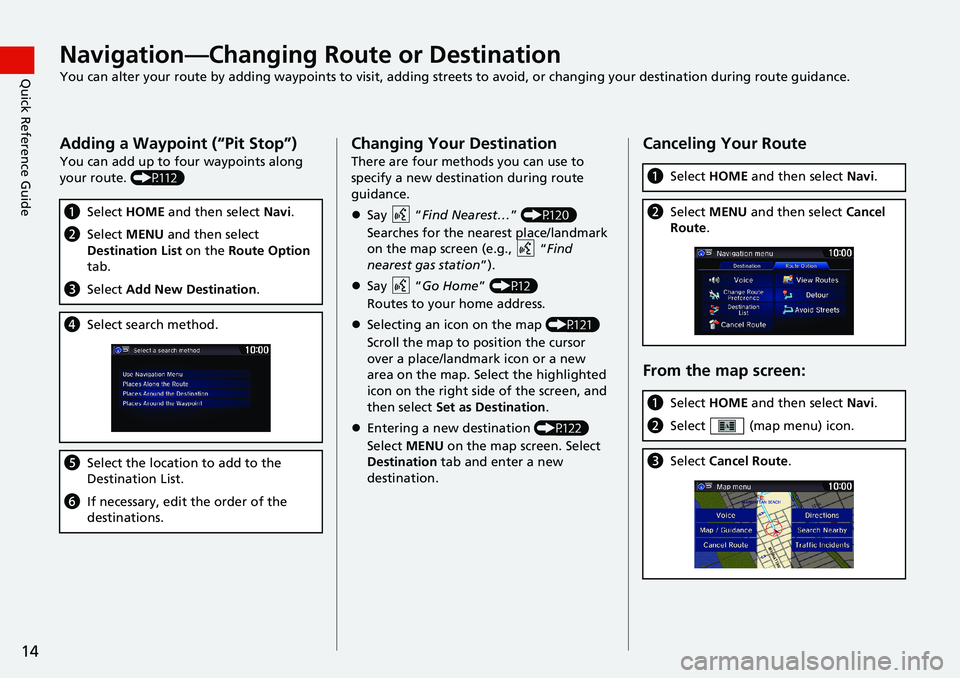

Quick Reference GuideNavigation—Changing Route or Destination
You can alter your route by adding waypoints to visit, adding streets to avoid, or changing your destination during route guidance.
Adding a Waypoint (“Pit Stop”)
You can add up to four waypoints along
your route. (P112)
aSelect HOME and then select Navi.
bSelect MENU and then select
Destination List on the Route Option
tab.
cSelect Add New Destination.
dSelect search method.
eSelect the location to add to the
Destination List.
fIf necessary, edit the order of the
destinations.
Changing Your Destination
There are four methods you can use to
specify a new destination during route
guidance.
Say “Find Nearest…” (P120)
Searches for the nearest place/landmark
on the map screen (e.g., “Find
nearest gas station”).
Say “Go Home” (P12)
Routes to your home address.
Selecting an icon on the map (P121)
Scroll the map to position the cursor
over a place/landmark icon or a new
area on the map. Select the highlighted
icon on the right side of the screen, and
then select Set as Destination.
Entering a new destination (P122)
Select MENU on the map screen. Select
Destination tab and enter a new
destination.
Canceling Your Route
From the map screen:
aSelect HOME and then select Navi.
bSelect MENU and then select Cancel
Route.
aSelect HOME and then select Navi.
bSelect (map menu) icon.
cSelect Cancel Route.

15

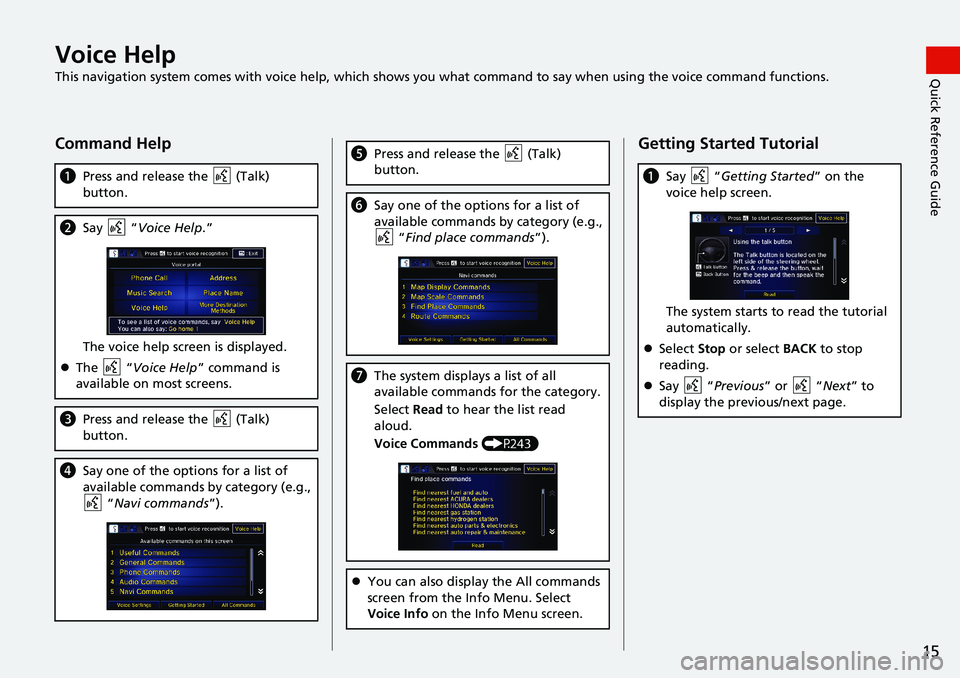

Quick Reference GuideVoice Help
This navigation system comes with voice help, which shows you what command to say when using the voice command functions.
Command Help
aPress and release the (Talk)
button.
bSay “Voice Help.”
The voice help screen is displayed.
The “Voice Help” command is
available on most screens.
cPress and release the (Talk)
button.
dSay one of the options for a list of
available commands by category (e.g.,
“Navi commands”).
ePress and release the (Talk)
button.
fSay one of the options for a list of
available commands by category (e.g.,
“Find place commands”).
gThe system displays a list of all
available commands for the category.
Select Read to hear the list read
aloud.
Voice Commands (P243)
You can also display the All commands
screen from the Info Menu. Select
Voice Info on the Info Menu screen.
Getting Started Tutorial
aSay “Getting Started” on the
voice help screen.
The system starts to read the tutorial
automatically.
Select Stop or select BACK to stop
reading.
Say “Previous” or “Next” to
display the previous/next page.

16

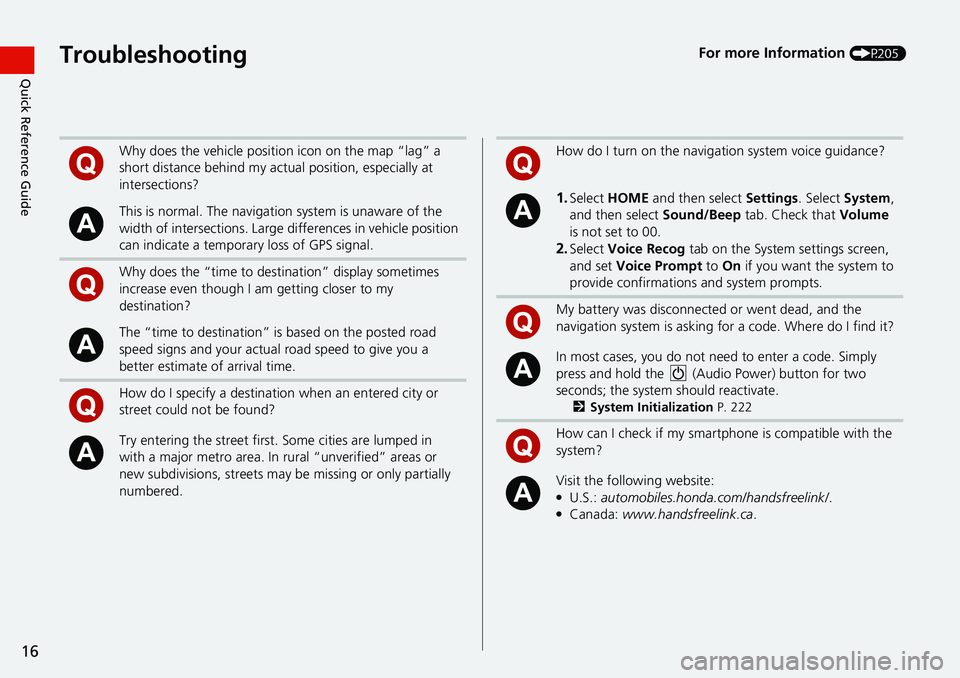

Quick Reference GuideTroubleshootingFor more Information (P205)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in
with a major metro area. In rural “unverified” areas or
new subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1.Select HOME and then select Settings. Select System,
and then select Sound/Beep tab. Check that Volume
is not set to 00.
2.Select Voice Recog tab on the System settings screen,
and set Voice Prompt to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find it?
In most cases, you do not need to enter a code. Simply
press and hold the (Audio Power) button for two
seconds; the system should reactivate.
2System Initialization P. 222
How can I check if my smartphone is compatible with the
system?
Visit the following website:●U.S.: automobiles.honda.com/handsfreelink/.●Canada: www.handsfreelink.ca.

17

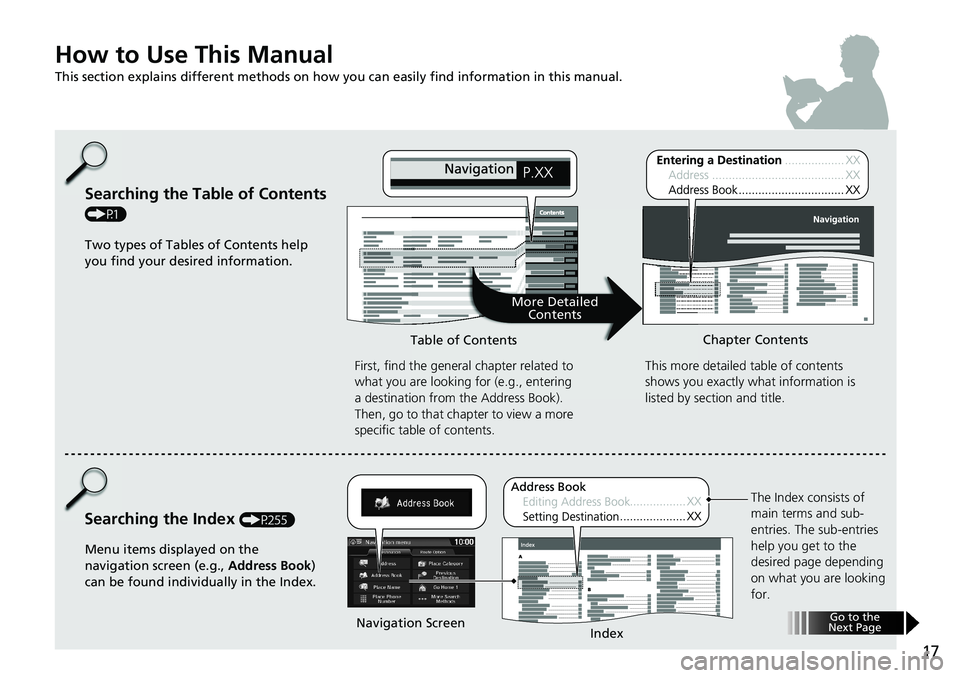

How to Use This Manual
This section explains different methods on how you can easily find information in this manual.
ContentsContentsSearching the Table of Contents
(P1)
First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Address Book).
Then, go to that chapter to view a more
specific table of contents.
Searching the Index (P255)This more detailed table of contents
shows you exactly what information is
listed by section and title.
The Index consists of
main terms and sub-
entries. The sub-entries
help you get to the
desired page depending
on what you are looking
for. Table of ContentsChapter Contents
Navigation Screen
Index
Two types of Tables of Contents help
you find your desired information.
Menu items displayed on the
navigation screen (e.g., Address Book)
can be found individually in the Index.
More Detailed
Contents
Go to the
Next Page

18

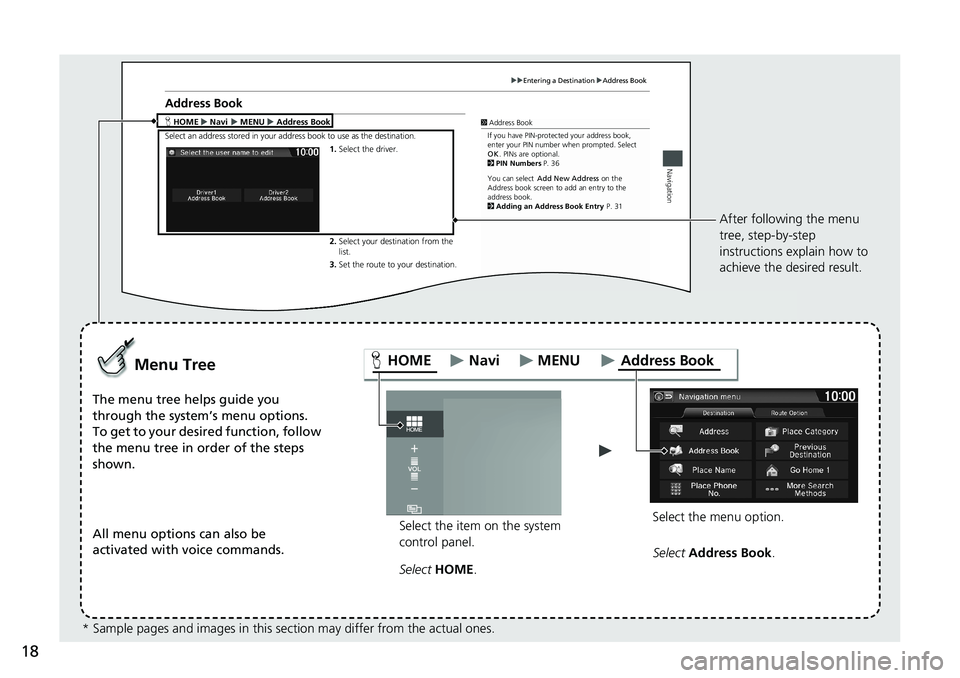

Entering a DestinationAddress Book
Navigation
Address Book
H Address Book
Select an address stored in your address book to use as the destination.
1.Select the driver.
2.Select your destination from the
list.1Address Book
If you have PIN-protected your address book,
enter your PIN number when prompted. Select
OK. PINs are optional.
2PIN Numbers P. 36
You can select
Address book screen to add an entry to the
address book.
2Adding an Address Book Entry P. 31 Add New Address
on the HOMENaviMENU
3.Set the route to your destination.
Select the item on the system
control panel.
Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.
All menu options can also be
activated with voice commands.
Select HOME.Select the menu option.After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
* Sample pages and images in this section may differ from the actual ones.Select Address Book.
HOME Address BookMENU Navi
