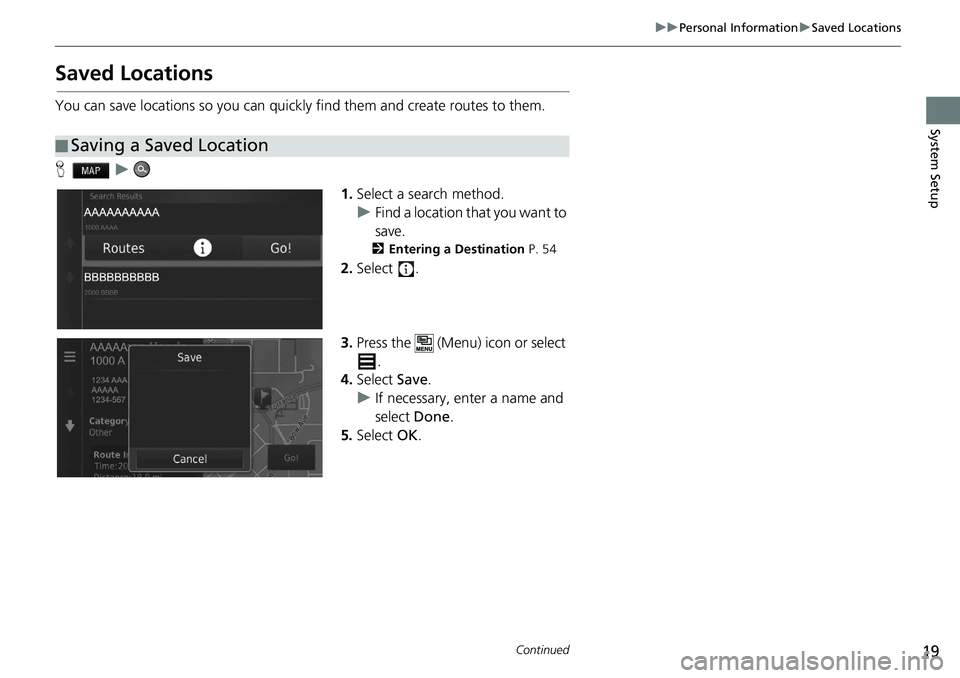

19
uu Personal Information u Saved Locations
Continued
System Setup
Saved Locations
You can save locations so you can quickly find them and create routes to them.
H u
1.Select a
search method.
u Fi
nd a location that you want to
save.
2 Entering a Destination P. 54
2. Select .
3. Press the (Menu) icon or select
.
4. Select Save.
u If necessary,
enter a name and
select Done.
5. Select OK.
■Saving a Saved Location

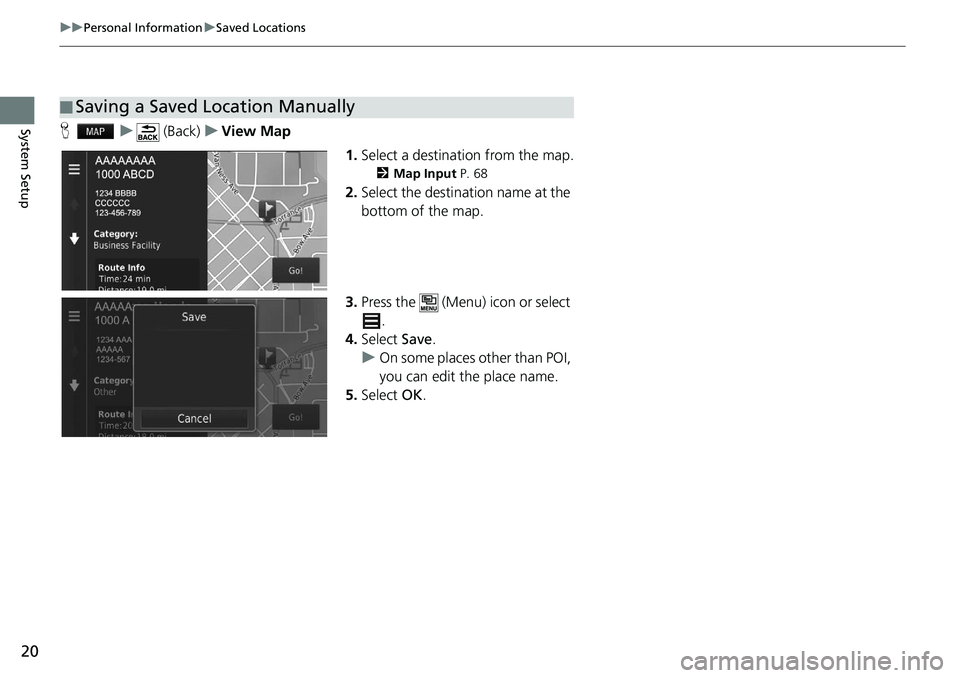

20
uu Personal Information u Saved Locations
System SetupH u (Back) u View Map
1.Select
a destination from the map.
2 Map Input P. 68
2. Select the destination name at the
bottom of the map.
3. Press the (Menu) icon or select
.
4. Select Save.
u On some places
other than POI,
you can edit the place name.
5. Select OK.
■Saving a Saved Location Manually

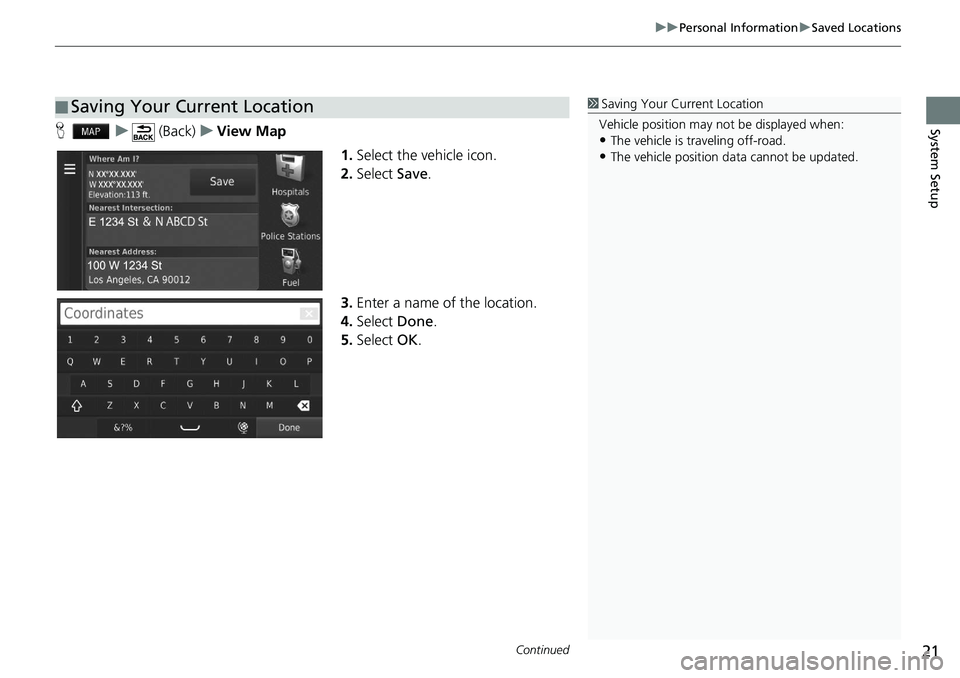

Continued21
uu Personal Information u Saved Locations
System SetupH u (Back) u View Map
1.Select the vehicle icon.
2. Select Save.
3. Enter a
name of the location.
4.Select Done.
5. Select OK.
■Saving Your Current Location1
Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.

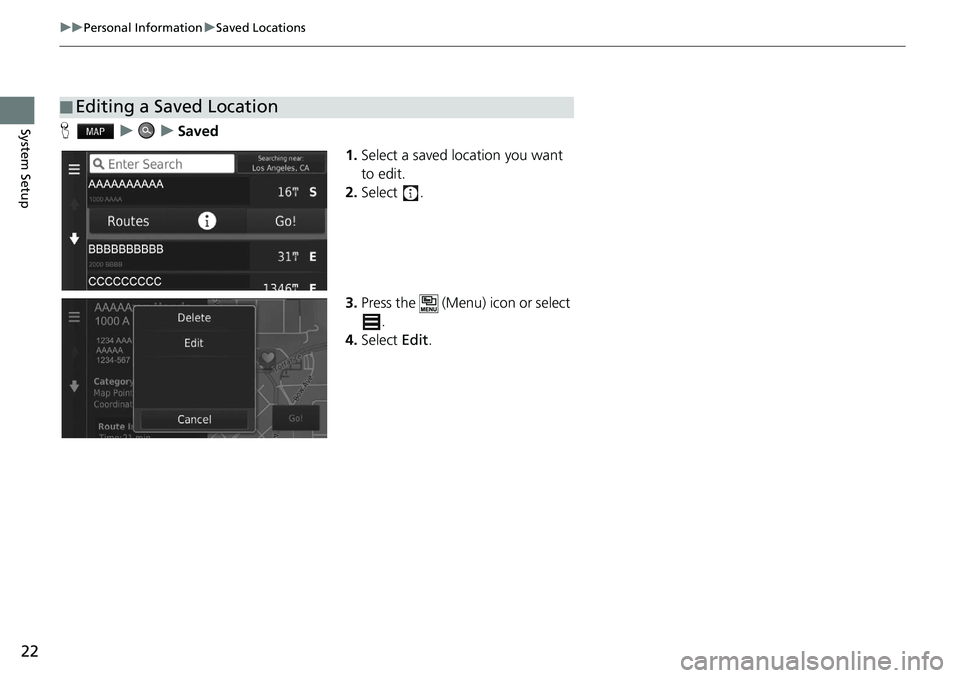

22
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Select a
saved location you want
to edit.
2. Select .
3. Press the (Menu) icon or select
.
4. Select Edit.
■Editing a Saved Location

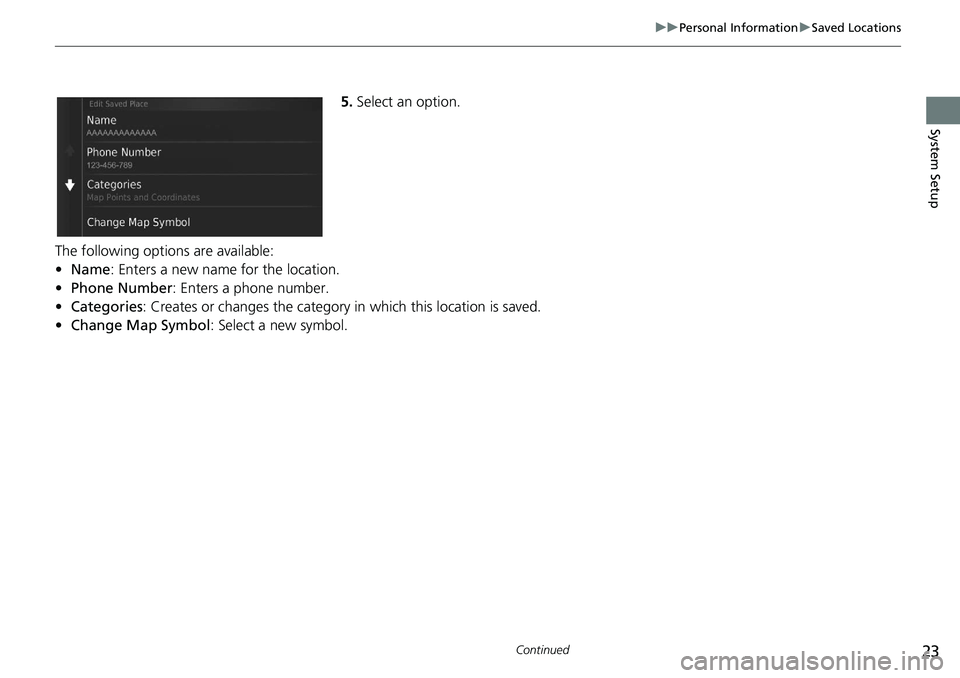

23
uu Personal Information u Saved Locations
Continued
System Setup
5. Select an option.
The following options are available:
•Na
me: Enters a new name for the location.
• Ph
one Number : Enters a phone number.
• Ca
tegories : Creates or changes the category in which this location is saved.
• Ch
ange Map Symbol : Select a new symbol.

24
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Select a
saved location you want
to delete.
2. Select .
3. Press the (Menu) icon or select
.
4. Select De
lete.
5. Select Yes.
■Deleting a Saved Location

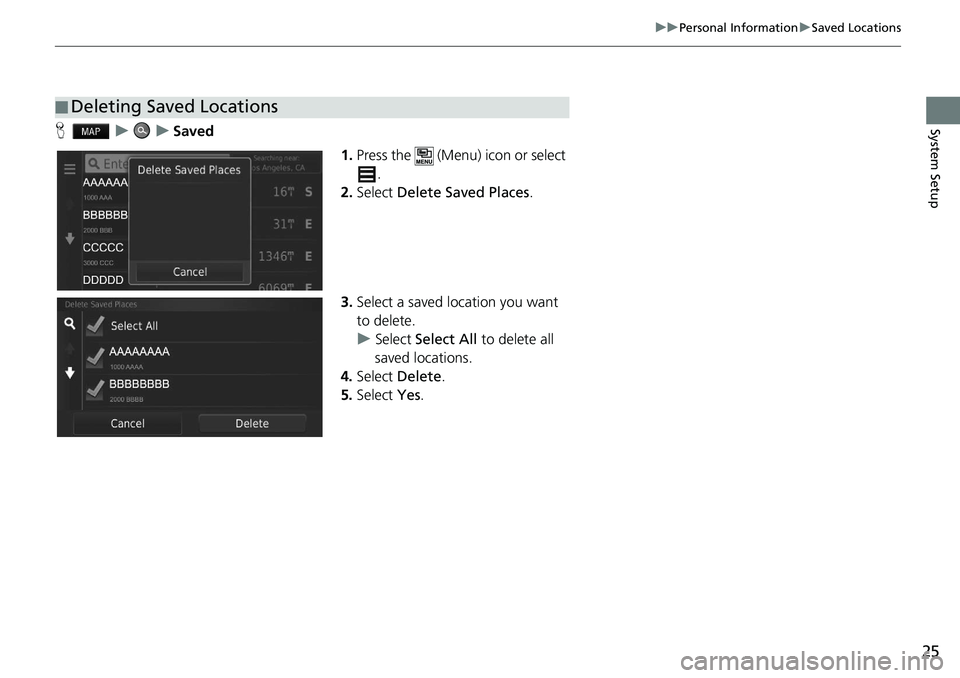

25
uu Personal Information u Saved Locations
System SetupH u u Saved
1.Press the (Menu) icon or select
.
2. Select Delet
e Saved Places .
3. Select a
saved location you want
to delete.
u Select Select All to
delete all
saved locations.
4. Select Delet
e.
5. Select Yes.
■Deleting Saved Locations

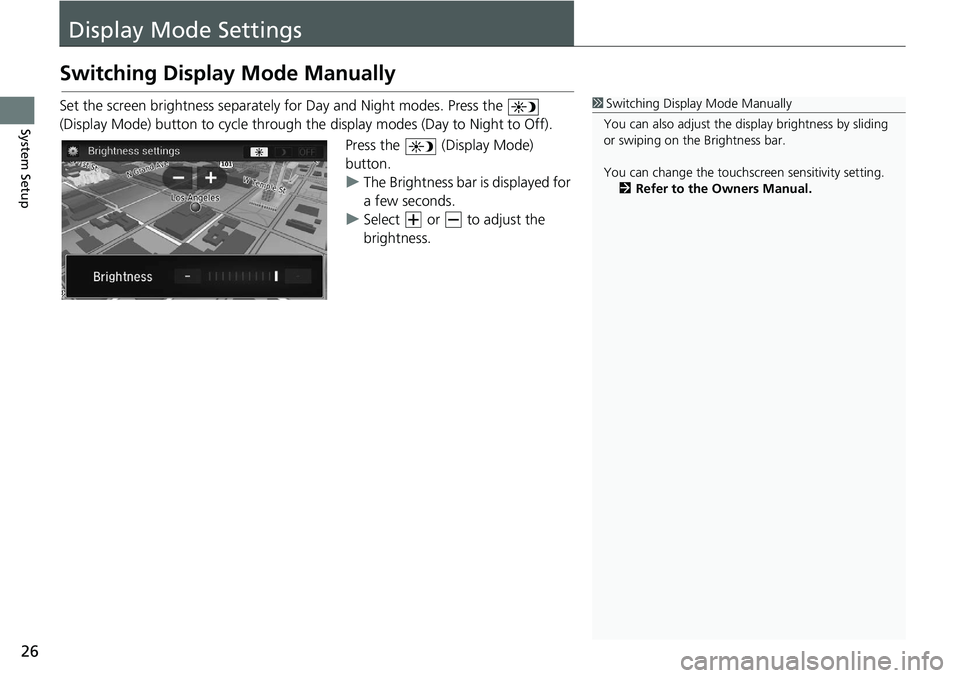

26
System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) button to cycle through th e
display modes (Day to Night to Off).
Press the (Display Mode)
button.
u The Brigh
tness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.
1 Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchs creen sensitivity setting.
2 Refer to the Owners Manual.

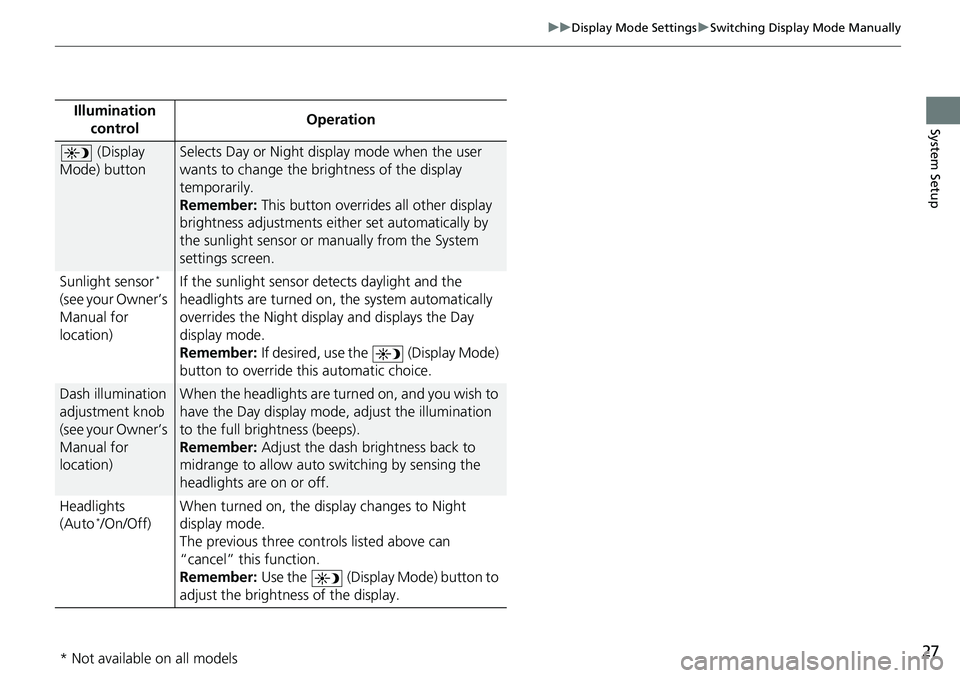

27
uu Display Mode Settings u Switching Display Mode Manually
System SetupIllumination
controlOperation
(Display
Mode) button
Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
brigh

tness adjustments either set automatically by
the sunlight sensor or manually from the System
settings screen.
Sunlight sensor
*
(see your Owner’s
Manual for
location) If the sunlight sensor detects daylight and the
headlights are
turned on, the system automatically
overrides the Nigh t display and displays the Day
display mode.
Remember: If desired, use the (Display Mode)
button to override this automatic choice.
Dash illumination
adjustment knob
(see your Owner’s
Manual for
location)When the headlights are turn ed on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
mi

drange to allow auto switching by sensing the
headlights are on or off.
Headlights
(Au
to */On/Off) When turned on, the di
sp
lay changes to Night
display mode.
The previous three controls listed above can
“cancel” this
function.
Remember: Use the (Display Mode) button to
adjust the brightness of the display.
* Not available on all models

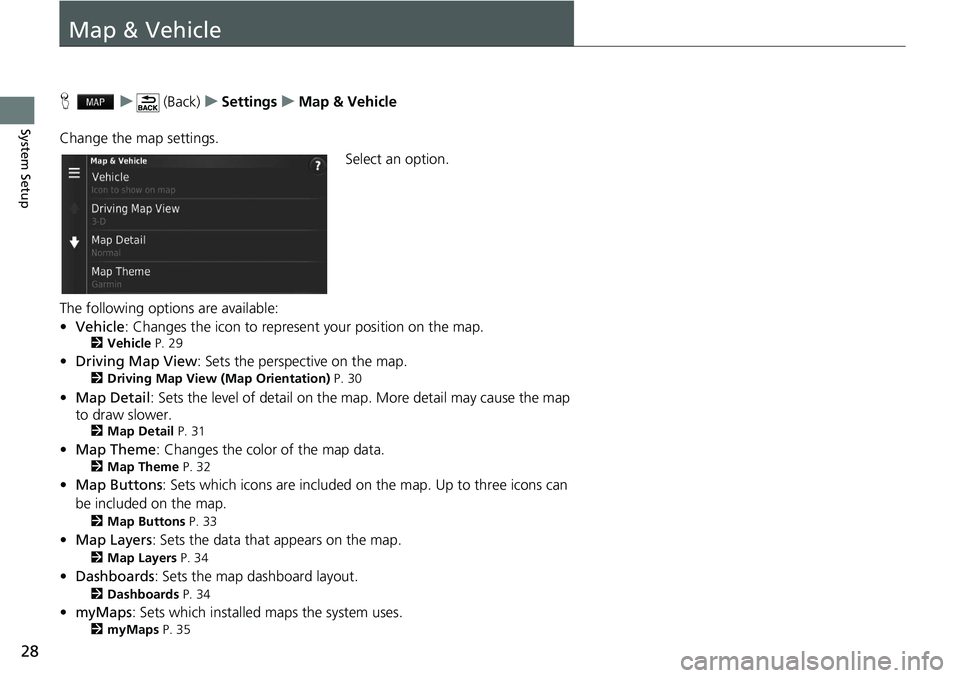

28
System Setup
Map & Vehicle
H u (Back) u Settings u Map & Vehicle
Change the map settings. Select an option.
The following options are available:
• Vehicle : Changes the icon to represent your position on the map.
2 Vehicle P. 29
• Driving Map View : Sets the perspective on the map.
2 Driving Map View (Map Orientation) P. 30
• Map Detail : Sets the level of detail on the map. More detail may cause the map
to draw
slower.
2 Map Detail P. 31
•Map Theme : Changes the color of the map data.
2 Map Theme P. 32
• Map Buttons : Sets which icons are included on th e map. Up to three icons can
be included on the map.
2 Map Buttons P. 33
• Map Layers : Sets the data that appears on the map.
2 Map Layers P. 34
• Dashboards : Sets the map dashboard layout.
2 Dashboards P. 34
• myMaps : Sets which installed maps the system uses.
2 myMaps P. 35
