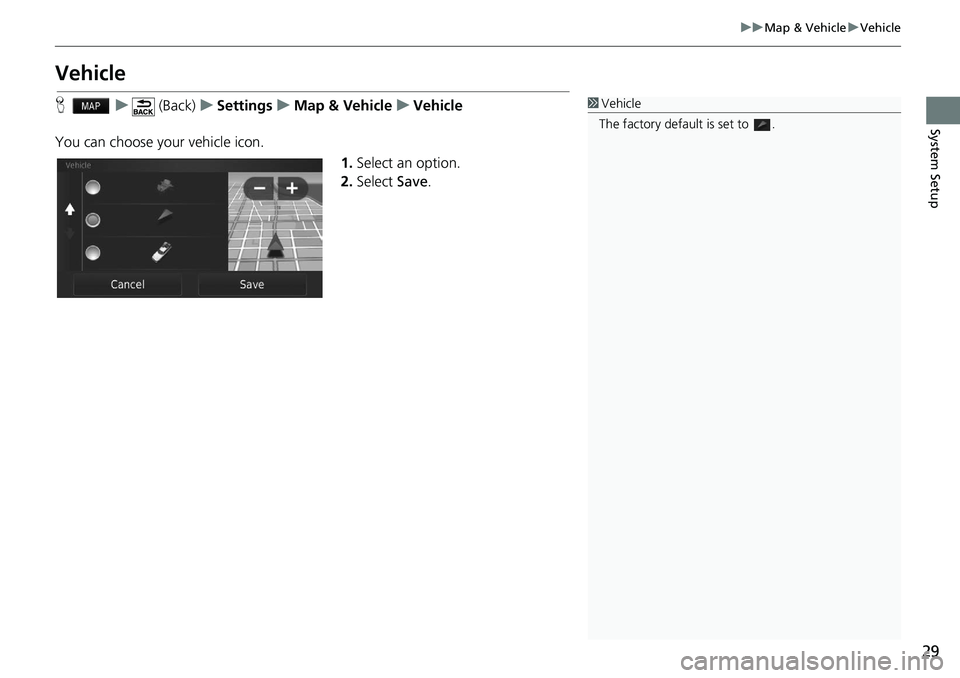

Page 31 of 139
29
uu Map & Vehicle u Vehicle
System Setup
Vehicle
H u (Back) u Settings u Map & Vehicle u Vehicle
You can choose your vehicle icon. 1.Select an option.
2. Select Save.1Vehicle
The factory default is set to .

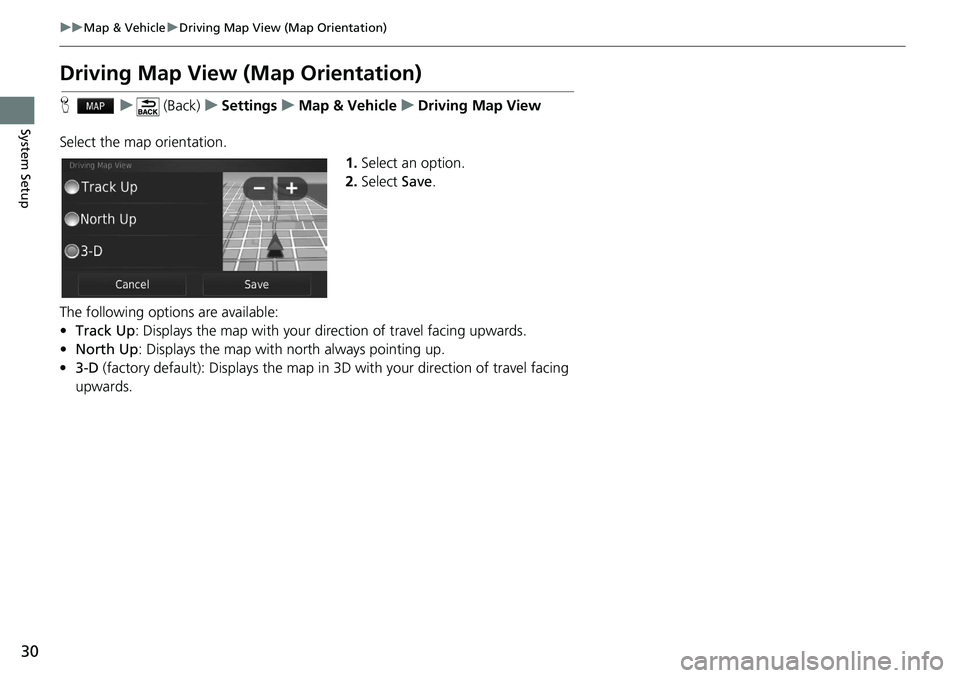

Page 32 of 139
30
uu Map & Vehicle u Driving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H u (Back) u Settings u Map & Vehicle u Driving Map View
Select the map orientation. 1.Select an
option.
2. Select Save.
The following options are available:
• T
rack Up : Displays the map with your di rection of travel facing upwards.
• Nort
h Up: Displays the map with no rth always pointing up.
• 3-
D (factory default): Displays the map in 3D with your direction of travel facing
up
wards.

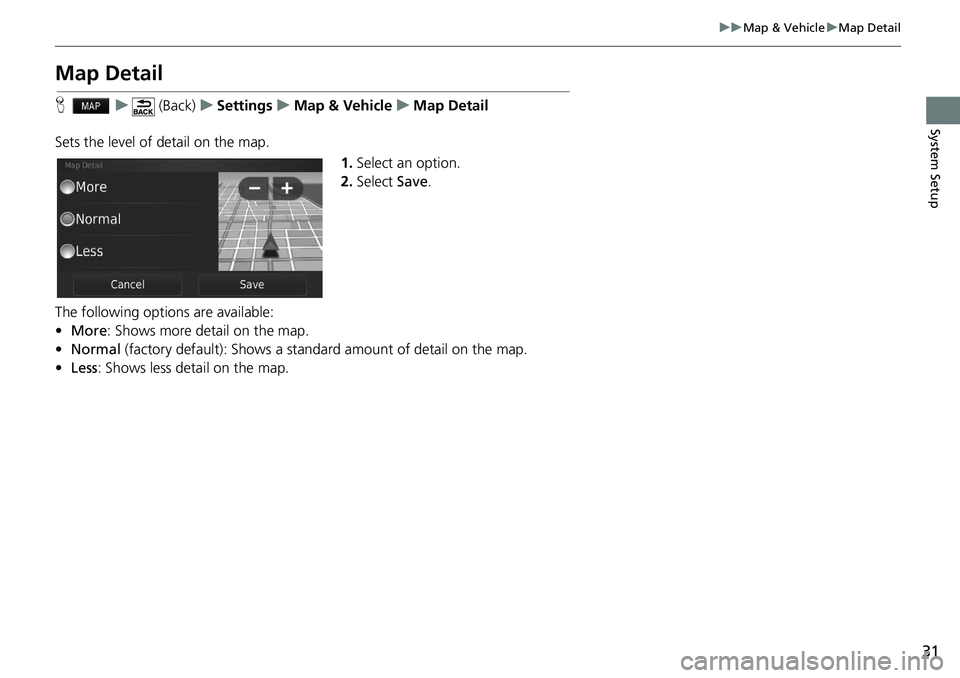

Page 33 of 139
31
uu Map & Vehicle u Map Detail
System Setup
Map Detail
H u (Back) u Settings u Map & Vehicle u Map Detail
Sets the level of detail on the map. 1.Select an option.
2. Select Save.
The following options are available:
• Mo
re : Shows more detail on the map.
• Normal (factory default): Shows a standard amount of detail on the map.
• Less : Shows less detail on the map.

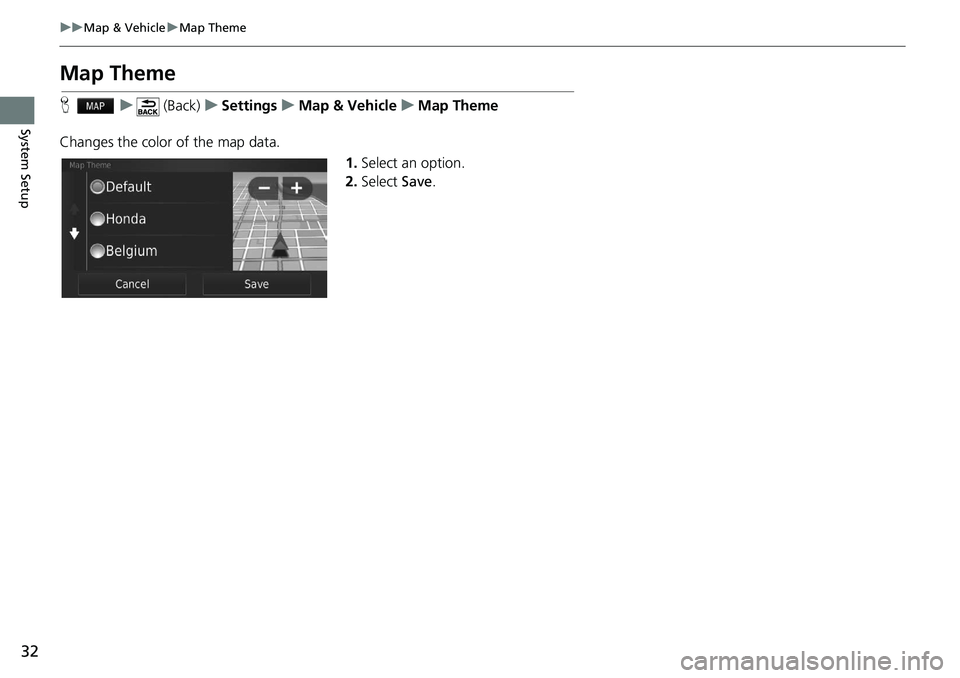

Page 34 of 139
32
uu Map & Vehicle u Map Theme
System Setup
Map Theme
H u (Back) u Settings u Map & Vehicle u Map Theme
Changes the color of the map data. 1.Select an
option.
2. Select Save.

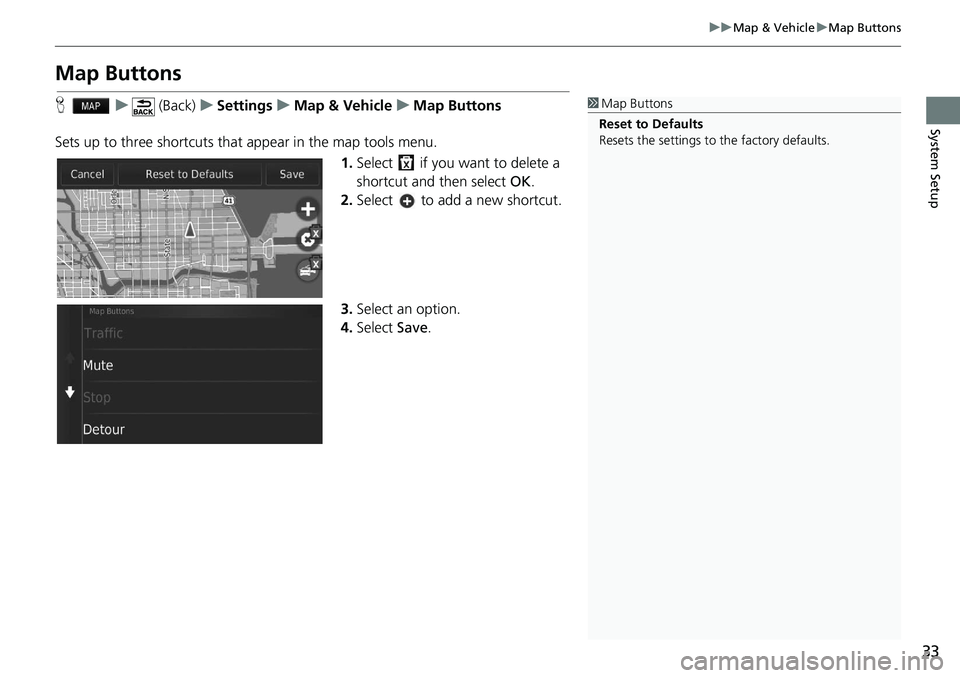

Page 35 of 139
33
uu Map & Vehicle u Map Buttons
System Setup
Map Buttons
H u (Back) u Settings u Map & Vehicle u Map Buttons
Sets up to three shortcuts that appear in the map tools menu. 1.Select if you want to delete a
shortcut and then select OK.
2. Select to add a new shortcut.
3. Select an option.
4. Select Save.1Map Buttons
Reset to Defaults
Resets the settings to the factory defaults.
Page 36 of 139
34
uu Map & Vehicle u Map Layers
System Setup
Map Layers
H u (Back) u Settings u Map & Vehicle u Map Layers
Sets the data that appears on the map screen. 1.Select an
option(s).
2. Select Save.
Dashboards
H u (Back) u Settings u Map & Vehicle u Dashboards
Switches the dashboard layout at
the bottom of the map.
1.Select or .
2. Select Save.
1Map Layers
Trip Log is set to off as factory default.

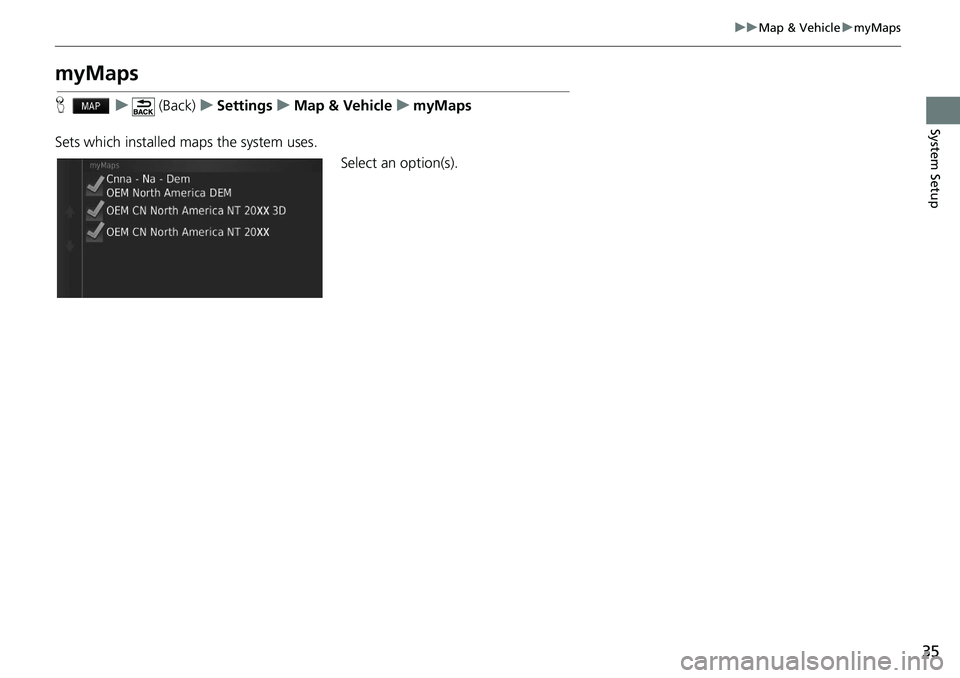

Page 37 of 139
35
uu Map & Vehicle u myMaps
System Setup
myMaps
H u (Back) u Settings u Map & Vehicle u myMaps
Sets which installed maps the system uses. Select an option(s).

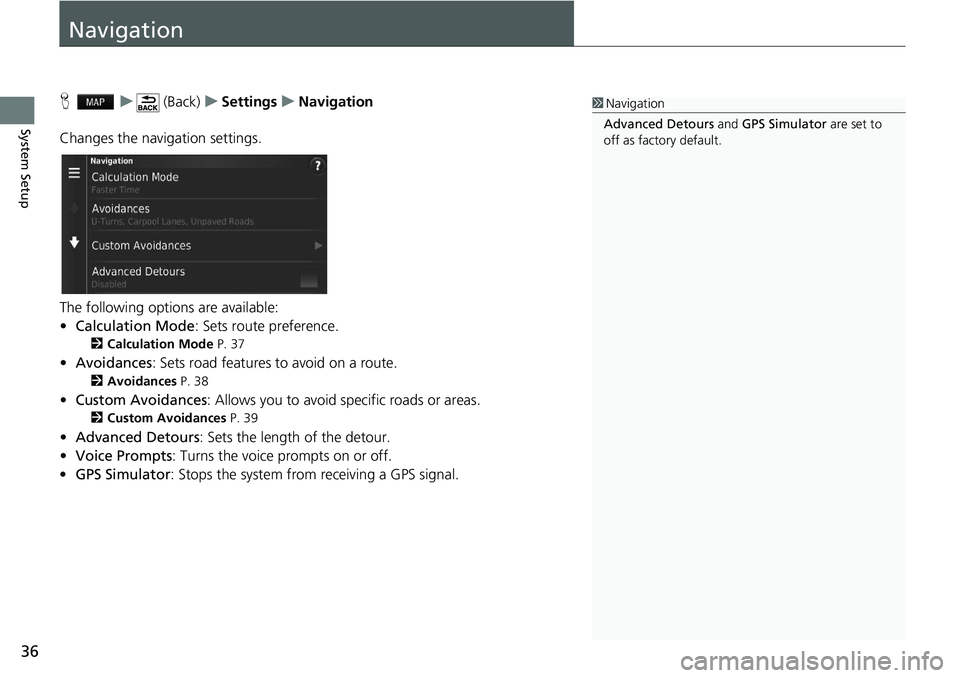

Page 38 of 139
36
System Setup
Navigation
H u (Back) u Settings u Navigation
Changes the navigation settings.
The following options are available:
• Calc
ulation Mode : Sets route preference.
2 Calculation Mode P. 37
• Avoidances : Sets road features to avoid on a route.
2 Avoidances P. 38
• Custom Avoidances : Allows you to avoid sp ecific roads or areas.
2Custom Avoidances P. 39
• Advanced Detours : Sets the length of the detour.
• Voic
e Prompts : Turns the voice prompts on or off.
• GPS Simulator : Stops the system from receiving a GPS signal.
1 Navigation
Advanced Detours and GPS Simulator are set to
off as factory default.
Page 39 of 139
37
uu Navigation u Calculation Mode
System Setup
Calculation Mode
H u (Back) u Settings u Navigation u Calculation Mode
Sets the route preference. 1.Select an option.
2. Select Save.
The following options are available:
• Fas
ter Time (factory default): Calculates routes that are faster to drive but can be
lo
nger in distance.
• Short
er Distance : Calculates routes that are shorter in distance but can take
m
ore time to drive.
• Less Fuel : Calculates routes that could us e
less fuel than other routes.

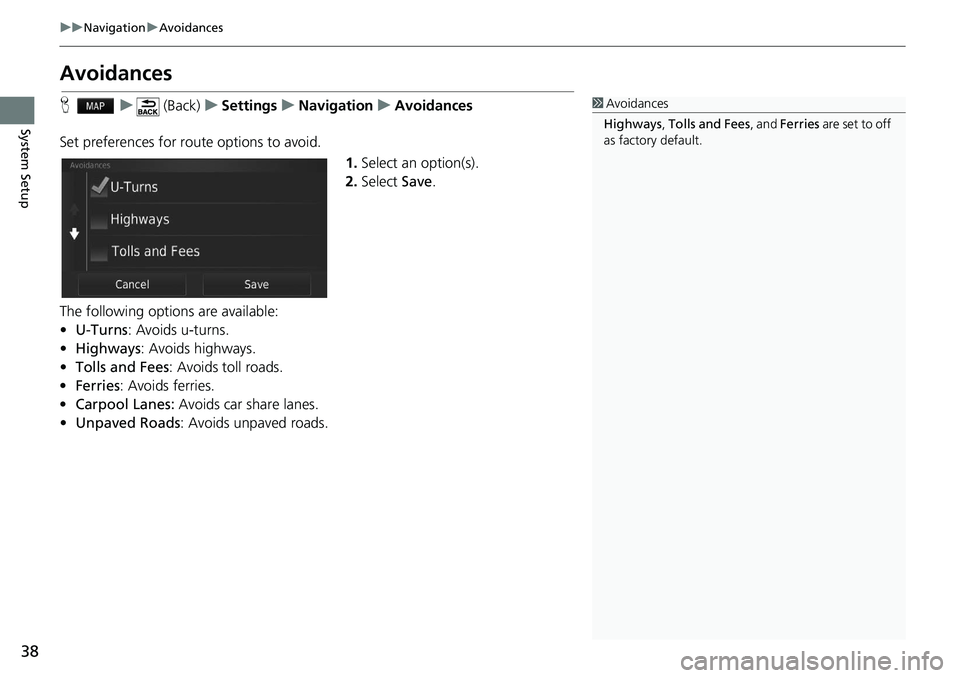

Page 40 of 139
38
uu Navigation u Avoidances
System Setup
Avoidances
H u (Back) u Settings u Navigation u Avoidances
Set preferences for route options to avoid. 1.Select an
option(s).
2. Select Save.
The following options are available:
• U-T
urns : Avoids u-turns.
• Highways : Avoids highways.
• To
lls and Fees : Avoids toll roads.
• Ferries : Avoids ferries.
• Carpo
ol Lanes: Avoids car share lanes.
• Unpaved Ro
ads: Avoids unpaved roads.
1Avoidances
Highways , Tolls and Fees , and Ferries are set to off
as factory default.
