Page 603 of 639

601

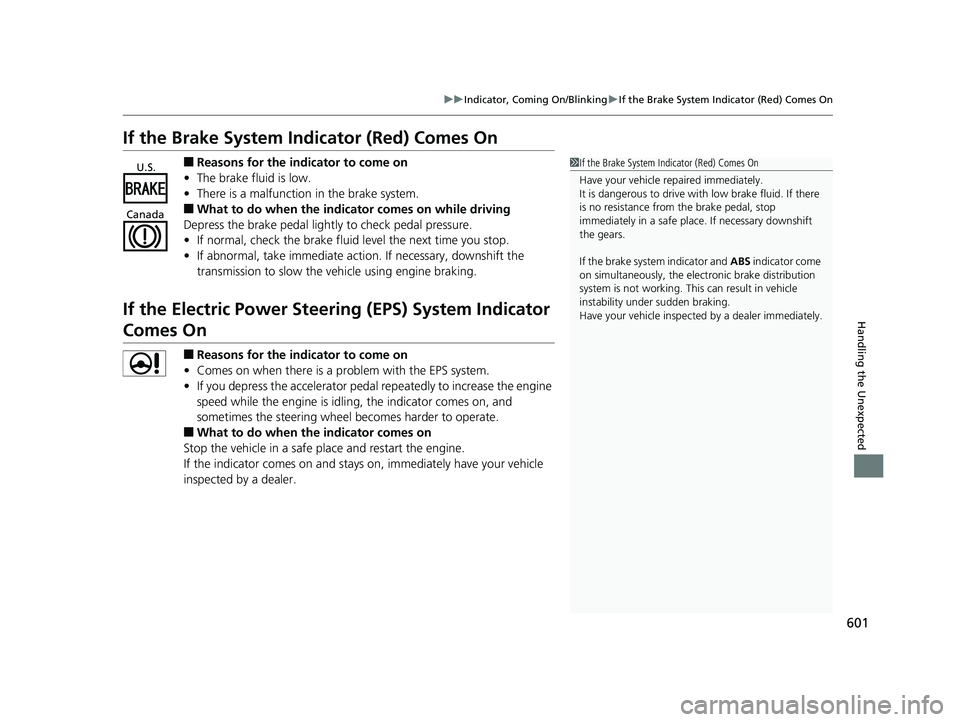

uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
20 HR-V HDMC HDMG-31T7A6400.book 601 ページ 2019年8月8日 木曜日 午後3時52分
Page 606 of 639

604
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
■Fuse box A
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Headlight Low Beam Main20 A
2Driver’s Power Seat Sliding*(20 A)
3Hazard10 A
4Drive By Wire15 A
5Wiper*(30 A)
6Stop10 A
7IGP15 A
8IG Coil15 A
9Daytime Running Lights(10 A)
10–(20 A)
11–(30 A)
12Main Fan30 A
13Starter SW*(30 A)
14MG Clutch7.5 A
15Battery Sensor(7.5 A)
16Small Light10 A
17Driver’s Power Seat Reclining*(20 A)
18Horn10 A
19Fog Light*(10 A)
20Heated Windshield*2(10 A)
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Canadian models
Circuit ProtectedAmps
21Back Up10 A
22Audio(10 A)
23Sub Fan(30 A)
24–(30 A)
25STRLD*(7.5 A)
26IGP CAM*(7.5 A)
27––
28––
29–(30 A)
30IGP LAF(7.5 A)
31IGPS(7.5 A)
32Right Headlight Low Beam10 A
33Left Headlight Low Beam10 A
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 604 ページ 2019年8月8日 木曜日 午後3時52分
Page 610 of 639

608
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Remove the fuse box cover.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
2 Fuse Locations P. 604
There is a fuse puller in the back of the engine
compartment fuse box cover.
Fuse Box on the Battery Blown
Fuse Puller
Combined Fuse
Blown Fuse
20 HR-V HDMC HDMG-31T7A6400.book 608 ページ 2019年8月8日 木曜日 午後3時52分
Page 621 of 639

619Continued
Information

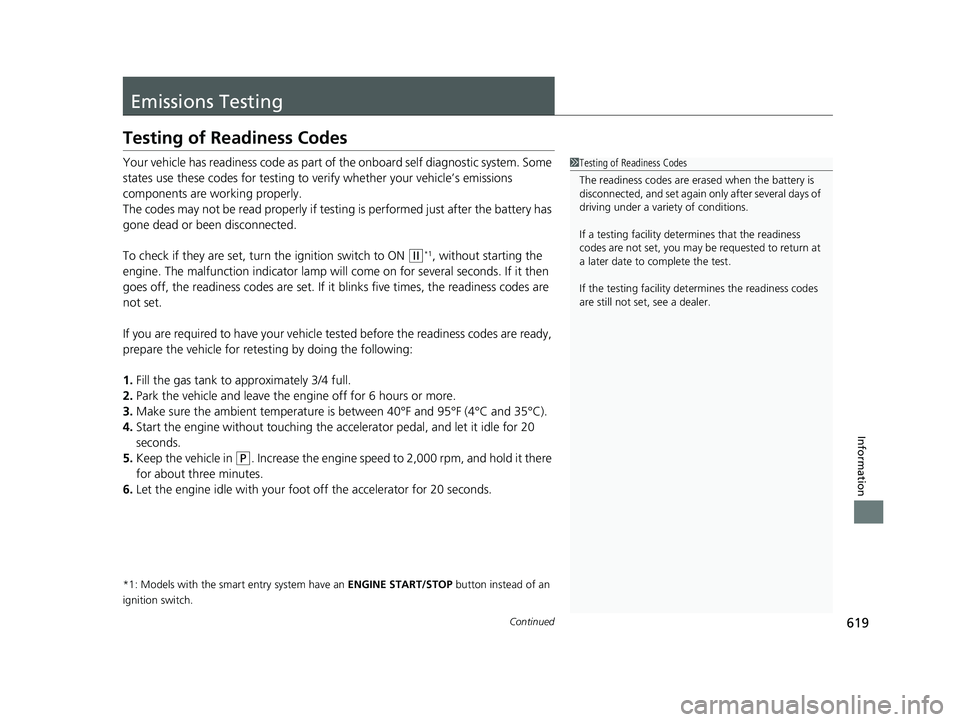

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to ve rify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about three minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
20 HR-V HDMC HDMG-31T7A6400.book 619 ページ 2019年8月8日 木曜日 午後3時52分
Page 634 of 639

632
Index

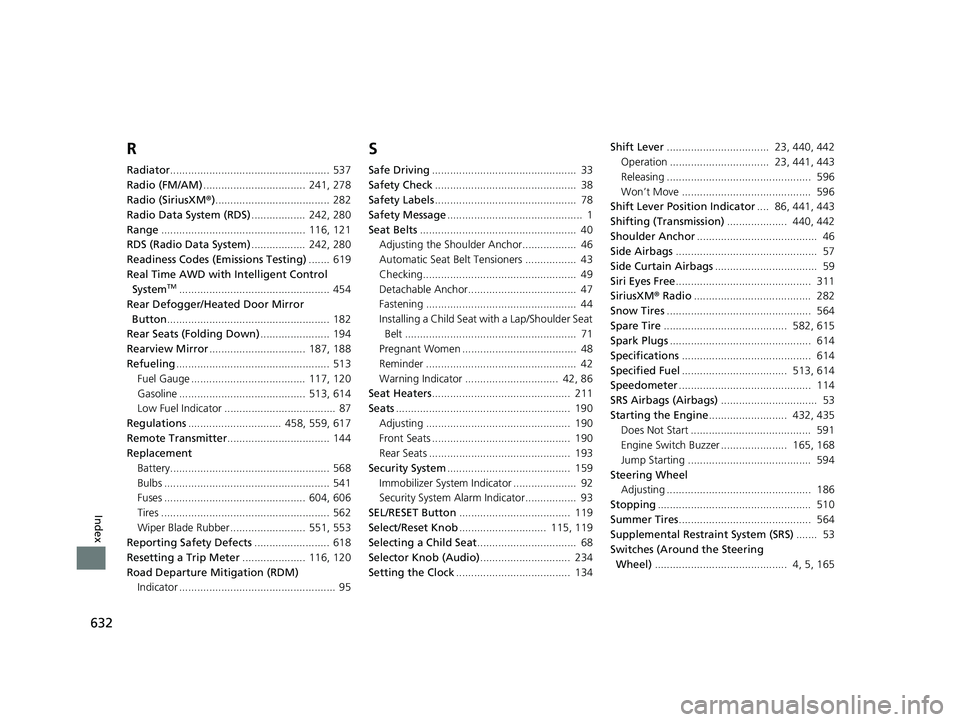

R
Radiator..................................................... 537
Radio (FM/AM) .................................. 241, 278
Radio (SiriusXM ®)...................................... 282
Radio Data System (RDS) .................. 242, 280
Range ................................................ 116, 121
RDS (Radio Data System) .................. 242, 280
Readiness Codes (Emissions Testing) ....... 619
Real Time AWD with Intelligent Control System
TM.................................................. 454
Rear Defogger/Heated Door Mirror
Button ...................................................... 182
Rear Seats (Folding Down) ....................... 194
Rearview Mirror ................................ 187, 188
Refueling ................................................... 513
Fuel Gauge ...................................... 117, 120
Gasoline .......................................... 513, 614
Low Fuel Indicator ..................................... 87
Regulations ............................... 458, 559, 617
Remote Transmitter .................................. 144
Replacement Battery..................................................... 568
Bulbs ....................................................... 541
Fuses ............................................... 604, 606
Tires ........................................................ 562
Wiper Blade Rubber ......................... 551, 553
Reporting Safety Defects ......................... 618
Resetting a Trip Meter ..................... 116, 120
Road Departure Mitigation (RDM) Indicator .................................................... 95
S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 78
Safety Message ............................................. 1
Seat Belts .................................................... 40
Adjusting the Shoulder Anchor.................. 46
Automatic Seat Belt Tensioners ................. 43
Checking................................................... 49
Detachable Anchor.................................... 47
Fastening .................................................. 44
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 71
Pregnant Women ...................................... 48
Reminder .................................................. 42
Warning Indicator ............................... 42, 86
Seat Heaters .............................................. 211
Seats .......................................................... 190
Adjusting ................................................ 190
Front Seats .............................................. 190
Rear Seats ............................................... 193
Security System ......................................... 159
Immobilizer System Indicator ..................... 92
Security System Alarm Indicator................. 93
SEL/RESET Button ..................................... 119
Select/Reset Knob ............................. 115, 119
Selecting a Child Seat ................................. 68
Selector Knob (Audio) .............................. 234
Setting the Clock ...................................... 134 Shift Lever
.................................. 23, 440, 442
Operation ................................. 23, 441, 443
Releasing ................................................ 596
Won’t Move ........................................... 596
Shift Lever Position Indicator .... 86, 441, 443
Shifting (Transmission) .................... 440, 442
Shoulder Anchor ........................................ 46
Side Airbags ............................................... 57
Side Curtain Airbags .................................. 59
Siri Eyes Free ............................................. 311
SiriusXM ® Radio ....................................... 282
Snow Tires ................................................ 564
Spare Tire ......................................... 582, 615
Spark Plugs ............................................... 614
Specifications ........................................... 614
Specified Fuel ................................... 513, 614
Speedometer ............................................ 114
SRS Airbags (Airbags) ................................ 53
Starting the Engine .......................... 432, 435
Does Not Start ........................................ 591
Engine Switch Buzzer ...................... 165, 168
Jump Starting ......................................... 594
Steering Wheel Adjusting ................................................ 186
Stopping ................................................... 510
Summer Tires ............................................ 564
Supplemental Restraint System (SRS) ....... 53
Switches (Around the Steering
Wheel) ............................................ 4, 5, 165
