TPMS HONDA HR-V 2020 (in English) User Guide

uuWhen Driving uTire Pressure Monitoring System (TPMS)
456
Driving
Press and hold the TPMS button until the low
tire pressure/TPMS indi cator blinks twice,
indicating the calibration process has begun.
• If the low tire pressure/TPMS indicator does
not blink, confirm the above conditions
then press and hold the TPMS button again.
• The calibration pr ocess finishes
automatically.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 TPMS Calibration
•TPMS cannot be calibrated if a compact spare tire is
installed.
•The calibration process requires approximately 30
minutes of cumulative dr iving at speeds between
30-60 mph (48-97 km/h).
•During this period, if the ignition is turned on*1 and
the vehicle is not move d within 45 seconds, you
may notice the low tire pressure/TPMS indicator
comes on briefly. This is normal and indicates that
the calibration process is not yet complete.
If the snow chains are installed, remove them before
calibrating the TPMS.
If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehi cle checked by a dealer.
We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
TPMS Button
Low Tire Pressure/TPMS Indicator
Models with info
rmation display
20 HR-V HDMC HDMG-31T7A6400.book 456 ページ ２０１９年８月８日　木曜日　午後３時５２分

457
uuWhen Driving uTire Pressure Monitoring System (TPMS)
Driving
You can calibrate the system from the
customized features on the multi-information
display.
1. Press the button to select Vehicle
Settings , then press the SEL/RESET
button.
u TPMS Calibration appears on the
display.
2. Press the SEL/RESET button.
u The display swit ches to the
customization setup screen, where you
can select Cancel or Calibrate .
3. Press the button and select
Calibrate , then press the SEL/RESET
button.
u Calibration Started screen appears,
then the display returns to the
customization menu screen.
• If the Calibration Failed To Start message
appears, repeat steps 2-3.
• The calibration process finishes
automatically.
Models with multi- information display
20 HR-V HDMC HDMG-31T7A6400.book 457 ページ ２０１９年８月８日　木曜日　午後３時５２分

458
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving

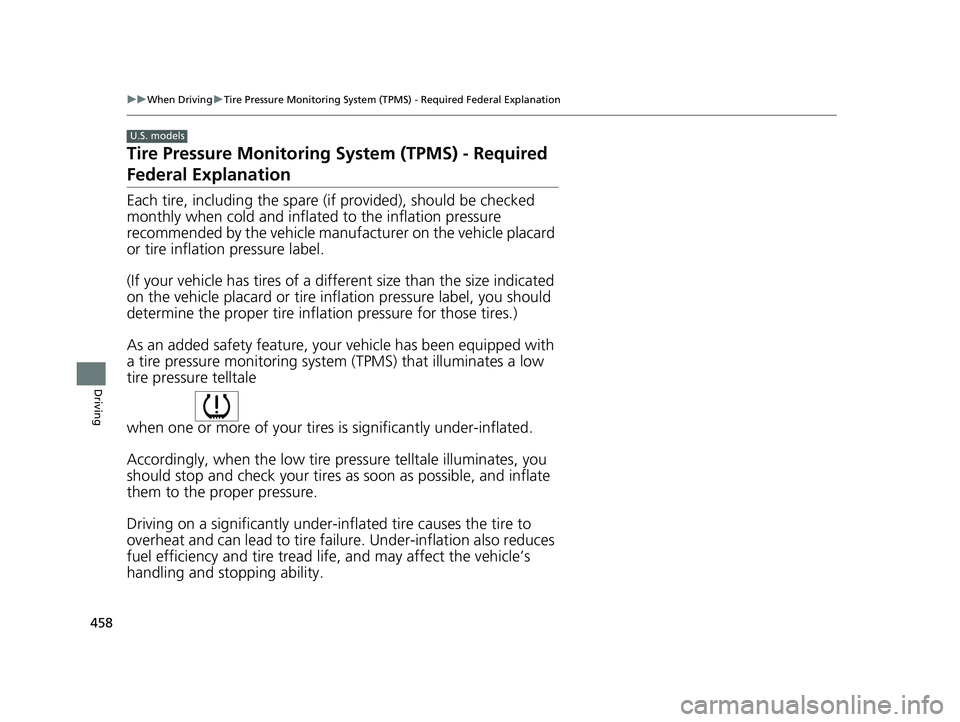

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (i f provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire infl ation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tire s is significantly under-inflated.
Accordingly, when the low tire pr essure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-in flated tire causes the tire to
overheat and can lead to tire failure. Under-inflat ion also reduces
fuel efficiency and tire tread li fe, and may affect the vehicle’s
handling and stopping ability.
U.S. models
20 HR-V HDMC HDMG-31T7A6400.book 458 ページ ２０１９年８月８日　木曜日　午後３時５２分

459
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving

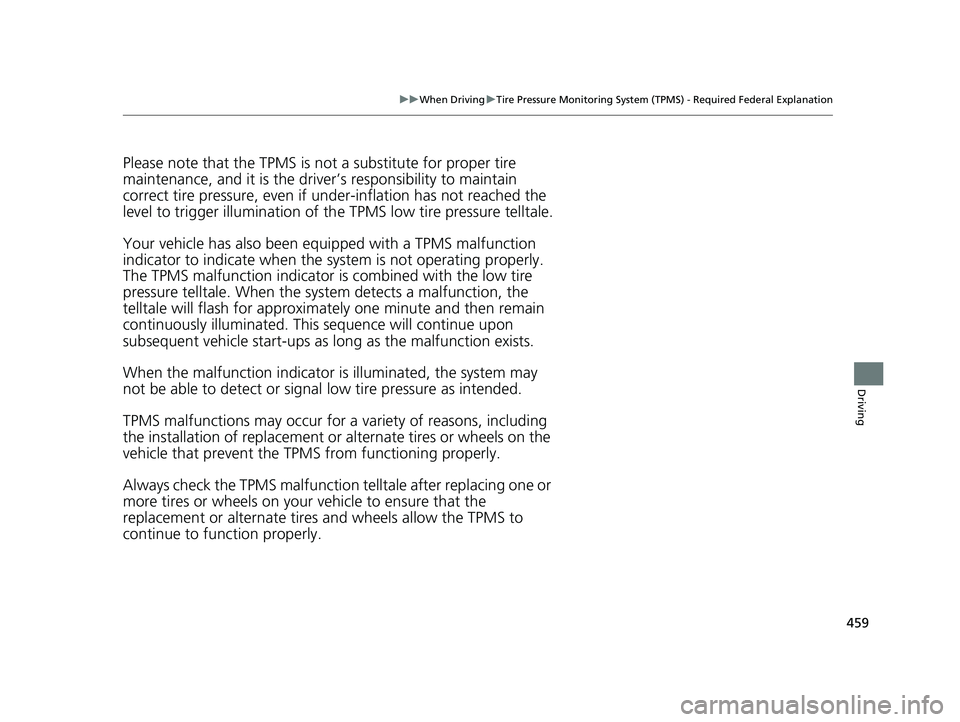

Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
20 HR-V HDMC HDMG-31T7A6400.book 459 ページ ２０１９年８月８日　木曜日　午後３時５２分

uuChecking and Maintaining Tires uChecking Tires
556
Maintenance
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 561
•Cracks or other damage around valve stem.
1Checking Tires
Whenever tire pressure is adjusted, you must
calibrate the TPMS.
2 TPMS Calibration P. 455
Check the spare tire pressu re once a month or before
long trips.
U.S. models
20 HR-V HDMC HDMG-31T7A6400.book 556 ページ ２０１９年８月８日　木曜日　午後３時５２分

563
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the information display*/
multi-information display* helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 455
Front
Direction Mark
U.S. models
Front
Front
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 563 ページ ２０１９年８月８日　木曜日　午後３時５２分

579
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 580
If a Tire Goes Flat Changing a Flat Tire ......................... 582
Engine Does Not Start Checking the Engine ........................ 591
If the Smart Entry Remote Battery is Weak .. 592
Emergency Engine Stop ................... 593
Jump Starting .................................... 594
Shift Lever Does Not Move .............. 596
Overheating How to Handle Overheating ............. 597 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On....599
If the Charging System Indicator Comes
On ................................................. 599
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 600
If the Brake System Indicator (Red) Comes On ................................................. 601
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 601
If the Electric Parking Brake System Indicator Comes On ....................... 602 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 603
Fuses Fuse Locations ................................. 604
Inspecting and Changing Fuses ........ 608
Emergency Towing ........................... 609
When You Cannot Open the Tailgate..... 610
20 HR-V HDMC HDMG-31T7A6400.book 579 ページ ２０１９年８月８日　木曜日　午後３時５２分

590
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
Pressure Monitor Problem will appear on the multi-information display
* and the
indicator will start blinking for a short time a nd then stay on; however, this is normal
and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 455
■TPMS and the Compact Spare Tire
U.S. models
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 590 ページ ２０１９年８月８日　木曜日　午後３時５２分

603
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

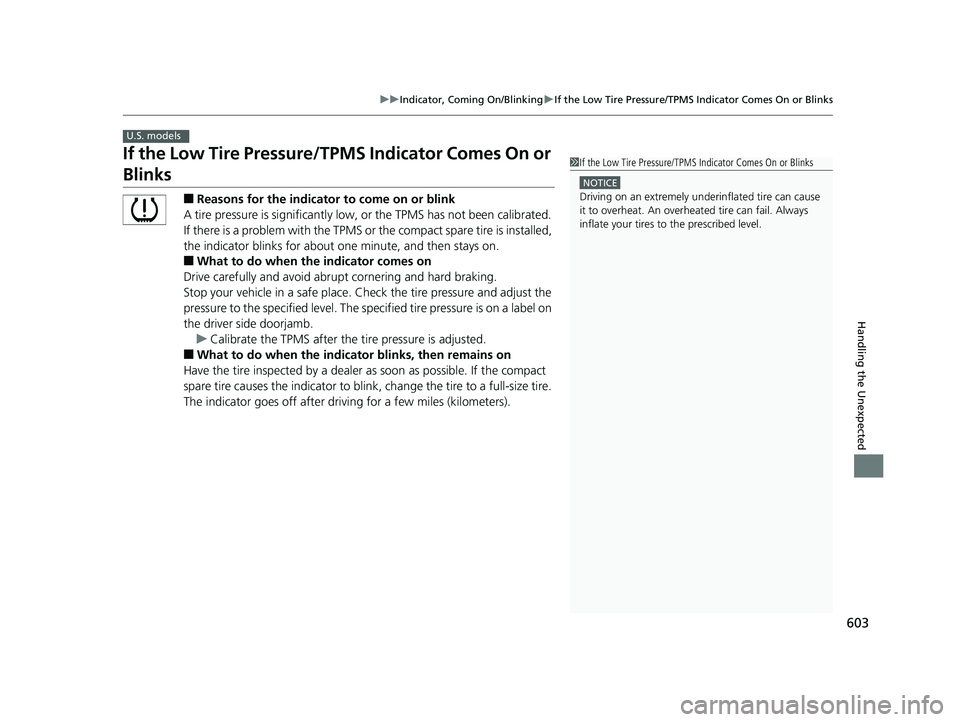

If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indica tor to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
U.S. models
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
20 HR-V HDMC HDMG-31T7A6400.book 603 ページ ２０１９年８月８日　木曜日　午後３時５２分

630
Index
Collision Mitigation Braking SystemTM
(CMBSTM) ........................................... 97, 98
CRUISE CONTROL .............................. 93, 448
CRUISE MAIN .................................... 93, 447
Door and Tailgate Open................. 38, 39, 89
ECON Mode .............................................. 93
Electric Parking Brake................................. 82
Electric Parking Brake System ............. 82, 602
Electric Power Steering (EPS) System ............................................. 90, 601
Fog Light ................................................... 92
High Beam................................................. 91
High Temperature...................................... 88
Immobilizer System .................................... 92
Lane Keeping Assist System (LKAS) (Amber) .................................................. 96
Lane Keeping Assist System (LKAS)
(Green) ................................................... 96
Lights On ................................................... 92
Low Fuel .................................................... 87
Low Oil Pressure ................................ 85, 599
Low Temperature ...................................... 88
Low Tire Pressure/TPMS ............. 90, 455, 603
M (7-speed manual shift mode) Indicator/ Shift......................................................... 86
Maintenance Minder ......................... 93, 521
Malfunction Indicator Lamp ............... 85, 600
Road Departure Mitigation (RDM) .............. 95
Seat Belt Reminder .............................. 42, 86
Security System Alarm ............................... 93
Shift Lever Position .................................... 86 Smart Entry System ................................... 91
Supplemental Restraint System ............ 61, 87
System Message Indicator ......................... 91
Transmission System.................................. 86
Turn Signal ................................................ 91
Vehicle Stability Assist
TM (VSA
®)
System ............................................ 89, 450
VSA ® OFF .......................................... 89, 451
Information .............................................. 613
Information Display ................................. 115
Instant Fuel Economy ....................... 116, 121
Instrument Panel ........................................ 79
Brightness Control................................... 184
Interior Lights ........................................... 201
Interior Rearview Mirror .................. 187, 188
Internet Radio .......................................... 297
J
Jack (Wheel Nut Wrench) ................ 580, 586
Jump Starting ........................................... 594
K
Keyless Lockout Prevention ..................... 147
Keys ........................................................... 136
Lockout Prevention ................................. 147
Number Tag............................................ 137
Rear Door Won’t Open ........................... 151
Remote Transmitter ................................ 144
Won’t Turn ............................................... 29
Kickdown (Continuously Variable Transmission) .......................................... 439
L
LaneWatchTM............................................ 452
LATCH (Child Seats) ................................... 69
Lights ........................................................ 171
Auto High-Beam ..................................... 176
Bulb Replacement ................................... 541
Daytime Running Lights .......................... 175
Fog Lights ............................................... 174
High Beam Indicator ................................. 91
Interior.................................................... 201
Light Switches......................................... 171
Lights On Indicator.................................... 92
Turn Signals ............................................ 170
Load Limits ............................................... 427
Locking/Unlocking ................................... 136
Auto Door Locking/Unlocking ................. 152
Childproof Door Locks ............................ 151
From Inside ............................................. 148
From Outside .......................................... 139
20 HR-V HDMC HDMG-31T7A6400.book 630 ページ ２０１９年８月８日　木曜日　午後３時５２分
