display HONDA HR-V 2021 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 35
For Safe Driving P. 36 Seat Belts P. 42 Airbags P. 52
2Instrument Panel P. 83
Indicators P. 84 Gauges and Displays P. 117
2Controls P. 137
Clock P. 138 Locking and Unlocking the Doors P. 140
Opening and Closing the Windows P. 166 Moonroof* P. 168
Adjusting the Seats P. 194
Climate Control System
* P. 220
2 Features P. 231
Audio System P. 232 Audio System Basic Operation P. 238, 259
Customized Features P. 349, 356 HomeLink ® Universal Transceiver* P. 371
2 Driving P. 427
Before Driving P. 428 Towing a Trailer P. 433
Braking P. 507 Parking Your Vehicle P. 514
2Maintenance P. 521
Before Performing Maintenance P. 522 Maintenance MinderTM P. 525
Checking and Maintaining Wiper Blades P. 555
Heating and Cooling System
*/Climate Control System* Maintenance P. 574
2 Handling the Unexpected P. 583
Tools P. 584 If a Tire Goes Flat P. 586
Overheating P. 601 Indicator, Coming On/Blinking P. 603 Fuses P. 608
2 Information P. 617
Specifications P. 618 Identification Numbers P. 620
Emissions Testing P. 623 Warranty Coverages P. 625
21 HR-V HDMC-31T7A6500.book 4 ページ ２０２０年９月２３日　水曜日　午前７時０分

6
Quick Reference Guide
Quick Reference Guide
Visual Index
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❚ENGINE START/STOP Button*1 (P170)
❚Steering Wheel Adjustments (P190)
❚Hazard Warning Button
❚Ignition Switch* (P169)
❚Tire Pressure Monitoring System (TPMS) Button* (P460)
❚ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P455)
❚Heated Windshield Button* (P187)
❚Road Departure Mitigation Button* (P499)
❚Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P467)
❚ECON Button (P450)
❚Rear Defogger (P186)
❚Heating and Cooling System* (P216)
❚Audio/Information Screen (P239, 260)
❚System Indicators (P84)
❚Heated Mirror Icon* (P186)
❚Climate Control System* (P220)
❚Audio System (P232)
❚Navigation System*
() See the Navigation System Manual
❚Gauges (P117)
❚Information Display* (P119)
❚Multi-Information Display* (P122)
21 HR-V HDMC-31T7A6500.book 6 ページ ２０２０年９月２３日　水曜日　午前７時０分

7
Quick Reference Guide
❚Wipers/Washers (P183)
❚Paddle Shifter (Shift Up)* (P449)
❚ (Display) Button* (P260)
❚Paddle Shifter (Shift Down)* (P 449)
❚Audio Remote Control Buttons (P235)
❚Headlights/Turn Signals (P174, 175)
❚ (Select/Reset) Knob (P119, 123)
❚Bluetooth® HandsFreeLink ® System
(P374, 397)
❚ (Information) Buttons* (P122)
❚SEL/RESET Button* (P123)
❚Adaptive Cruise Control (ACC) Buttons*
(P478)
❚Lane Keeping Assist System (LKAS) Button*
(P492)
❚Cruise Control Buttons* (P451)
❚Horn (Press an area around .)
❚Fog Lights* (P178)
❚LaneWatchTM * (P456)
❚Brightness Control (P188)
❚Voice Control Buttons (P374, 397)
❚Navigation System Voice Control Buttons*
() See the Navigation System Manual
❚MAIN Button (P478)
* Not available on all models
21 HR-V HDMC-31T7A6500.book 7 ページ ２０２０年９月２３日　水曜日　午前７時０分

11
Quick Reference Guide

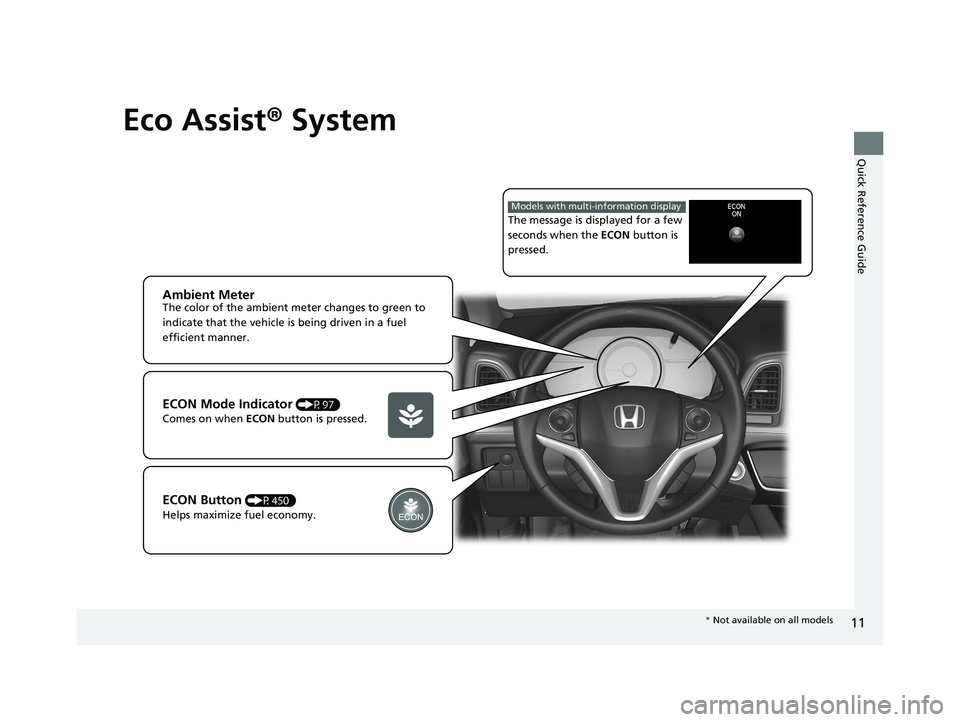

Eco Assist® System
Ambient MeterThe color of the ambient meter changes to green to
indicate that the vehicle is being driven in a fuel
efficient manner.
ECON Button (P450)
Helps maximize fuel economy.
ECON Mode Indicator (P97)
Comes on when ECON button is pressed. The message is displayed for a few
seconds when the
ECON button is
pressed.
Models with multi-information display
* Not available on all models
21 HR-V HDMC-31T7A6500.book 11 ページ ２０２０年９月２３日　水曜日　午前７時０分

13
Quick Reference Guide
Instrument Panel (P83)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
IndicatorAnti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
TM
(VSA® ) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator Supplemental Restraint
System Indicator
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator/
Transmission System Indicator
Low Fuel Indicator
Gauges (P117)/Information Display* (P119)/Multi-Information Display*(P122)/
System Indicators
(P84)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)/Low
Temperature Indicator
(Blue)
System Indicators
System Indicators
Brake System Indicator
(Red)
CRUISE CONTROL
Indicator
System Indicators
Charging System
Indicator
ECON Mode Indicator Maintenance Minder
Indicator Fog Light Indicator
*
Brake System Indicator
(Amber)
M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
Information Display
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator All-Wheel Drive (
AWD)
System Indicator
*
Brake Depressing
Indicator
Models with information display
Low Tire Pressure/
TPMS Indicator
* Not available on all models
21 HR-V HDMC-31T7A6500.book 13 ページ ２０２０年９月２３日　水曜日　午前７時０分

14
Quick Reference Guide
002300
Lights On Indicator
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
TM
(VSA ®) System Indicator
VSA ® OFF Indicator
Low Tire Pressure/TPMS
Indicator
*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Supplemental
Restraint System
Indicator
Tachometer Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator/
Transmission Sy
stem Indicator
Immobilizer System
Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with multi-information display
Brake System Indicator
(Amber)
System Indicators
Lights Indicators
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC)
Indicator (Amber/
Green)
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (
LKAS)
Indicator (Amber/
Green)
Smart Entry System
Indicator
*
U.S.
Canada
Canada U.S.
High Temperature
Indicator (Red)/Low
Temperature Indicator
(Blue)Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
IndicatorU.S.
Canada
Auto High-Beam
Indicator
All-Wheel Drive (
AWD)
System Indicator*
M (7-speed manual shift mode ) Indicator/Shift Indicator*
Multi-Information Display
Brake System Indicator
(Red)
21 HR-V HDMC-31T7A6500.book 14 ページ ２０２０年９月２３日　水曜日　午前７時０分

15
Quick Reference Guide
Controls (P137)
Clock (P138)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the multi-information display
*/
information display* is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation system
aSelect the (HOME) icon, then select
Settings .
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the hours and minutes by
selecting / .
dSelect OK.
Models with display audio system
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
* Not available on all models
21 HR-V HDMC-31T7A6500.book 15 ページ ２０２０年９月２３日　水曜日　午前７時０分

22
Quick Reference Guide
Features (P231)
Audio Remote Controls
(P235)
●(+ / (- Button
Press to adjust the volume up/down.
●SOURCE Button
Press to change the audio mode: FM/AM/
CD/USB/iPod/Bluetooth® Audio.
Press to change the audio mode: FM/AM/
SiriusXM ®
*/USB/iPod/ Bluetooth® Audio/
Pandora®*/Apps/Apple CarPlay/Android
Auto.
( + / (- / / Buttons
SOURCE Button
Models with color audio system
Models with display audio system
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD
*/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
21 HR-V HDMC-31T7A6500.book 22 ページ ２０２０年９月２３日　水曜日　午前７時０分

24
Quick Reference Guide
(P259)Models with display audio system
(Day/Night) ButtonAudio/Information Screen
VOL / (Volume/Power) Knob
(Back) Icon
(Menu) Icon
(Home) Icon
21 HR-V HDMC-31T7A6500.book 24 ページ ２０２０年９月２３日　水曜日　午前７時０分

25
Quick Reference Guide
Driving (P427)
Depress the brake pedal and press
the release button to move out of
(P.
Continuously Variable Transmission
(P444, 446)
●Shift to (P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
7-speed mode can be used
temporarily. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further increase engine braking●Used when going up or down hills
Models without paddle shifters
Drive (S)
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P448)●Allows you to manually shift the transmission up or
down without removing yo
ur hands from the steering
wheel.
When the shift lever is in (S●Pulling a paddle shifter changes the mode from
continuously variable trans mission to 7-speed manual
shift mode.
●The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D●Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
M
Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
* Not available on all models
21 HR-V HDMC-31T7A6500.book 25 ページ ２０２０年９月２３日　水曜日　午前７時０分
