HONDA HRV 2022 User Guide

9

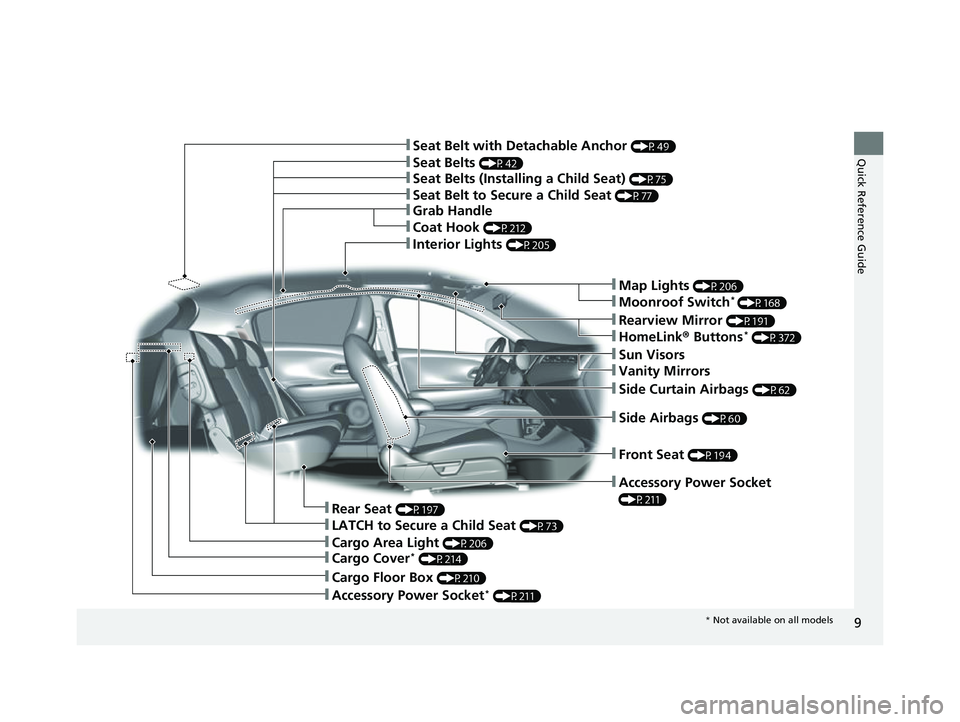

Quick Reference Guide
❚Front Seat (P194)
❚Side Airbags (P60)
❚Accessory Power Socket
(P211)
❚Side Curtain Airbags (P62)
❚Interior Lights (P205)
❚Seat Belts (P42)
❚Seat Belt with Detachable Anchor (P49)
❚Cargo Area Light (P206)
❚Cargo Floor Box (P210)
❚Accessory Power Socket* (P211)
❚Rear Seat (P197)
❚Map Lights (P206)
❚Sun Visors
❚Grab Handle
❚Coat Hook (P212)
❚Seat Belts (Installing a Child Seat) (P75)
❚Seat Belt to Secure a Child Seat (P77)
❚Moonroof Switch* (P168)
❚Vanity Mirrors
❚Rearview Mirror (P191)
❚HomeLink® Buttons* (P372)
❚Cargo Cover* (P214)
❚LATCH to Secure a Child Seat (P73)
* Not available on all models
22 HR-V HDMC-31T7A6600.book 9 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

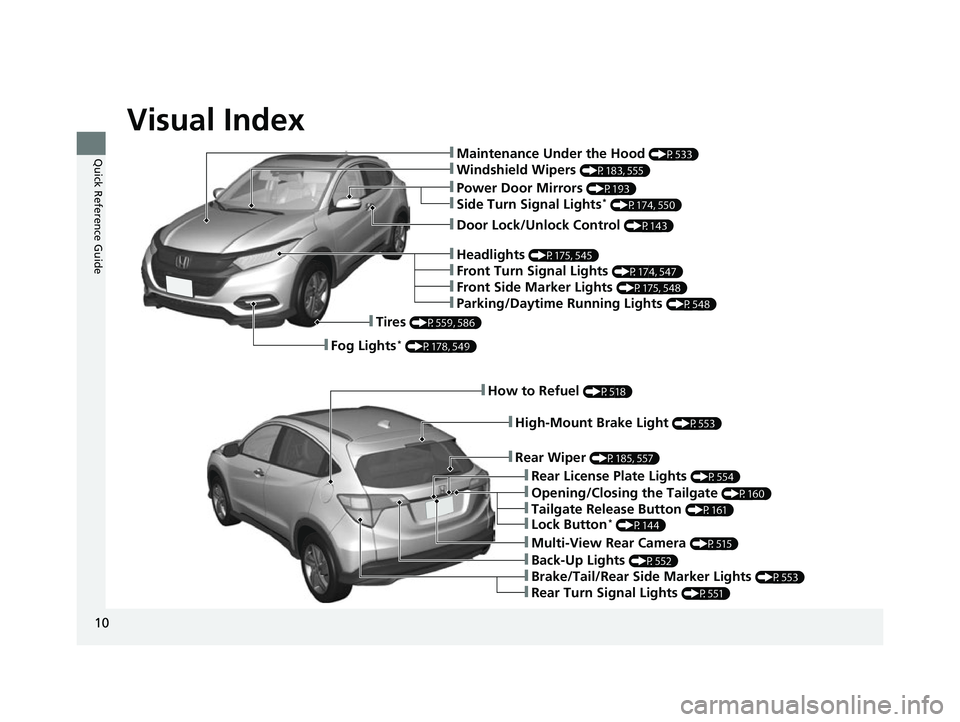

Visual Index
10
Quick Reference Guide
❚Power Door Mirrors (P193)
❚Maintenance Under the Hood (P533)
❚Windshield Wipers (P183, 555)
❚Tires (P559, 586)
❚Fog Lights* (P178, 549)
❚Rear Wiper (P185, 557)
❚How to Refuel (P518)
❚Multi-View Rear Camera (P515)
❚Back-Up Lights (P552)
❚Brake/Tail/Rear Side Marker Lights (P553)
❚Rear Turn Signal Lights (P551)
❚Rear License Plate Lights (P554)
❚High-Mount Brake Light (P553)
❚Side Turn Signal Lights* (P174, 550)
❚Door Lock/Unlock Control (P143)
❚Opening/Closing the Tailgate (P160)
❚Tailgate Release Button (P161)
❚Lock Button* (P144)
❚Headlights (P175, 545)
❚Front Turn Signal Lights (P174, 547)
❚Front Side Marker Lights (P175, 548)
❚Parking/Daytime Running Lights (P548)
22 HR-V HDMC-31T7A6600.book 10 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

11
Quick Reference Guide

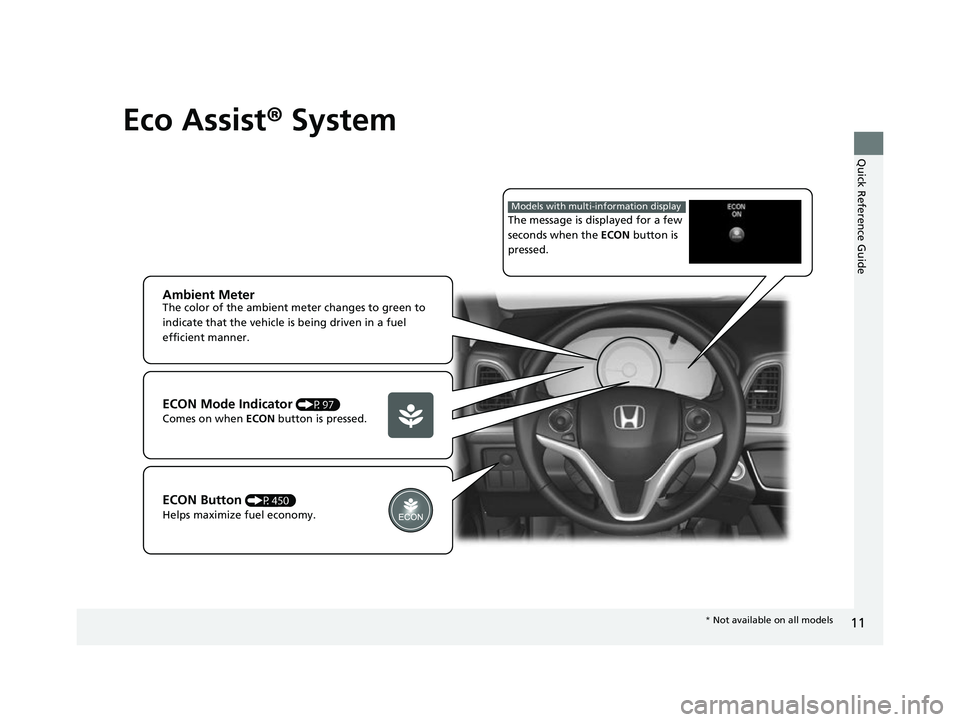

Eco Assist® System
Ambient MeterThe color of the ambient meter changes to green to
indicate that the vehicle is being driven in a fuel
efficient manner.
ECON Button (P450)
Helps maximize fuel economy.
ECON Mode Indicator (P97)
Comes on when ECON button is pressed. The message is displayed for a few
seconds when the ECON
button is
pressed.
Models with multi-information display
* Not available on all models
22 HR-V HDMC-31T7A6600.book 11 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

12
Quick Reference Guide

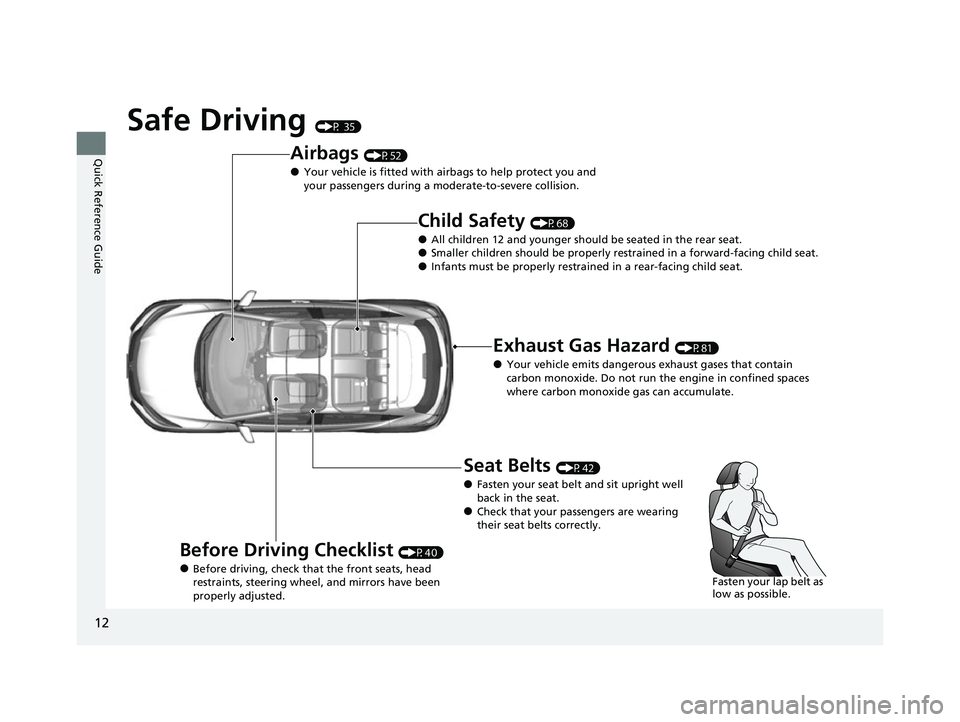

Safe Driving (P 35)
Airbags (P52)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P68)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P81)
●Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P40)
●Before driving, check that the front seats, head
restraints, steering wheel, and mirrors have been
properly adjusted.
Seat Belts (P42)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
22 HR-V HDMC-31T7A6600.book 12 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

13
Quick Reference Guide

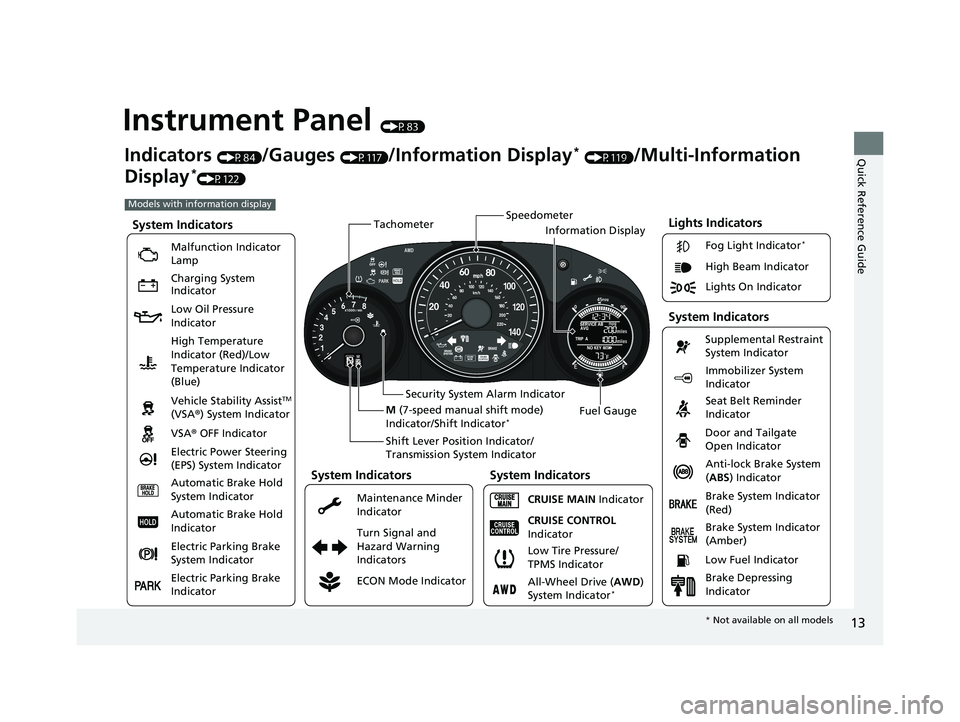

Instrument Panel (P83)
Lights Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
IndicatorAnti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
TM
(VSA® ) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator Lights On Indicator High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE MAIN
Indicator Supplemental Restraint
System Indicator
Door and Tailgate
Open Indicator
Tachometer
Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator/
Transmission System Indicator
Low Fuel Indicator
Indicators (P84)/Gauges (P117)/Information Display* (P119)/Multi-Information
Display
*(P122)
Turn Signal and
Hazard Warning
Indicators
High Temperature
Indicator (Red)/Low
Temperature Indicator
(Blue)
System Indicators
System Indicators
Brake System Indicator
(Red)
CRUISE CONTROL
Indicator
System Indicators
Charging System
Indicator
ECON Mode Indicator Maintenance Minder
Indicator Fog Light Indicator
*
Brake System Indicator
(Amber)
M
(7-speed manual shift mode)
Indicator/Shift Indicator
*
Information Display
Automatic Brake Hold
System Indicator
Automatic Brake Hold
Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator All-Wheel Drive (
AWD)
System Indicator
*
Brake Depressing
Indicator
Models with information display
Low Tire Pressure/
TPMS Indicator
* Not available on all models
22 HR-V HDMC-31T7A6600.book 13 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

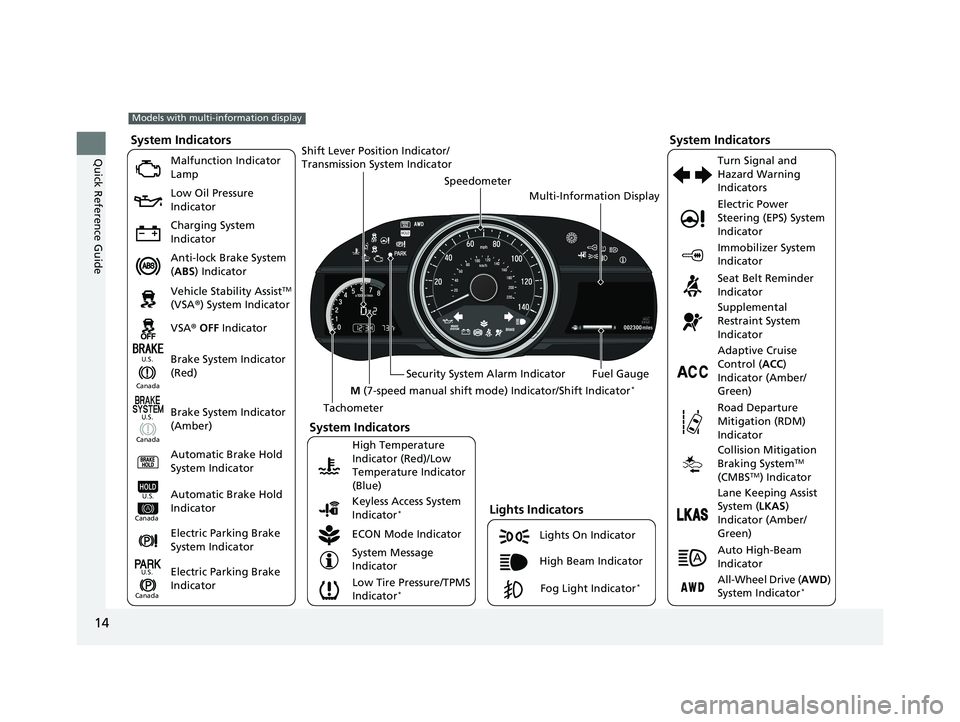

14
Quick Reference Guide
002300
Lights On Indicator
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
TM
(VSA ®) System Indicator
VSA ® OFF Indicator
Low Tire Pressure/TPMS
Indicator
*
Electric Power
Steering (EPS) System
Indicator
Seat Belt Reminder
Indicator
System Indicators
Supplemental
Restraint System
Indicator
Tachometer Speedometer
Fuel Gauge
Security System Alarm Indicator
Shift Lever Position Indicator/
Transmission Sy
stem Indicator
Immobilizer System
Indicator
ECON Mode Indicator Turn Signal and
Hazard Warning
Indicators
Models with multi-information display
Brake System Indicator
(Amber)
System Indicators
Lights Indicators
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (
ACC)
Indicator (Amber/
Green)
System Message
Indicator Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System (
LKAS)
Indicator (Amber/
Green)
Keyless Access System
Indicator
*
U.S.
Canada
Canada U.S.
High Temperature
Indicator (Red)/Low
Temperature Indicator
(Blue)Automatic Brake Hold
System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
Electric Parking Brake
System Indicator
Electric Parking Brake
IndicatorU.S.
Canada
Auto High-Beam
Indicator
All-Wheel Drive (
AWD)
System Indicator*
M (7-speed manual shift mode ) Indicator/Shift Indicator*
Multi-Information Display
Brake System Indicator
(Red)
22 HR-V HDMC-31T7A6600.book 14 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

15
Quick Reference Guide
Controls (P137)
Clock (P138)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
The clock in the multi-information display
*/
information display* is automatically
updated along with the audio system’s clock
display.
Models with navigation system
Models without navigation system
aSelect the (HOME) icon, then select
Settings .
bSelect Clock/Info , then Clock
Adjustment .
cAdjust the hours and minutes by
selecting / .
dSelect OK.
Models with display audio system
34
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press
.
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
* Not available on all models
22 HR-V HDMC-31T7A6600.book 15 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

16
Quick Reference Guide
ENGINE START/STOP
Button
* (P170)
Press the button to change the vehicle’s
power mode.
Turn Signals (P174)
Turn Signal Control Lever
Right
Left
Lights (P175)
Light Control Switches
U.S. models
Low Beam High Beam
Flashing
Canadian models
Low Beams High Beams Flashing the
high beams
Wipers and Washers
(P183)
*1 : Models with automatic intermittent wipers
*2 : Models without automa tic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Adjustment Ring
*
(
-: Low Sensitivity*1
(-: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+: Higher speed, more sweeps*2
22 HR-V HDMC-31T7A6600.book 16 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

17
Quick Reference Guide

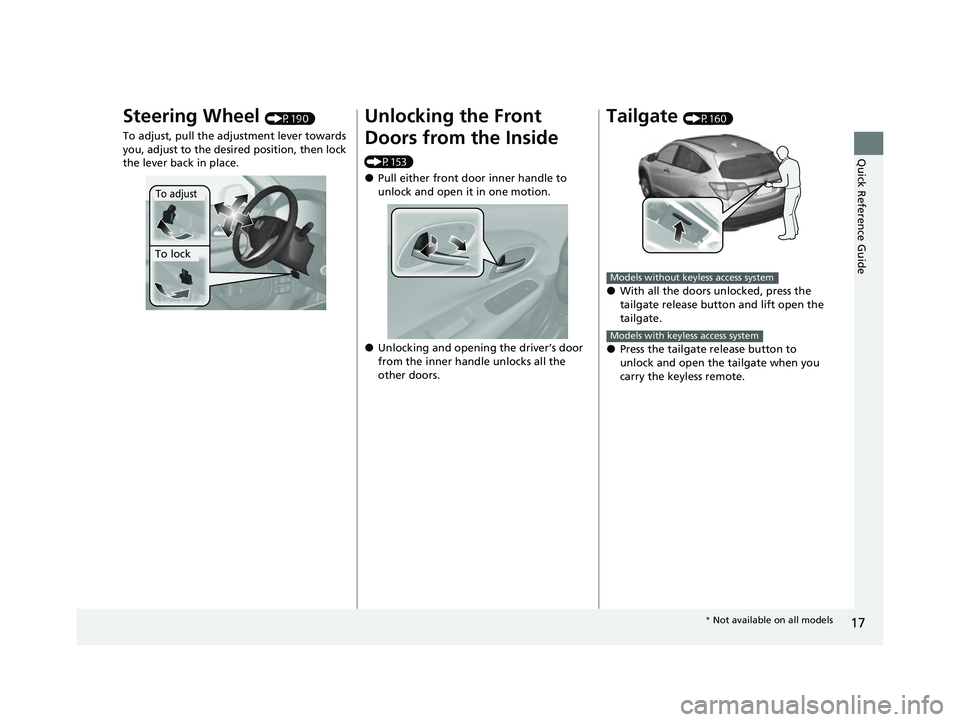

Steering Wheel (P190)
To adjust, pull the ad justment lever towards
you, adjust to the desi red position, then lock
the lever back in place.
To adjust
To lock
Unlocking the Front
Doors from the Inside
(P153)
●Pull either front door inner handle to
unlock and open it in one motion.
●Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Tailgate (P160)
●With all the doors unlocked, press the
tailgate release button and lift open the
tailgate.
●Press the tailgate release button to
unlock and open the tailgate when you
carry the keyless remote.
Models without keyless access system
Models with keyless access system
* Not available on all models
22 HR-V HDMC-31T7A6600.book 17 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

18
Quick Reference Guide
Power Door Mirrors
(P193)
●With the ignition switch in ON (w*1, move
the selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
*1 : Models with the keyless access system have an
ENGINE START/STOP button instead of an ignition
switch.
Selector Switch
Adjustment Switch
Power Windows (P166)
●With the ignition switch in ON ( w*1, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window Switch
Indicator
