HONDA HRV 2022 Owner's Manual

19
Quick Reference Guide

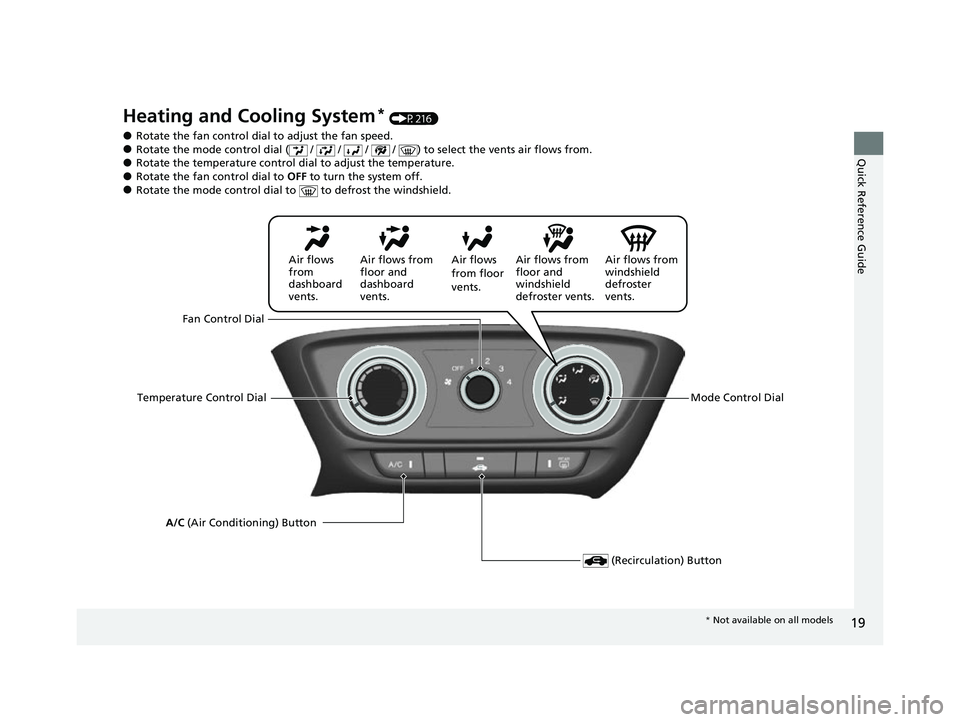

Heating and Cooling System* (P216)
●Rotate the fan control dial to adjust the fan speed.●Rotate the mode control dial ( / / / / ) to select the vents air flows from.●Rotate the temperature control dial to adjust the temperature.●Rotate the fan control dial to OFF to turn the system off.●Rotate the mode control dial to to defrost the windshield.
Fan Control Dial
A/C (Air Conditioning) Button Air flows from
windshield
defroster
vents.
Air flows
from floor
vents.
Air flows from
floor and
dashboard
vents.
Air flows
from
dashboard
vents.
Temperature Control Dial Air flows from
floor and
windshield
defroster vents.
Mode Control Dial
(Recirculation) Button
* Not available on all models
22 HR-V HDMC-31T7A6600.book 19 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

20
Quick Reference Guide
Climate Control System* (P220)
●Select the AUTO icon to activate the climate control system.●Select the icon to turn the system on or off.●Select the icon to defrost the windshield.
Models without SYNC icon
AUTO Icon
A/C (Air Conditioning) Icon Air flows from
floor and
windshield
defroster vents.
Air flows from
floor vents.
Air flows from
floor and
dashboard vents.
Air flows from
dashboard
vents.
Temperature Control Icons Fan Control Icons
(Recirculation) Icon
(On/Off) Icon
(Fresh Air) Icon
Mode Control Icon
(Windshield Defroster) Icon
22 HR-V HDMC-31T7A6600.book 20 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

21
Quick Reference Guide

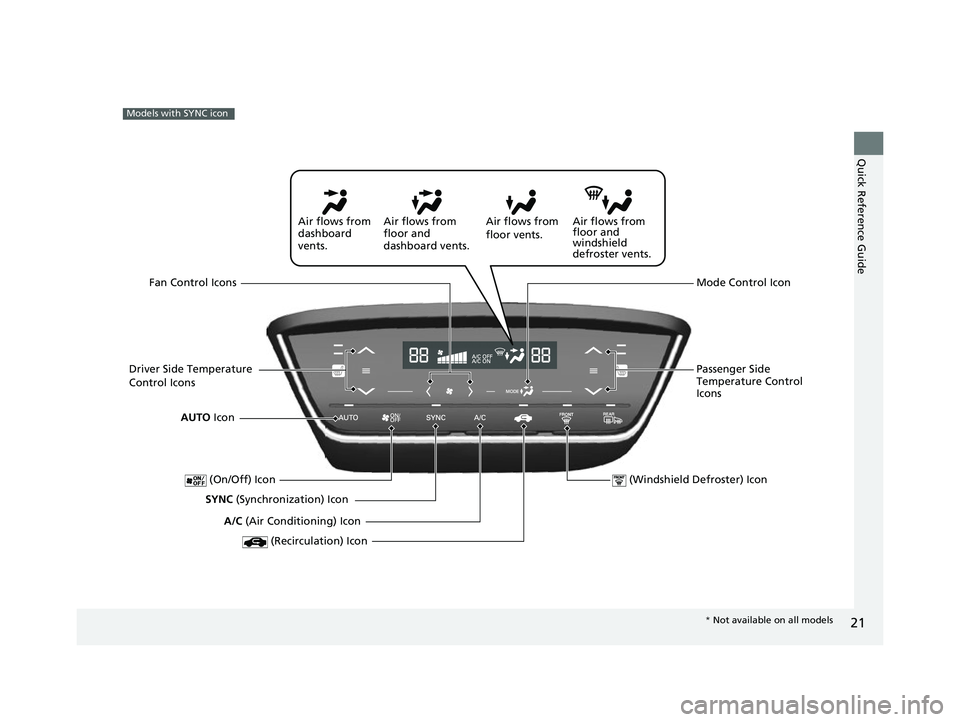

Models with SYNC icon
AUTO Icon
SYNC (Synchronization) Icon Air flows from
floor and
windshield
defroster vents.
Air flows from
floor vents.
Air flows from
floor and
dashboard vents.
Air flows from
dashboard
vents.
Driver Side Temperature
Control Icons Passenger Side
Temperature Control
Icons
(Recirculation) Icon
(On/Off) Icon
Mode Control Icon
(Windshield Defroster) Icon
A/C (Air Conditioning) Icon
Fan Control Icons
* Not available on all models
22 HR-V HDMC-31T7A6600.book 21 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

22
Quick Reference Guide
Features (P231)
Audio Remote Controls
(P235)
●(+ / (- Button
Press to adjust the volume up/down.
●SOURCE Button
Press to change the audio mode: FM/AM/
CD/USB/iPod/Bluetooth® Audio.
Press to change the audio mode: FM/AM/
SiriusXM ®
*/USB/iPod/ Bluetooth® Audio/
Pandora®*/Apps/Apple CarPlay/Android
Auto.
( + / (- / / Buttons
SOURCE Button
Models with color audio system
Models with display audio system
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD
*/USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
22 HR-V HDMC-31T7A6600.book 22 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

23
Quick Reference Guide
Audio System (P232)
For navigation system operation () See the Navigation System Manual
(P238)
Models with color audio system
MENU/CLOCK Button
LIST/SELECT
Knob
(Day/Night)
Button
(Back) Button
(Sound) Button
VOL /
(Volume/Power)
Knob
CD Slot
(CD Eject) Button
Preset Buttons (1-6) (Phone) Button
RADIO
Button
/
(Skip/Seek) Buttons
MEDIA Button Audio/Information Screen
*
Not available on all models
22 HR-V HDMC-31T7A6600.book 23 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

24
Quick Reference Guide

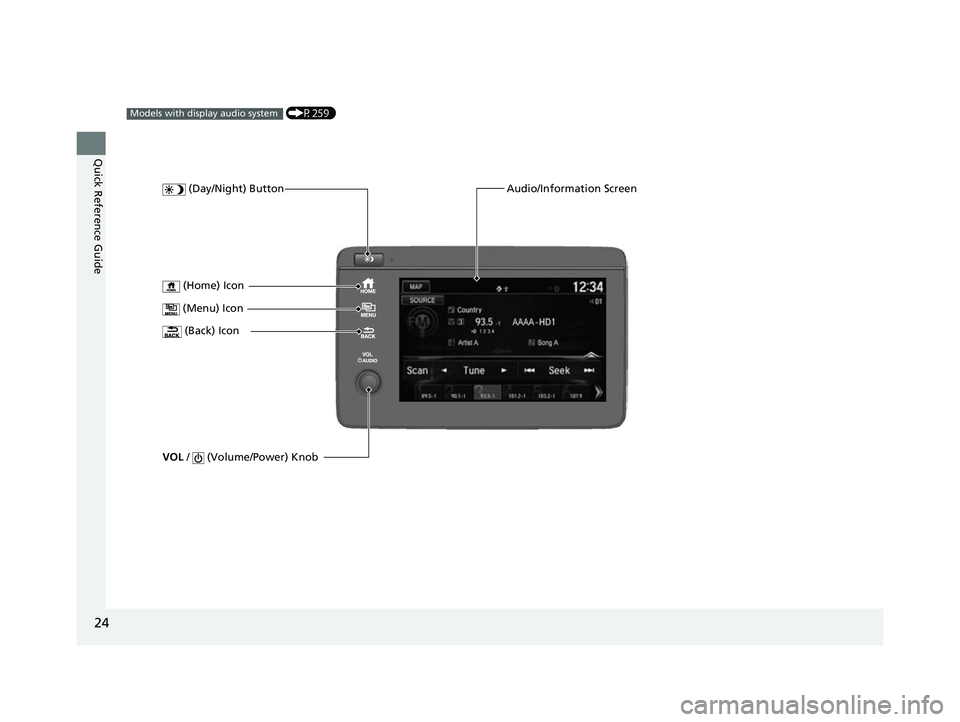

(P259)Models with display audio system
(Day/Night) ButtonAudio/Information Screen
VOL / (Volume/Power) Knob
(Back) Icon
(Menu) Icon
(Home) Icon
22 HR-V HDMC-31T7A6600.book 24 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

25
Quick Reference Guide

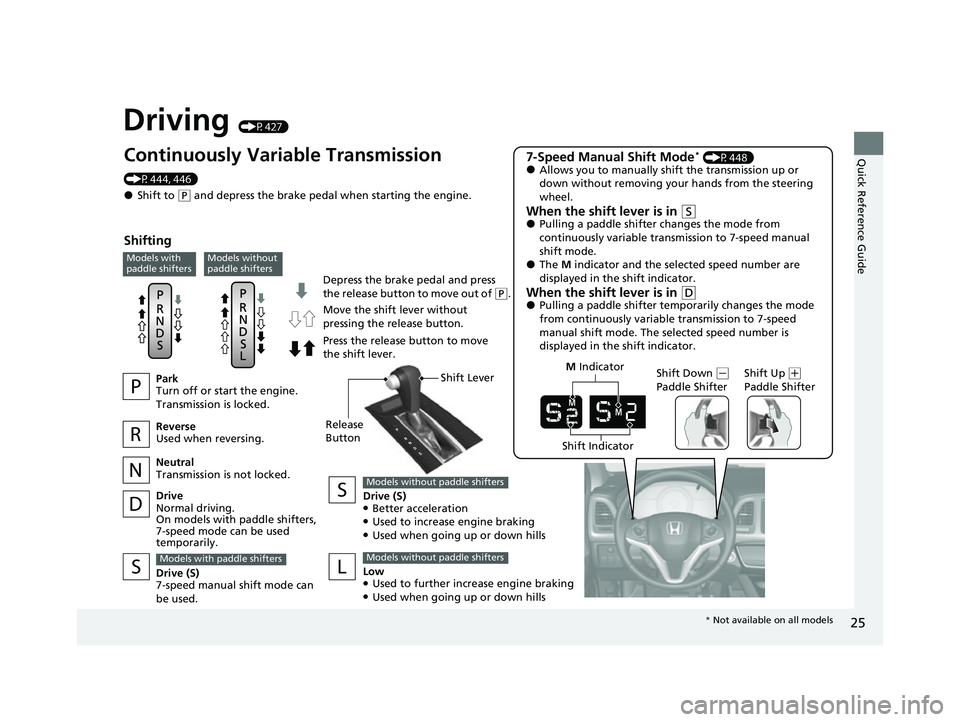

Driving (P427)
Depress the brake pedal and press
the release button to move out of
(P.
Continuously Variable Transmission
(P444, 446)
●Shift to (P and depress the brake pedal when starting the engine.
Shifting
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Normal driving.
On models with paddle shifters,
7-speed mode can be used
temporarily. Drive (S)
●Better acceleration●Used to increase engine braking●Used when going up or down hills
Models without paddle shifters
Low●Used to further increase engine braking●Used when going up or down hills
Models without paddle shifters
Drive (S)
7-speed manual shift mode can
be used.
Models with paddle shifters
Move the shift lever without
pressing the release button.
Press the release button to move
the shift lever.
7-Speed Manual Shift Mode* (P448)●Allows you to manually shift the transmission up or
down without removing yo
ur hands from the steering
wheel.
When the shift lever is in (S●Pulling a paddle shifter changes the mode from
continuously variable trans mission to 7-speed manual
shift mode.
●The M indicator and the selected speed number are
displayed in the shift indicator.
When the shift lever is in (D●Pulling a paddle shifter temporarily changes the mode
from continuously variable transmission to 7-speed
manual shift mode. The selected speed number is
displayed in the shift indicator.
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
M
Indicator
Models with
paddle shiftersModels without
paddle shifters
Shift Lever
Release
Button
Shift Indicator
* Not available on all models
22 HR-V HDMC-31T7A6600.book 25 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

26
Quick Reference Guide

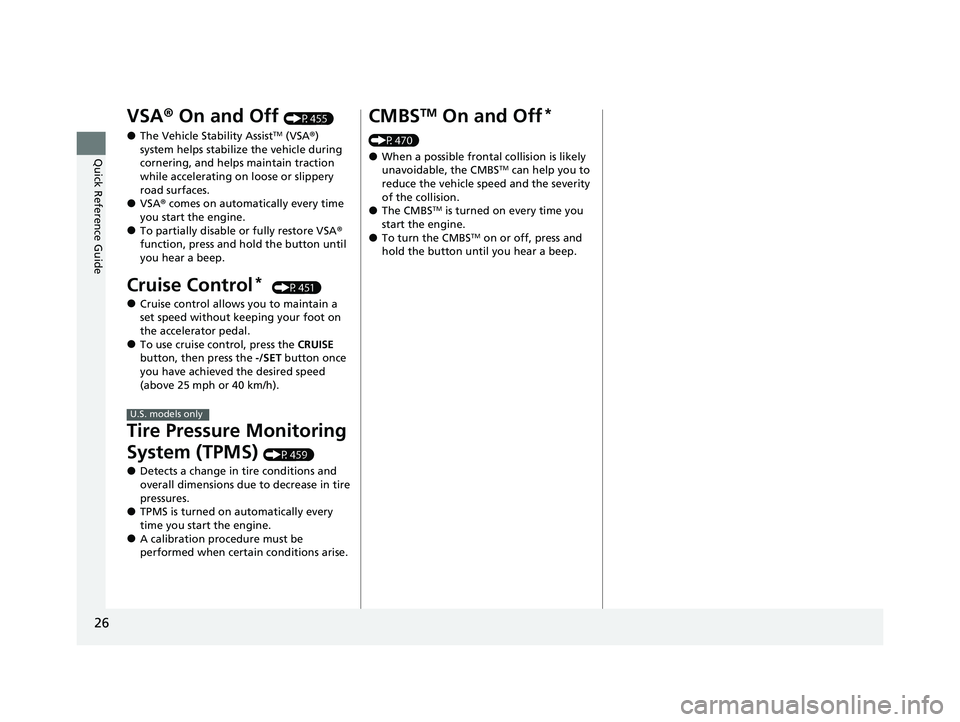

VSA® On and Off (P455)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control* (P451)
●Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
●To use cruise control, press the CRUISE
button, then press the -/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).
Tire Pressure Monitoring
System (TPMS)
(P459)
●Detects a change in tire conditions and
overall dimensions due to decrease in tire
pressures.
●TPMS is turned on automatically every
time you start the engine.
●A calibration procedure must be
performed when certain conditions arise.
U.S. models only
CMBSTM On and Off*
(P470)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can help you to
reduce the vehicle speed and the severity
of the collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, press and
hold the button until you hear a beep.
22 HR-V HDMC-31T7A6600.book 26 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

27
Quick Reference Guide

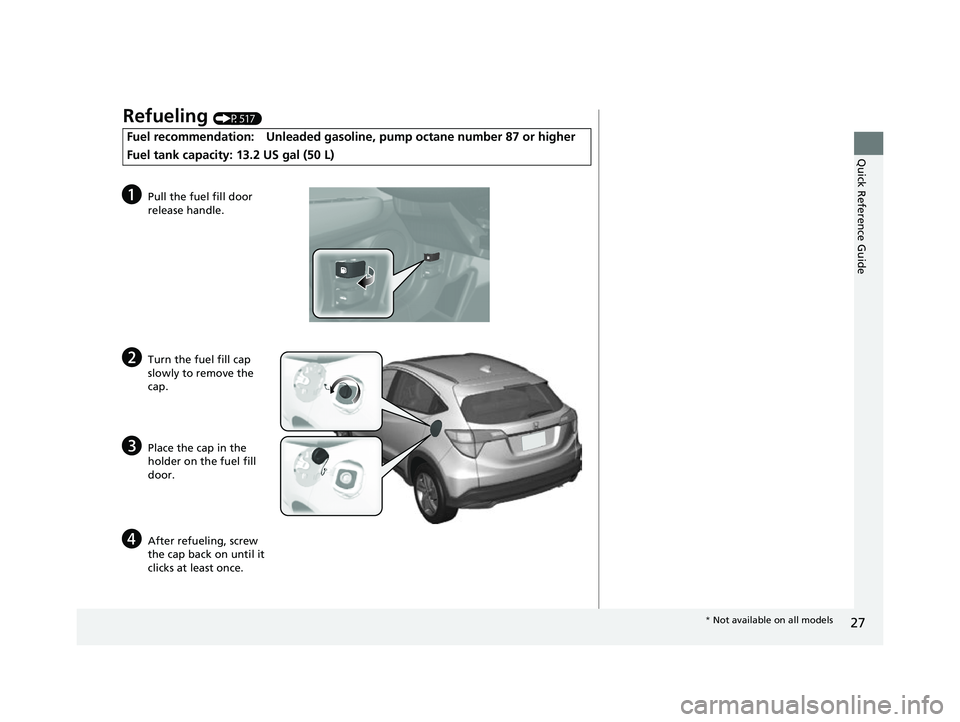

Refueling (P517)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher
Fuel tank capacity: 13.2 US gal (50 L)
aPull the fuel fill door
release handle.
bTurn the fuel fill cap
slowly to remove the
cap.
cPlace the cap in the
holder on the fuel fill
door.
dAfter refueling, screw
the cap back on until it
clicks at least once.
* Not available on all models
22 HR-V HDMC-31T7A6600.book 27 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

28
Quick Reference Guide
Honda Sensing®* (P 464)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Front Sensor
Camera The camera is located
behind the rearview
mirror.
Radar Sensor The radar sensor is in
the front grille.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 467)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle or a
pedestrian detected in front of your vehicle.
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Adaptive Cruise Control
(ACC)
(P 477)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P 490)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 499)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
