HONDA INSIGHT 2001 1.G Owners Manual

When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.In cold weather, the fan will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.
To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
desired temperature by turning the
temperature control dial. You will
see AUTO in the system’s display.
The light above the button
also shows you which mode,
Recirculation or Fresh Air, is
selected.
When the system is in f ully
automatic mode, the auto idle stop
f unction will not be activated.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature.
Fully-automatic Operation
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Auto Button
92
AAUUTTOOBBUUTTTTOONNOOFFFFBBUUTTTTOONN
MMOODDEEBBUUTTTTOONN
FFAANNSSPPEEEEDDBBUUTTTTOONN
EECCOONNBBUUTTTTOONN
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL

CONT INUED
Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
You can manually select various
f unctions of the Climate Control
system when it is in AUTO. All other
f eatures remain automatically
controlled. Making any manual
selection causes the word AUTO to
go out.If thecoolingprovidedinECON
mode is not adequate, press the Auto
button. (See page .)
This button turns the air
conditioning on and of f . When the
air conditioning is turned on with
this button, the auto idle stop works
only if the outside temperature is
above 41°F (5°C). 92
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
ECON Button
93
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
MMOODDEEBBUUTTTTOONN
FFAANNSSPPEEEEDDBBUUTTTTOONN
EECCOONNBBUUTTTTOONN
TTEEMMPPEERRAATTUURREECCOONNTTRROOLLDDIIAALL

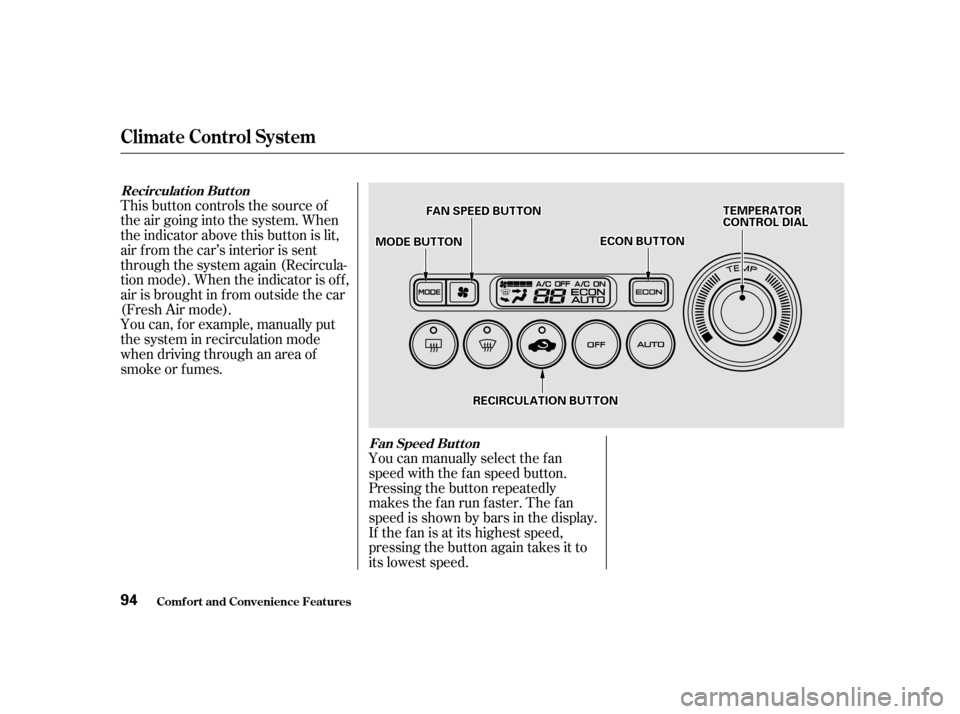

This button controls the source of
the air going into the system. When
the indicator above this button is lit,
air f rom the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the car
(Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.You can manually select the f an
speed with the fan speed button.
Pressing the button repeatedly
makes the fan run faster. The fan
speed is shown by bars in the display.
If the f an is at its highest speed,
pressing the button again takes it to
its lowest speed.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Recirculat ion But t on
Fan Speed But t on
94
MMOODDEEBBUUTTTTOONNEECCOONNBBUUTTTTOONN
RREECCIIRRCCUULLAATTIIOONNBBUUTTTTOONN
TTEEMMPPEERRAATTOORRCCOONNTTRROOLLDDIIAALLFFAANNSSPPEEEEDDBBUUTTTTOONN

CONT INUED

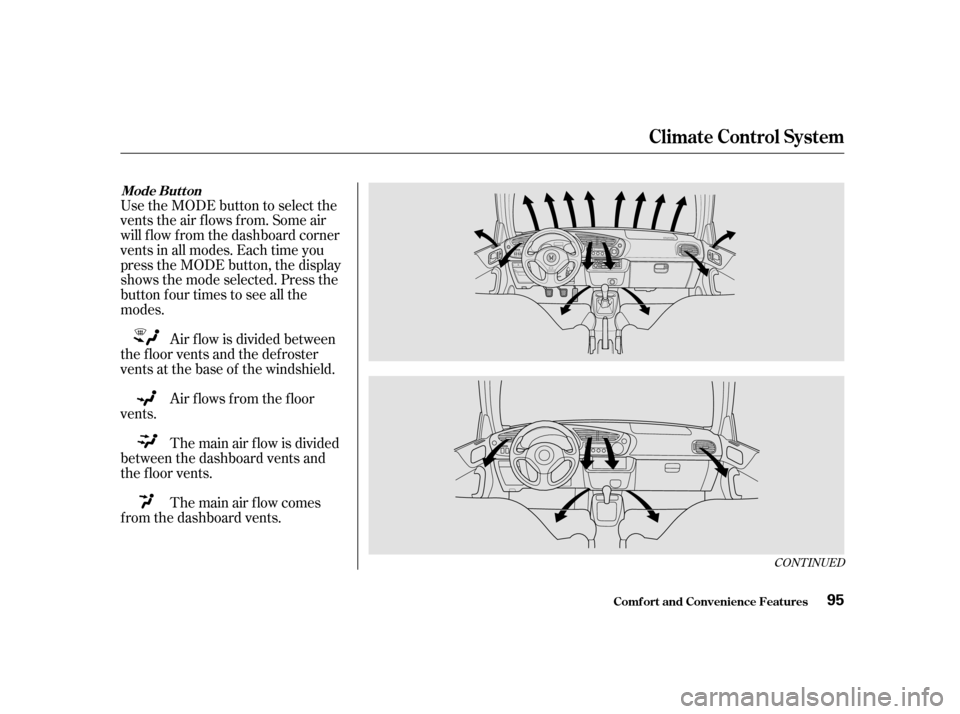

Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes. Each time you
press the MODE button, the display
shows the mode selected. Press the
button four times to see all the
modes.Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
The main air f low is divided
between the dashboard vents and
the f loor vents. Air f lows f rom the f loor
vents.
The main air flow comes
f rom the dashboard vents.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Mode Button
95

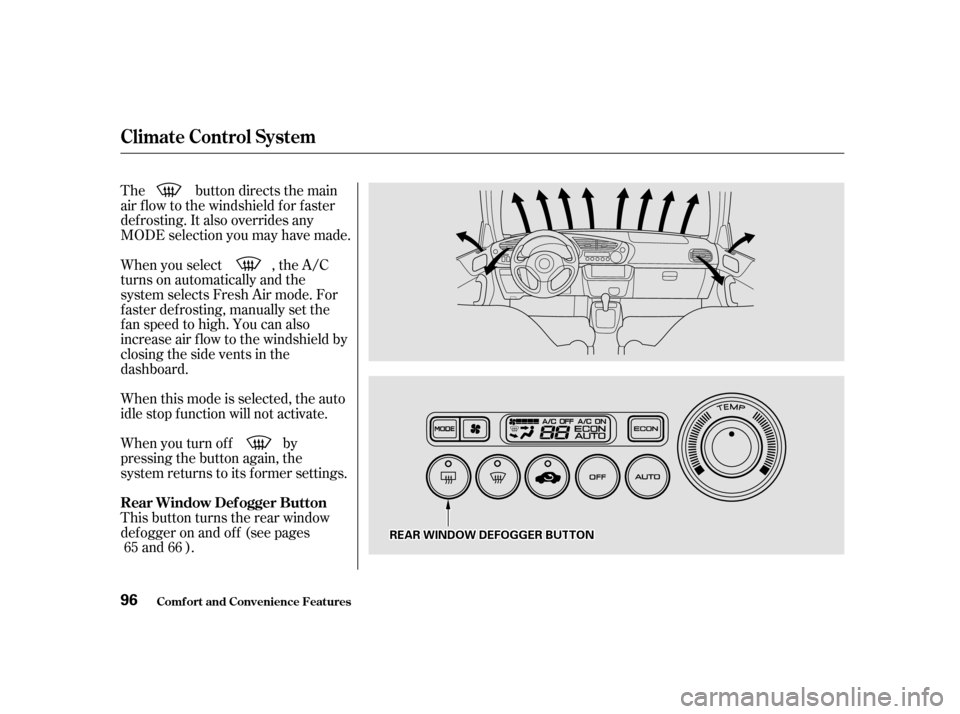

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you turn of f by
pressing the button again, the
system returns to its former settings.
When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
When this mode is selected, the auto
idle stop f unction will not activate.
This button turns the rear window
def ogger on and of f (see pages
and ).
65 66
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Rear Window Def ogger Button 96
RREEAARRWWIINNDDOOWWDDEEFFOOGGGGEERRBBUUTTTTOONN

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
97
TTEEMMPPEERRAATTUURREESSEENNSSOORR
SSUUNNLLIIGGHHTTSSEENNSSOORR

Î
Î

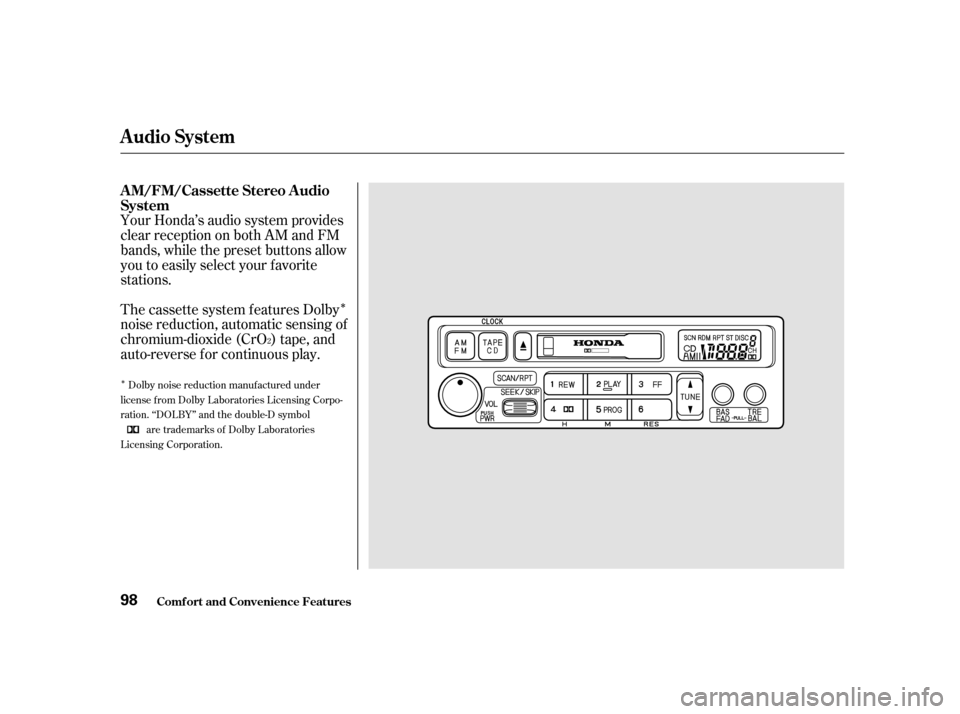

Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your f avorite
stations.
The cassette system f eatures Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
auto-reverse f or continuous play.
2
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
A M/FM/Cassette Stereo A udio
System
Audio System
Comf ort and Convenience Feat ures
98

µµ
Û
Ý

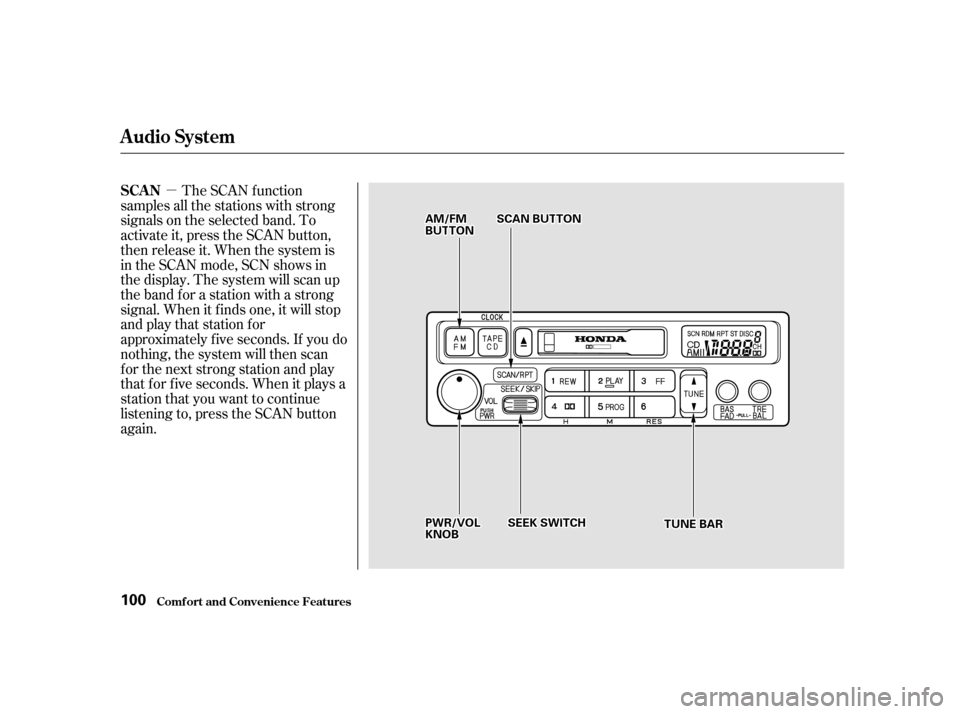

You can use any of f our methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN or the
Preset buttons.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the upper part ( ) to tune
toahigherfrequency,orthelower
part ( ) to tune to a lower
f requency. The f requency numbers
will start to change rapidly. Release
the bar when the display reaches the
desired f requency. To change the
f requency in small increments, press
and release the TUNE bar quickly. The SEEK f unction
searches the band for a station with
a strong signal. To activate it, push
the SEEK switch up or down, then
release it. Depending on which way
you push the switch, the system
scans upward or downward f rom the
current f requency. It stops when it
finds a station with a strong signal.
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob.
Adjust the volume by turning the
PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
CONT INUED
Operating the Radio
TUNESEEK
Audio System
Comf ort and Convenience Feat ures
99

µThe SCAN f unction
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. When the system is
intheSCANmode,SCNshowsin
the display. The system will scan up
the band for a station with a strong
signal. When it f inds one, it will stop
and play that station for
approximately f ive seconds. If you do
nothing, the system will then scan
f or the next strong station and play
that f or f ive seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
SCAN
Audio System
Comf ort and Convenience Feat ures
100
SSCCAANNBBUUTTTTOONN
SSEEEEKKSSWWIITTCCHH
AAMM//FFMMBBUUTTTTOONN
PPWWRR//VVOOLLKKNNOOBBTTUUNNEEBBAARR

µ
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Use the TUNE or SEEK f unction
to tune the radio to a desired
station.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each Preset
button.

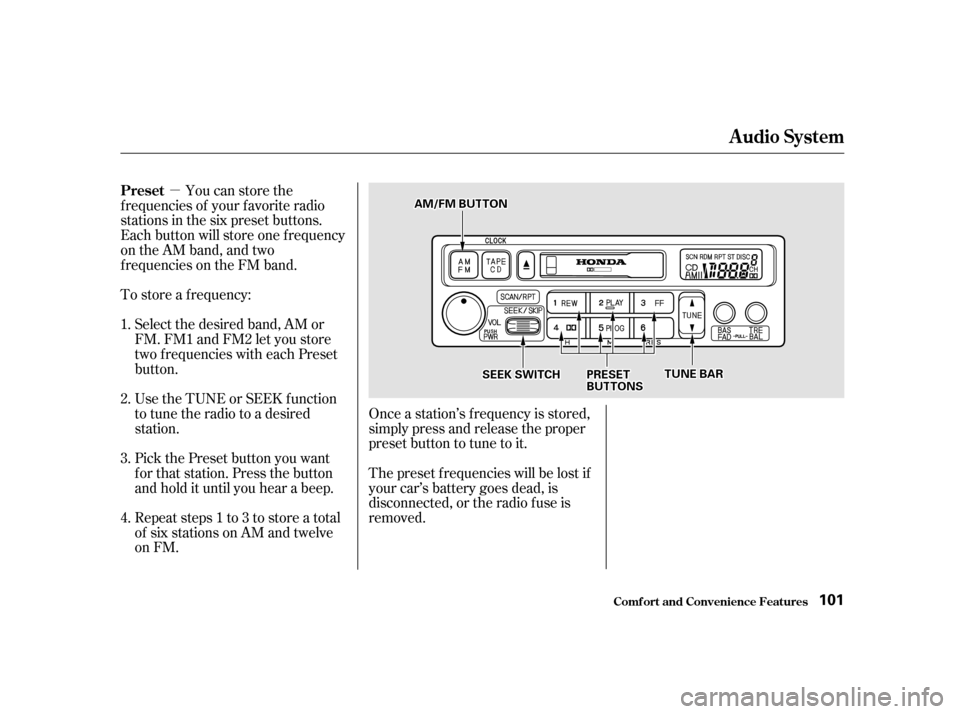

To store a f requency:
Once a station’s frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset f requencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio f use is
removed.
You can store the
f requencies of your f avorite radio
stations in the six preset buttons.
Each button will store one f requency
on the AM band, and two
f requencies on the FM band. 1. 2. 3.4.
Preset
Audio System
Comf ort and Convenience Feat ures
101
SSEEEEKKSSWWIITTCCHH
AAMM//FFMMBBUUTTTTOONN
PPRREESSEETTBBUUTTTTOONNSSTTUUNNEEBBAARR
