See page f or cargo loading and
weight limit inf ormation. Keep the
hatch closed at all times while
driving to avoid damaging the hatch
and to prevent exhaust gas from
getting into the interior. Seeon page .
To open the hatch, push the lever
behind the hatch’s back edge. To
close the hatch, push down on the
back edge. If you need to use this procedure to
open the hatch, your car may be
developing a problem. Have the
vehicle checked by your Honda
dealer.
If an unlocked hatch does not open,
turn the key clockwise past the
unlock position. Open the hatch as
youholdthekeyinthatposition.
40
131
Carbon
Monoxide Hazard
Inst rument s and Cont rols
Keys and Locks
72
LLOOCCKK
MMAASSTTEERRKKEEYYUUNNLLOOCCKKPPOOSSIITTIIOONN

When you push the UNLOCK button
once, only the driver’s door unlocks.
The parking lights and taillights
f lash twice. The passenger’s door
unlocks when you push the button a
second time.
You can lock and unlock your car
with the remote transmitter. When
you push the LOCK button, both
doors lock. The side marker lights
and taillights f lash once. The horn will sound if you push the
LOCK button a second time within
f ive seconds of locking the doors.
The interior light (if the interior light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door, the light will go out in
about 30 seconds and the doors will
automatically relock. If you relock
the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go of f
immediately.
You cannot lock or unlock the doors
with the remote transmitter if either
door is not f ully closed or the key is
in the ignition switch.
CONT INUED
Remote TransmitterHorn Operat ion
Keys and Locks
Inst rument s and Cont rols
73
LLEEDD
UUNNLLOOCCKKBBUUTTTTOONN
LLOOCCKKBBUUTTTTOONN
PPAANNIICCBBUUTTTTOONN

When the remote transmitter’s
battery begins to get weak, it may
take several pushes on the button to
lock or unlock the doors, and the
LED will get dim. Replace the
battery as soon as possible.
Battery type: CR2025To replace the battery, remove the
round cover on the back of the trans-
mitter by turning it counterclockwise
with a coin.
Panic mode allows you to remotely
activate your car’s security system to
attract attention. When activated, the
horn will sound, and the exterior
lights will f lash f or about 30 seconds.
To activate panic mode, press and
hold the PANIC button for about one
second.
To cancel Panic mode bef ore 30
seconds, press any button on the
remote transmitter. You can also
turn the ignition switch to ON (II).
Panic Mode Replacing t he Bat t ery
Keys and Locks
Inst rument s and Cont rols
74
OOppeenn
CClloossee

´
Ü
Õ
Remove the old battery and note the
polarity. Make sure the polarity of
the new battery is the same ( side
f acing up), then insert it in the
transmitter. Avoid severe shock to the trans-
mitter, such as dropping or throwing
it. Also, protect it f rom extreme hot
or cold temperatures.
Clean the transmitter case with a
sof t cloth. Do not use strong
cleaners or solvents that could harm
the case. Immersing the transmitter
in any liquid will harm the trans-
mitter and cause it to not f unction
properly.
If you lose a transmitter, you will
need to have the replacement
programmed to your vehicle’s
system by your Honda dealer. Any
other transmitters you have will also
need to be reprogrammed.
Align the mark on the cover
with the mark on the
transmitter, then set the cover in
place and turn it clockwise.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesired
operation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Transmitter Care
Keys and Locks
Inst rument s and Cont rols
75
BBAATTTTEERRYYRROOUUNNDDCCOOVVEERR

µ
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs. 12 14
Make all seat adjustments bef ore
you start driving.
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s f ront edge. Move
the seat to the desired position and
releasethelever.Trytomovethe
seat to make sure it is locked in
position.To change the angle of the seat-back,
pushforwardonthelevernexttothe
seat bolster, on the side of the seat-
back. Move the seat-back to the
desired position and release the lever.
Let the seat-back latch in the new
position.
Seat A djustments
Inst rument s and Cont rols
FrontSeatAdjustments 76

µ
Your car’s windows are electrically-
powered. Turn the ignition switch to
ON (II) to raise or lower either
window.
The master control panel also con-
tains these extra features:To open the driver’s
window f ully, push the window
switch f irmly down and release it.
The window automatically goes all
the way down. To stop the window
f rom going all the way down, pull
back on the window switch briefly.
To open the driver’s window only
partially, push the window switch
down lightly and hold it. The window
will stop as soon as you release the
switch.
There is a master power window
control panel on the dashboard. To
open the passenger’s window, push
down on the switch and hold it down
until the window reaches the desired
position. To close the window, push
up on the window switch. Release
the switch when the window gets to
the position you want.
CONT INUED
Power Windows
Inst rument s and Cont rols
AUTO
77
DDRRIIVVEERR’’SSWWIINNDDOOWWSSWWIITTCCHH
MMAAIINNSSWWIITTCCHHClosing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.

The AUTO f unction only works to
lower the driver’s window. To raise
the window, you must push the
window switch up and hold it until
the window reaches the desired
position.Adjust the outside mirrors with the
adjustment switch on the lef t side of
the dashboard:Turn the ignition switch ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side). Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns of f the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch.
The MAIN switch controls power to
the passenger’s window. With this
switch of f , the passenger’s window
cannot be raised or lowered. The
MAIN switch does not af f ect the
driver’s window. Keep the MAIN
switch of f when you have a child in
the car so the child does not get
injured by operating the window
unintentionally.
1. 2.3. 4.
Power Windows, Mirrors
Inst rument s and Cont rols
Adjusting the Power Mirrors
78
AADDJJUUSSTTMMEENNTTSSWWIITTCCHHSSEELLEECCTTOORRSSWWIITTCCHH

To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake light on
the instrument panel should go out
when the parking brake is f ully
released (see page ).
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Your car has a storage box under the
cargo compartment. To open the
storage box, pull the strap.
47
Inst rument s and Cont rols
Parking Brake
Mirrors
Storage Box
Mirrors, Parking Brake, Storage Box
79
PPAARRKKIINNGGBBRRAAKKEELLEEVVEERR
TTAABB
SSTTRRAAPP
Driving the car with the parking brake
applied can damage the rear brakes
and axles.

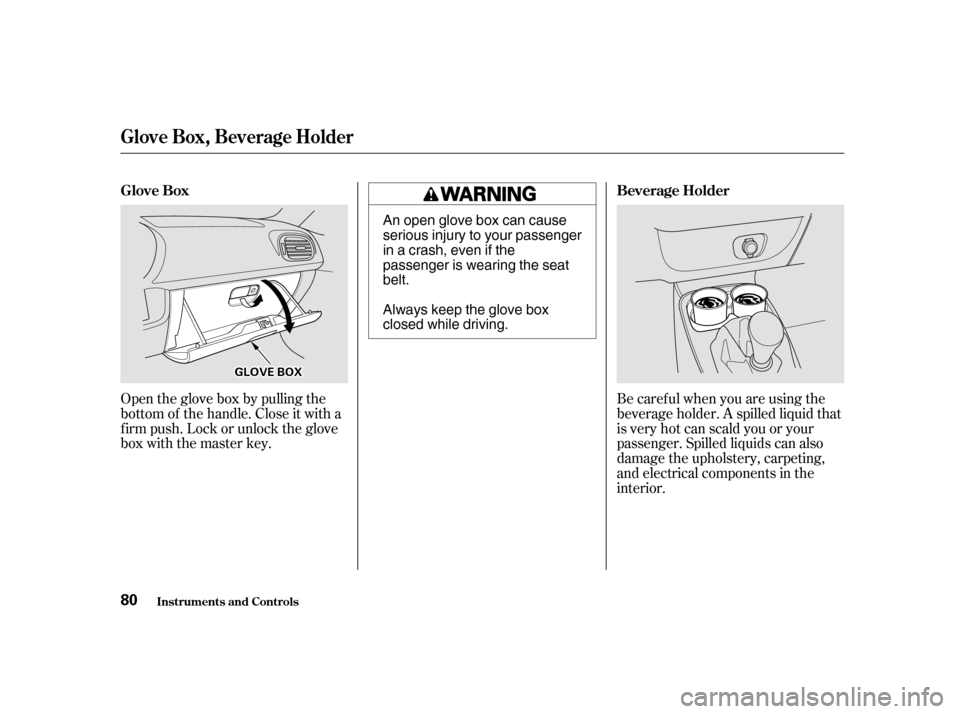

Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.Be caref ul when you are using the
beverage holder. A spilled liquid that
is very hot can scald you or your
passenger. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
Inst rument s and Cont rols
Glove Box, Beverage Holder
Beverage Holder
Glove Box
80
GGLLOOVVEEBBOOXX An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.

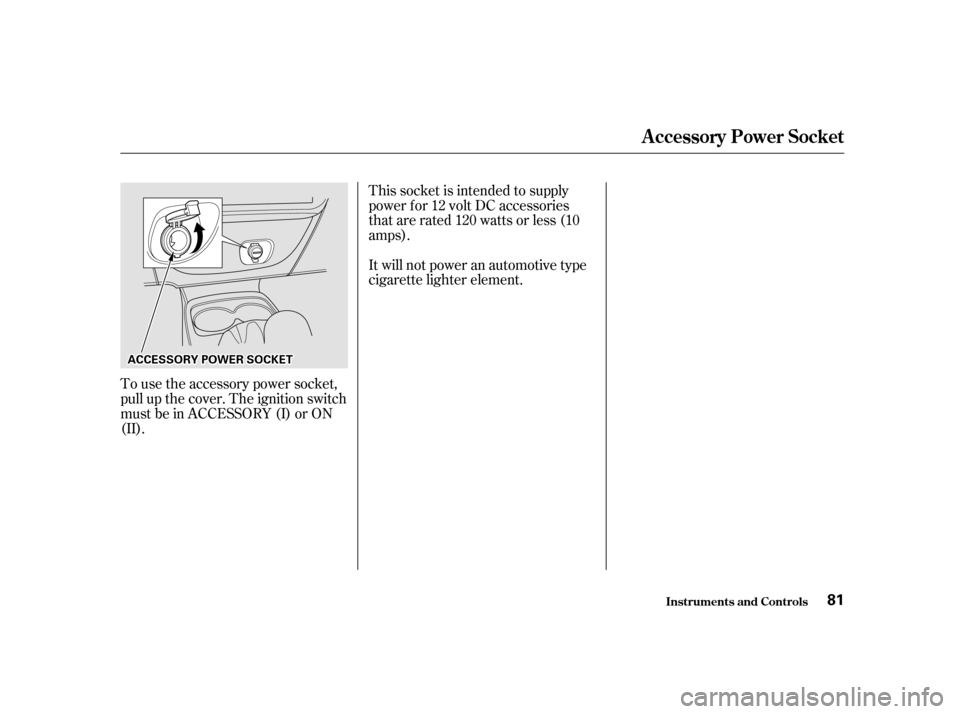

This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
It will not power an automotive type
cigarette lighter element.
To use the accessory power socket,
pull up the cover. The ignition switch
must be in ACCESSORY (I) or ON
(II).
Inst rument s and Cont rols
A ccessory Power Socket
81
AACCCCEESSSSOORRYYPPOOWWEERRSSOOCCKKEETT
