Page 61 of 269
´µ
´µ
´´µµ Thedisplaydimswhentheparking
lights or headlights are turned on.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.
With the headlight switch on, you
can switch the display to f ull daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in six steps.
Push the or button five times
to see the f ull range.
Canadian models only
Controls Near the Steering Wheel
Instrument Panel Brightness
Daytime Running L ights
Inst rument s and Cont rols
62
BBUUTTTTOONNBBUUTTTTOONN
Page 62 of 269

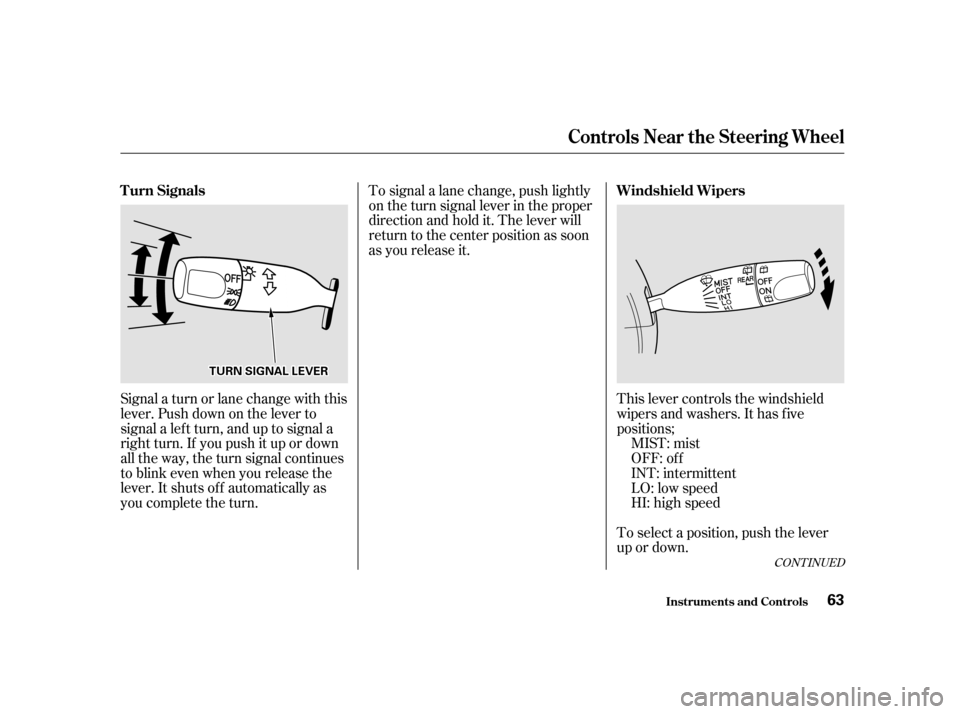

Signal a turn or lane change with this
lever. Push down on the lever to
signal a lef t turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn.To signal a lane change, push lightly
on the turn signal lever in the proper
direction and hold it. The lever will
return to the center position as soon
as you release it.
This lever controls the windshield
wipers and washers. It has five
positions;MIST: mist
OFF: off
INT: intermittent
LO: low speed
HI: high speed
To select a position, push the lever
up or down.
CONT INUED
Controls Near the Steering Wheel
T urn Signals Windshield Wipers
Inst rument s and Cont rols 63
TTUURRNNSSIIGGNNAALLLLEEVVEERR
Page 63 of 269
In intermittent, the wipers operate
every f ew seconds. In low speed and
high speed, the wipers run continu-

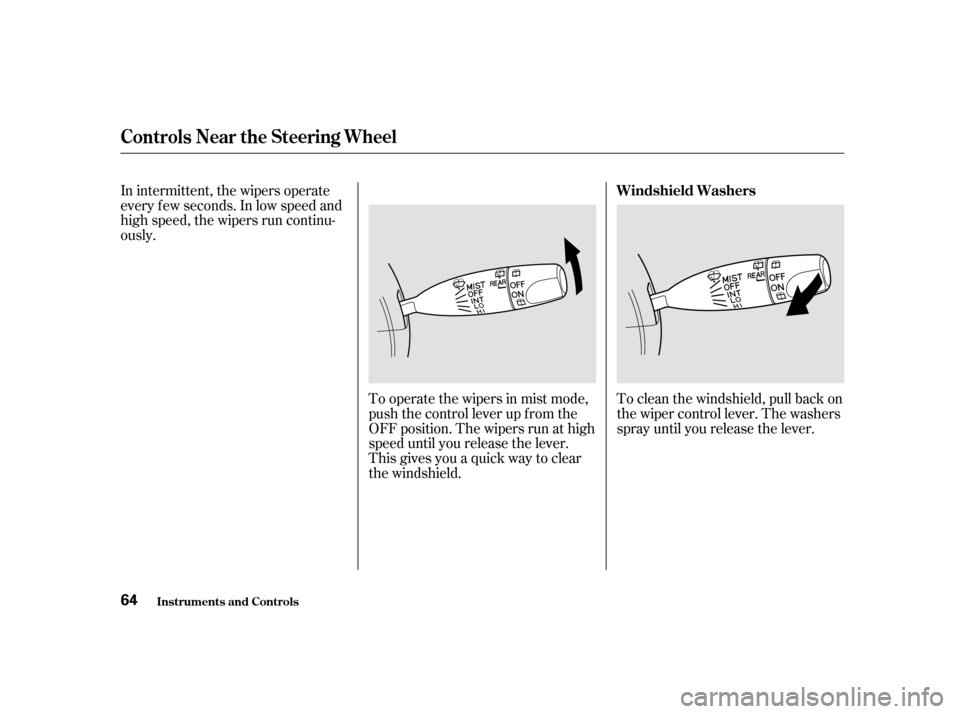

ously.To operate the wipers in mist mode,
push the control lever up f rom the
OFF position. The wipers run at high
speed until you release the lever.
This gives you a quick way to clear
the windshield.To clean the windshield, pull back on
the wiper control lever. The washers
spray until you release the lever.
Inst rument s and Cont rols
Controls Near the Steering Wheel
Windshield Washers
64
Page 64 of 269
The rear window def ogger will clear
fog,frost,andthinicefromthe
window. Push the def ogger button to
turn it on and of f . The light in the
button lights to show the def ogger is
on. If you do not turn it of f , the
def ogger will shut itself of f af ter
about25minutes.Italsoshutsoff
when you turn of f the ignition. You
have to turn it on again when you
restart the car.
Push the button to the right of the
center vents to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signals and both indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your car is disabled.
To turn on the rear window wiper,
turn the ring clockwise to ON. To
also use the rear window washer,
turn the ring clockwise past ON. The
washer will spray as long as you hold
the ring in this position. If you turn
the ring counterclockwise f rom the
OFF position, the washer will spray
without activating the rear window
wiper.
CONT INUED
Manual Operation
Rear Window Def ogger
Hazard Warning
Rear Window Wiper and Washer
Controls Near the Steering Wheel
Inst rument s and Cont rols 65
Page 65 of 269
It will also turn of f automatically
af ter 25 minutes.
Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
The rear window def ogger turns on
automatically when you turn the
ignition switch ON (II) if the outside
temperature is below 32°F (0°C), or
if the engine is at ambient
temperature. The light in the button
does not light.
Controls Near the Steering Wheel
Inst rument s and Cont rols
Automatic Operation
66
Page 66 of 269
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them immedi-
ately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.

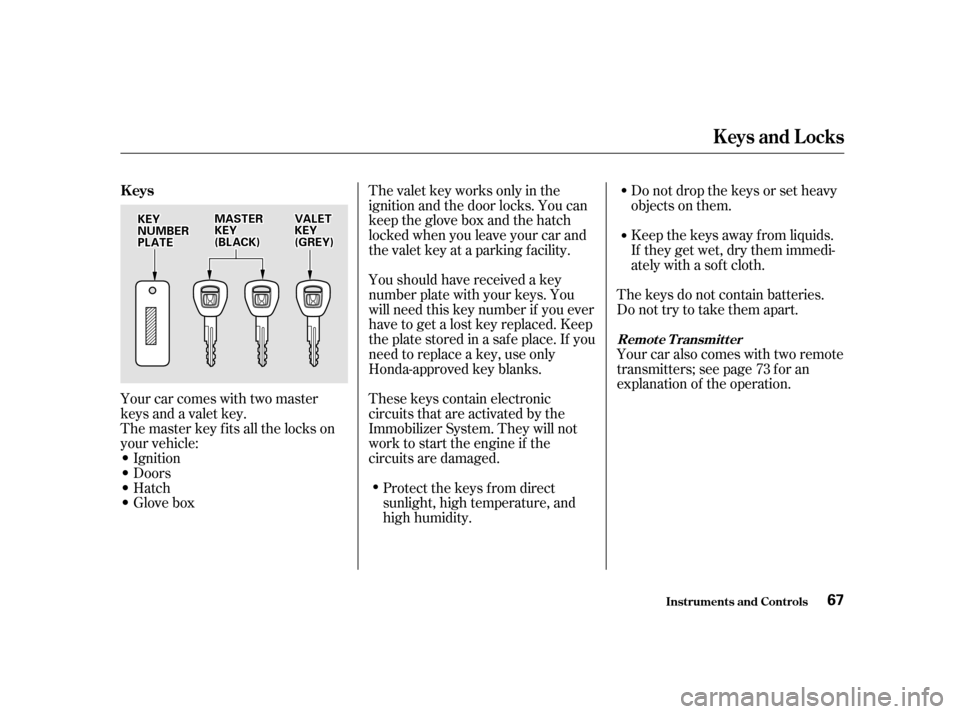

Your car comes with two master
keys and a valet key. Your car also comes with two remote
transmitters; see page for an
explanation of the operation.
The master key fits all the locks on
your vehicle:
Ignition
Doors
Hatch
Glovebox The valet key works only in the
ignition and the door locks. You can
keep the glove box and the hatch
locked when you leave your car and
the valet key at a parking f acility.
Youshouldhavereceivedakey
number plate with your keys. You
will need this key number if you ever
have to get a lost key replaced. Keep
the plate stored in a saf e place. If you
need to replace a key, use only
Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity. 73
Keys
Remote Transmitter
Keys and Locks
Inst rument s and Cont rols
67
KKEEYYNNUUMMBBEERRPPLLAATTEE
VVAALLEETTKKEEYY((GGRREEYY))
MMAASSTTEERRKKEEYY((BBLLAACCKK))
Page 67 of 269
The Immobilizer System protects
your car f rom thef t. A properly-
coded master or valet key must be
used in the ignition switch f or the
engine to start. If an improperly-
coded key (or other device) is used,
the engine’s f uel system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object is near the
ignition switch when you insert the
key. To make sure the system
recognizes the key code:Do not keep other immobilizer
keys on the same key ring.
Use a plastic or leather key f ob,
not metal.
Keep other keys away f rom your
vehicle’s key and the ignition
switch while trying to start the
engine.
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
This indicator will also blink several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your car undriveable.
If you have lost your key and you cannot start the engine, contact your
Honda dealer.
This device complies with Industry
Canada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Changes or modif ications not expressly
approved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesired
operation.
Immobilizer System
Keys and Locks
Inst rument s and Cont rols
68
Page 68 of 269
µYou can insert or
remove the key only in this position.
To switch f rom ACCESSORY to
LOCK, you must push the key in
slightly as you turn it. The anti-thef t
lock will lock the steering column
when you remove the key. If the
f ront wheels are turned, the anti-
theft lock may sometimes make it
difficult to turn the key from LOCK
to ACCESSORY. Firmly turn the
steering wheel to the lef t or to the
right as you turn the key.

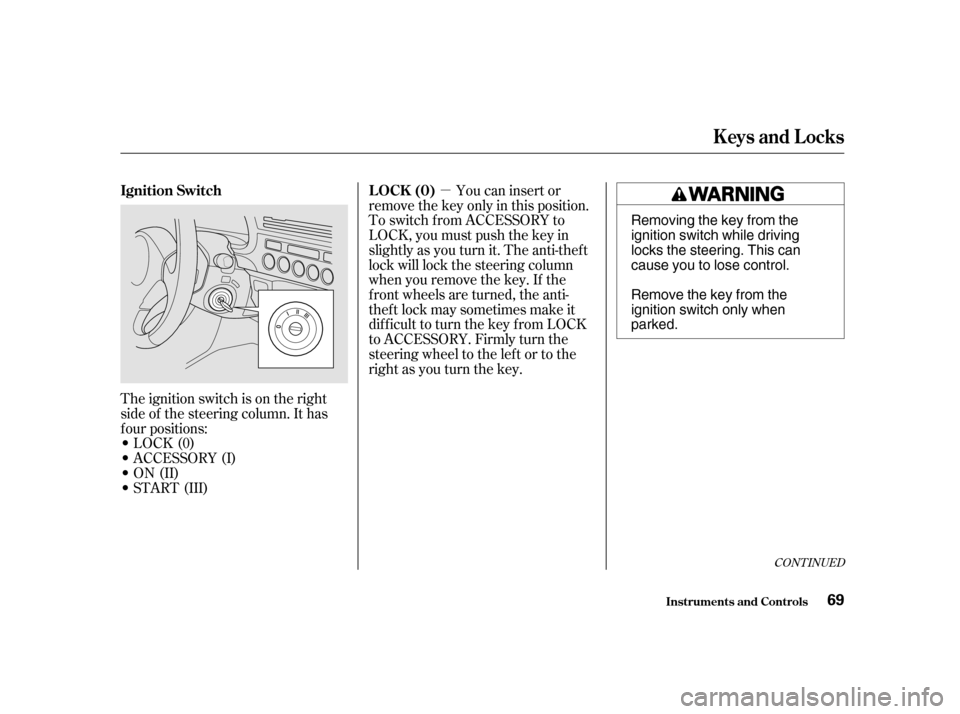

The ignition switch is on the right
side of the steering column. It has
f our positions:
LOCK(0)
ACCESSORY (I)
ON (II)
START (III)
CONT INUED
Ignition Switch L OCK (0)
Keys and Locks
Inst rument s and Cont rols 69
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only whenparked.
Page 69 of 269
µ
µ
µ In this position,
you can operate the audio system
and the accessory power socket. You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
This is the normal key
position when driving. All f eatures
and accessories on the car are usable.
Several of the lights on the instru-
ment panel come on as a test when
you turn the ignition switch f rom
ACCESSORY to ON.
The engine will not start if the
Immobilizer System does not
recognize the key’s coding (see page
). Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
68
A CCESSORY (I)
ON (II)
ST A RT (III)
Keys and Locks
Inst rument s and Cont rols
70
Page 70 of 269

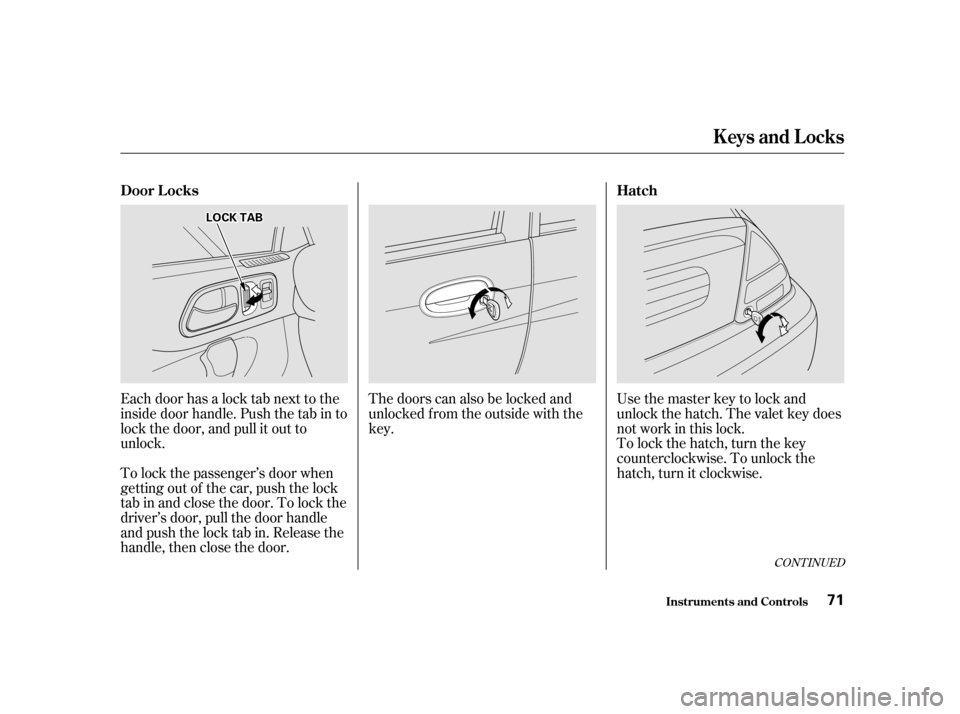

The doors can also be locked and
unlocked f rom the outside with thekey.Usethemasterkeytolockand
unlock the hatch. The valet key does
not work in this lock.
To lock the hatch, turn the key
counterclockwise. To unlock the
hatch, turn it clockwise.
Each door has a lock tab next to the
inside door handle. Push the tab in to
lock the door, and pull it out to
unlock.
To lock the passenger’s door when
getting out of the car, push the lock
tab in and close the door. To lock the
driver’s door, pull the door handle
andpushthelocktabin.Releasethe
handle, then close the door.
CONT INUED
Hatch
Door L ocks
Keys and Locks
Inst rument s and Cont rols 71
LLOOCCKKTTAABB
