HONDA INSIGHT 2005 1.G Owners Manual

Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the vehicle moving.
Push down the clutch pedal, and
pause f or a f ew seconds bef ore
shif ting into Reverse, or shif t into
one of the f orward gears f or a
moment. This stops the gears so
they won’t ‘‘grind.’’
When slowing down, you can get
extra braking f rom the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes f rom
overheating while going down a
steep hill. Bef ore downshif ting,
make sure the engine speed will not
go into the tachometer’s red zone in
the lower gear.
The manual transmission is syn-
chronizedinallforwardgearsfor
smooth operation. It has a lockout so
you cannot shift directly from Fifth
to Reverse. When shif ting up or
down,makesureyoupushtheclutch
pedal down all the way, shift to the
next gear, and let the pedal up
gradually. When you are not shif ting,
do not rest your f oot on the clutch
pedal. This can cause your clutch to
wear out faster.
Manual T ransmission
110
Rapid slowing or speeding-up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.

CONT INUED
The Shif t Up or Shif t Down indicator
will come on at the best time to shif t
toahigherorlowergearforthebest
f uel economy. You can achieve the
best f uel economy by accelerating
and decelerating slowly, and shif ting
up when prompted.To maximize f uel economy, under
certain conditions, the engine will
shut of f when you come to a stop.
Those conditions are:
The A/C is of f , or in ECON mode,
and the outside temperature is
above 41°F (5°C) (see page ). The engine coolant is nearly up to
normal operating temperature.
The vehicle’s speed is below 19
mph (30 km/h) and you are
pressing on the brake pedal to
come to a stop.
You depress the clutch pedal.
You are not pressing on the
accelerator pedal.
The IMA battery is suf f iciently
charged (at least 1/3 on the
battery level gauge).
Bef ore downshif ting, make sure the
engine will not go into the
tachometer’s red zone. If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone. Road and traffic conditions may
require you to shif t at times other
than those indicated. The Shift Down indicator prompts
you to shif t to a lower gear when you
are climbing a hill f aster than 12 mph
(19km/h),losingspeed,and
pressing on the accelerator pedal.
75
Shif t Up/Shif t Down Indicators
A uto Idle Stop
Engine Speed L imiter
Manual T ransmission
Driving
111
SHIFT UP INDICATOR
SHIFT DOWN INDICATOR

There is adequate vacuum reserve
f or the power brakes.
The engine will start again
automatically when you shift to first
gear. There is no need to start the
engine with the ignition switch.
It is recommended that you shif t to
Neutral and release the clutch pedal
while stopped. Sitting with the clutch
pedal depressed and the shif t lever
in gear will cause the engine to
continue running, def eating the f uel
economy benef its of the Auto Idle
Stop f unction.
During Auto Idle Stop, the IMA
charge and power brake vacuum
reserve is monitored by the system.
If either drops below a desired level,
and the shif t lever is in Neutral, the
engine will restart so it can recharge
the IMA battery or replenish the
vacuum supply. Auto Idle Stop is not active.
Auto Idle Stop is active.
The clutch pedal is depressed.
The transmission is not in gear.Auto Idle Stop is active.
The clutch is not depressed.
You cannot restart the engine.
You will hear a chime if the door is
open.
When the indicator is of f :
When the indicator is on: When the indicator is blinking:
A uto Idle Stop Indicator
Manual T ransmission
112
AUTO IDLE STOP INDICATOR

Honda’s Continuously Variable
Transmission’s unique design
provides a smooth, constant f low of
power. It is electronically controlled
f or more precise operation and
better f uel economy.These indicators on the instrument
panel show which position the shif t
lever is in.
The ‘‘D’’ indicator comes on f or a
f ew seconds when you turn the
ignition switch to ON (II). If it
f lashes while driving (in any shif t
position), it indicates a possible
problem in the transmission.If the malf unction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem in the
automatic transmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
U.S. model
Automatic Transmission (CVT)
Continuously Variable
T ransmission (CVT )
Shif t L ever Position Indicators
Driving
113

µµ
µ
To shif t f rom any position, press
f irmly on the brake pedal and press
the release button on the side of the
shiftlever.Youcannotshiftoutof
Park when the ignition switch is in
the LOCK (0) or ACCESSORY (I)
position. This position mechani-
cally locks the transmission. Use
Park whenever you are turning of f or
starting the engine. To shif t out of
Park, you must press on the brake
pedal and have your f oot of f the
accelerator pedal. Press the release
button on the side of the shift lever
to move it. You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop bef ore shif ting into
Park. The shif t lever must be in Park
bef ore you can remove the key f rom
the ignition switch.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page . Press the brake
pedal and press the release button
on the side of the shif t lever to shif t
f rom Park to Reverse. To shif t f rom
Reverse to Neutral, come to a
completestopandthenshift.
Use Neutral if you
need to restart a stalled engine or if
it is necessary to stop brief ly with
the engine idling. Always shif t to the
Park position if you need to leave the
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another position.
117
To shift from:
PtoR
RtoP
NtoR DtoL
NtoD
DtoN LtoD
RtoN Do this:
Press the brake pedal and
press the release button on
the lever.
Press the release button on
the lever.
Move the lever.
Automatic Transmission (CVT)
Shif ting
Park (P)Shif t L ock Release Reverse (R)
Neutral (N)
114
RELEASE
BUTTON

µµ
µ
CONT INUED

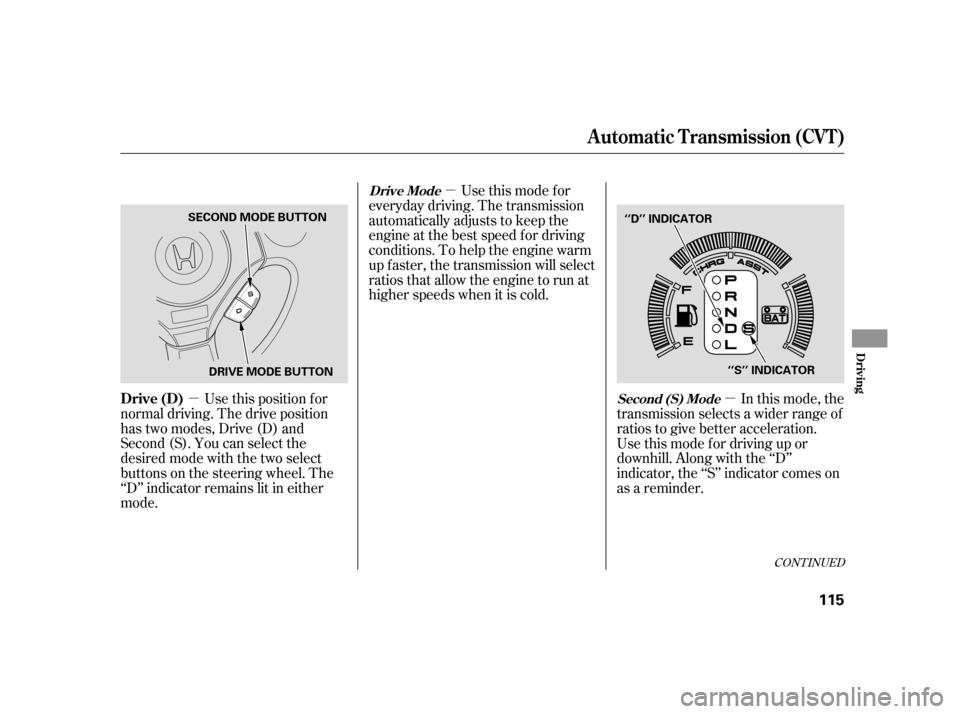

Use this position f or
normal driving. The drive position
has two modes, Drive (D) and
Second (S). You can select the
desired mode with the two select
buttons on the steering wheel. The
‘‘D’’ indicator remains lit in either
mode. Usethismodefor
everyday driving. The transmission
automatically adjusts to keep the
engine at the best speed f or driving
conditions. To help the engine warm
up f aster, the transmission will select
ratios that allow the engine to run at
higher speeds when it is cold.
In this mode, the
transmission selects a wider range of
ratios to give better acceleration.
Usethismodefordrivingupor
downhill. Along with the ‘‘D’’
indicator, the ‘‘S’’ indicator comes on
as a reminder.
Automatic Transmission (CVT)
Drive (D)
Drive Mode
Second (S) Mode
Driving
115
DRIVE MODE BUTTON
SECOND MODE BUTTON
‘‘D’’ INDICATOR
‘‘S’’ INDICATOR

µ
You can switch into and out of
Second mode with the ignition
switch ON (II) and the shif t lever in
D position. If you turn the ignition
switch to ACCESSORY (I) in Second
mode, the mode is switched to Drive.
The ‘‘S’’ indicator also comes on f or a
f ew seconds when you turn the
ignition switch to ON(II). To shif t to Low, press
the release button on the side of the
shif t lever. Use Low to get more
power when climbing, and f or
maximum engine braking when
going down steep hills.
ForfasteraccelerationwheninDor
L, the transmission will automatically
‘‘kick down’’ to a lower range of
ratios when you push the accelerator
pedal to the f loor. If you exceed the maximum speed
f or the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may f eel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Automatic Transmission (CVT)
Low (L)
Engine Speed Limiter
116

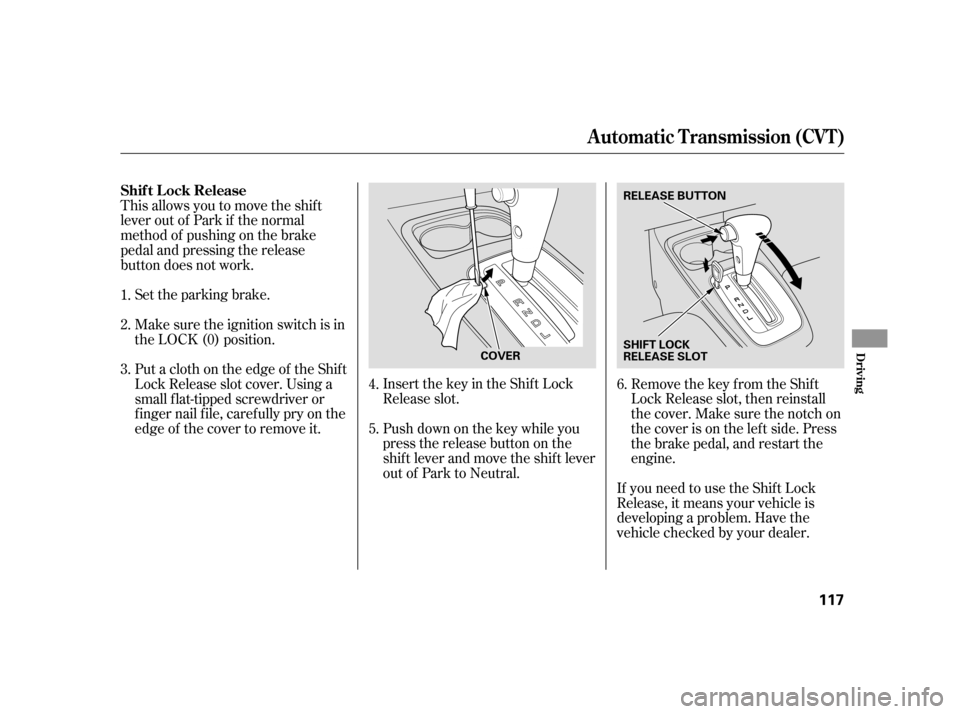

This allows you to move the shif t
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.Set the parking brake.
Insert the key in the Shift Lock
Release slot.
Push down on the key while you
pressthereleasebuttononthe
shif t lever and move the shif t lever
out of Park to Neutral.Remove the key from the Shift
Lock Release slot, then reinstall
thecover.Makesurethenotchon
the cover is on the lef t side. Press
the brake pedal, and restart the
engine.
If you need to use the Shif t Lock
Release, it means your vehicle is
developing a problem. Have the
vehicle checked by your dealer.
Make sure the ignition switch is in
the LOCK (0) position.
Put a cloth on the edge of the Shif t
Lock Release slot cover. Using a
small f lat-tipped screwdriver or
f inger nail f ile, caref ully pry on the
edge of the cover to remove it.
1.
2.
3.
4.
5.6.
Automatic Transmission (CVT)
Shif t L ock Release
Driving
117
RELEASE BUTTON
SHIFT LOCK
RELEASE SLOT
COVER

To maximize f uel economy, your
Insight has an Auto Idle Stop
f unction. Under certain conditions,
the engine will shut of f when you
come to a stop. Those conditions are:The engine coolant is nearly up to
normal operating temperature.
The shift lever is in D or N.
You are not pressing on the
accelerator pedal.
The IMA battery is sufficiently
charged (at least 1/3 on the
Battery Level Gauge).
The A/C is of f , or in ECON mode,
and the outside temperature is
above 41°F (5°C) (see page ). There is adequate vacuum reserve
f or the power brakes.
When these conditions are met, the
engine will shut of f as you are
braking to a stop and the vehicle
speed goes below 5 mph (8 km/h).
The engine will start again when you
release the brake pedal. It will also
restart, even if you are still pressing
the brake pedal, under these
conditions: You move the shif t lever f rom D
orNtoR,L,orP.
You press the accelerator pedal.
You are on an incline, and the
vehicle begins rolling. During Auto Idle Stop, the IMA
charge and power brake vacuum
reserve is monitored by the system.
If the vacuum reserve drops below
an optimal level, the engine will
restart to replenish the vacuum
supply. If the IMA charge drops
below an optimal level and the shif t
lever is in Neutral or Park (P), the
engine will restart to recharge the
IMA battery.
75
Automatic Transmission (CVT)
Auto Idle Stop
118

The indicator blinks as a reminder
that the engine has stopped because
of the Auto Idle Stop f unction. You
cannot restart the engine with the
ignition switch when this indicator is
blinking.If you open the driver’s door when
Auto Stop is active, the indicator will
blink and you will hear a chime. The
chime will stop when you close the
door.
Always turn the ignition switch to
LOCK (0) and remove the key if you
are getting out of the vehicle.
Automatic Transmission (CVT)
A uto Idle Stop Indicator
Driving
119
AUTO IDLE STOP INDICATOR
