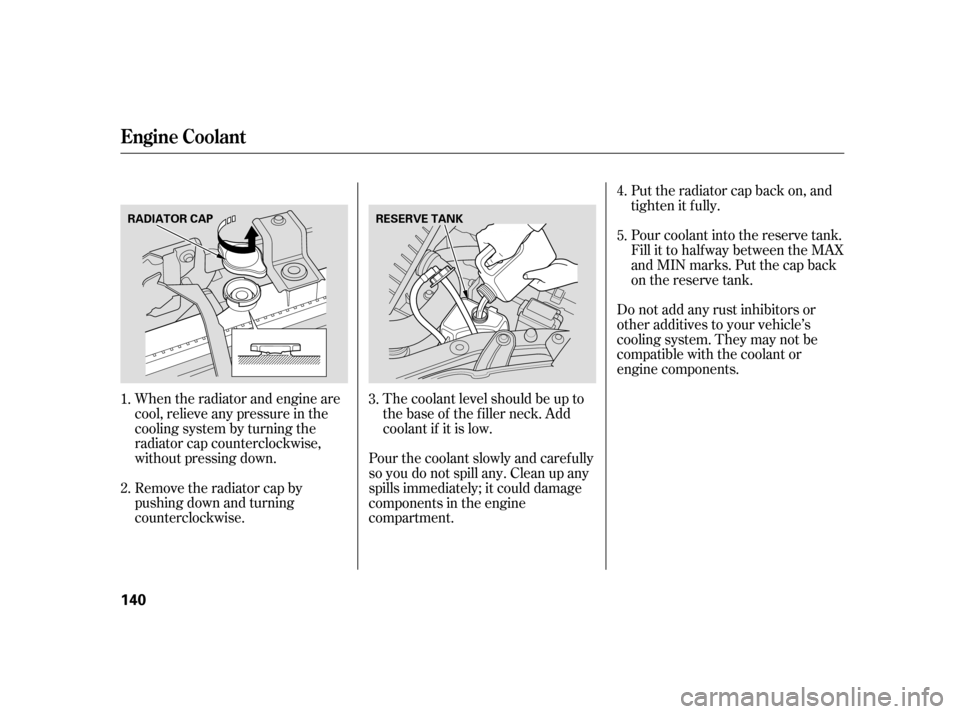

When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.Put the radiator cap back on, and
tighten it fully.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Pourthecoolantslowlyandcarefully
so you do not spill any. Clean up any
spills immediately; it could damage
components in the engine
compartment.
2. 3.4.
5.
1.
Engine Coolant
140
RADIATOR CAP RESERVE TANK

Check the f luid level in the
windshield washer reservoir at least
monthly during normal use. This
reservoir supplies the windshield and
rear window washers.

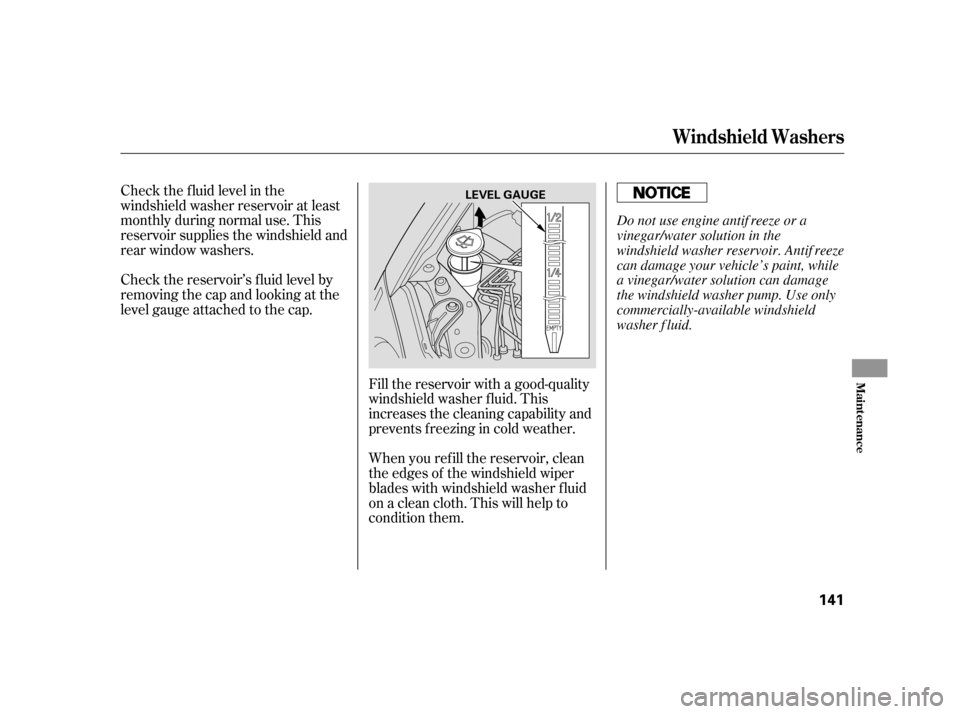

Check the reservoir’s f luid level by
removing the cap and looking at the
level gauge attached to the cap.Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition them.
Windshield Washers
Maint enance
141
LEVEL GAUGE
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.

Park the vehicle on level ground.
With the A/C of f , let the engine
run until the radiator cooling f an
cycles on and of f twice. Then turn
of f the engine.
NOTE: For accurate results, wait at
least 60 seconds, and no more than
90 seconds, af ter turning of f the

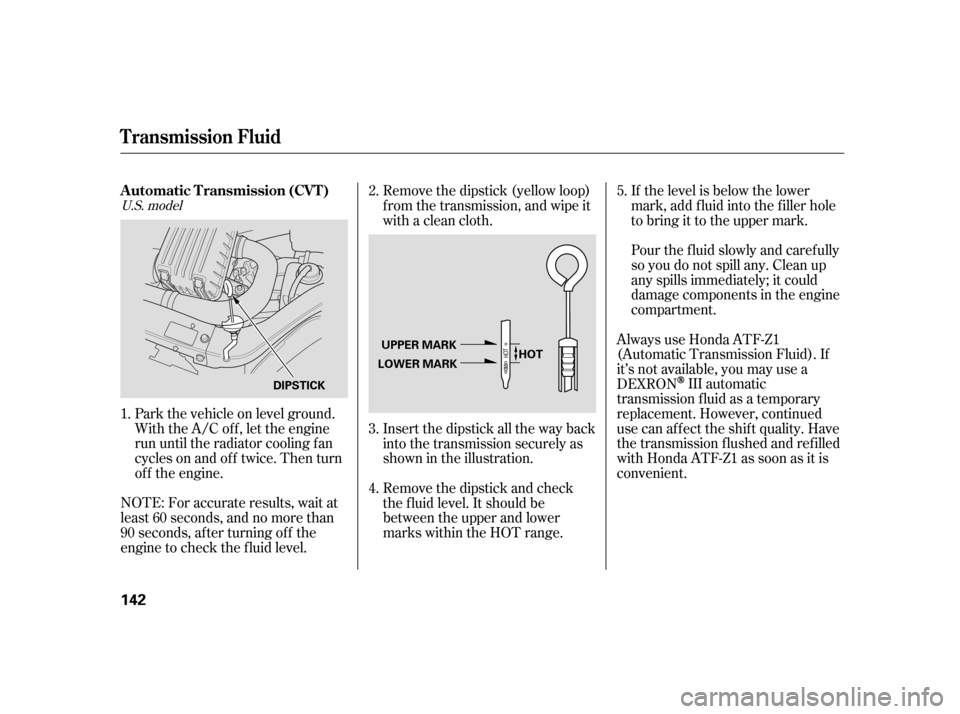

engine to check the f luid level. Remove the dipstick (yellow loop)
f rom the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks within the HOT range.
If the level is below the lower
mark, add f luid into the f iller hole
to bring it to the upper mark.
Pour the f luid slowly and caref ully
so you do not spill any. Clean up
any spills immediately; it could
damage components in the engine
compartment.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can affect the shift quality. Have
the transmission f lushed and ref illed
with Honda ATF-Z1 as soon as it is
convenient.
1. 2.
3.
4.5.
U.S. model
T ransmission Fluid
Automatic Transmission (CVT)
142
UPPER MARK
LOWER MARK HOT
DIPSTICK

To thoroughly f lush the transmission,
the technician should drain and ref ill
it with Honda ATF-Z1, then drive the
vehicle f or a short distance. Do this
three times. Then drain and ref ill the
transmission a f inal time.Insert the dipstick all the way back
into the transmission securely as
shown in the illustration. If you
added f luid, return to step 1 to
recheck the f luid level.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add f luid,
contact your dealer. Check the f luid level with the
transmission at normal operating
temperature and the vehicle sitting
on the level ground.

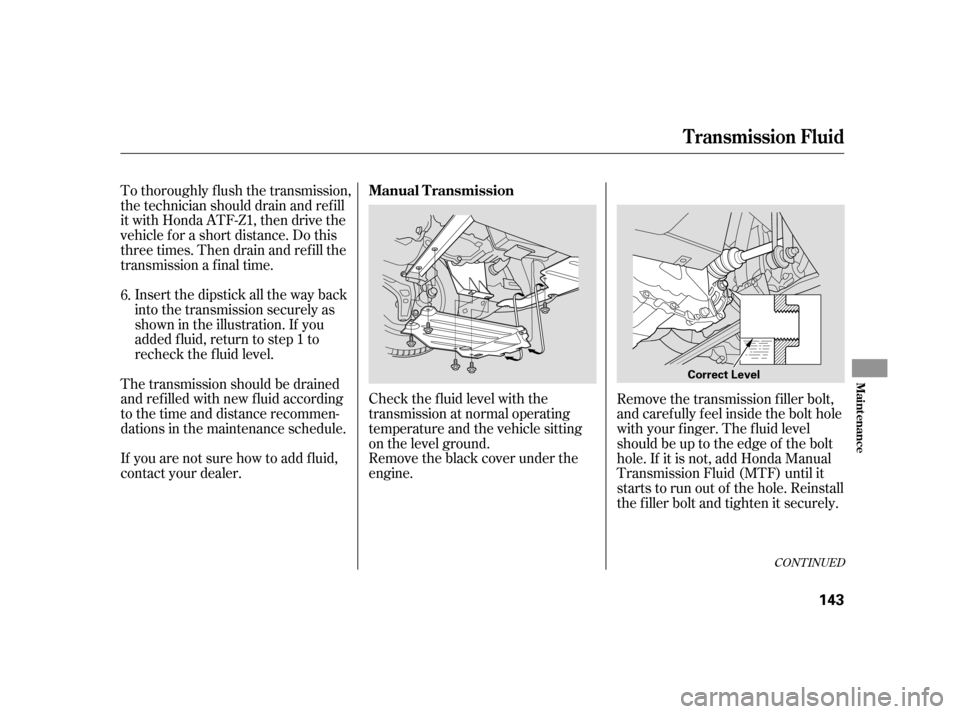

Remove the black cover under the
engine.Remove the transmission f iller bolt,
and caref ully f eel inside the bolt hole
with your f inger. The f luid level
should be up to the edge of the bolt
hole. If it is not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the f iller bolt and tighten it securely.
6.
CONT INUED
T ransmission Fluid
Manual Transmission
Maint enance
143
Correct Level

Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement.
Using any non-Honda brake f luid can
cause corrosion and decrease the lif e
of the system. Have the brake
system f lushed and ref illed with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Check the f luid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
Replace the brake f luid according to
the recommendation in the
maintenance schedule.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to check and
add f luid, contact your dealer.
Brake f luid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Transmission Fluid, Brake and Clutch Fluid
Brake and Clutch Fluid
144

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system.
The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
A low f luid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible. Clutch System
Brake System
Brake and Clutch Fluid
Maint enance
145
MAX
MIN
MAX
MIN

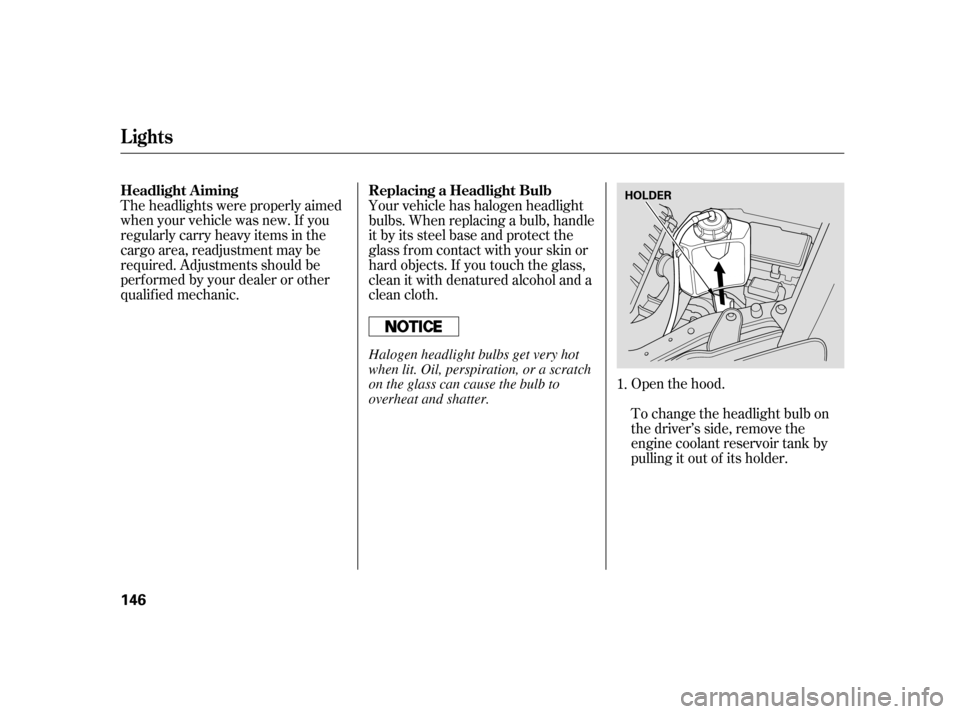

Open the hood.
To change the headlight bulb on
the driver’s side, remove the
engine coolant reservoir tank by
pulling it out of its holder.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustments should be
perf ormed by your dealer or other
qualif ied mechanic.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its steel base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
1.
Lights
Replacing a Headlight Bulb
Headlight A iming
146
HOLDER
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.

CONT INUED

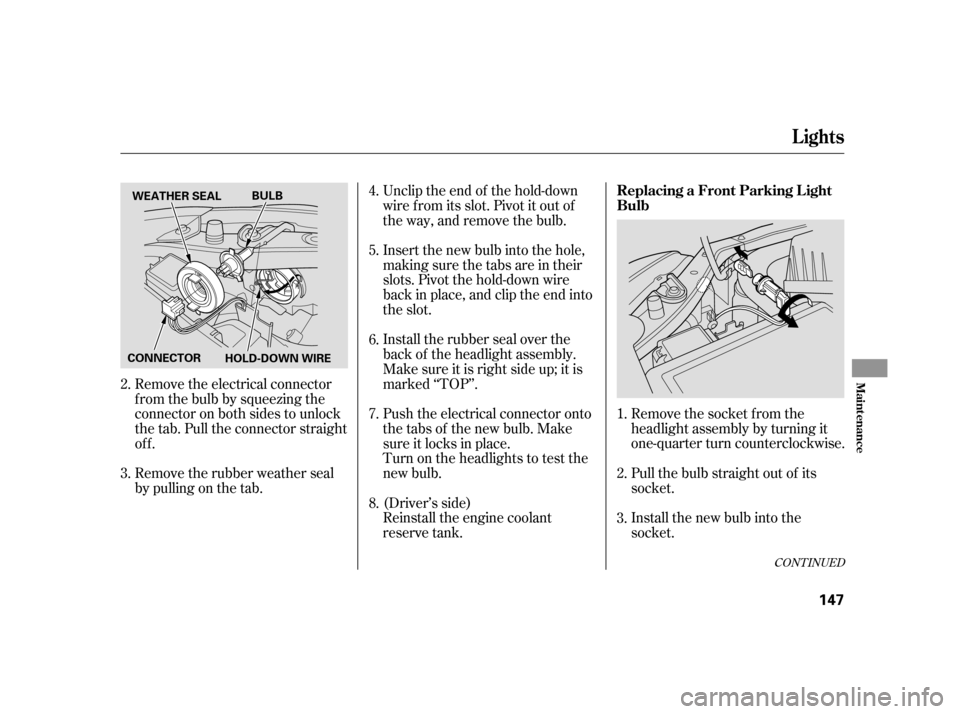

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.
Unclip the end of the hold-down
wire f rom its slot. Pivot it out of
the way, and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP’’.
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
(Driver’s side)
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
f rom the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.
Remove the rubber weather seal
by pulling on the tab. 4.
5.
6.
7.
8.
1.
2.
3.
2.
3.
Lights
Replacing a Front Parking L ight
Bulb
Maint enance
147
BULB
CONNECTOR WEATHER SEAL
HOLD-DOWN WIRE

Install the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure

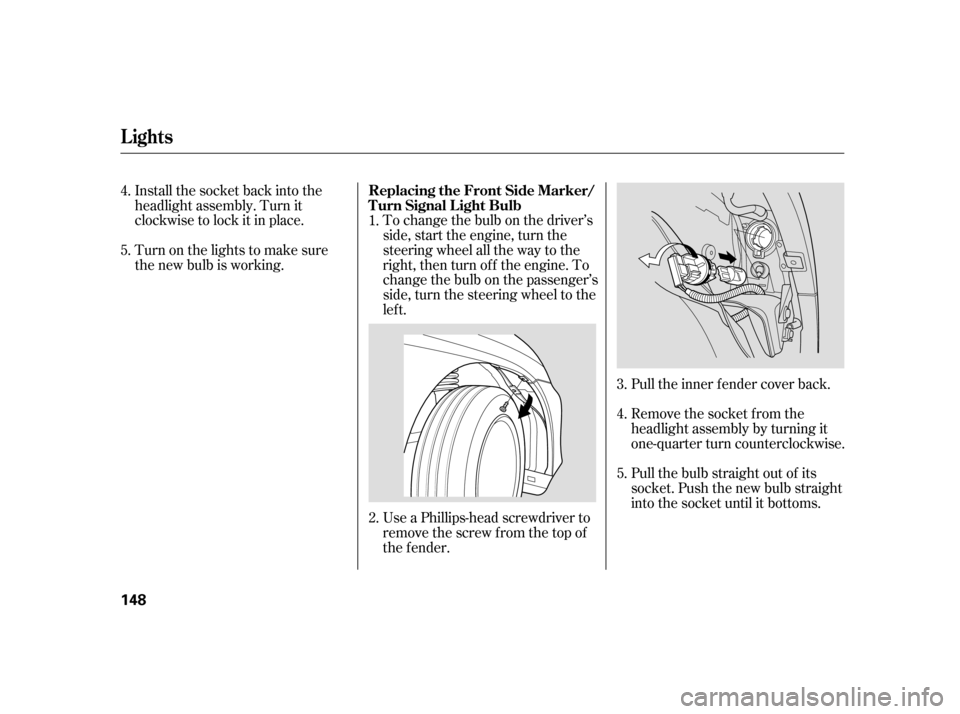

the new bulb is working.To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, then turn of f the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
lef t.
Use a Phillips-head screwdriver to
remove the screw f rom the top of
the f ender.Pull the inner f ender cover back.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
3.
2. 4.
5.
4.
5.
1.
Lights
Replacing the Front Side Marker/
Turn Signal Light Bulb
148

Install the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Put the inner f ender cover in place.

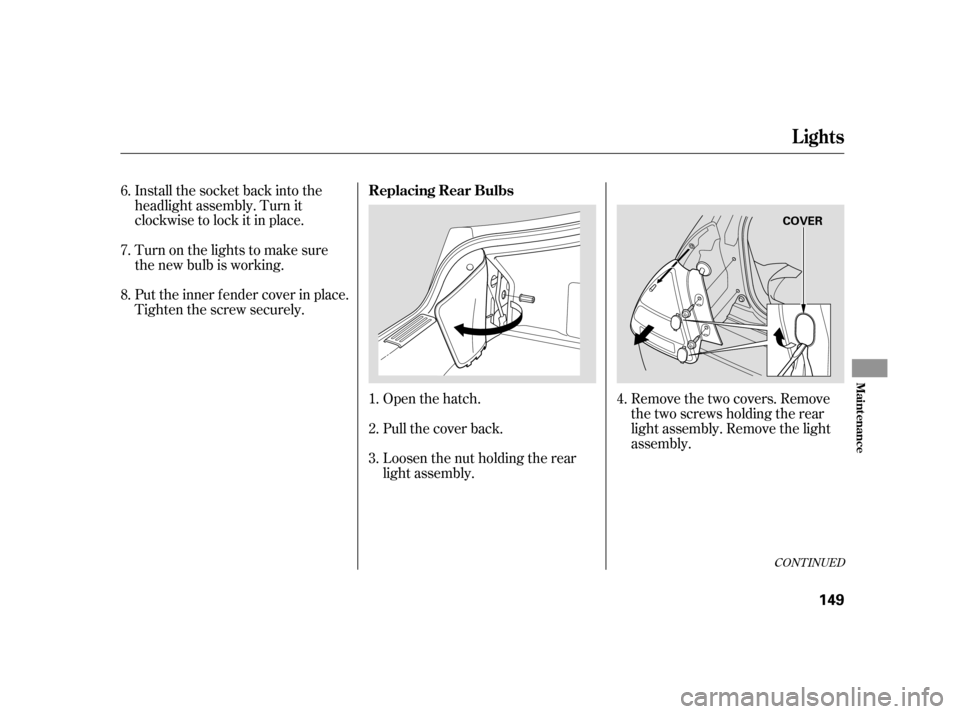

Tighten the screw securely.Open the hatch.
Pull the cover back.
Loosen the nut holding the rear
light assembly.Remove the two covers. Remove
the two screws holding the rear
light assembly. Remove the light
assembly.
3. 2. 4.
1.
6.
7.
8.
CONT INUED
Lights
Replacing Rear Bulbs
Maint enance
149
