HONDA INSIGHT 2005 1.G Owners Manual

Ì
Î
ÌÌ
Î
130
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000 15
2430
4845
72 75
120 135
216
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first Every 7,500 miles (12,000 km)
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions) Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisyEvery 60,000 miles (96,000 km) or every 3 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)60
96
90
144 120
192
See information on maintenance and emissions warranty, last column, page .
See dust and pollen filter on page for replacement information under special driving conditions. 105
168
150
240
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page
159)
Check front and rear brake wear
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks, and latches
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace automatic transmission (CVT) fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:
: 150 128
Maintenance Schedule for Severe Conditions

(f or Normal and Severe Schedules)
CONT INUED
Maintenance Record
Maint enance
131
3,750 mi
7,500 mi
11,250 mi
15,000 mi
18,750 mi
22,500 mi
26,250 mi
30,000 mi33,750 mi
37,500 mi
41,250 mi
45,000 mi
48,750 mi
52,500 mi
56,250 mi
60,000 mi
6,000 km
12,000 km
18,000 km
24,000 km
30,000 km
36,000 km
42,000 km
48,000 km Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date54,000 km
60,000 km
66,000 km
72,000 km
78,000 km
84,000 km
90,000 km
96,000 kmSignature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
130 129

(f or Normal and Severe Schedules)Maintenance Record
132
63,750 mi
67,500 mi
71,250 mi
75,000 mi
78,750 mi
82,500 mi
86,250 mi
90,000 mi93,750 mi
97,500 mi
101,250 mi
105,000 mi
108,750 mi
112,500 mi
116,250 mi
120,000 mi
102,000 km
108,000 km
114,000 km
120,000 km
126,000 km
132,000 km
138,000 km
144,000 km Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date150,000 km
156,000 km
162,000 km
168,000 km
174,000 km
180,000 km
186,000 km
192,000 kmSignature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date

(f or Normal and Severe Schedules)Maintenance Record
Maint enance
133
123,750 mi
127,500 mi
131,250 mi
135,000 mi
138,750 mi
142,500 mi
146,250 mi
150,000 miSignature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
198,000 km
204,000 km
210,000 km
216,000 km
222,000 km
228,000 km
234,000 km
240,000 km

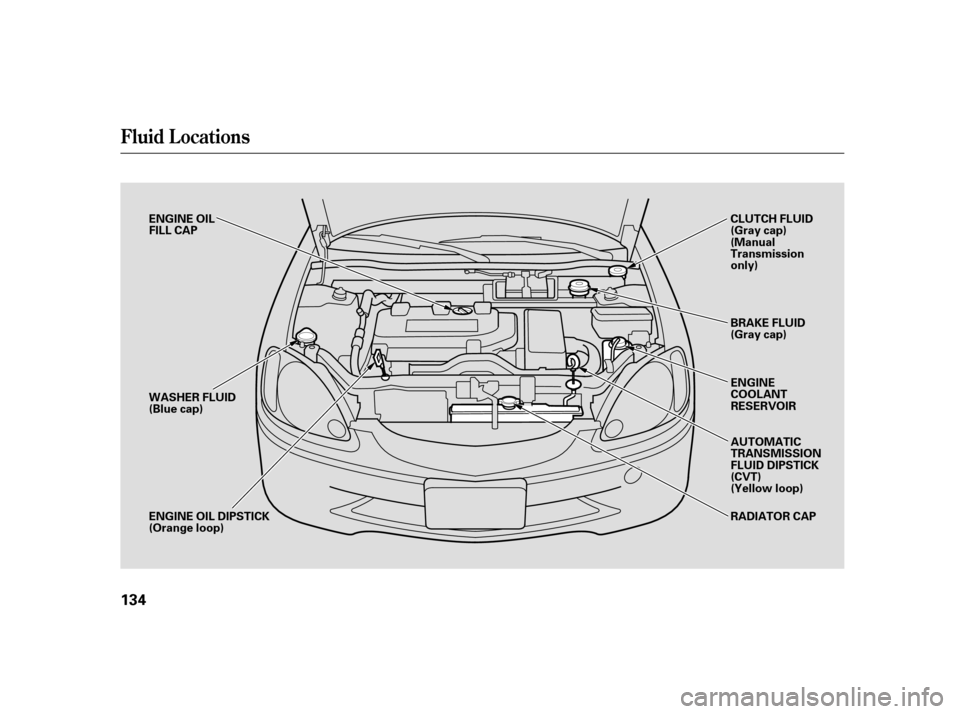

Fluid Locations
134
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICK
(Orange loop)BRAKE FLUID
(Gray cap)
ENGINE
COOLANT
RESERVOIR
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(CVT)
(Yellow loop)
RADIATOR CAP CLUTCH FLUID
(Gray cap)
(Manual
Transmission
only)

CONT INUED
Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines’’.
Install the engine oil f ill cap, and
tighten it securely. Wait a f ew
minutes, and recheck the oil level.
Do not f ill above the upper mark; you
could damage the engine. Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill any. Clean up any
spills immediately. Spilled oil could
damage components in the engine
compartment. Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or
as long as you own it.
A dding Engine Oil
Recommended Engine Oil
Maint enance
135

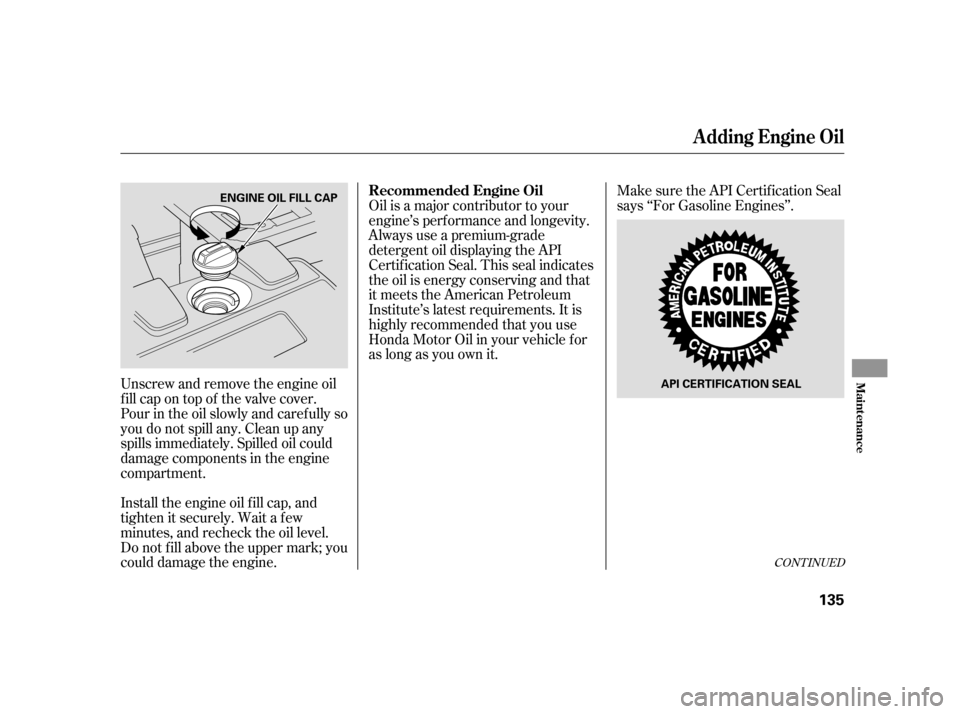

ENGINE OIL FILL CAP
API CERTIFICATION SEAL

The oil viscosity or weight is
provided on the container’s label.
A very low-viscosity, f uel-ef f icient
0W-20 oil is the pref erred engine
lubricant f or your Insight. This
special oil is f ormulated to help your
engine use less f uel. It is available at
your Honda dealer. A 5W-20 oil may
be used if 0W-20 is not available.You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals given on the maintenance
schedule.
Your vehicle does not require any oil
additives. Additives may adversely
af f ect your engine’s or transmission’s
perf ormance and durability.
Always change the oil and f ilter
according to the recommendations in
the maintenance schedule. The oil
and f ilter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
1.
A dding Engine Oil, Changing the Oil and Filter
Synthetic Oil
Engine Oil A dditives Changing the Oil and Filter
136

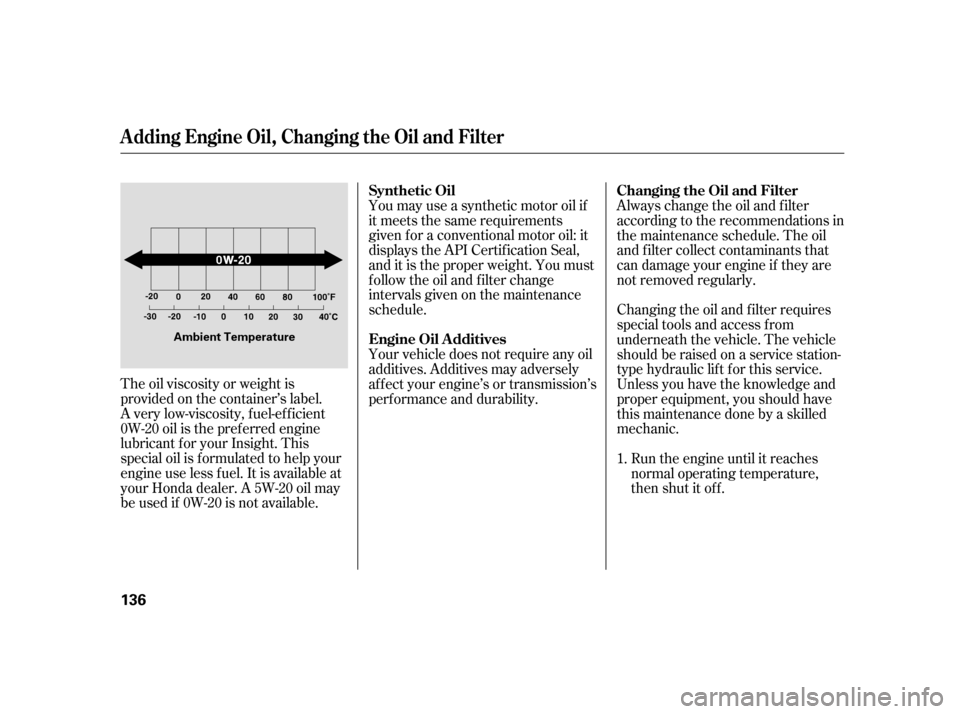

Ambient Temperature

Open the hood and remove the
engine oil f ill cap. Remove the
black cover under the engine.Remove the oil drain bolt and
washer from the bottom of the
engine. Drain the oil into an
appropriate container.
Do not loosen the smaller bolt
located above the drain bolt.
Install a new oil f ilter according to
the instructions that come with it.
Make sure to clean of f any dirt
and dust on the connecting
surf ace of a new oil f ilter. Remove the oil f ilter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
2.
3.4.
5.
CONT INUED
Changing the Oil and Filter
Maint enance
137

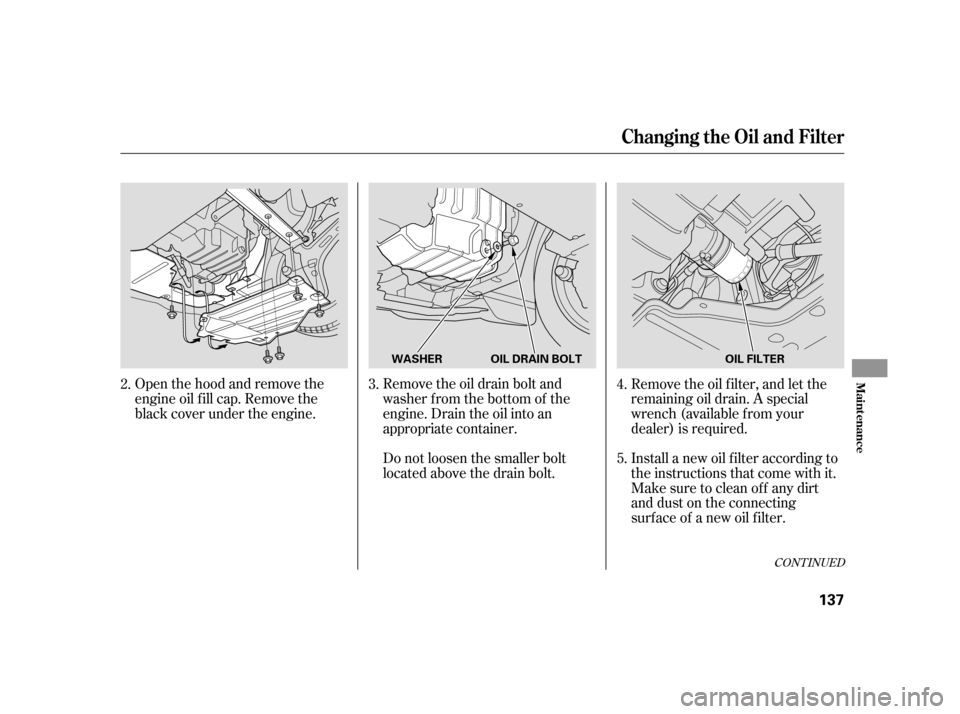

WASHER OIL DRAIN BOLT OIL FILTER

Refill the engine with the
recommended oil.
Engine oil change capacity
(including f ilter):
Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn of f the
engine, and check your work.Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine and let it sit
f or several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
Install the black cover under the
engine.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
6.
7.
8. 9.
10.
11.
Changing the Oil and Filter
138
29 lbf·ft (39 N·m , 4.0 kgf·m)
2.6 US qt (2.5
) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container, and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.

Always use Honda All Season
Antif reeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antif reeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to between the
MIN and MAX lines. Inspect the
cooling system f or leaks.
CONT INUED
Engine Coolant
Maint enance
139
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
