2005 Insight Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through\
this reference.
For a printed owner's manual, click on authorized manuals or go to www.h\
elminc.com. Contents


Introduction ........................................................................\
................................................................. i
A Few Words About Safety........................................................................\
........................................ .ii
Your Vehicle at a Glance........................................................................\
............................................ .4
Driver and Passenger Safety ........................................................................\
..................................... .7
Seat belts, SRS, and child protection
Instruments and Controls........................................................................\
........................................ .41
Indicators, gauges, dashboard, and steering column
Comfort and Convenience Features ........................................................................\
........................ 73
Climate, audio, steering wheel, security, cruise control, and HomeLink
Before Driving........................................................................\
........................................................... .93
Fuel, vehicle break-in, and cargo loading
Driving ........................................................................\
..................................................................... .107
Engine and transmission operation
Maintenance........................................................................\
.............................................................125
Schedules, fluid checking, minor services, and vehicle storage
Taking Care of the Unexpected........................................................................\
..............................165
Flat tire, dead battery, overheating, fuses
Technical Information........................................................................\
............................................ .191
Vehicle specifications, tires, fuels, and emissions controls
Warranty and Customer Relations (U.S. and Canada Only).......................................................203
Warranty and contact information
Authorized Manuals (U.S. only)........................................................................\
..............................207
How to order
Index........................................................................\
........................................................................\
...... I
Service Information Summary
Fluid capacities and tire pressures
Owner's Identification Form

Your vehicle is equipped with many
features that work together to
protect you and your passenger
during a crash.
Some f eatures do not require any
action on your part. These include a
strong aluminum f ramework that
forms a safety cage around the
passenger compartment; f ront and
rear crush zones, a collapsible
steering column; and tensioners that
tighten the seat belts in a crash.
However, you and your passenger
can’t take full advantage of these
f eatures unless you remain sitting in
a proper position and. In fact, some safety
f eatures can contribute to injuries if
they are not used properly.
The f ollowing pages explain how you
cantakeanactiveroleinprotecting
yourself and your passenger.

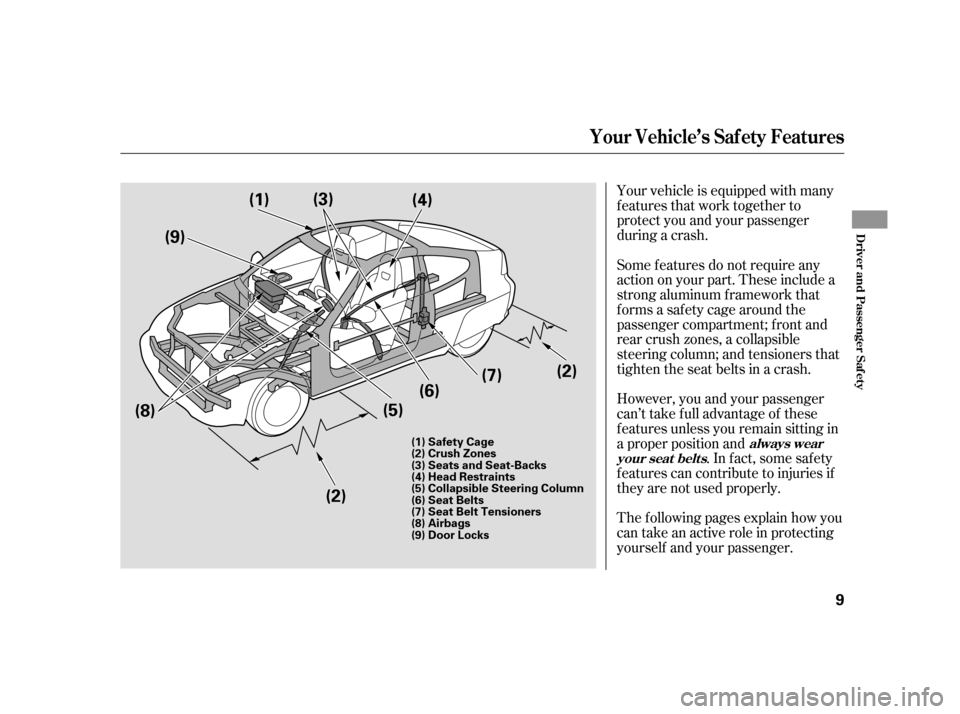

Your Vehicle’s Saf ety Features
always wear
your seat belt s
Driver and Passenger Saf ety
9
(1)
(2) (2)
(3)
(4)
(5) (6)
(7)
(8) (9)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Seat Belt Tensioners
(8) Airbags
(9) Door Locks

Your vehicle has a Supplemental
Restraint System (SRS) with f ront
airbags to help protect the heads and
chests of the driver and a passenger
during a moderate to severe frontal
collision (see page f or more
information on how your airbags
work).The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
To do their job, airbags must
inf late with tremendous f orce. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly. Always wear
your seat belt properly, and sit
upright and as f ar back f rom the
steering wheel as possible while
allowing f ull control of the vehicle. A
passenger should move the seat as
f ar back f rom the dashboard as
possible.
The rest of this section gives more
detailed inf ormation about how you
can maximize your saf ety.
Remember, however, that no saf ety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
21
Your Vehicle’s Saf ety Features
Airbags
Airbags do not replace seat belts.
Front airbags of f er no protectionin side impact s, rear impact s,rollovers, or minor collisions.
Airbags can pose serious hazards. What you should do:Driver and Passenger Saf ety
11

µIf you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inf lating
airbag, or by striking the steering
wheel or dashboard.
The f ollowing pages provide
instructions on how to properly
protect the driver, an adult
passenger or teenage child large
enough and mature enough to drive
or ride in your vehicle. See pages
f or important guidelines on
how to properly protect a small or
larger child.
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain f ull control of the vehicle.
Have a passenger adjust his or her
seat as far to the rear as possible.
Af ter everyone has entered the
vehicle, be sure the doors are closed
and locked. Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent a passenger f rom
accidentally opening a door and
f alling out.
Locking the doors also helps prevent
an outsider f rom unexpectedly
opening a door when you come to a
stop.
Your vehicle has a door monitor
indicator on the instrument panel to
indicate when either door or the
hatch is not tightly closed. See page f or how to lock the
doors, and page f or how the
monitor indicator works.
25 37
6246
Protecting A dults and Teens
Adjust the Seats
Introduction
Close and L ock the Doors
1. 2.
12

Adjust the driver’s seat-back to a
comf ortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
A passenger should also adjust their
seat-back to a comf ortable, upright
position.
If you cannot get f ar enough away
f rom the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and f orth to make sure
the seat is locked in position.
See page f or how to adjust the
seats.
66
CONT INUED
Protecting A dults and Teens
Adjust the Seat-Backs
3.
Driver and Passenger Saf ety
13
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.

Your airbag system includes:Automatic seat belt tensioners
(see page ).
Sensors that can detect a
moderate to severe frontal
collision. Two SRS (Supplemental Restraint
System) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the passenger’s
airbag is stored in the dashboard.
Both are marked ‘‘SRS AIRBAG.’’
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, and the
airbag activators when the ignition
switch is in the ON (II) position. An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inflate the driver’s and passenger’s
f ront airbags.
19
23
CONT INUED
Airbag System Components
How Your Front Airbags Work
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
21

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................

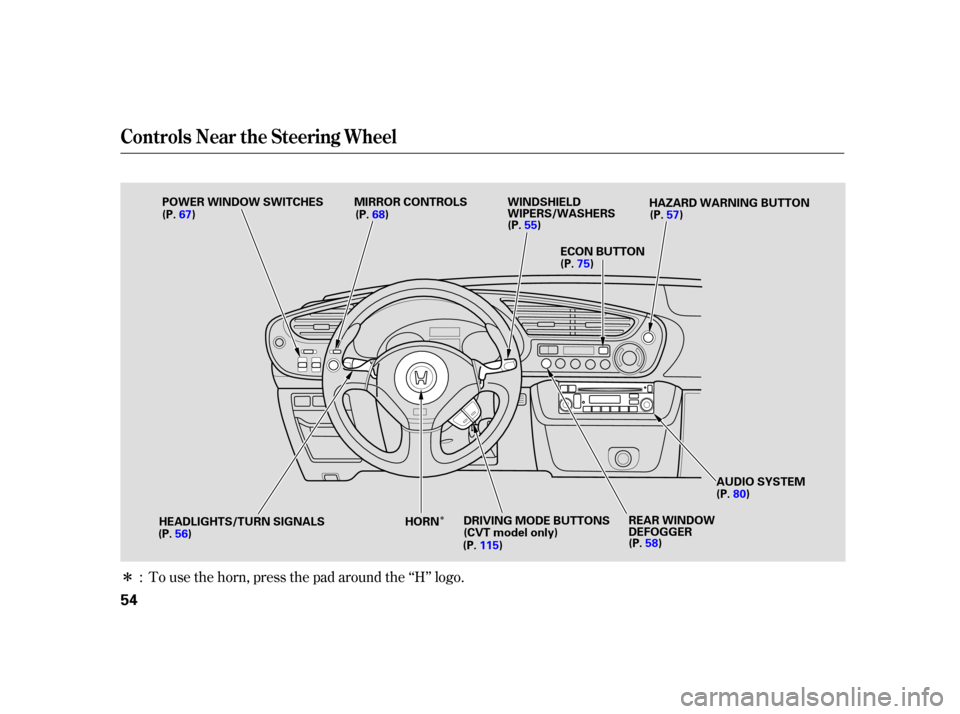

Control Locations .42
............................
Instrument Panel .43
..........
Instrument Panel Indicators . 44
.............................................
Gauges .48
..................................
Fuel Gauge .49
...................
Temperature Gauge . 49
.....................................
Odometer .49
..............
Display Change Button . 49
.................
Current Fuel Mileage . 50
.................................
Trip Meters .50
................................
Trip Mileage .50
Segment Distance and Fuel ....................................
Mileage .51
................
Lif etime Fuel Mileage . 51
Turning Of f the Mileage ....................................
Displays .52
..................
Battery Level Gauge . 53
................
Charge/Assist Gauge . 53
Controls Near the Steering ...........................................
Wheel .54
.
Windshield Wipers and Washers . 55
...........
Turn Signal and Headlights . 56
........
Instrument Panel Brightness . 57
.................
Hazard Warning Button . 57
.................
Rear Window Def ogger . 58
...............................
Keys and Locks .59 ........................
Immobilizer System .60
................................
Ignition Switch .61
......................................
Door Locks .62
................................................
Hatch .63
.......................
Remote Transmitter .64
.................................................
Seats .66
..............................
Power Windows .67
.............................................
Mirrors .68
.................................
Parking Brake .69
...........
Interior Convenience Items . 70
.................................
Storage Box .71
.........................
Beverage Holder .71
....................................
Glove Box .71
...........
Accessory Power Socket . 71
.................................
Interior Lights .72
Instruments and Controls
Inst rument s and Cont rols
41

Î
Î
Î
Î Shif t Lever Position Indicators on CVT model (P. ) The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
1:
2 : 113

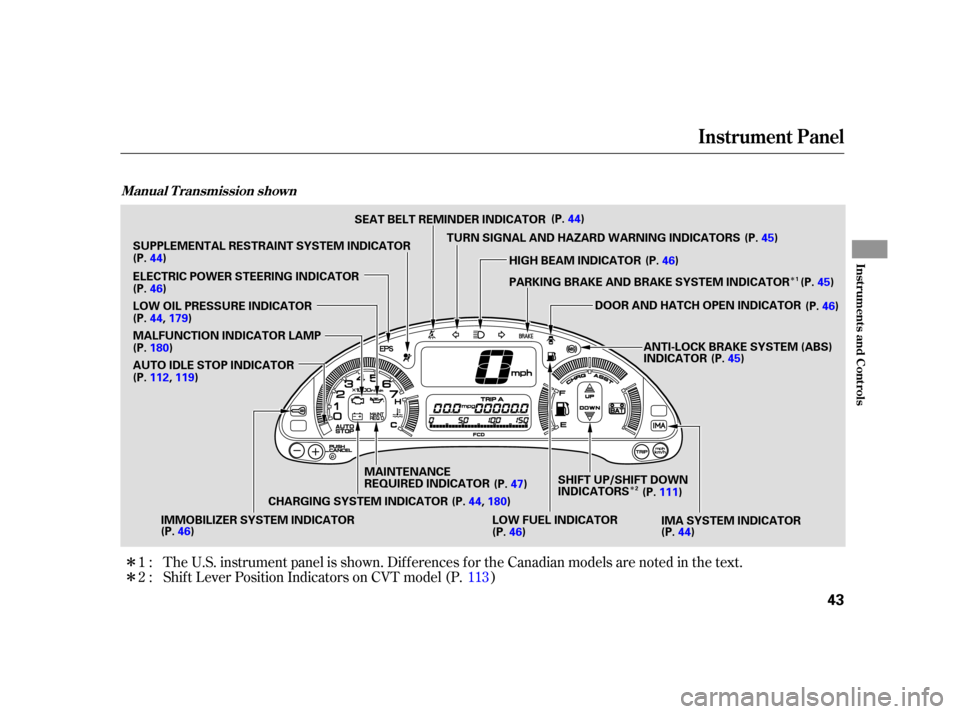

Instrument Panel
Manual T ransmission shown
Inst rument s and Cont rols
43
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ELECTRIC POWER STEERING INDICATOR
LOW OIL PRESSURE INDICATOR
MALFUNCTION INDICATOR LAMP
AUTO IDLE STOP INDICATOR
IMMOBILIZER SYSTEM INDICATOR CHARGING SYSTEM INDICATORMAINTENANCE
REQUIRED INDICATOR
LOW FUEL INDICATOR IMA SYSTEM INDICATOR
HIGH BEAM INDICATOR
TURN SIGNAL AND HAZARD WARNING INDICATORS
DOOR AND HATCH OPEN INDICATOR
SEAT BELT REMINDER INDICATOR
PARKING BRAKE AND BRAKE SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
SHIFT UP/SHIFT DOWN
INDICATORS
(P. 46)
(P.
112, 119)
(P.
180)
(P.
44, 179)
(P.
46)
(P.
44) (P.
44)
(P.45)
(P. 46)
(P.45)
(P. 46)
(P. 45)
(P. 111)
(P. 44)
(P. 46)
(P.
44, 180)(P.
47)
1
2

This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on if either
door or the hatch is not closed
tightly.
This indicator comes on as a
reminder that you must ref uel soon.This indicator normally comes on
when you turn the ignition switch to
ON (II) and goes of f af ter the engine
starts. If it comes on at any other
time, there is a problem in the
electric power steering system. If
this happens, stop the vehicle in a
saf e place, and turn of f the engine.
Reset the system by restarting the
engine, and watch the EPS indicator.
If it does not go of f , or comes back
on again while driving, take the
vehicle to your dealer to have it
checked. With the indicator on, the
EPSisturnedoff,makingthevehicle
harder to steer.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will then go of f
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights. 56
60
56
Canadian models only
Instrument Panel Indicators
High Beam Indicator Immobilizer System
Indicator
Door and Hatch Open
Indicator
Low Fuel IndicatorElectric Power Steering
(EPS) Indicator
‘‘Daytime Running
Lights’’ Indicator
46

Î
Î
To use the horn, press the pad around the ‘‘H’’ logo.
:
Controls Near the Steering Wheel
54
WINDSHIELD
WIPERS/WASHERS
HORN ECON BUTTON
POWER WINDOW SWITCHES
HEADLIGHTS/TURN SIGNALS DRIVING MODE BUTTONS
(CVT model only)REAR WINDOW
DEFOGGER
MIRROR CONTROLS
AUDIO SYSTEM
HAZARD WARNING BUTTON
(P. 67) (P.68)
(P.55)
(P.75) (P.
57)
(P.80)
(P. 58)
(P. 115)
(P.
56)
