If you see an error message on the
audio display while playing a USB
f lash memory device, f ind the
solution in the chart to the right. If
you cannot clear the error message,
take your vehicle to your dealer.Error
Message Cause
Solution
USB ROM Error
Abnormal power source
Use of unsupported files
No files in USB flash
memory device
Use of unsupported USB
flash memory device There is problem with the USB adapter unit.
Appears when the overcurrent protection
feature of the system stops supplying power to
USB because an incompatible device is
connected. Disconnect the device. Then, turn
the audio system off, and turn it on again. Do
not reconnect the device that caused the error.
Appears when the files in the USB flash
memory device are DRM or an unsupported
format. This error message appears for about 3
seconds, then plays the next song.
Appears when the USB flash memory device is
emptyortherearenoMP3,WMA,orAACfiles
in the USB flash memory device. Save some
MP3, WMA, or AAC files in the USB flash
memory device.
Appears when an unsupported device is
connected. See page
190for the specification
information for the USB flash memory device.
If it appears when the supported device is
connected, reconnect the device.
USB Flash Memory Device Error Messages (Models without navigation system)
Features
197
USB ERROR BAD USBDEVICE
PLEASE CHECK OWNERS
MANUAL
UNPLAYABLE FILE
NO SONG
UNSUPPORTED
—
—y

y
)"yy
2010 Insight

Playing the A M/FM Radio (Models with navigation system)
198

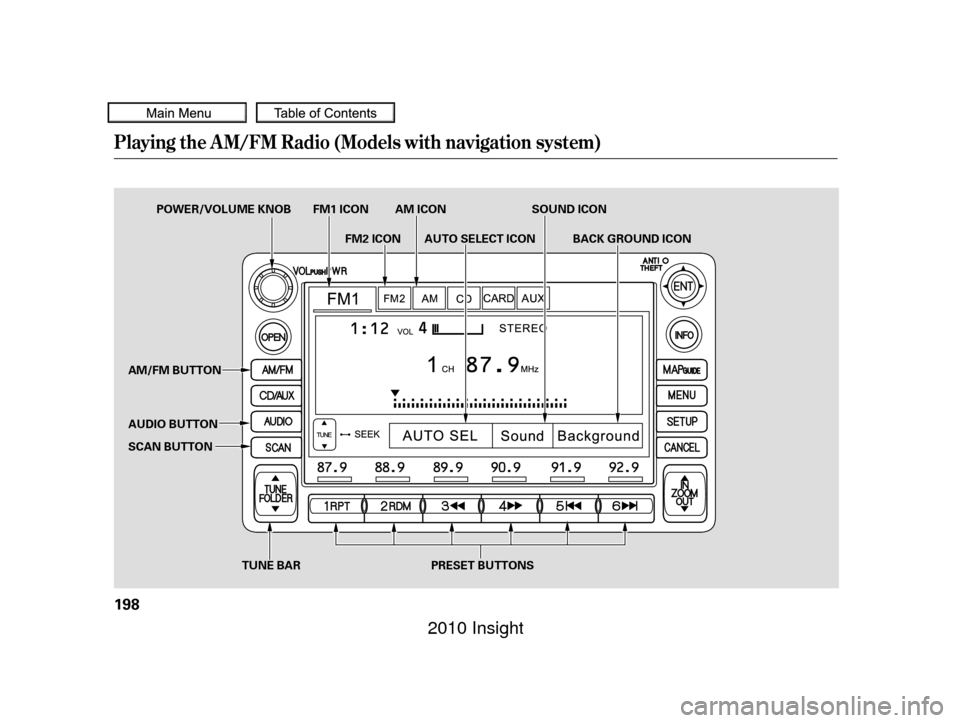

TUNE BAR
SCAN BUTTON AUDIO BUTTON
PRESET BUTTONS
AM/FM BUTTON
POWER/VOLUME KNOB FM1 ICON
SOUND ICON
AM ICON
BACK GROUND ICON
AUTO SELECT ICON
FM2 ICON
—
—y

y
)"yy
2010 Insight

µÛÝ
Ý
Û
You can also operate the audio
system without using the control
icons on the audio screen. Use the
control buttons on the lef t side of the
screen. The status bar appears on
the bottom of the screen each time
you operate any of the control
buttons. On the navigation screen,
you can also see audio inf ormation
by touching the AUDIO INFO icon
on the lower half of the screen.
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM/FM
button, or touch the desired band
icon (FM1, FM2, or AM). On the FM
band, STEREO will be displayed if
the station is broadcasting in stereo.
Stereo reproduction on AM is not
available. You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
Press and hold the or side of
the TUNE bar until you hear two
beeps to change the f requency
rapidly. Release the bar when the
display reaches the desired
f requency.
In addition to the standard audio
controls, the audio system in your
vehicle can be operated using the
voice control system. See the
Navigation System Manual f or
complete details.
Turn the system on by pushing the
power/volume knob or the AM/FM
button. Adjust the volume by turning
the power/volume knob.
Pushing the AUDIO button will also
turn on the system.
CONT INUED
Playing the A M/FM Radio (Models with navigation system)
Voice Control System
To Select a Station
TUNE
To Play the AM/FM Radio
Features
199
—
—y


y
)"yy
2010 Insight

µÛÝ
µ µ
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press and hold the or side of
the TUNE bar until you hear a beep,
then release it.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong
signal, it will stop and play that
station f or about 10 seconds. Each preset button’s f requency is
shown on the bottom of the audio
display.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor10seconds.Whenit
plays a station you want to listen to,
press the SCAN button again. Each preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1.
2.
3.
4.
Playing the A M/FM Radio (Models with navigation system)
SEEK
SCAN
Preset
200
—
—y

y
)"yy
2010 Insight

µIf you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area.
Press the AUDIO button to view the
audio control icons, then touch the
AUTO SEL icon. You will see AUTO
SEL f lashes in the display, and the
system goes into scan mode f or
several seconds. It stores the
f requencies of six AM, and twelve
FM stations in the preset buttons. You will see ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
touch the
AUTO SEL icon. This restores the
presets you originally set.
For inf ormation on FM/AM radio
f requencies and reception, see page . You can adjust the sound on the
navigation screen. To adjust the
sound, push the AUDIO button, then
enter the sound grid by touching the
SOUNDicononthedisplay.
246
To turn of f Auto Select,
CONT INUED
Playing the A M/FM Radio (Models with navigation system)
AUTO SELECT
Adjusting the Sound
Features
201
SOUND ICON
—
—y

y
)"yy
2010 Insight

µµ
µ
µ
µ
Adjusts the bass. Adjusts the front-to-back
strength of the sound. To adjust the
front/rear fader, touch the FR or RR
icon.
Adjusts the side-to-
side strength of the sound. To adjust
the left/right balance, touch the L or
Ricon.
The right upper display shows you
the current setting of the sound
strength coming f rom each speaker.
The SVC mode
controls the volume based on vehicle
speed. The f aster you go, the louder
the audio volume becomes. As you
slow down, the audio volume
decreases. Touch the appropriate
icon (Low, Mid, Hi, Of f ) to select the
mode. This f unction is set to MID as the
def ault setting when the vehicle
leaves the f actory. If you f eel the
sound is too loud, choose low. If you
f eel the sound is too quiet, choose Hi.
You can also select the icon with the
joystick. Move it up and down to
move the highlighting and scroll
through lists. Select the icon, then
enter the joystick.
The system will return to the audio
display about 10 seconds af ter you
stop adjusting a mode.
Adjusts the treble. To
adjust the treble and bass, touch
either or on the treble or
bass adjustment bar. The adjustment
bar on the lower right display shows
you the current setting. BASS FADER
BAL ANCE
SVC (speed-sensitive volume
compensation)
TREBLE
Playing the A M/FM Radio (Models with navigation system)
202
SPEAKER SETTING
BASS/TREBLE SETTING
—
—y

y
)"yy
2010 Insight

You can use the instrument panel
brightness control knob to adjust the
illumination of the control panel (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
You can select the background
screen to display the sound level.
There are three screen modes: level
(the sound level is shown with the
vertical bars), spectrum analysis (the
sound level appears as ripples of
water), and off. Each time you touch
the background icon, the display
changes. 121
Playing the A M/FM Radio (Models with navigation system)
A udio System L ightingScreen Mode
Features
203
—
—y

y
)"yy
2010 Insight

µ´
Playing a Disc (Models with navigation system)
204

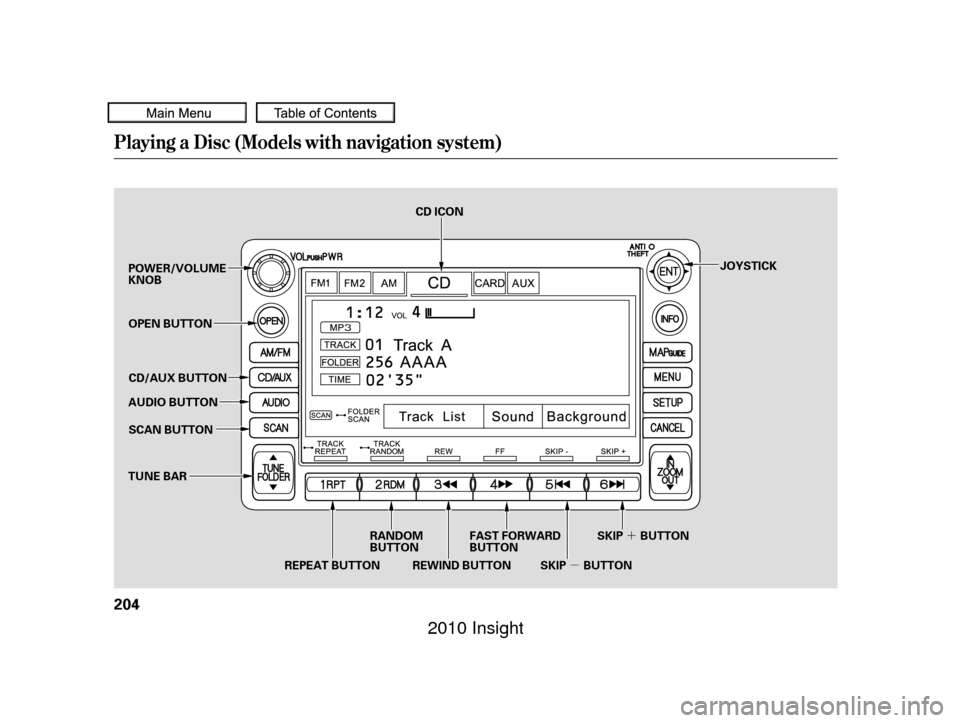

SCAN BUTTON JOYSTICK
AUDIO BUTTON POWER/VOLUME
KNOB OPEN BUTTON
RANDOM
BUTTON
REPEAT BUTTON REWIND BUTTON FAST FORWARD
BUTTON
TUNE BAR CD ICON
CD/AUX BUTTON
SKIP BUTTONSKIP BUTTON
—
—y


y
)"yy
2010 Insight

You operate the in-dash disc player
with the same controls used for the
radio.This audio system can also play CD-
RsandCD-RWscompressedinMP3
or WMA f ormats. When playing a
disc in MP3, you will see ‘‘MP3’’ on
the screen. In WMA f ormat, ‘‘WMA’’
will appear on the screen. You can
select up to 255 f olders and play up
to 999 tracks. If the disc has a
complex structure, it takes a while to
readthediscbeforethesystem
begins to play it.If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA f iles, you can choose the
f ormat to listen to by pressing and
holding the CD/AUX button.
Video CDs and DVD discs will not
work in this unit.
A disc compressed in AAC f ormat
cannot be played in this audio
system.
CONT INUED
Playing a Disc (Models with navigation system)
To Play a Disc
(In-dash single player)
Features
205
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
—
—y

y
)"y
y
2010 Insight

µ
µ
µ
µµ
µ
µ
µ
The specif ications f or compatible
MP3 f iles are:
The specif ications f or compatible
WMA f iles are: If an MP3 or WMA f ile is
protected by digital rights
management (DRM), the audio unit
displays FILE ERROR, and then
skips to the next f ile.
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2)
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320 kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/160 kbps (MPEG2)
Compatible with variable bitrate
and multi-session
Maximum layers
(including ROOT): 8 layers Sampling f requency:
32/44.1/48 kHz
Bitrate:
48/64/80/96/128/160/192 kbps
Maximum layers
(including ROOT): 8 layers Compatible with variable bitrate
and multi-session
Playing a Disc (Models with navigation system)
206
NOTE:
—
—y

y
)"y

y
