HONDA INSIGHT 2013 2.G Navigation Manual

90
XXMap MenuXGuidance Menu
HMAP MENU (on map) X Guidance Menu X Guidance Mode
Select the display mode during route guidance: single-screen mode (default) or
split-screen mode. Select an option.
The following options are available:
• Single Screen: Displays the map and guidance screens on separate screens.
■Guidance Mode1 Guidance Mode
The guidance mode can al so be selected from
the System Setup menu.
2 Routing & Guidance P. 40
Map screen
Press the
MAP/GUIDE
buttonGuidance screen
Press the
MAP/GUIDE
button
Press the
MAP/GUIDE
button
Directions list screen
INSIGHT_KA-31TM8820.book 90 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
NavigationTOC

91
XXMap MenuXGuidance Menu
•Split Screen: Displays the map and guidance information simultaneously on the
map screen.1 Guidance Mode
Next guidance point
The next guidance point (the pop-up window) is
displayed on the map scre en as you approach a
guidance point in the single-screen mode.
Next guidance point
Press the
MAP/GUIDE
button
Press the
MAP/GUIDE
button
Guidance direction list
Press the
MAP/GUIDE
button Directions list screen
INSIGHT_KA-31TM8820.book 91 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
NavigationTOC

92
XXMap MenuXShowing Icons on the Map
Showing Icons on the Map
HMAP MENU (on map) X Show icon on Map
The icon bar along the bottom of the screen allows you to select the icons that are
displayed on the map. Select an icon in the icon bar.
XSelecting toggles the icon display
on or off.
XRepeat the procedure as necessary.
The following options are available:
• Icon check boxes : Displays or hides traffic and landmark icons.
2Map Screen Legend P. 7
2FM Traffic P. 99
• ALL OFF: Hides all icons.
• Icon Options : Fine-tunes the icon display.
2Fine-tuning the Icons P. 93
1Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital”).
2 Map Display Commands P. 188
INSIGHT_KA-31TM8820.book 92 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
NavigationTOC

93
XXMap MenuXShowing Icons on the Map
HMAP MENU (on map) X Show icon on Map X Icon Options
Icons in some categories can be fine-tuned to display or hide. 1.Select an icon category from the list
(e.g., Other Icons).
2. Select the icons to display on the
map.
XSelecting toggles the icon
display on or off.
XRepeat the procedure as
necessary.
3. Select OK.
■Fine-tuning the Icons1 Fine-tuning the Icons
To display the “Other Icons,” be sure to turn on
OTHER ICON in the icon bar.
INSIGHT_KA-31TM8820.book 93 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
NavigationTOC

94
XXMap MenuXMap Legend
Map Legend
HMAP MENU (on map) X Map Legend
See an overview of the map lines, areas, routes, traffic information, and
navigation icons. Select an item.
XThe system displays the map
legend.
1Map Legend
A visual guide helps you see the map legend.
2 Map Screen Legend P. 7
2 FM Traffic P. 99
INSIGHT_KA-31TM8820.book 94 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Navig ationTOC

95
XXMap MenuXMap Legend
The functions that are available from the map screen depend on the map scale.
■Map Scale and Functions
Functionpage
Map Scale (top: mile, bottom: metric)
1/201/81/41/212515501503501000
802004008001.63824802405601600
Icon display
Landmark icon7✔✔
Exit info.7✔✔✔
One-way traffic7✔
Waypoint
“flag”8✔✔✔✔✔✔✔✔✔✔✔✔
Traffic incident7✔✔✔✔✔✔✔
Map orientation
Heading-up97✔✔✔✔✔
North-up97✔✔✔✔✔✔✔✔✔✔✔✔
Others
Off-road
tracking dots83✔✔✔✔
Unverified road7✔✔✔✔✔✔
Map features7✔✔✔✔✔✔✔✔✔✔✔
Avoid areas44✔✔✔
Traffic speed7✔✔✔✔✔✔✔
1 Map Scale & Functions
You can change the map scale using voice
commands on the map screen (e.g., say d
“Display 2 mile scale” ).
2 Map Scale Commands P. 189
You can change between miles or kilometers.
2 Basic Settings P. 24
INSIGHT_KA-31TM8820.book 95 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
NavigationTOC

96
XXMap MenuXMap Legend
Display or hide all icons on the map screen, with the exception of Honda/Acura
Dealer icons which are always shown.
■ Landmark icon
■Map Icons and Functions
Type Icon display
control Icon
selectable Icon
searchable
Honda/Acura dealerAlways onYesYes
Hospital YesYesYes
SchoolYesYesYes
ATM YesYesYes
Gas stationYesYesYes
Restaurants YesYesYes
Post officeYesYesYes
Grocery store YesYesYes
Hotel/LodgingYesYesYes
Police station No iconNoYes
Shopping, Tourist attraction, BankNo iconNoYes
Parking garage YesYesYes
Parking lotYesYesYes
Freeway exit info. YesYes No
1Map Icons & Functions
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital”).
2 Map Display Commands P. 188
Some icons, like police stations, are not shown,
but you can still locate the nearest one with the
Find Nearest voice command (e.g., say d “Find
nearest police station” ).
2 Find Place Commands P. 189
Icon display control
Icons that can be displayed or hidden.
Icon selectable
Icons that can be selected as a destination using
the joystick.
Icon searchable
Icons that can be searched using the d Find
Nearest voice command.
INSIGHT_KA-31TM8820.book 96 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Navig ationTOC

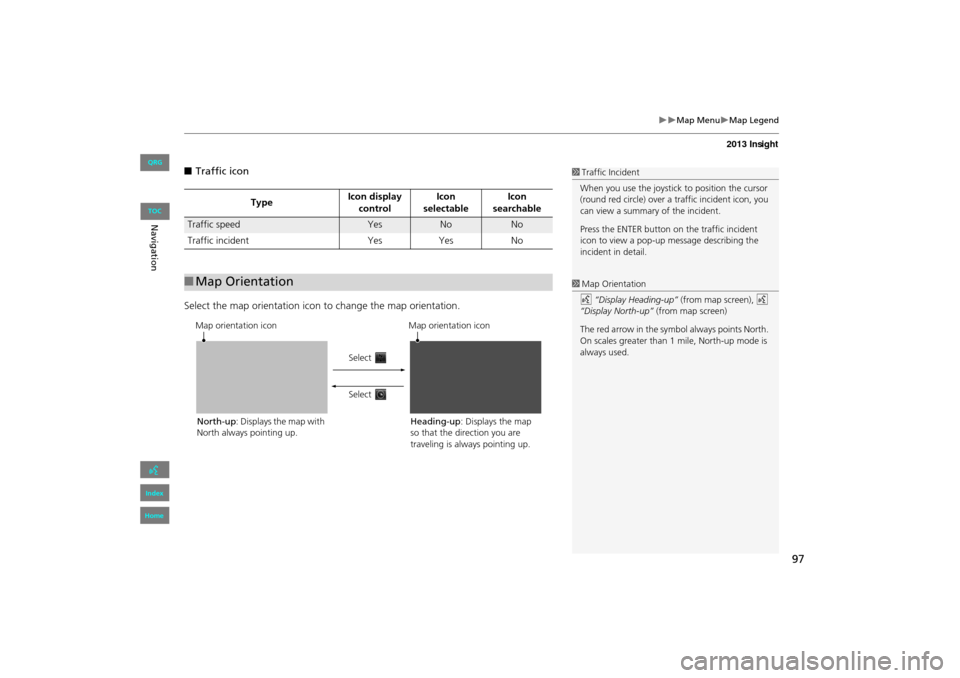

97
XXMap MenuXMap Legend
■Traffic icon
Select the map orientation icon to change the map orientation.
TypeIcon display
control Icon
selectable Icon
searchable
Traffic speedYesNoNo
Traffic incident YesYes No
■Map Orientation
1 Traffic Incident
When you use the joystick to position the cursor
(round red circle) over a traffic incident icon, you
can view a summary of the incident.
Press the ENTER button on the traffic incident
icon to view a pop-up message describing the
incident in detail.
1 Map Orientation
d “Display Heading-up” (from map screen), d
“Display North-up” (from map screen)
The red arrow in the symbol always points North.
On scales greater than 1 mile, North-up mode is
always used.
Map orientation icon
North-up : Displays the map with
North always pointing up. Map orientation icon
Heading-up : Displays the map
so that the direction you are
traveling is always pointing up.
Select
Select
INSIGHT_KA-31TM8820.book 97 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Navig
ationTOC

98
XXMap MenuXMap Legend
Display and save your current location for future use as a destination. The address,
latitude, longitude, and elevation of your current location are displayed.
■ To save your current loca tion in the address book:
1.Select the vehicle icon on the map.
2. Select Save.
3. Edit the name, phone number, and
category.
2 Address Book P. 31
4. Select OK.
■Current Location1 Current Location
d “Display Current Location” (on map screen)
You can also save the current location by saying
d “Register the Current Location” .
If you have PIN-protec ted your address book,
enter your PIN when prompted. Select OK. PINs
are optional.
2 PIN Numbers P. 37
The elevation is not displayed if the system is
receiving insufficient GPS information. When
elevation is displayed, it may differ with roadside
elevation signs by ±100 feet or more.
Saving your current loca tion does not change or
cancel your current route.
INSIGHT_KA-31TM8820.book 98 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Navig ationTOC

99
XXMap MenuXFM Traffic
FM Traffic
HMAP MENU (on map) X Traffic Incidents
View and avoid specific incidents and/or congestion on your route: 1.Select an incident from the list.
XThe system displays the map
screen and the incident location.
2. Select Traffic Detail .
1FM Traffic
You must be in or near a traffic-enabled city to
receive coverage for that area. FM Traffic is
available in the lower 48 states and Hawaii.
Automatic traffic rerouting may not provide a
detour route dependi ng on circumstances.
d “Display traffic list”
You can also display traff ic incidents from the
INFO screen.
You can display traffic incidents and related
information on the map screen using voice
commands.
2 Map Display Commands P. 188
Continued
INSIGHT_KA-31TM8820.book 99 ページ ２０１１年８月９日　火曜日　午後１時２６分
