Malfunction IndicatorsIf an indicator remains on, there may be a problem; see a dealer.
On/Off Indicators
SIDE AIRBAG OFF
CRUISE CONTROL on
VSA OFF
Exterior lights on
Turn signals/hazards on
Auto Idle Stop on (blinking)
ECON mode on
High beams on
Charging system
Low brake fluid, Brake system
Low oil pressure
ABS (anti\block brake system)
Low tire pressure on:
Add airHigh temperature indicator:
Pull over and cool down
engine
IMA system
Malfunction indicator lamp(check engine light)
VSA®(vehicle stability assist)SRS (supplemental restraint system)
EPS (electronic power steering)
Low temperature
TPMS (blinks and stays on)(tire pressure monitoring system)

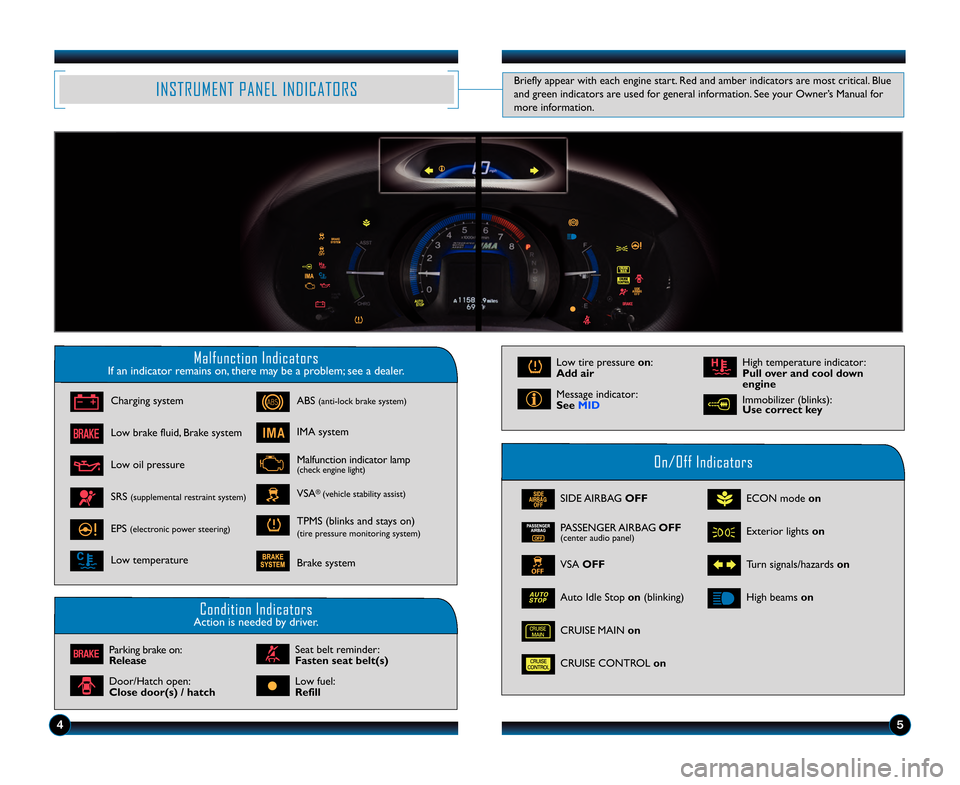

INSTRUMENT PANEL INDICATORSBriefly appear with each engine start. Red and amber indicators are most critical. Blue
and green indicators are used for general information. See your Owner’s Manual for
more information.
CRUISE MAIN on
PASSENGER AIRBAG OFF(center audio panel)
Message indicator:
See MID Immobilizer (blinks):
Use correct key
Condition IndicatorsAction is needed by driver.
Parking brake on:
Release
Door/Hatch open:
Close door(s) / hatch
Seat belt reminder:
Fasten seat belt(s)
Low fuel:
RefillBrake system
13 Insight EX NAV TRG_A\ATG_NEW STYLE 8/7/2\A012 1\f44 PM Page \A4

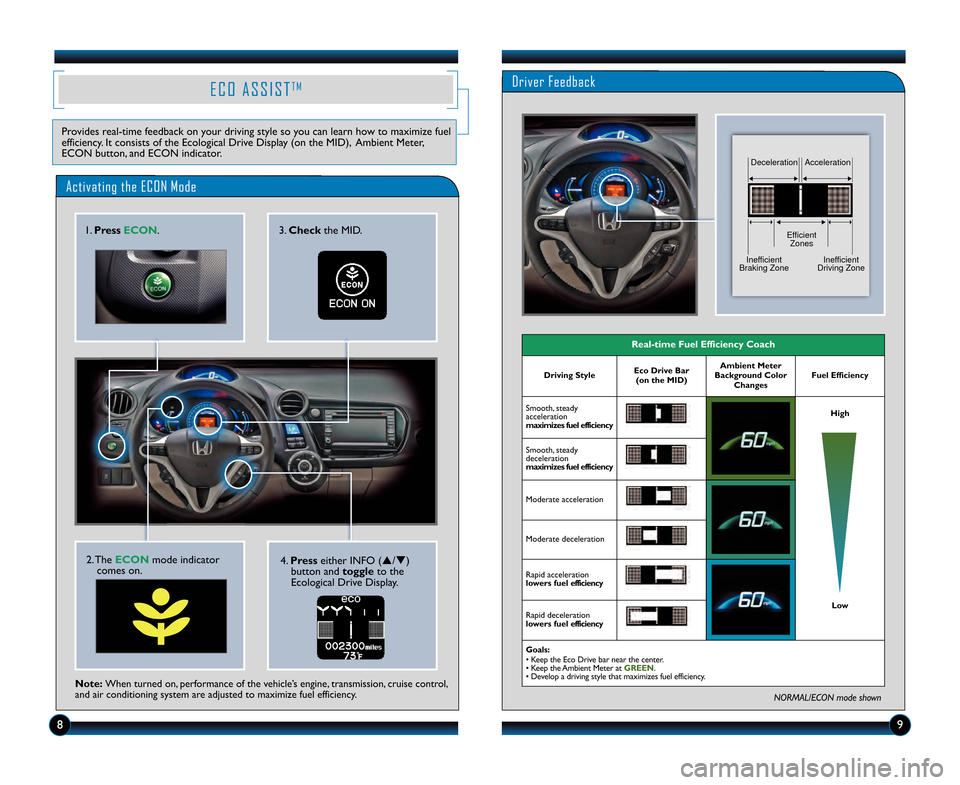

Activating the ECON Mode
\f. Press ECON .
2. The ECON mode indicator
comes on. 3. Check
the MID.4. Presseither INFO (p/q)
button and toggle to the
Ecological Drive Display.
89
E C O A S S I S TT MDriver Feedback
Realtime Fuel Efficiency Coach
Driving StyleEco Drive \far
(on the MID)Ambient Meter
\fackground Color ChangesFuel Efficiency
Smooth, steady
acceleration
maximizes fuel efficiencyHigh
Low
Smooth, steady
deceleration
maximizes fuel efficiency
Moderate acceleration
Moderate deceleration
Rapid acceleration
lowers fuel efficiency
Rapid deceleration
lowers fuel efficiency
Goals:
• Keep the Eco Drive bar near the center.
• Keep the Ambient Meter at GREEN.
• Develop a driving style that maximizes fuel efficiency.
Deceleration
EfficientZones
Inefficient
Braking Zone Inefficient
Driving ZoneAcceleration
NORMAL/ECON mode shown
Note: When turned on, performance of the vehicle’s engine, transmission, cruise control,
and air conditioning system are adjusted to maximize fuel efficiency.
Provides real\btime feedback on your driving style so you can learn how to maximize fuel
efficiency. It consists of the Ecological Drive Display (on the MID), Ambient Meter,
ECON button, and ECON indicator.
13 Insight EX NAV TRG_A\ATG_NEW STYLE 8/7/2\A012 1\f44 PM Page \A\b

\f2\f3
Paddle Modes
P A D D L E S H I F T I N G
Manually shift your vehicle’s speeds up or down. Useful for engine braking, when
driving in hilly terrain, or cornering.
Pull(\b) to shift down. Pull(
+ ) to shift up.
How It Works
T I R E P R E S S U R E M O N I T O R I N G S Y S T E M ( T P M S )
Monitors the vehicle’s tire pressures.
Each tire valve stem
contains a TPMS sensor.
When the tire pressure drops
significantly below
recommended levels, the low
tire pressure indicator comes
on and “CHECK TIRE
PRESSURE” appears on the
MID.
What to Do
\f.
Visually inspect the tires for
damage.
2. Use a tire air pressure gauge to
check which tire(s) have low
pressure.
3. Inflate the tire(s), if necessary,
to the recommended pressures
listed on the label on the
driver’s doorjamb.
DPaddle Shift Mode
• Shift into Drive (D).
• Pull (+) or (\b) to temporarily switch from
automatic to manual shift mode.
• The speed number is displayed on the shift indicator.
• When the vehicle’s speed is constant, the mode returns to automatic.
7Speed Manual Shift Mode
•Shift into Second (S).
• Pull (+) or (\b) to switch to manual shift mode.
• The M indicator and speed number are displayed on the shift indicator.
• Pull and hold (+) to cancel this mode.
L (Low) Mode
•Shift into Second (S).
• Pull and hold (+) and (\b) at the same time
until L is displayed on the shift indicator.
• Use this mode to get more power when going up hills and more engine braking when going
down hills.
• Pull and hold again to cancel this mode.
