key HONDA INSIGHT 2014 2.G User Guide

ÛÝ

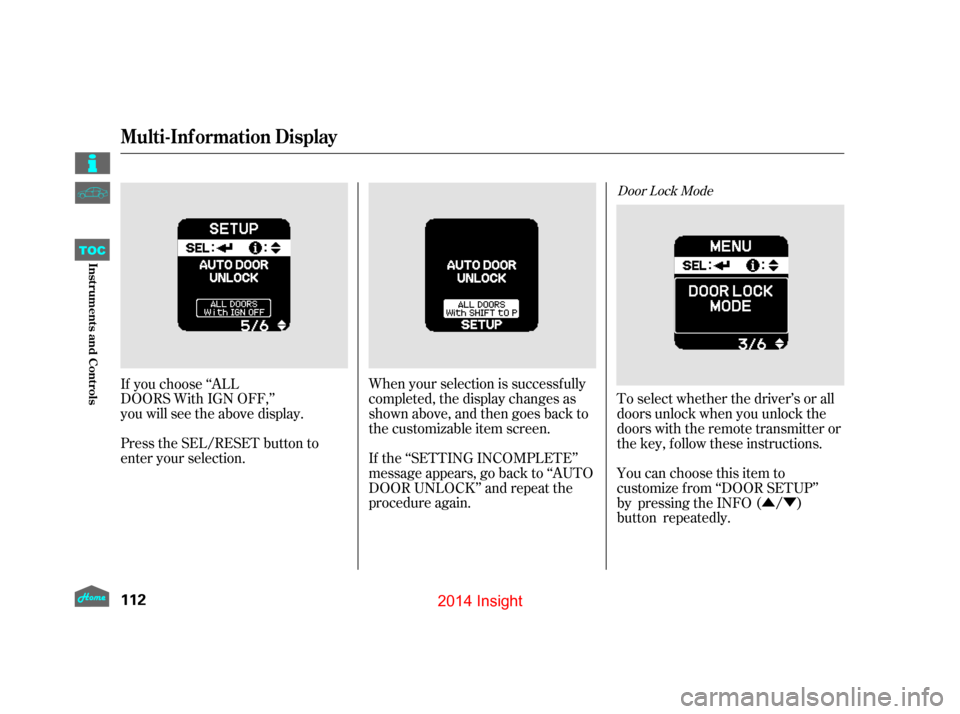

Press the SEL/RESET button to
enter your selection. When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to ‘‘AUTO
DOOR UNLOCK’’ and repeat the
procedure again.To select whether the driver’s or all
doors unlock when you unlock the
doors with the remote transmitter or
the key, follow these instructions.
If you choose ‘‘ALL
DOORS With IGN OFF,’’
you will see the above display.
You can choose this item to
customize from ‘‘DOOR SETUP’’
by pressing the INFO ( / )
button repeatedly.
Door Lock Mode
Multi-Inf ormation Display
112
12/07/13 16:51:35 31TM8630_117
Inst rument s and Cont rolsTOC
2014 Insight

ÛÝ
ÛÝ Press the SEL/RESET button to
enter the selecting mode.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
You can choose this item to
customize f rom ‘‘DOOR SETUP’’ by
pressing the INFO ( / ) button
repeatedly.
When you push the LOCK button on
the remote transmitter, some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the hatch
arelockedandthesecuritysystem
has set (see
page). You can
customize the exterior lights not to
f lash and the beeper not to sound. 221
Keyless Lock Acknowledgment
Multi-Inf ormation Display
114
12/07/13 16:51:46 31TM8630_119
Inst rument s and Cont rolsTOC
2014 Insight

ÛÝ
Security Relock Timer
You can change this relock time
f rom 30 seconds to 60 or 90 seconds.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customizable item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘KEYLESS LOCK
ACKNOWLEDGMENT’’ and repeat
the procedure again. You can choose this item to
customize f rom ‘‘DOOR SETUP’’ by
pressing the INFO ( / ) button
repeatedly.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors and the hatch,
automatically relock, and the
security system sets.
CONT INUED
Multi-Inf ormation Display
115
12/07/13 16:51:53 31TM8630_120
Inst rument s and Cont rolsTOC
2014 Insight

µµ µPush down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to the
center when you release it or
complete a turn. Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position.
If you leave the lights on with
switch, you will hear a reminder
chime when you open the
driver’s door. Push the lef t lever
f orward until you hear a click. The
blue high beam indicator will come
on (see page ). Pull the lever back
to return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. 69
Turn Signal
Headlights High Beams
Turn Signals and Headlights
121
12/07/13 16:52:38 31TM8630_126
Inst rument s and Cont rolsTOC
a reminder.
the key removed from the ignition
2014 Insight

To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to theor position. Turning the
knob to the right until you hear a
tone will cancel the reduced
brightness.
The instrument panel will
illuminate with reduced brightness
when you unlock and open the
driver’s door. The brightness will
increase slightly when you insert
the key in the ignition switch,
then go to normal brightness when
you turn the ignition switch to the
ON (II) position.
The knob on the instrument panel
controls the brightness of the
instrument panel lights. Turn the
knob to adjust the brightness with
the ignition switch in the ON (II)
position and the parking lights on. When you turn the knob, the multi-
inf ormation display changes to
vertical bars that show you the
current level.
You will hear a tone when you reach
the maximum or minimum
brightness. The brightness level
goes out about 5 seconds af ter you
stop adjusting.
Instrument Panel Brightness
124
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
BRIGHTNESS LEVEL
12/07/13 16:52:56 31TM8630_129
Inst rument s and Cont rolsTOC
2014 Insight

If you do not insert the key in the
ignition switch af ter opening the
driver’s door, the illumination turns
of f about 30 seconds af ter you close
the door.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.Push the button next to the audio
system to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signal lights and both turn signal
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled. Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
125
HAZARD WARNING BUTTON
12/07/13 16:53:01 31TM8630_130
Inst rument s and Cont rolsTOC
2014 Insight

These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
Two ignition keys come with your
vehicle. You should keep one of
them in a saf e place, away f rom the
vehicle, as a spare.
They f it all the locks on your vehicle. Youshouldhavereceivedakey
number tag with your keys. You will
need this number if you ever have to
get a lost key replaced. Use only
Honda-approved key blanks.
Keys and Locks
129
KEY
NUMBER
TAG
IGNITION KEYS
WITH REMOTE
TRANSMITTER
12/07/13 16:53:26 31TM8630_134
Inst rument s and Cont rolsTOC
2014 Insight

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you lose your key and you cannot
start the engine, contact your dealer.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key. This device complies with the
appropriate requirements or the
required standards. See
pagef or
more inf ormation. 392
Immobilizer System
130
Always take the ignition key with you
whenever you leave the vehicle alone.
12/07/13 16:53:33 31TM8630_135
Inst rument s and Cont rolsTOC
2014 Insight

µ
µ
The ignition switch has f our
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III). You can
operate the audio system and
the accessory power sockets
in this position.
If you leave the key in the ignition
switch in the ACCESSORY (I)
position and open the driver’s door,
you will see a ‘‘RETURN IGNITION
SWITCH TO LOCK (0) POSITION’’
message on the multi-inf ormation
display and hear a reminder beeper.
If you turn the ignition key to the
ACCESSORY (I) position with the
driver’s door closed, you will see an
‘‘ACCESSORY (I) POSITION’’
message on the multi-information
display to inform you of the key
position.
You can insert or
remove the key only in this position.
To turn the key, the shift lever must
be in Park, and you must push the
key in slightly.
If the f ront wheels are turned, the
anti-thef t lock may make it dif f icult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key.
CONT INUED
A CCESSORY (I)
LOCK (0)
Ignition Switch
131
12/07/13 16:53:40 31TM8630_136
Inst rument s and Cont rolsTOC
2014 Insight

µ
µ Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
You will also see a ‘‘REMOVE KEY’’
message on the multi-inf ormation
display.
TheshiftlevermustbeinPark
bef ore you can remove the key f rom
the ignition switch.
This is the normal key
position when driving. Several of
the indicators on the instrument
panel come on as a test when
you turn the ignition switch
from the ACCESSORY (I) to the
ON (II) position. ST A RT (III)
ON (II)
Ignition Switch
132
12/07/13 16:53:44 31TM8630_137
Inst rument s and Cont rolsTOC
2014 Insight
