ECO mode HONDA INSIGHT 2014 2.G Owner's Manual

Î
Î
Î
Î
Î
Î
Î
Description
Menu Item
Group Setup Page
Setting Option
Changes when the doors automatically lock.
Changes when the doors automatically unlock.
Changes which doors unlock with the remote
transmitter in a first push.
The exterior lights flash each time you press the
LOCK or UNLOCK button. A beeper will also
sound when you press the LOCK button twice.
Changes how long it takes (in seconds) for the
doors to relock and the security system to set after
you unlock but do not open the door.
Set/Cancel all the customized settings as default.
AUTO DOOR LOCK
AUTO DOOR UNLOCK
DOOR LOCK MODE
KEYLESS LOCK
ACKNOWLEDGMENT
SECURITY RELOCK
TIMER
DOOR SETUP
(P.108)
DEFAULT ALL
(P.117) 109
110
112
114
115
117
SHIFT FROM P
WITH VEH SPD
OFF
IGN OFF
OFF
DRIVER DOOR
ALL DOORS
ON
OFF
90sec
60sec
30sec
SET
CANCEL
Default setting
:
DRIVER DOOR /
AL L DOORS
SHIFT TO P
Multi-Inf ormation Display
93
12/07/13 16:49:09 31TM8630_098
Inst rument s and Cont rolsTOC
2014 Insight

ÛÝ
ÛÝ Press the SEL/RESET button to
enter the selecting mode.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
You can choose this item to
customize f rom ‘‘DOOR SETUP’’ by
pressing the INFO ( / ) button
repeatedly.
When you push the LOCK button on
the remote transmitter, some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the hatch
arelockedandthesecuritysystem
has set (see
page). You can
customize the exterior lights not to
f lash and the beeper not to sound. 221
Keyless Lock Acknowledgment
Multi-Inf ormation Display
114
12/07/13 16:51:46 31TM8630_119
Inst rument s and Cont rolsTOC
2014 Insight

Î
Î
Rotate the switch counterclockwise
also to spray the window washer
and turn the wiper on.Hold past ON to activate the rear
window wiper a f ew times and to
spray the rear window washer.
Rotate the switch clockwise to
turn the rear window wiper ON.
The wiper operates every 7
seconds after completing When you turn the wiper switch to
the ‘‘OFF’’ position, the wiper will
return to its parked position. OFF Therearwindowwasherusesthe
same f luid reservoir as the wind-
shield washer. When you shif t the transmission to
the reverse position with the f ront
windshield wiper activated, the rear
wiper operates automatically even if
the rear wiper switch is of f .
Turn Signal
OFF
Parking and interior lights
AUTO
Headlights on
High Beams
Flashhighbeams
4.
3.
1.
2. 1.
2.
3.
4.
5.
6.
7.
: EX models
Rear Window Wiper and Washer
Turn Signals and Headlights
Windshield Wipers and Washers, Turn Signals and Headlights
120
12/07/13 16:52:31 31TM8630_125
Inst rument s and Cont rolsTOC
two sweeps.
2014 Insight

µThe automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it.
The automatic lighting
f eature turns on the headlights, all
other exterior lights, and the
instrument panel lights when it
senses low ambient light.
To turn on the automatic lighting,
turn the light switch to the AUTO
position. The lights will come on
automatically when the outside light
level becomes low (at dusk, f or
example). The lights on indicator
comesonasareminder.Thelights
and indicator turn off automatically
when the system senses high
ambient light.
The lights turn of f automatically
when you turn the ignition switch to
the LOCK (0) position. To turn them
on again, either turn the ignition
switch to the ON (II) position, or
turn the light switch to the position. Even with the automatic lighting
feature turned on, we recommend
that you turn on the lights
manually when driving at night or
in a dense fog, or when you enter
dark areas such as long tunnels or
parking facilities.
To change the ‘‘AUTO LIGHT
SENSITIVITY’’ setting, see
On EX models
AUTO
Headlights
122
LIGHT SENSOR
12/07/13 16:52:44 31TM8630_127
Inst rument s and Cont rolsTOC
page 106 .
2014 Insight

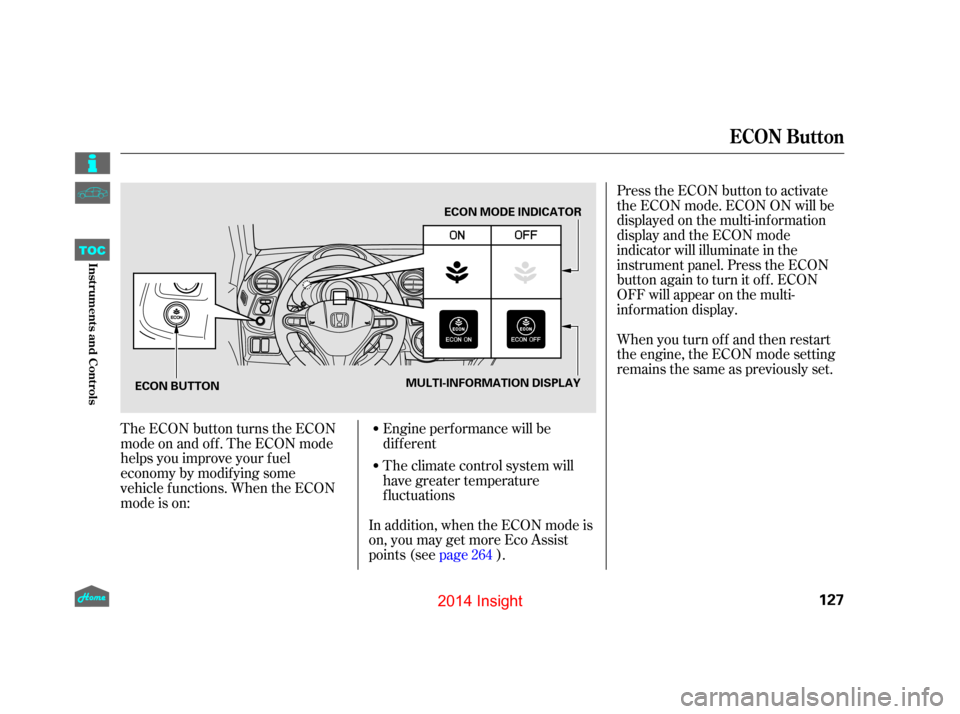

Press the ECON button to activate
the ECON mode. ECON ON will be
displayed on the multi-inf ormation
display and the ECON mode
indicator will illuminate in the
instrument panel. Press the ECON
button again to turn it off. ECON
OFF will appear on the multi-
inf ormation display.
The ECON button turns the ECON
mode on and off. The ECON mode
helps you improve your fuel
economy by modifying some
vehicle functions. When the ECON
mode is on: In addition, when the ECON mode is
on, you may get more Eco Assist
points (seepage).
The climate control system will
have greater temperature
f luctuations Engine perf ormance will be
dif f erent Whenyouturnoff andthenrestart
the engine, the ECON mode setting
remains the same as previously set.
264
ECON Button
127
MULTI-INFORMATION DISPLAY ECON MODE INDICATOR
ECON BUTTON
12/07/13 16:53:12 31TM8630_132
Inst rument s and Cont rolsTOC
2014 Insight

µµ
The ceiling light and the door
activated spotlights come on when
you press the UNLOCK button if the
lights are in the door activated
position. If you do not open any door
or the hatch within 30 seconds (or
whatever setting of the interior light
dimming time is set to), the light(s)
will f ade out. If you relock the doors
and the hatch with the remote
transmitter before 30 seconds have
elapsed, the light(s) will go of f
immediately.
To change the lock/unlock setting
and the relock timer setting, refer to
the customized settings on
page .
The keyless lock acknowledgment
beep and f lashing of the lights can
be deactivated (see
page).
Press this button once to
lock all doors and the hatch. Some
exterior lights will f lash once. When
you press LOCK twice within 5
seconds, the horn will sounds to
verif y that the doors are locked. You
cannot lock the doors if any door or
the hatch is not f ully closed or if the
key is in the ignition switch. If you press the LOCK button twice
within 5 seconds, you will hear a
horn to verify that the security
system has set.
Press this button once
to unlock the driver’s door (or all the
doors and the hatch depending on
the door lock setting). Press it twice
to unlock the remaining doors and
the hatch. Some exterior lights will
f lash twice when you press the
button the first time.
If you do not open any door or the
hatch within 30 seconds, they will
automatically relock, and the
security system (if equipped) will
reset. 114
108
CONT INUED
On LX and EX models
LOCK UNL OCK
Remote Transmitter
135
LED
LOCK BUTTON
UNLOCK
BUTTON PANIC
BUTTON
12/07/13 16:54:07 31TM8630_140
Inst rument s and Cont rolsTOC
2014 Insight

µAvoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperatures.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer. If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
Press and hold this
button for about 1 second to attract
attention; the horn will sound, and
the exterior lights will f lash f or about
30 seconds. To cancel panic mode,
press any other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position. Panic
mode does not work when the key is
in the ignition switch.Remote Transmitter CareReplacing
the Transmitter Battery
PA NIC
Remote Transmitter
136
12/07/13 16:54:14 31TM8630_141
Inst rument s and Cont rolsTOC
2014 Insight

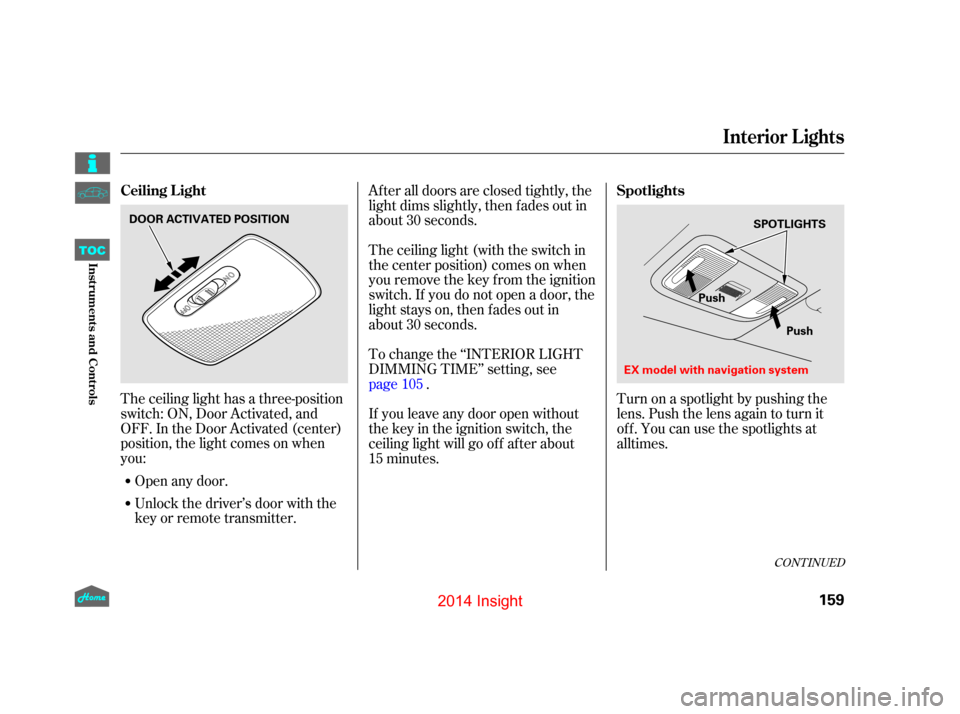

The ceiling light has a three-position
switch: ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:After all doors are closed tightly, the
light dims slightly, then f ades out in
about 30 seconds.
The ceiling light (with the switch in
the center position) comes on when
you remove the key f rom the ignition
switch. If you do not open a door, the
light stays on, then f ades out in
about 30 seconds.
Turn on a spotlight by pushing the
lens. Push the lens again to turn it
off. You can use the spotlights at
Unlock the driver’s door with the
keyorremotetransmitter. Open any door. To change the ‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see
page
.
If you leave any door open without
the key in the ignition switch, the
ceiling light will go off after about
15 minutes. 105
CONT INUED
Ceiling L ight
Spotlights
Interior Lights
159
DOOR ACTIVATED POSITION
EX model with navigation systemPush
Push
SPOTLIGHTS
12/07/13 16:56:50 31TM8630_164
Inst rument s and Cont rolsTOC
all times.
2014 Insight

CONT INUED
On models with navigation systemThe automatic climate control
system in your vehicle maintains the
interior temperature you select. The
system also adjusts the f an speed
and airf low levels.
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
navigation system manual f or
complete details.
Press the AUTO button. You will
see AUTO in the display.
Set the desired temperature
by turning the temperature
control dial.
The system automatically selects
the proper mix of conditioned
and/or heated air that will, as
quickly as possible, raise or
lower the interior temperature
to your preference.During the auto idle stop, the air
conditioning system will be turned
off.If theECONmodeisselected,
thefanmayalsobeturnedoff.
Turning this dial clockwise increases
the temperature of the airflow.
2. 1.
Voice Control System
Using A utomatic Climate Control
Climate Control System
T emperat ure Cont rol
163
12/07/13 16:57:13 31TM8630_168
FeaturesTOC
2014 Insight

µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob to the right to tune to
a higher f requency, and turn it to the
lef t to tune to a lower f requency.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM or
FM button. Adjust the volume by
turning the power/volume knob.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the right side of the A. SEL/SCAN
bar, then release it. You will see
SCAN in the display. The system will
scan f or a station with a strong signal.
When it f inds one, it will stop and
play that station for about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor10seconds.Whenit
plays a station you want to listen to,
press the SCAN side of the bar again.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it. To Select a Station
TUNE
To Play the AM/FM Radio
SCAN
SEEK /SK IP
Playing the A M/FM Radio (Insight model)
170
12/07/13 16:58:11 31TM8630_175
FeaturesTOC
2014 Insight
