HONDA INSIGHT 2019 (in English) Owner's Guide

19
Quick Reference Guide
Instrument Panel (P 79)
Indicators (P 80)/Driver Information Interface (P 131)/Gauges (P 128)
SpeedometerFuel Gauge
Driver Information Interface Immobilizer System Indicator/ Security System Alarm Indicator
Shift Position Indicator/
Transmission System Indicator Deceleration Paddle
Selector Indicator
POWER
/CHARGE Gauge
High Voltage Battery
Charge Level Gauge
19 INSIGHT HMIN-31TXM6000.book 19 ページ ２０１８年４月２０日　金曜日　午後４時２２分

20
Quick Reference Guide
Controls (P 163)
Clock (P164)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect Set, then press .
These indications are used to show how to
operate the selector knob.
● Rotate to select.
● Press to enter.
Models with color audio
To adjust time
To adjust date
aPress , then select Settings.
bSelect System , then Day & Time .
cSelect Set Date & Time .
dSelect Automatic Date & Time , then
select OFF.
Models with Display AudioeSelect Set Date or Set Time .
fAdjust the dates, hours and minutes by
selecting / .
gSelect Save to set the date or time.
The clock is automatically updated through
the audio system.
POWER Button (P190)
Press the button to change the vehicle’s
power mode.
34
19 INSIGHT HMIN-31TXM6000.book 20 ページ ２０１８年４月２０日　金曜日　午後４時２２分

21
Quick Reference Guide

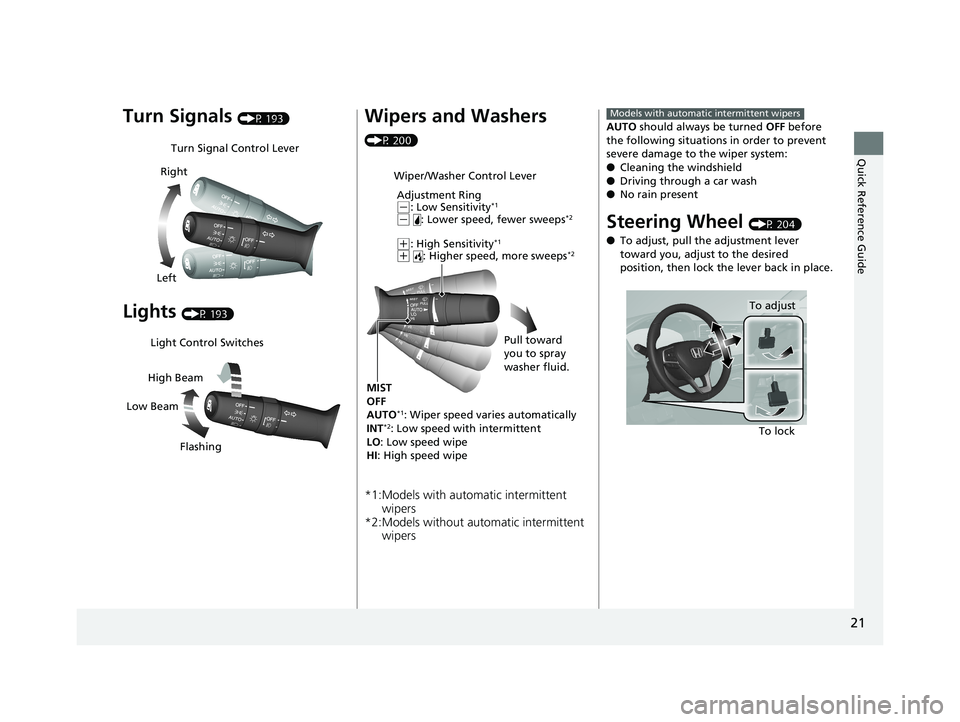

Turn Signals (P 193)
Lights (P 193)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P 200)
*1:Models with automatic intermittent wipers
*2:Models without au tomatic intermittent
wipers
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity*1
(- : Lower speed, fewer sweeps*2
(+: High Sensitivity*1
(+ : Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P 204)
● To adjust, pull the adjustment lever
toward you, adjust to the desired
position, then lock the lever back in place.
Models with automatic intermittent wipers
To lock
To adjust
19 INSIGHT HMIN-31TXM6000.book 21 ページ ２０１８年４月２０日　金曜日　午後４時２２分

22
Quick Reference Guide

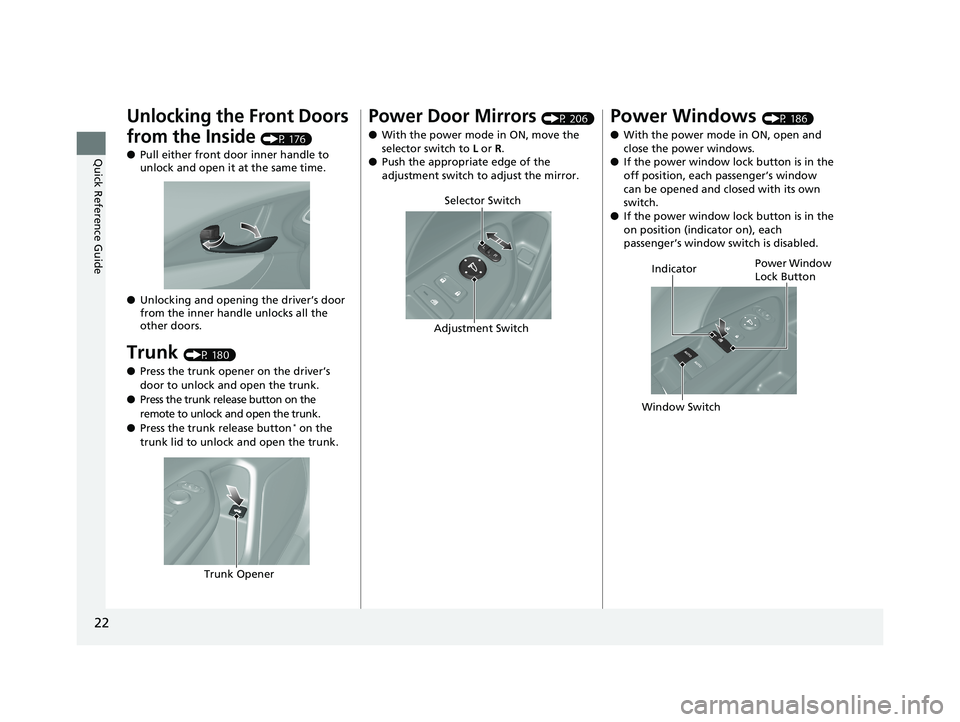

Unlocking the Front Doors
from the Inside
(P 176)
● Pull either front door inner handle to
unlock and open it at the same time.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P 180)
● Press the trunk opener on the driver’s
door to unlock and open the trunk.
● Press the trunk release button on the
remote to unlock and open the trunk.
● Press the trunk release button
* on the
trunk lid to unlock and open the trunk.
Trunk Opener
Power Door Mirrors (P 206)
● With the power mode in ON, move the
selector switch to L or R.
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 186)
● With the power mode in ON, open and
close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window
Lock Button
Window Switch Indicator
19 INSIGHT HMIN-31TXM6000.book 22 ページ ２０１８年４月２０日　金曜日　午後４時２２分

23
Quick Reference Guide

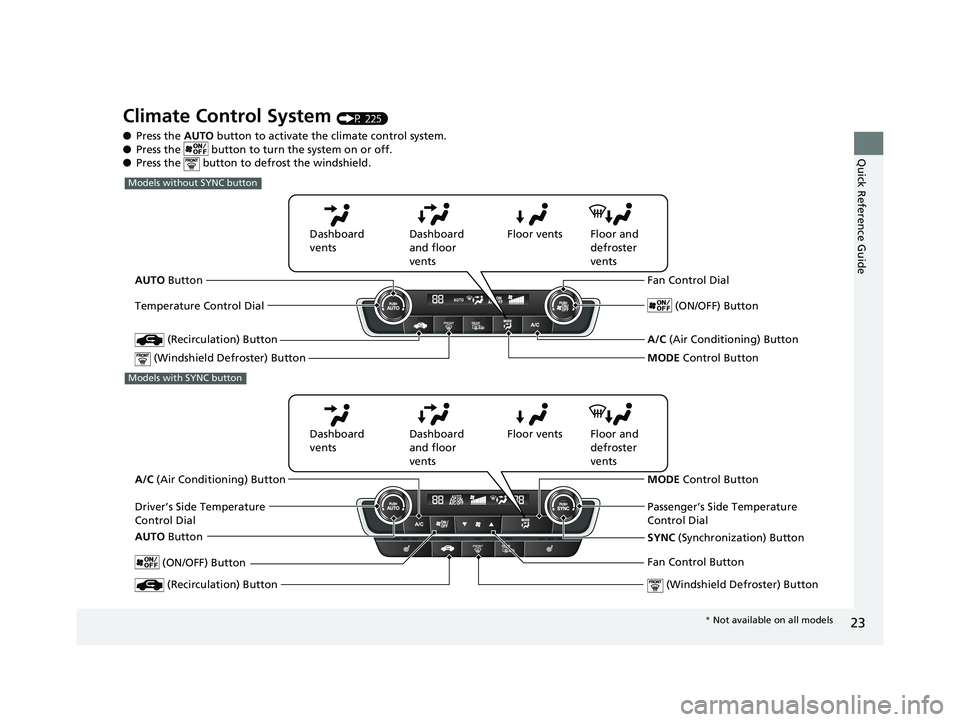

Climate Control System (P 225)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
AUTO Button Floor vents
Dashboard
vents Dashboard
and floor
vents Floor and
defroster
vents
Models without SYNC button
Temperature Control Dial
(Recirculation) Button
(Windshield Defroster) Button
Fan Control Dial (ON/OFF) Button
A/C (Air Conditioning) Button
MODE Control Button
Floor vents
Dashboard
vents Dashboard
and floor
vents Floor and
defroster
vents
A/C (Air Conditioning) Button
Driver’s Side Temperature
Control Dial
AUTO Button
(ON/OFF) Button
(Recirculation) Button
MODE Control Button
Passenger’s Side Temperature
Control Dial
SYNC (Synchronization) Button
(Windshield Defroster) Button
Fan Control Button
Models with SYNC button
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 23 ページ ２０１８年４月２０日　金曜日　午後４時２２分

24
Quick Reference Guide
Features (P 233)
Audio Remote Controls
(P 237)
●VOL
(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode:
FM1 FM2 AM USB/iPod Pandora ®
Bluetooth® Audio.
● / (Seek/Skip) Buttons
Radio: Press / to change the
preset station.
iPod, USB device, or Bluetooth ® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
Models with color audio
/
(Seek/Skip) Buttons
SOURCE
Button
VOL
( +/VOL(- (Volume) Buttons
● VOL(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
● Left Selector Wheel
When selecting the audio mode
Press the (home) button, then roll up
or down to select Audio on the driver
information interface, and then press the
left selector wheel. USB device or Bluetooth® Audio:
Press and hold / to
change a folder/group.
Pandora ®:
Press to skip to the next
track. Press and hold /
to select the next or previous track.
Models with Display Audio
/
(Seek/Skip) Buttons
Left Selector
Wheel
VOL
( +/VOL(- (Volume) Buttons
(home) Button
FM
AM
SiriusXM ®*
USB1
USB2
Bluetooth® Audio
Smartphone Connection
(Apple CarPlay/Android Auto)
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
19 INSIGHT HMIN-31TXM6000.book 24 ページ ２０１８年４月２０日　金曜日　午後４時２２分

25
Quick Reference Guide
● / (Seek/Skip) Buttons
Radio: Press / to change the
preset station.
iPod, USB device, Bluetooth® Audio or
Smartphone Connection:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
USB device:
Press and hold / to
change a folder.
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 25 ページ ２０１８年４月２０日　金曜日　午後４時２２分

26
Quick Reference Guide
Audio System (P241, 262)
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
Selector Knob (Phone) Button
(P 241)Models with color audio
19 INSIGHT HMIN-31TXM6000.book 26 ページ ２０１８年４月２０日　金曜日　午後４時２２分

27
Quick Reference Guide

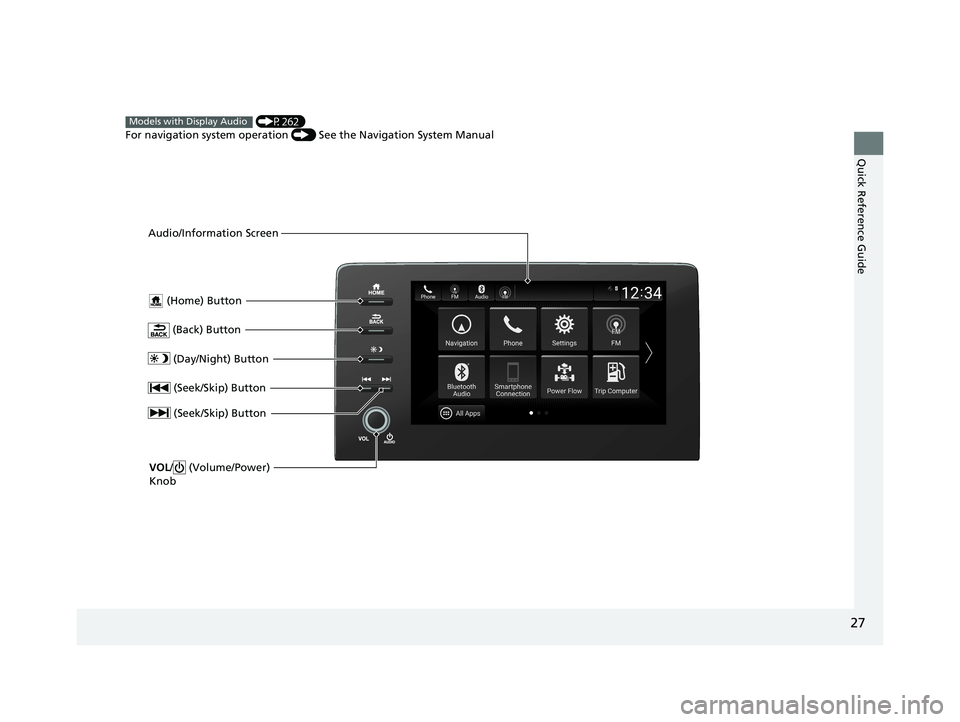

(Home) Button
(Back) Button
Audio/Information Screen (P262)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Day/Night) Button
(Seek/Skip) Button
(Seek/Skip) Button
VOL/ (Volume/Power)
Knob
19 INSIGHT HMIN-31TXM6000.book 27 ページ ２０１８年４月２０日　金曜日　午後４時２２分

28
Quick Reference Guide

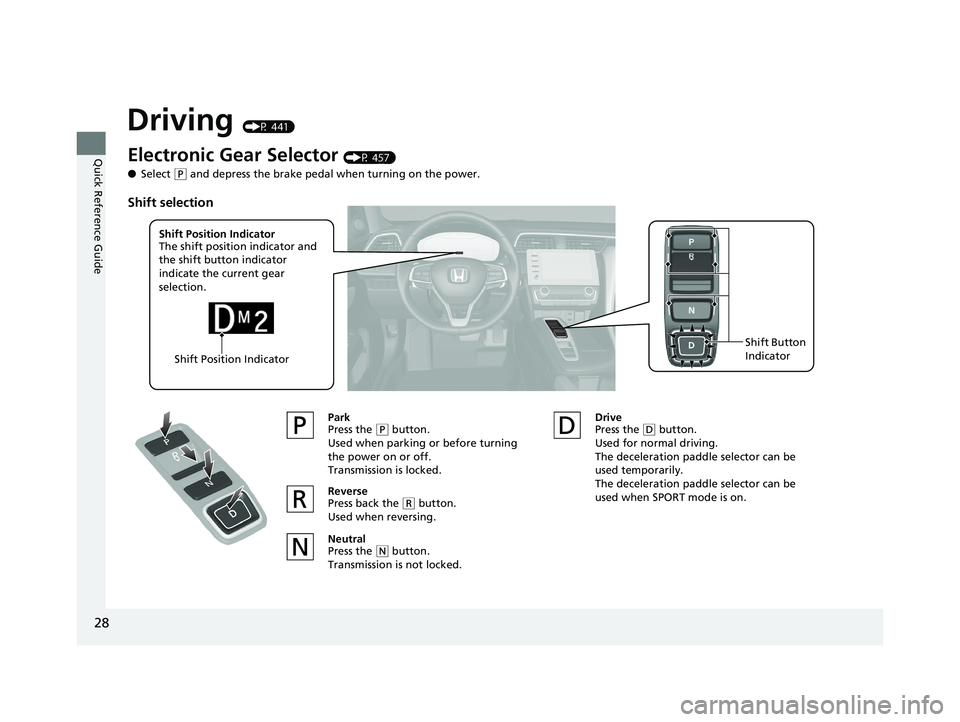

Driving (P 441)
Shift Position IndicatorShift Button
Indicator
Electronic Gear Selector (P 457)
● Select
(P and depress the brake pedal when turning on the power.
Shift Position Indicator
The shift position indicator and
the shift button indicator
indicate the current gear
selection.
Park
Press the ( P button.
Used when parking or before turning
the power on or off.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked. Drive
Press the
(
D button.
Used for normal driving.
The deceleration paddle selector can be
used temporarily.
The deceleration paddle selector can be
used when SPORT mode is on.
Shift selection
19 INSIGHT HMIN-31TXM6000.book 28 ページ ２０１８年４月２０日　金曜日　午後４時２２分
