This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 80
Driver Information Interface Warning and Information Messages .................... 102
Gauges and Driver Information Interface Gauges ............................................ 128
Driver Information Interface ............. 131
19 INSIGHT HMIN-31TXM6000.book 79 ページ ２０１８年４月２０日　金曜日　午後４時２２分

80
Instrument Panel
Indicators
Deceleration Paddle
Selector IndicatorP.88
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)
U.S.
Canada
U.S.
Canada Automatic Brake
Hold System Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn o ff, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
P. 81*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
Vehicle Stability Assist®
(VSA®) System Indicator
Vehicle Stability Assist
®
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow (LSF) Indicator
(Amber)
Lane Keeping Assist
System ( LKAS) Indicator
(Amber)
Safety Support Indicator
(Amber)
Safety Support Indicator
(Green/Gray)
P. 82
P.84
P.84
P.87
P.88
*1
*1
*1 *1
P.
93
*1
*1
Shift Position IndicatorP. 88 Transmission System
Indicator
P.
89
P.90
P.90
P.91
P.91
P.94
P.92
*1
*1 *1
P. 92
*1P.91
P.94
P.97
*1
P.94
P.94
P.96
P.94 Immobilizer System
Indicator
P.
95
Security System Alarm
Indicator P.95
P.96
P.96
P.98
P.99
P.101
*1
Adaptive Cruise Control
(ACC ) with Low Speed
Follow (LSF) Indicator
(Green)P. 98
*1
Lane Keeping Assist
System ( LKAS) Indicator
(Green)P. 98
*1
POWER SYSTEM
IndicatorP. 85*1
READY IndicatorP.86
EV IndicatorP.86*1
EV Mode IndicatorP.86*1
*1
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 80 ページ ２０１８年４月２０日　金曜日　午後４時２２分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

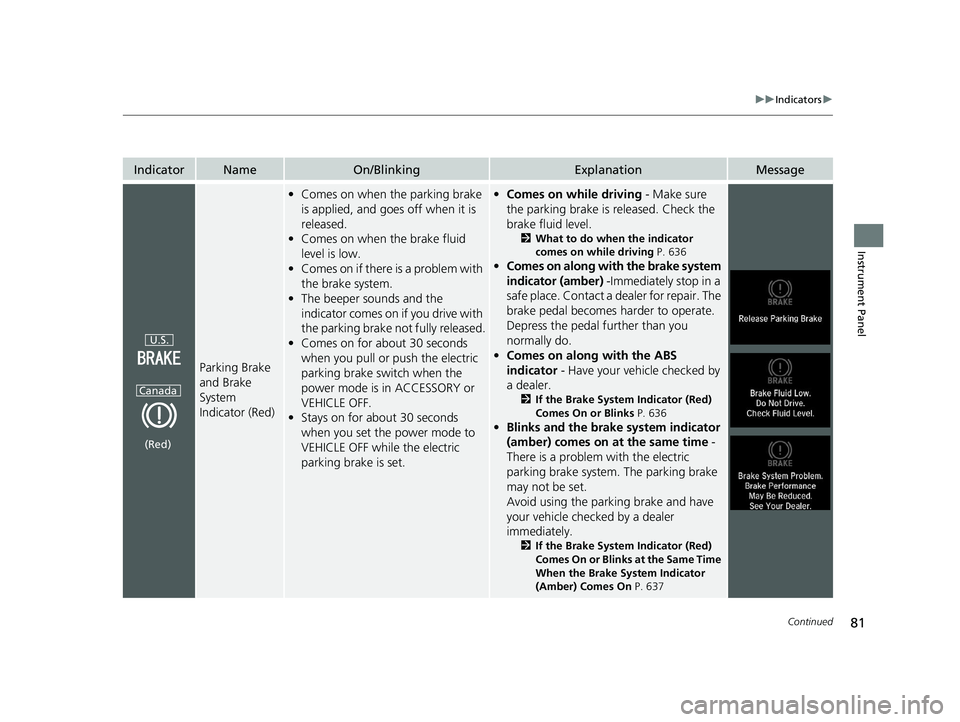

Parking Brake
and Brake
System
Indicator (Red)
•Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem with
the brake system.
• The beeper sounds and the
indicator comes on if you drive with
the parking brake not fully released.
• Comes on for about 30 seconds
when you pull or push the electric
parking brake switch when the
power mode is in ACCESSORY or
VEHICLE OFF.
• Stays on for about 30 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.•Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 636
•Comes on along with the brake system
indicator (amber) -Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
• Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 636
•Blinks and the brake system indicator
(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 637
U.S.
Canada
(Red)
19 INSIGHT HMIN-31TXM6000.book 81 ページ ２０１８年４月２０日　金曜日　午後４時２２分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
a system related to braking other
than the conventional brake
system.
• Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
• Comes on if there is a problem with
the electric parking brake system.• Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to a
dealer immediately.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
●Comes on if there is a problem with
the radar sensor.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 445●Stays on constantly - Have your vehicle
checked by a dealer.
U.S.
Canada
(Amber)
U.S.
Canada
19 INSIGHT HMIN-31TXM6000.book 82 ページ ２０１８年４月２０日　金曜日　午後４時２２分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

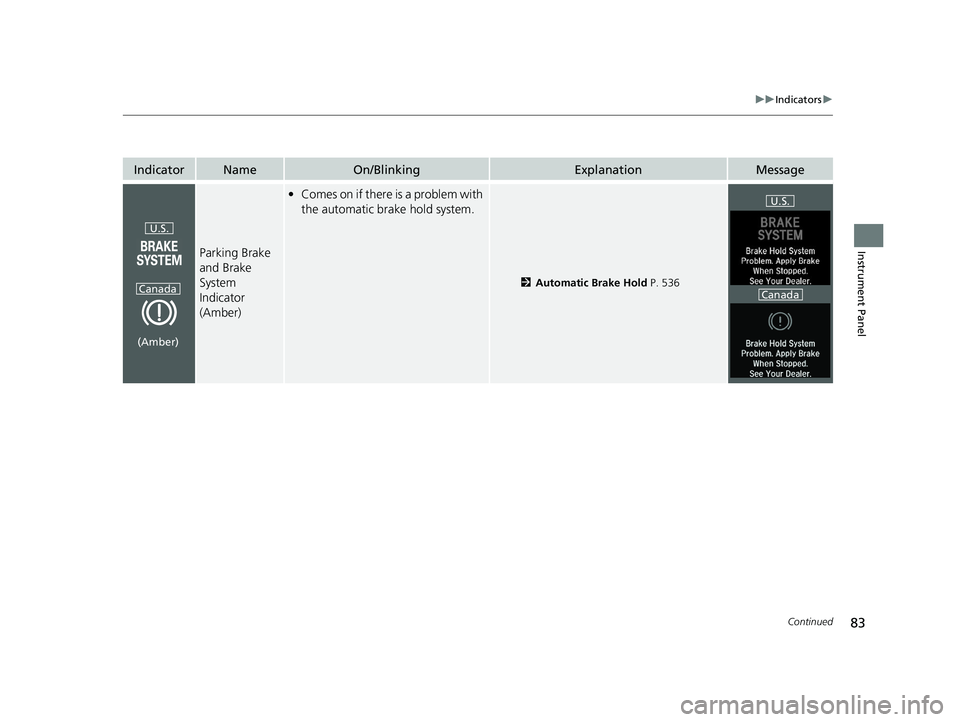

Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
the automatic brake hold system.
2 Automatic Brake Hold P. 536
U.S.
Canada
(Amber)
U.S.
Canada
19 INSIGHT HMIN-31TXM6000.book 83 ページ ２０１８年４月２０日　金曜日　午後４時２２分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

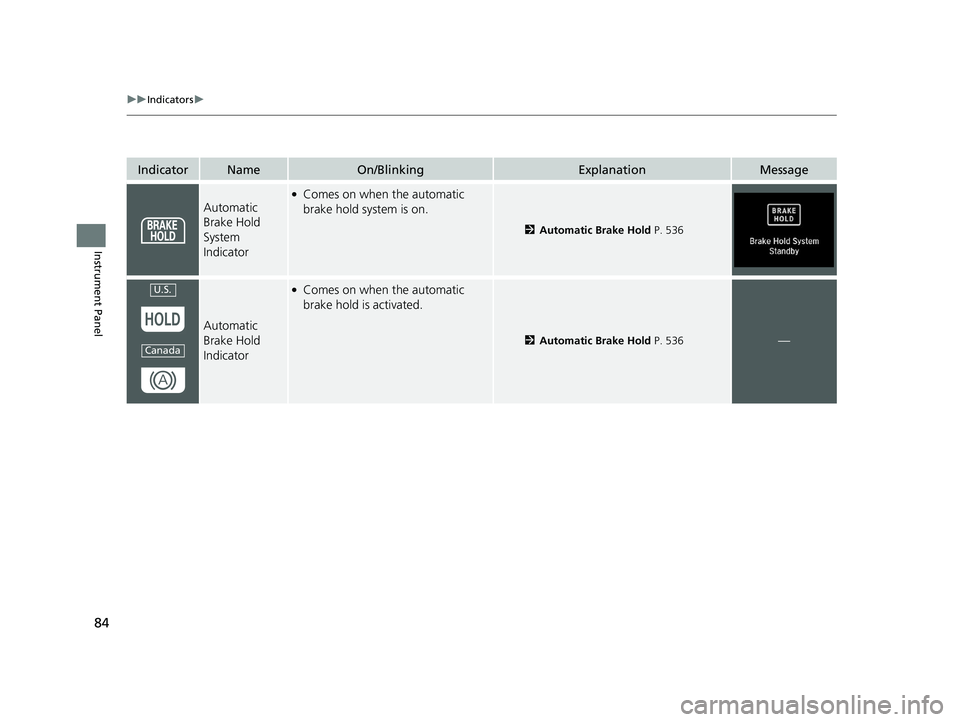

Automatic
Brake Hold
System
Indicator
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 536
Automatic
Brake Hold
Indicator
●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 536—
U.S.
Canada
19 INSIGHT HMIN-31TXM6000.book 84 ページ ２０１８年４月２０日　金曜日　午後４時２２分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

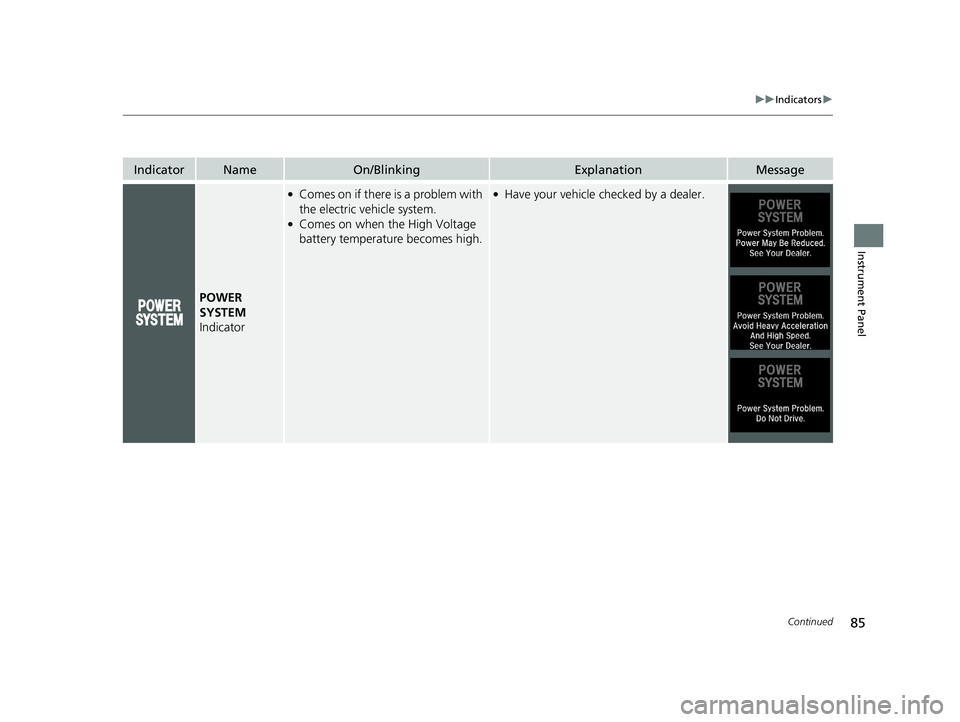

POWER
SYSTEM
Indicator
●Comes on if there is a problem with
the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes high.
●Have your vehicle checked by a dealer.
19 INSIGHT HMIN-31TXM6000.book 85 ページ ２０１８年４月２０日　金曜日　午後４時２２分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

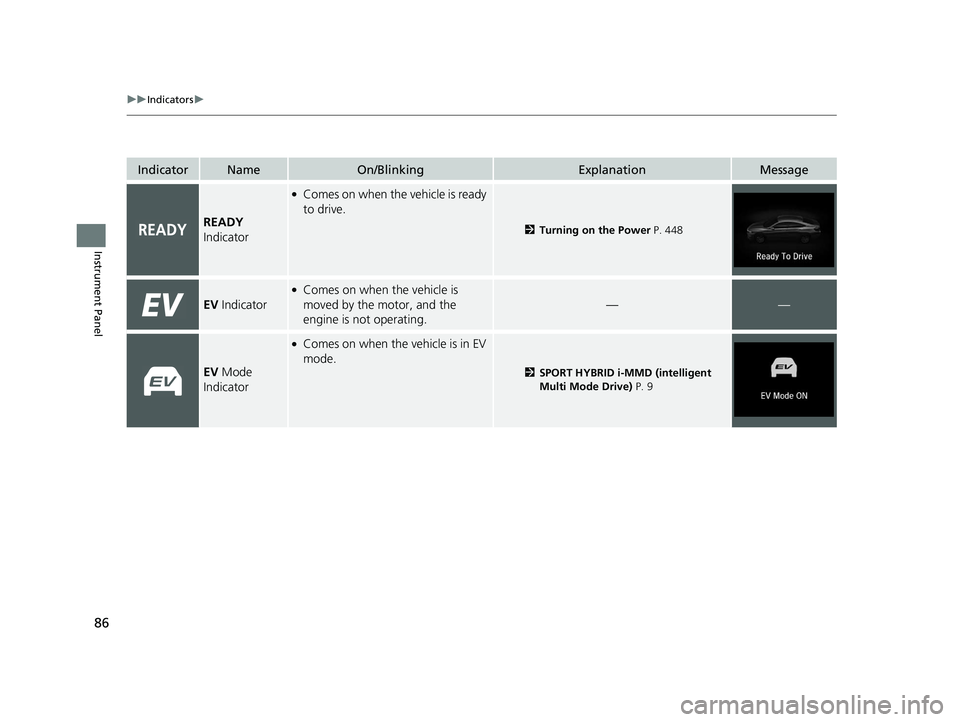

READY
Indicator
●Comes on when the vehicle is ready
to drive.
2 Turning on the Power P. 448
EV Indicator
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
——
EV Mode
Indicator
●Comes on when the vehicle is in EV
mode.
2 SPORT HYBRID i-MMD (intelligent
Multi Mode Drive) P. 9
19 INSIGHT HMIN-31TXM6000.book 86 ページ ２０１８年４月２０日　金曜日　午後４時２２分

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
•After you have set the power mode
to ON, the vehicle performs system
checks. However, if the readiness
codes have not been set by that
time, this indicator will blink five
times and then go off.
• Comes on if there is a problem with
the emissions control system.
• Blinks when a misfire in the
engine’s cylinders is detected.
• Comes on if the fuel fill cap is loose
or missing.•Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 658
•Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 635
•Comes on - Check the fuel cap before
taking your vehicle to a dealer.
19 INSIGHT HMIN-31TXM6000.book 87 ページ ２０１８年４月２０日　金曜日　午後４時２２分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

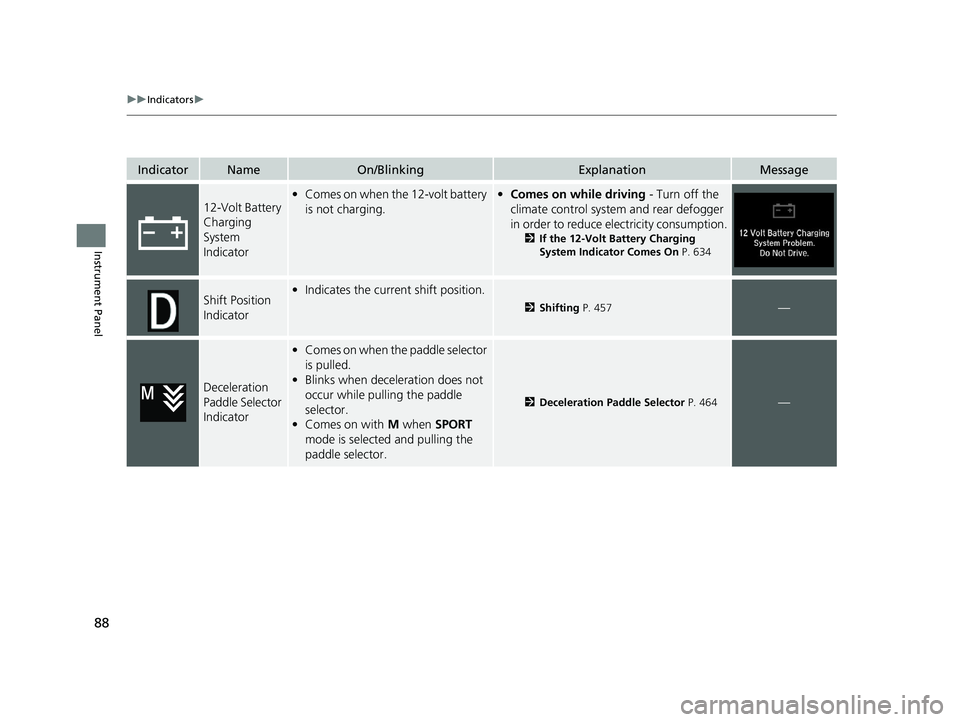

12-Volt Battery
Charging
System
Indicator•Comes on when the 12-volt battery
is not charging.• Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 634
Shift Position
Indicator•Indicates the current shift position.
2 Shifting P. 457—
Deceleration
Paddle Selector
Indicator
•Comes on when the paddle selector
is pulled.
• Blinks when deceleration does not
occur while pulling the paddle
selector.
• Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 464—
19 INSIGHT HMIN-31TXM6000.book 88 ページ ２０１８年４月２０日　金曜日　午後４時２２分
