HONDA INSIGHT 2019 Owner's Manual (in English)

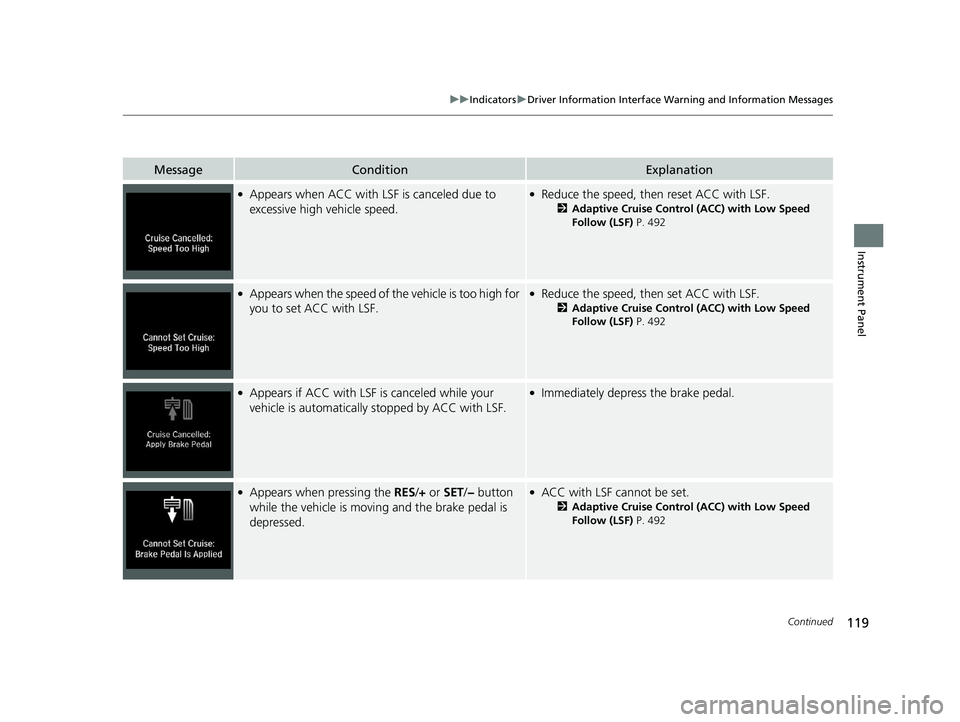

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF is canceled due to
excessive high vehicle speed.●Reduce the speed, then reset ACC with LSF.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when the speed of the vehicle is too high for
you to set ACC with LSF.●Reduce the speed, then set ACC with LSF.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears if ACC with LSF is canceled while your
vehicle is automatically stopped by ACC with LSF.●Immediately depress the brake pedal.
●Appears when pressing the RES/+ or SET/− button
while the vehicle is moving and the brake pedal is
depressed.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
19 INSIGHT HMIN-31TXM6000.book 119 ページ ２０１８年４月２０日　金曜日　午後４時２２分

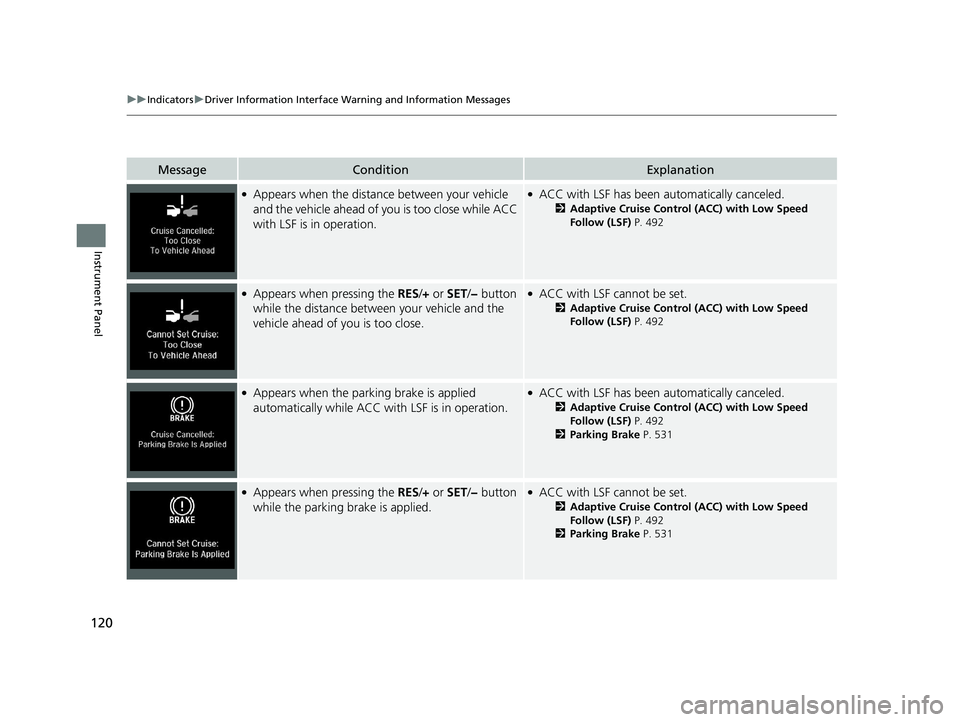

120
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
with LSF is in operation.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when pressing the RES/+ or SET/− button
while the distance between your vehicle and the
vehicle ahead of you is too close.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when the parking brake is applied
automatically while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
2 Parking Brake P. 531
●Appears when pressing the RES/+ or SET/− button
while the parking brake is applied.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
2 Parking Brake P. 531
19 INSIGHT HMIN-31TXM6000.book 120 ページ ２０１８年４月２０日　金曜日　午後４時２２分

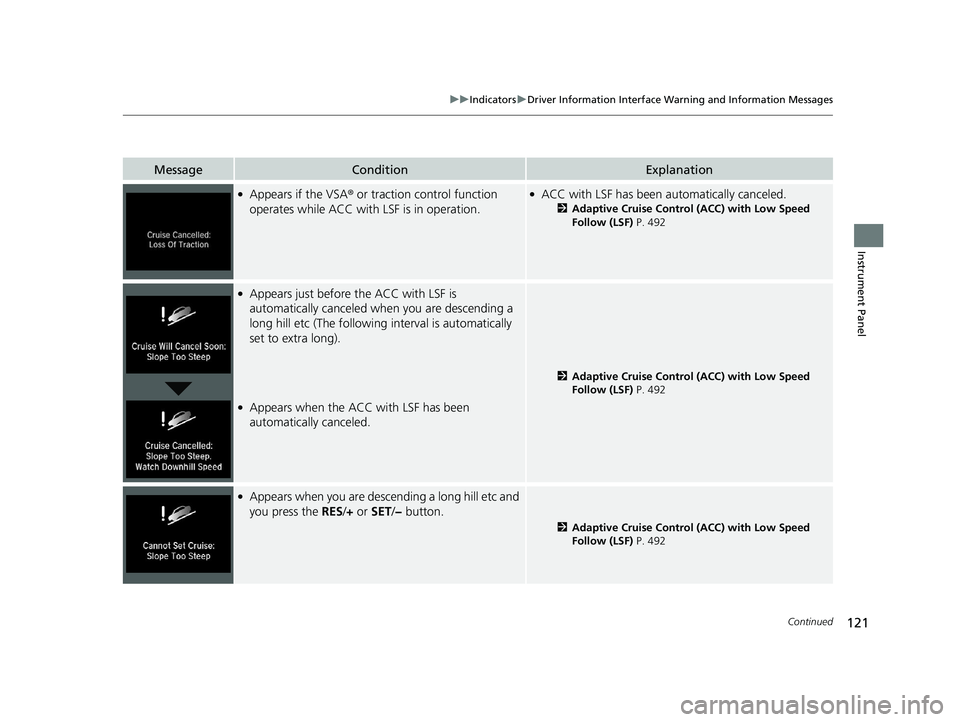

121
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the VSA® or traction control function
operates while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears just before the ACC with LSF is
automatically canceled when you are descending a
long hill etc (The following interval is automatically
set to extra long).
●Appears when the ACC with LSF has been
automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when you are descending a long hill etc and
you press the RES /+ or SET/− button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
19 INSIGHT HMIN-31TXM6000.book 121 ページ ２０１８年４月２０日　金曜日　午後４時２２分

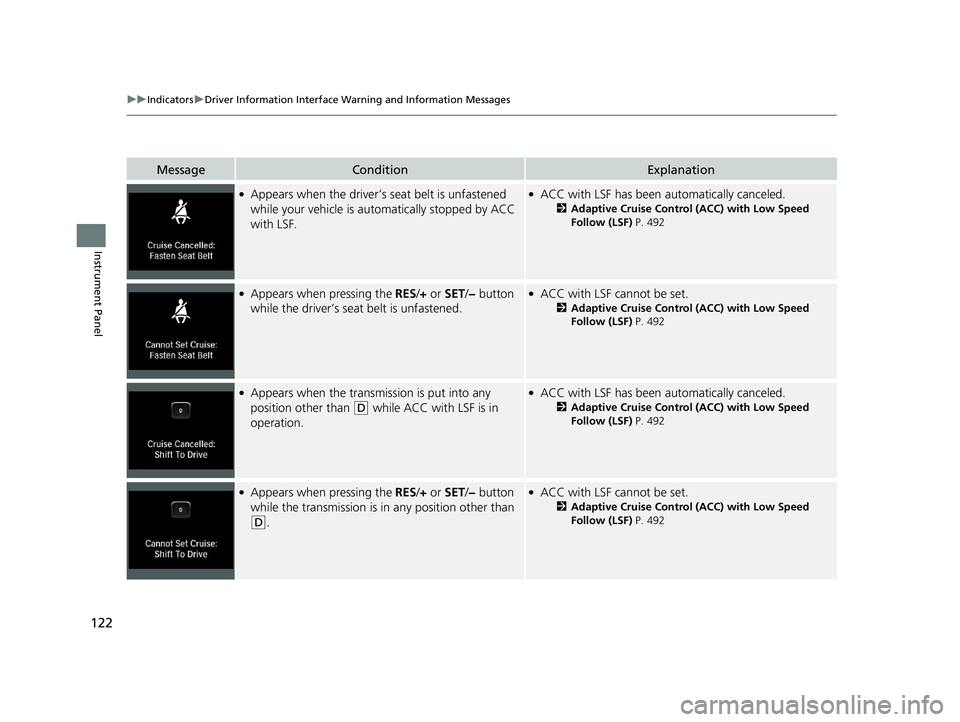

122
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC
with LSF.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when pressing the RES/+ or SET/− button
while the driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when the transmission is put into any
position other than
(D while ACC with LSF is in
operation.
●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when pressing the RES/+ or SET/− button
while the transmission is in any position other than
(D.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
19 INSIGHT HMIN-31TXM6000.book 122 ページ ２０１８年４月２０日　金曜日　午後４時２２分

123
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.●ACC with LSF has been au tomatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
●Appears when pressing the RES/+ or SET/ − button
while the vehicle is stopped on a very steep slope.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) P. 492
19 INSIGHT HMIN-31TXM6000.book 123 ページ ２０１８年４月２０日　金曜日　午後４時２２分

124
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if anything covers the radar sensor cover
and prevents the sensor from detecting a vehicle in
front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor
cover.
2 Radar Sensor P. 530
●Appears if the temperature inside the front sensor
camera is too high and the ACC with LSF, LKAS,
traffic sign recognition system and auto high-beam
cannot be activated.●Use the climate control system to cool down the
camera.
●Disappears - The camera has been cooled down and
the systems are activated normally.
2 Front Sensor Camera P. 528
●Appears if the area around the front sensor camera is
blocked by dirt, mud, etc and be prevented from
detecting a vehicle in front.
●May appear when driving in bad weather (rain,
snow, fog, etc.)
●When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Sensor Camera P. 528
19 INSIGHT HMIN-31TXM6000.book 124 ページ ２０１８年４月２０日　金曜日　午後４時２２分

125
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.
●Keep the vehicle within the lane you are driving.
2Lane Keeping Assist System (LKAS) P. 509
●Appears when the vehicle is driving out of a detected
lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane.
- The steering wheel vibr ates rapidly when the
vehicle is drifting out of a detected lane. The system
also steers the vehicle to help you remain within
your driving lane.
●Keep the vehicle within the lane you are driving.
2Road Departure Mitigation (RDM) System P. 517●You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide, and
Warning Only can be selected.
2Customized Features P. 366
●Appears when the vehicle is likely to drive out of a
detected lane.
The RDM system also steers the vehicle to help you
remain within your driving lane.—
Lane Keeping Assist System (LKAS)
Road Departure Mitigation (RDM) System
When you selected Warning Only
When you selected Narrow, Normal or Wide
Road Departure Mitigation (RDM) System
When you selected Narrow
19 INSIGHT HMIN-31TXM6000.book 125 ページ ２０１８年４月２０日　金曜日　午後４時２２分

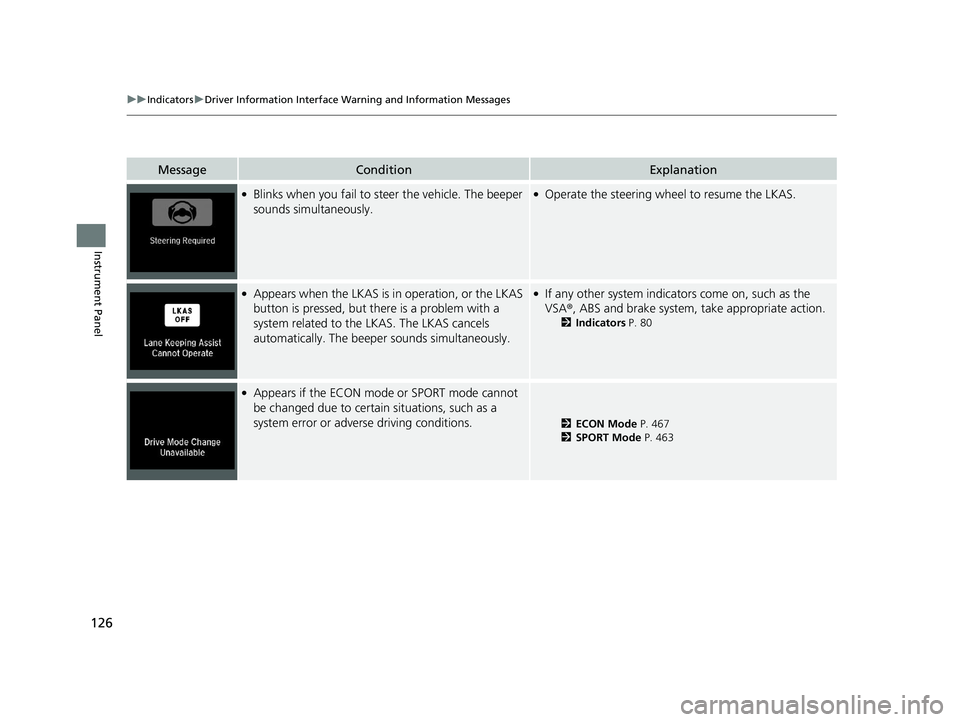

126
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.●Operate the steering wheel to resume the LKAS.
●Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.●If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.
2Indicators P. 80
●Appears if the ECON mode or SPORT mode cannot
be changed due to certai n situations, such as a
system error or adverse driving conditions.
2 ECON Mode P. 467
2 SPORT Mode P. 463
19 INSIGHT HMIN-31TXM6000.book 126 ページ ２０１８年４月２０日　金曜日　午後４時２２分

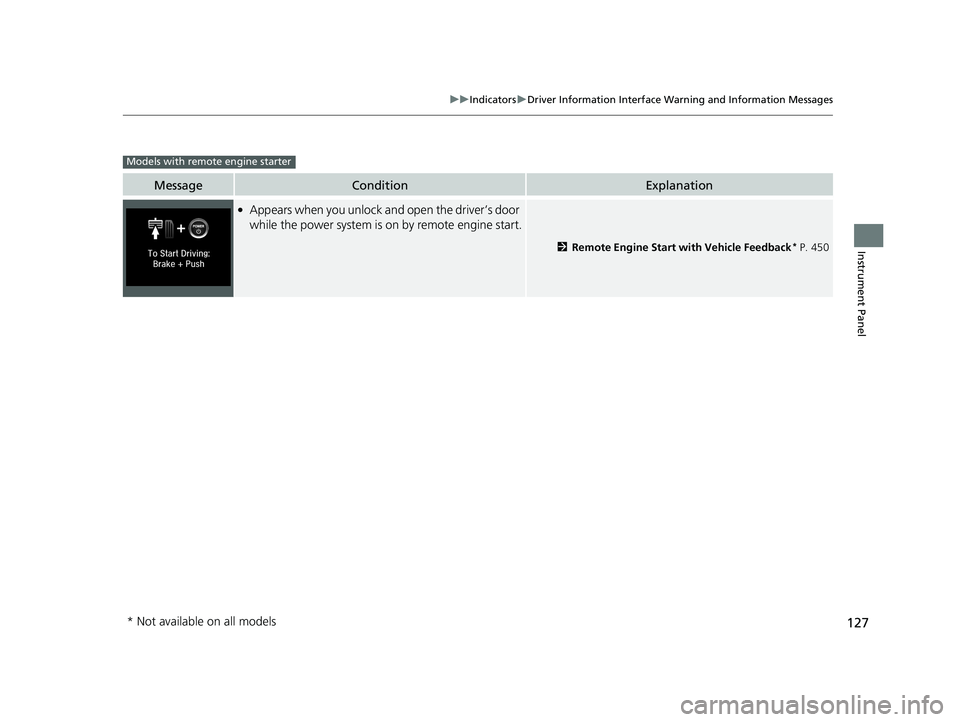

127
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you unlock and open the driver’s door
while the power system is on by remote engine start.
2Remote Engine Start with Vehicle Feedback* P. 450
Models with remote engine starter
* Not available on all models
19 INSIGHT HMIN-31TXM6000.book 127 ページ ２０１８年４月２０日　金曜日　午後４時２２分

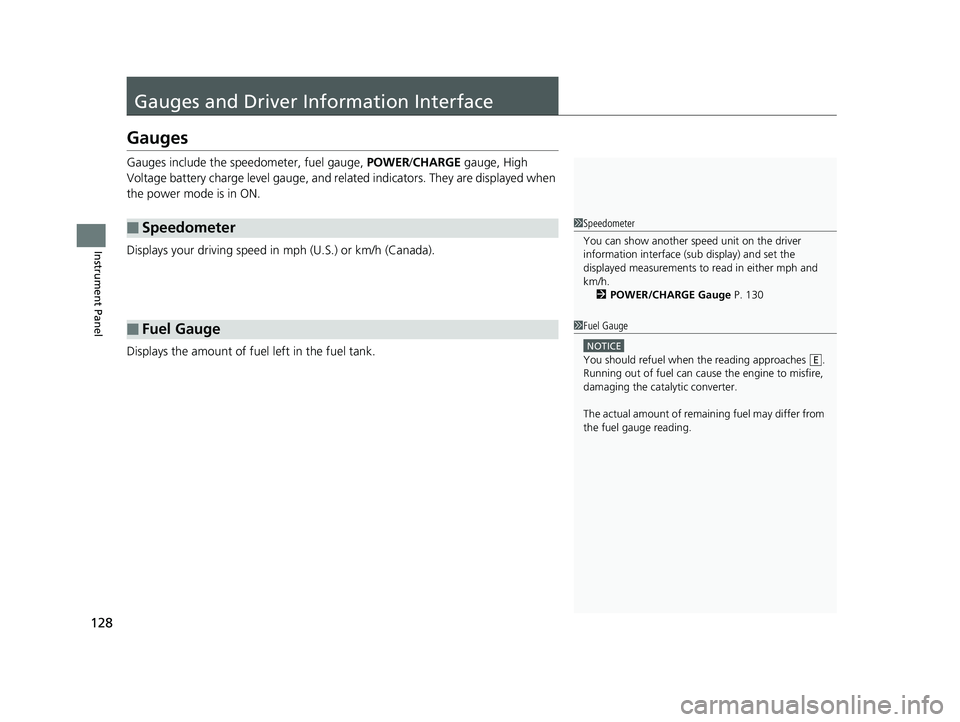

128
Instrument Panel
Gauges and Driver Information Interface
Gauges
Gauges include the speedometer, fuel gauge, POWER/CHARGE gauge, High
Voltage battery charge level gauge, and re lated indicators. They are displayed when
the power mode is in ON.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Displays the amount of fuel left in the fuel tank.
■Speedometer
■Fuel Gauge
1Speedometer
You can show another speed unit on the driver
information interface (s ub display) and set the
displayed measurements to read in either mph and
km/h. 2 POWER/CHARGE Gauge P. 130
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
