uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
■Reason for the in dicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
Avoid using the parking brake and have your vehicle checked by a dealer
immediately.
1 If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 647
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
U.S.
Canada (Red)
21 INSIGHT-31TXM6200.book 646 ページ ２０２０年２月５日　水曜日　午前１０時０分

652
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
MAIN FUSE150 A
IG MAIN 130 A
SUB FAN MTR30 A
IG MAIN 230 A
OP FUSE MAIN30 A
ESB40 A
ENG EWP30 A
2
WIPER MOTOR30 A
R/M 230 A
P-ACT 30 A R/M 1 30 A
COOLING FAN 30 A EPS 70 A
3
BLOWER MOTOR40 A
ABS/VSA MOTOR40 A
FUSE BOX OPTION*(40 A)
ABS/VSA FSR40 A
PREMIUM AUDIO*(30 A)
REAR DEFROSTER40 A
4−30 A
−30 A
FUSE BOX 2 40 A
FUSE BOX 1 60 A
5IGPS7.5 A
6VBU 10 A
7IG HOLD110 A
8 PCU EWP 10 A
9IGP15 A
10 BACK UP 10 A
11IGPS (LAF)7.5 A
12 EVTC 20 A
13HAZARD10 A
14 IG COIL 15 A
15DBW15 A
16 STOP LIGHTS 10 A
17−−
18 − −
19AUDIO15 A
20 FR FOG LIGHT*(15 A)
Circuit ProtectedAmps
21AS P/SEAT RECLINING*(20 A)
22 AS P/SEAT SLIDE*(20 A)
23HORN10 A
24 WASHER 15 A
25SHIFTER10 A
26 SMART 10 A
27−−
28 P-ACT UNIT 10 A
29IGB10 A
30 − −
Circuit ProtectedAmps
* Not available on all models
21 INSIGHT-31TXM6200.book 652 ページ ２０２０年２月５日　水曜日　午前１０時０分

656
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
5. Check the large fuse in the vehicle interior.
u If the fuse is blown, use a phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
6. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label. 2 Fuse Locations P. 651
There is a fuse puller on the back of the cover of the
engine compartment fuse box type A.
Combined
Fuse Blown Fuse
Fuse Puller
21 INSIGHT-31TXM6200.book 656 ページ ２０２０年２月５日　水曜日　午前１０時０分

662
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelINSIGHT
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeND-OIL11 (POE)
Quantity 7.3 – 8.2 cu-in (120 – 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK DILZKAR7C11H
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*LED
Parking/Daytime Running Lights LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
TaillightsLED
Back-Up Lights 16 W
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WAmbient LightsLEDVanity Mirror Lights2.3 WTrunk Light5 W
* Not available on all models
21 INSIGHT-31TXM6200.book 662 ページ ２０２０年２月５日　水曜日　午前１０時０分

667
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When traffi c allows, drive for 90 seconds without
moving the accelerator pedal. (V ehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).
6. Drive in city/suburban traffic for at leas t 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for six hours.
1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
21 INSIGHT-31TXM6200.book 667 ページ ２０２０年２月５日　水曜日　午前１０時０分

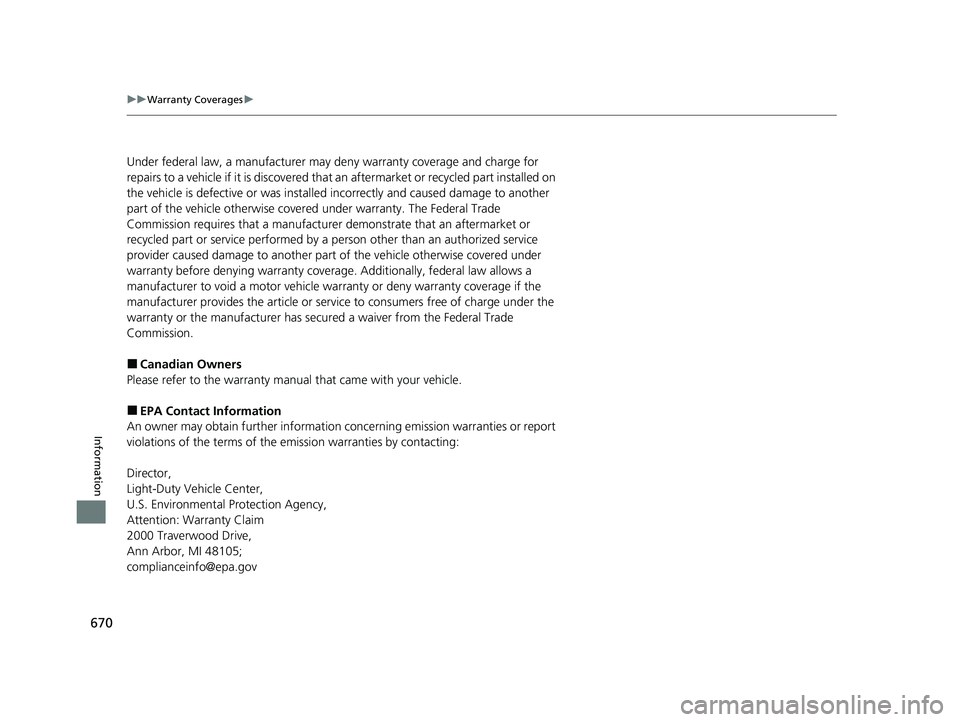

670
uuWarranty Coverages u
Information
Under federal law, a manufacturer may de ny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage . Additionally, federal law allows a
manufacturer to void a motor vehicle warra nty or deny warranty coverage if the
manufacturer provides the arti cle or service to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:
Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
[email protected]
21 INSIGHT-31TXM6200.book 670 ページ ２０２０年２月５日　水曜日　午前１０時０分

675
Index
Automatic Brake Hold............................. 544
Indicator ........................................... 88, 544
Automatic Brake Hold System Indicator ........................................... 88, 544
Automatic Intermittent Wipers .............. 208
Automatic Lighting .................................. 201
Average Fuel Economy ............................ 141
Average Fuel Economy Records .............. 154
Average Speed ......................................... 143
B
Belts (Seat).................................................. 46
Beverage Holders ..................................... 226
Blind spot information System ................ 483
Bluetooth ® Audio ............................. 264, 317
Bluetooth ® HandsFreeLink ®........... 395, 420
Booster Seats (For Children) ...................... 80
Brake System ............................................ 539
Anti-lock Brake System (ABS) .................. 547
Automatic Brake Hold ............................. 544
Brake Assist System................................. 548
Fluid ....................................................... 583
Foot Brake .............................................. 543
Indicator ............................. 85, 86, 646, 647
Parking Brake.......................................... 539
Brightness Control (Instrument Panel) ... 210
Bulb Replacement .................................... 585
Back-Up Light ......................................... 587
Brake and Rear Side Marker Lights .......... 586
Fog Lights ............................................... 585 Front Turn Signal,
Parking/Daytime
Running and Front Side Marker Lights ... 585
Headlights ............................................... 585
High-Mount Brake Light .......................... 588
Rear License Plate Lights .......................... 588
Rear Turn Signal Light .............................. 586
Side Turn Signal/Em ergency Indicator
Lights .................................................... 585
Taillights .................................................. 587
Bulb Specifications ................................... 662C
Carbon Monoxide Gas ................................ 81
Carrying Cargo .................................. 449, 451
Certification Label .................................... 664
Changing Bulbs ......................................... 585
Charging System Indicator ................. 92, 644
Child Safety ................................................. 68
Childproof Door Locks ............................. 184
Emergency Trunk Opener ........................ 188
Child Seat .................................................... 68
Booster Seats ............................................. 80
Child Seat for Infants ................................. 70
Child Seat for Small Children ..................... 71
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Larger Children .......................................... 79
Rear-facing Child Seat ............................... 70
Selecting a Child Seat ................................ 72
Using a Tether ........................................... 77 Childproof Door Locks
............................. 184
Cleaning the Exterior ............................... 607
Cleaning the Interior ................................ 605
Climate Control System ............................ 232
Changing the Mode ................................ 232
Defrosting the Windshield and Windows ............................................... 235
Dust and Pollen Filter............................... 604
Recirculation and Fresh Air Mode ............ 234
Sensors ................................................... 238
Synchronized Mode................................. 237
Using Automatic Climate Control ............ 232
Clock .......................................................... 170
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 490
Coat Hooks ............................................... 229
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 490
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 225
Controls ..................................................... 169
Coolant (Engine) ...................................... 579
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 641
Cooling System ......................................... 579
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 641
Creeping ................................................... 462
Cross Traffic Monitor ............................... 551
21 INSIGHT-31TXM6200.book 675 ページ ２０２０年２月５日　水曜日　午前１０時０分

676
Index
Cup Holders............................................... 226
Customer Service Information ................. 672
Customized Features ................ 158, 365, 372
D
Daytime Running Lights ........................... 203
Dead Battery ............................................. 638
Deceleration Paddle Selector ................... 470
Defaulting All the Settings ...................... 391
Defrosting the Windshield and Windows .................................................. 235
Devices that Emit Radio Waves ................ 665
Dimming Headlights ............................................... 200
Rearview Mirror ....................................... 212
Dipstick (Engine Oil) ................................. 575
Directional Signals (Turn Signal) .............. 199
Display Setup ............................................ 253
Door Mirrors ............................................. 213
Doors ......................................................... 172
Auto Door Locking .................................. 185
Auto Door Unlocking ............................... 185
Door and Trunk Open Message ................. 45
Keys ........................................................ 172
Locking/Unlocking the Doors from the Inside ..................................................... 182
Locking/Unlocking the Doors from the Outside .................................................. 175
Lockout Prevention System ...................... 181
DOT Tire Quality Grading ........................ 595Driver Attention Monitor
........................ 149
Driver Information Interface ................... 136
Switching the Display .............................. 136
Warning and Information Messages ........ 107
Driving ...................................................... 447
Braking ................................................... 539
Shifting Gear ........................................... 463
Transmission ........................................... 462
Turning on the Power.............................. 454
Driving Support Information ................... 152
Dust and Pollen Filter ............................... 604
E
Eco Assist® System ...................................... 18
Eco Drive Display/Drive Cycle Score/
Lifetime Points ........................................ 155
ECON Mode .............................................. 473
Indicator.................................................. 100
Elapsed Time ............................................. 143
Electric Power Steering (EPS) System
Indicator............................................ 95, 648
Electronic Stability Control (ESC) ............. 475
Emergency ................................................ 657
Emergency Power System Off ................. 637
Emergency Trunk Opener ........................ 188
Emissions Testing (Readiness Codes) ....... 667
Engine ....................................................... 664
Coolant ................................................... 579
Jump Starting .......................................... 638
Oil ........................................................... 574 Starting................................................... 454
Engine Oil ................................................. 574
Adding ................................................... 576
Checking ................................................ 575
Displaying Oil Life ................................... 566
Low Oil Pressure Warning ....................... 643
Recommended Engine Oil ....................... 574
EPS (Electric Power Steering) System ...... 648
EV Button ................................................... 14
Exhaust Gas Hazard (Carbon Monoxide) .. 81
Exterior Care (Cleaning) .......................... 607
Exterior Mirrors ........................................ 213F
Features.................................................... 239
Filters Dust and Pollen....................................... 604
Oil .......................................................... 577
Flat Tire ..................................................... 615
Floor Mats ................................................ 606
Fluids Brake ...................................................... 583
Engine Coolant ....................................... 579
Inverter Coolant ...................................... 581
Windshield Washer ................................. 584
FM/AM Radio ................................... 254, 296
Fog Lights ................................................. 203
Indicator ................................................... 98
Folding Down the Rear Seat ................... 217
Foot Brake ................................................ 543
21 INSIGHT-31TXM6200.book 676 ページ ２０２０年２月５日　水曜日　午前１０時０分

677
Index
Front Airbags (SRS).................................... 56
Front Seat Heaters ................................... 230
Front Seats Adjusting ................................................ 214
Front Sensor Camera ............................... 536
Fuel ..................................................... 33, 557
Economy................................................. 560
Gauge .................................................... 133
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Range ..................................................... 141
Recommendation.................................... 557
Refueling ................................................ 557
Fuel Economy and CO
2 Emissions ............ 560
Fuel Fill Cap ........................................ 33, 558
Fuel Fill Door ...................................... 33, 558
Unable to Unlock .................................... 658
Fuses ......................................................... 651
Inspecting and Changing ........................ 656
Locations ........................................ 651, 655
G
Gasoline (Fuel)
Economy................................................. 560
Gauge .................................................... 133
Information............................................. 557
Instant Fuel Economy .............................. 141
Low Fuel Indicator..................................... 94
Refueling ................................................ 557
Gauges ...................................................... 133 Glass (care)
........................................ 605, 608
Glove Box .................................................. 224
H
Handling the Unexpected ........................ 613
HandsFreeLink ® (HFL) ....................... 395, 420
Automatic Import of Cellular Phonebook and Call History ........... 410, 429
Automatic Transferring ............................ 428
Caller’s ID Information ............................. 407
Displaying Messages ................................ 439
Favorite Contacts ..................................... 430
HFL Buttons ..................................... 395, 420
HFL Menus ...................................... 397, 423
HFL Status Display ........................... 396, 422
In Case of Emergency ...................... 323, 443
Limitations for Manual Operation .... 396, 422
Making a Call .................................. 414, 432
Options During a Call ...................... 419, 435
Phone Setup .................................... 401, 425
Receiving a Call ............................... 418, 435
Receiving a Text Message ........................ 437
Ring Tone ........................................ 407, 428
Selecting a Phone .................................... 438
Speed Dial ............................................... 411
To Clear the System ................................. 409
To Set Up a Text Message Options ........... 436
Hazard Warning Button ............................... 6
HD Radio
TM................................................ 299
Head Restraints ......................................... 219 Headlights
................................................. 200
Auto High-Beam System.......................... 204
Automatic Operation............................... 201
Dimming ......................................... 200, 203
Operating................................................ 200
Heaters (Seat) ................................... 230, 231
HFL (HandsFreeLink ®)....................... 395, 420
High Beam Indicator .................................. 98
High Voltage Battery ............................... 486
High Voltage Battery Charge Level Gauge ...................................................... 134
Hill Start Assist System ............................. 459
HomeLink ® Universal Transceiver ............ 392
Honda App License Agreement .............. 345
Honda Sensing ®................................ 34, 487
HondaLink ®............................................. 319
Hybrid Vehicle
SPORT HYBRID i-MMD (intelligent Multi-Mode Drive) ................................... 11
I
Identification Numbers Engine and Transmission ......................... 664
Vehicle Identification ............................... 664
Illumination Control Dial ......................................................... 210
Immobilizer System .................................. 189
Indicator.................................................... 99
21 INSIGHT-31TXM6200.book 677 ページ ２０２０年２月５日　水曜日　午前１０時０分

678
Index
Indicators..................................................... 84
12-Volt Battery Charging System ....... 92, 644
Adaptive Cruise Control (ACC) with Low Speed Follow (Amber) ............................ 101
Adaptive Cruise Control (ACC) with
Low Speed Follow (Green) ............. 102, 500
Anti-lock Brake System (ABS) ..................... 95
Auto High-Beam ........................................ 98
Automatic Brake Hold........................ 88, 544
Automatic Brake Hold System ............ 88, 544
Blind spot information System ................. 484
Deceleration Paddle Selector ...................... 92
ECON Mode .................................... 100, 473
Electric Power Steering (EPS) System .. 95, 648
EV ............................................................. 90
EV Mode ................................................... 90
Fog Light ................................................... 98
High Beam................................................. 98
Immobilizer System .................................... 99
Lane Keeping Assist System (LKAS) (Amber) ................................................. 102
Lane Keeping Assist System (LKAS)
(Green) .......................................... 102, 519
Lights On ................................................... 98
Low Fuel .................................................... 94
Low Tire Pressure/TPMS ............. 97, 478, 481
Malfunction Indicator Lamp ............... 91, 645
Parking Brake and Brake System
(Amber) ........................................... 86, 647
Parking Brake and Brake System (Red) ........................................ 85, 646, 647 POWER SYSTEM ........................................ 89
READY ...................................................... 90
Safety Support (Amber) ........................... 103
Safety Support (Green/Gray) .................... 106
Seat Belt Reminder .............................. 47, 94
Security System Alarm ............................... 99
Shift Position ............................................. 92
SPORT Mode ................................... 100, 469
Supplemental Restraint System ............ 64, 95
System Message ...................................... 100
Transmission System.................................. 93
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA
®) OFF .. 96, 476
Vehicle Stability AssistTM (VSA ®)
System ............................................ 96, 475
Information .............................................. 661
Instant Fuel Economy ............................... 141
Instrument Panel ........................................ 83
Brightness Control................................... 210
Interior Lights ........................................... 222
Interior Rearview Mirror .......................... 212
Inverter Coolant ....................................... 581
iPad ........................................................... 344
iPhone ....................................................... 344
iPod ........................................... 256, 311, 344
J
Jack (Wheel Nut Wrench) ........................ 618
Jump Starting ........................................... 638
K
Key Number Tag ...................................... 173
Keyless Lockout Prevention ..................... 181
Keys ........................................................... 172
Lockout Prevention ................................. 181
Number Tag............................................ 173
Rear Door Won’t Open ........................... 184
Remote Transmitter ................................ 179
Types and Functions................................ 172
L
Lane Keeping Assist System (LKAS) ........ 517
Language (HFL) ........................................ 422
LATCH (Child Seats) ................................... 73
Left Selector Wheel ................................. 158
Lights ................................................ 200, 585
Automatic............................................... 201
Bulb Replacement ................................... 585
Daytime Running Lights .......................... 203
Fog Lights ............................................... 203
High Beam Indicator ................................. 98
Interior.................................................... 222
Light Switches......................................... 200
Lights On Indicator .................................... 98
Turn Signals ............................................ 199
Load Limits ............................................... 451
Locking/Unlocking ................................... 172
Auto Door Locking/Unlocking ................. 185
Childproof Door Locks ............................ 184
From Inside ............................................. 182
21 INSIGHT-31TXM6200.book 678 ページ ２０２０年２月５日　水曜日　午前１０時０分
