HONDA INSIGHT 2021 Owner's Manual (in English)

579
uuMaintenance Under the Hood uCooling System
Continued
Maintenance

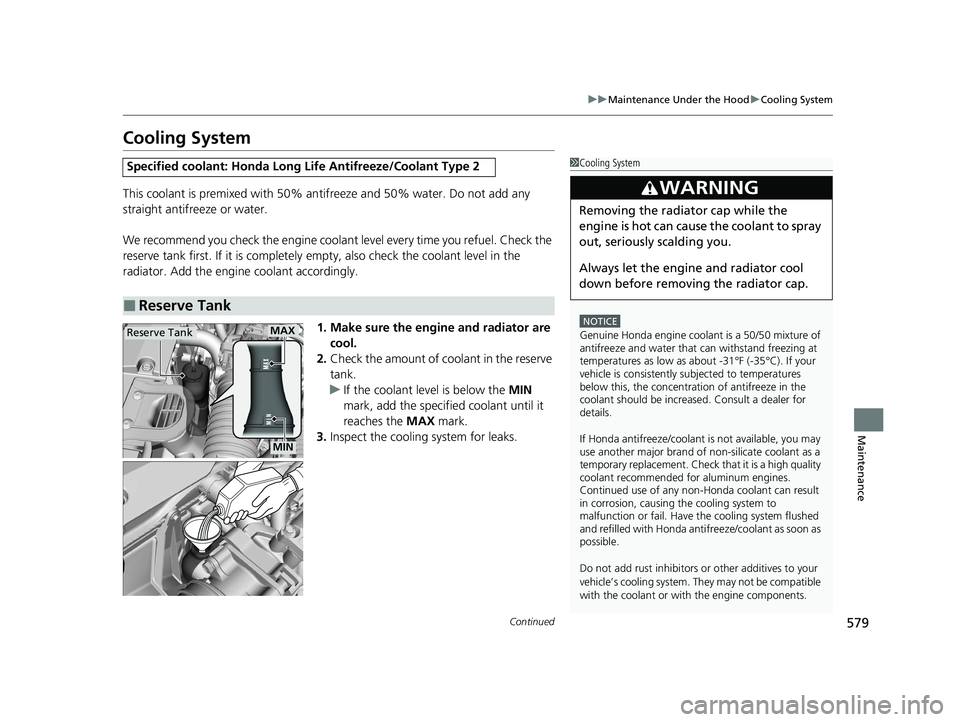

Cooling System
This coolant is premixed with 50% an tifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
3. Inspect the cooling system for leaks.
Specified coolant: Ho nda Long Life Antifreeze/Coolant Type 2
■Reserve Tank
1Cooling System
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. Th ey may not be compatible
with the coolant or with the engine components.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve TankMAX
MIN
21 INSIGHT-31TXM6200.book 579 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuMaintenance Under the Hood uCooling System
580
Maintenance

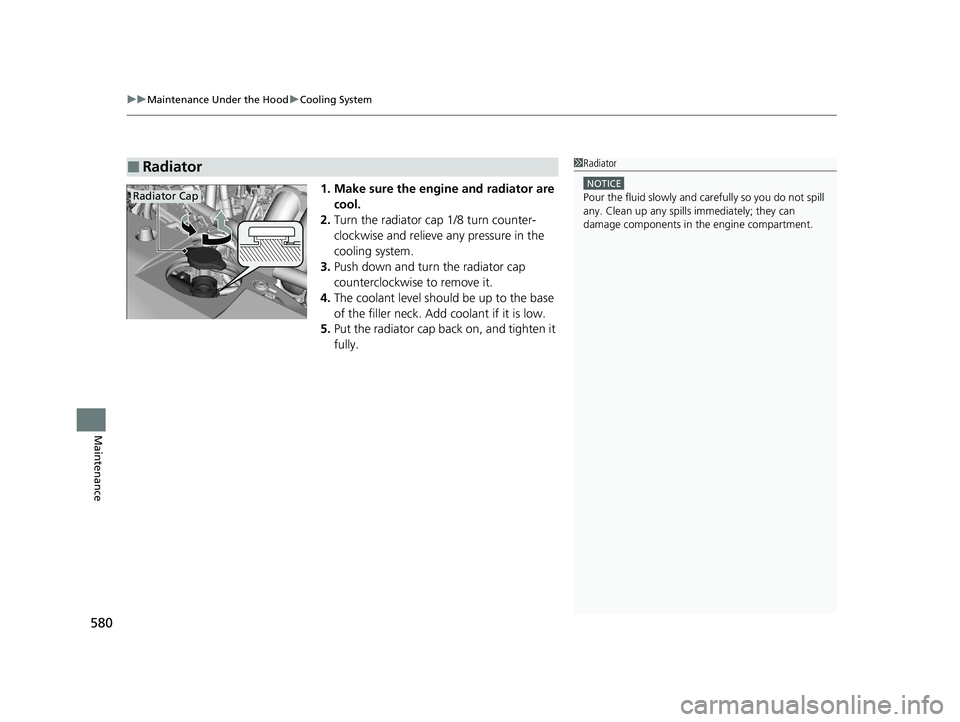

1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap 1/8 turn counter-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
■Radiator1Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.Radiator Cap
21 INSIGHT-31TXM6200.book 580 ページ ２０２０年２月５日　水曜日　午前１０時０分

581
uuMaintenance Under the Hood uInverter Coolant
Maintenance

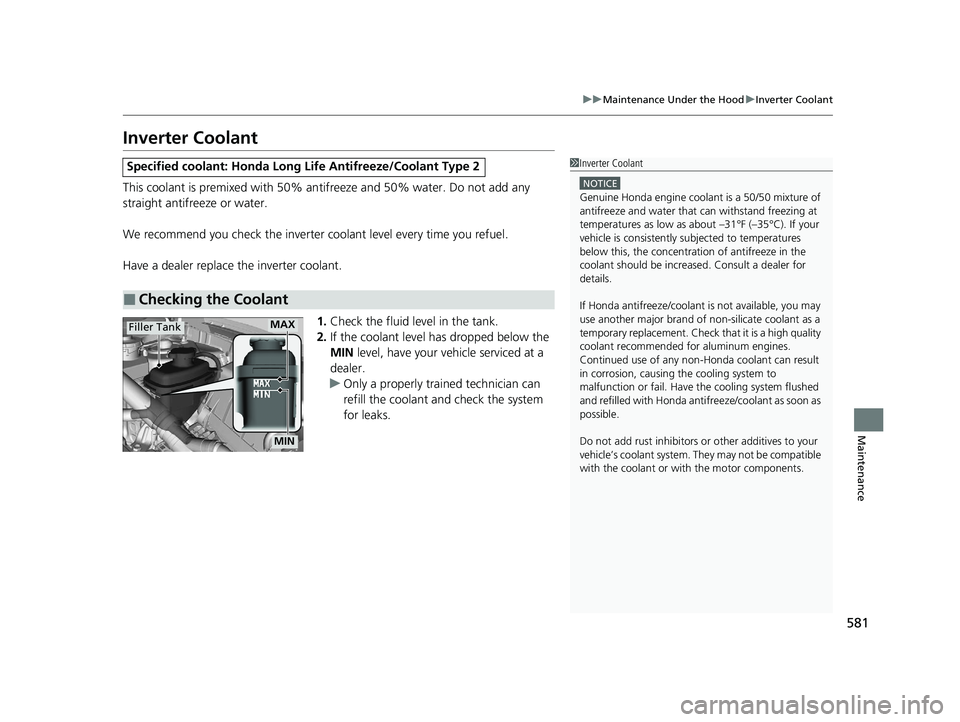

Inverter Coolant
This coolant is premixed with 50% an tifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the inverter coolant level every time you refuel.
Have a dealer replace the inverter coolant.
1.Check the fluid level in the tank.
2. If the coolant level has dropped below the
MIN level, have your ve hicle serviced at a
dealer.
u Only a properly trained technician can
refill the coolant and check the system
for leaks.
Specified coolant: Ho nda Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
1Inverter Coolant
NOTICE
Genuine Honda engine coolan t is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as a bout –31°F (–35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.
If Honda antifreeze /coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda anti freeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s coolant system. They may not be compatible
with the coolant or with the motor components.
MAX
MIN
Filler Tank
21 INSIGHT-31TXM6200.book 581 ページ ２０２０年２月５日　水曜日　午前１０時０分

582
uuMaintenance Under the Hood uTransmission Fluid
Maintenance

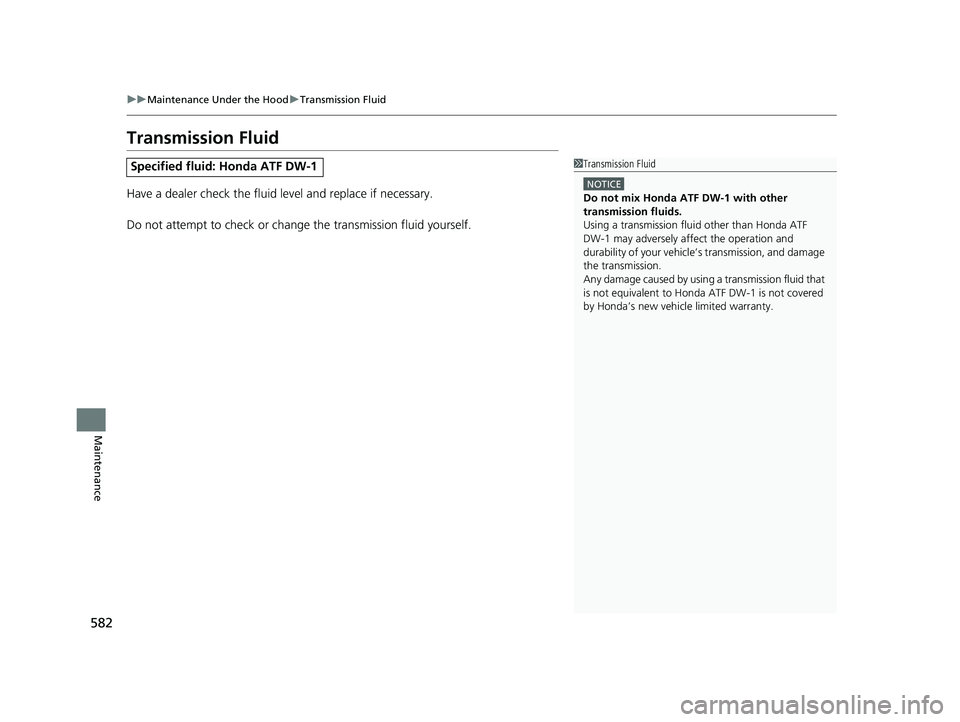

Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the transmission fluid yourself.
Specified fluid: Honda ATF DW-11Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehi cle limited warranty.
21 INSIGHT-31TXM6200.book 582 ページ ２０２０年２月５日　水曜日　午前１０時０分

583
uuMaintenance Under the Hood uBrake Fluid
Maintenance

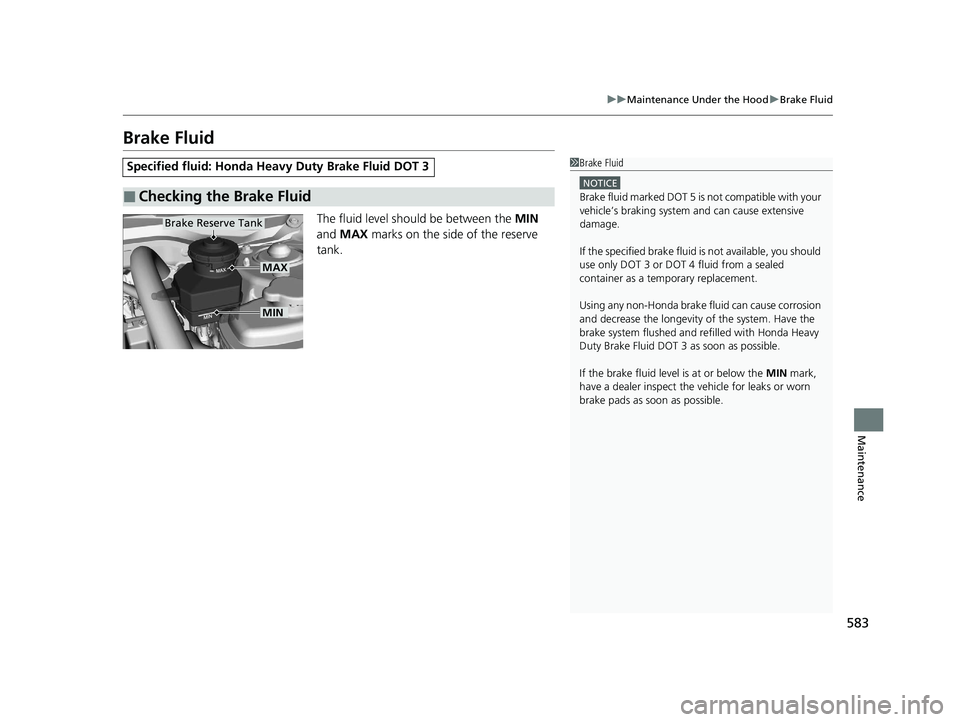

Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Specified fluid: Honda Heav y Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
MIN
MAX
Brake Reserve Tank
21 INSIGHT-31TXM6200.book 583 ページ ２０２０年２月５日　水曜日　午前１０時０分

584
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance

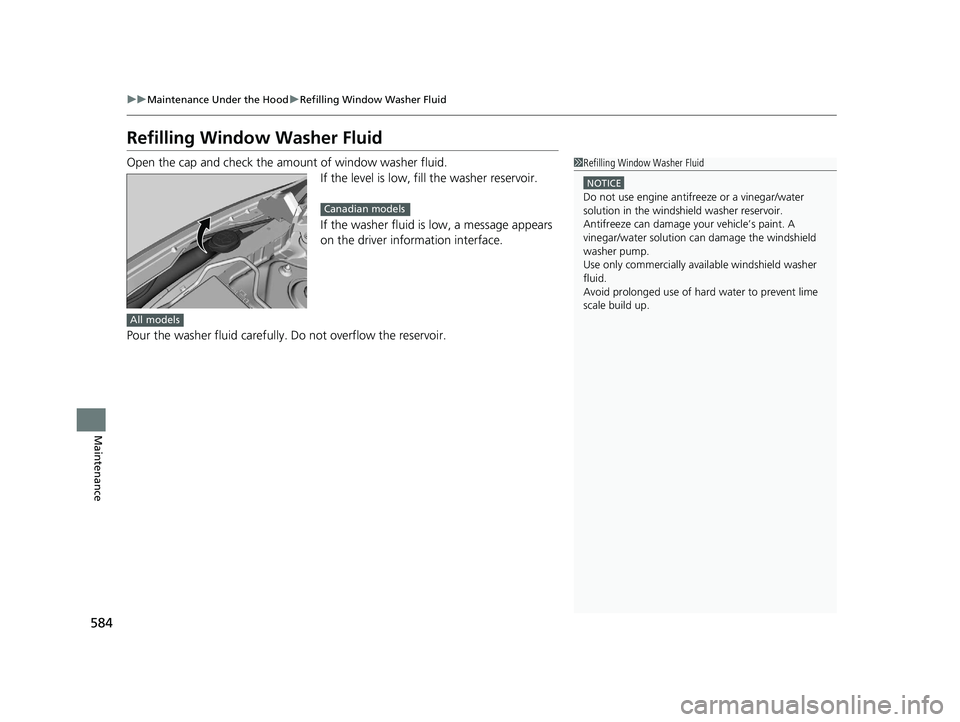

Refilling Window Washer Fluid
Open the cap and check the amo unt of window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.Canadian models
All models
21 INSIGHT-31TXM6200.book 584 ページ ２０２０年２月５日　水曜日　午前１０時０分

585
Maintenance

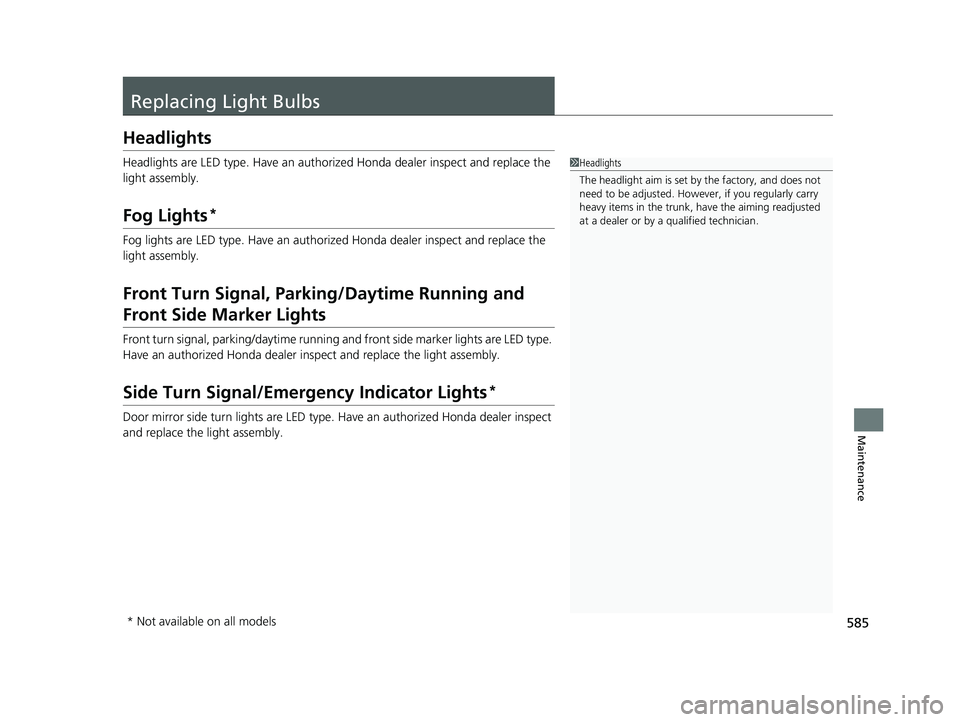

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Front Turn Signal, Park ing/Daytime Running and
Front Side Marker Lights
Front turn signal, parking/daytime running and front side marker lights are LED type.
Have an authorized Honda dealer in spect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
21 INSIGHT-31TXM6200.book 585 ページ ２０２０年２月５日　水曜日　午前１０時０分

586
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance

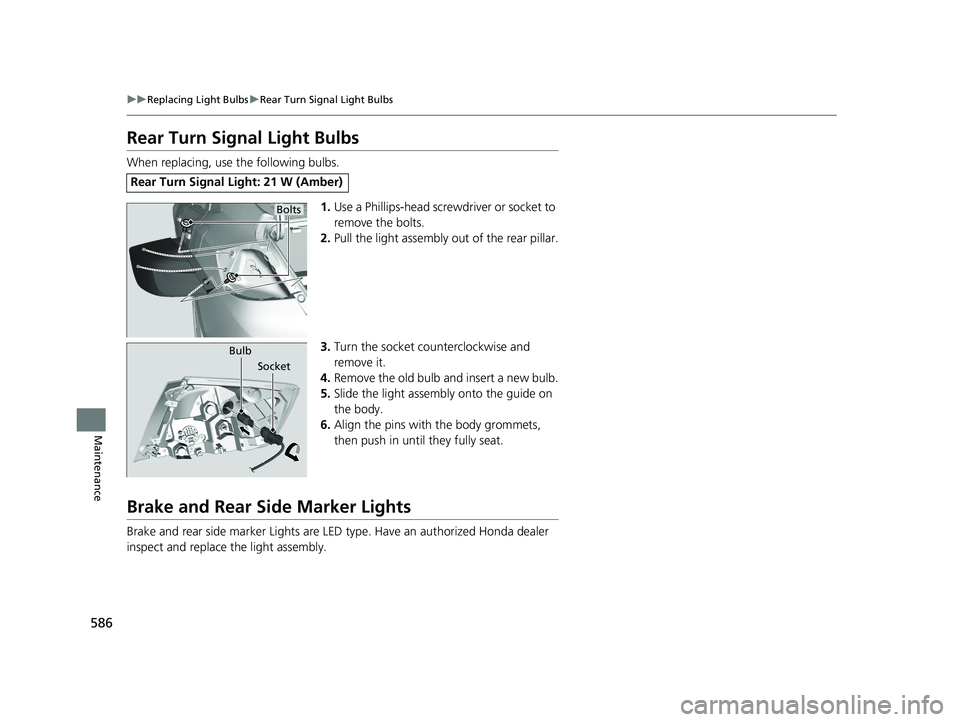

Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counterclockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in unt il they fully seat.
Brake and Rear Side Marker Lights
Brake and rear side marker Lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.
Rear Turn Signal Light: 21 W (Amber)
Bolts
Bulb
Socket
21 INSIGHT-31TXM6200.book 586 ページ ２０２０年２月５日　水曜日　午前１０時０分

587
uuReplacing Light Bulbs uTaillights
Maintenance

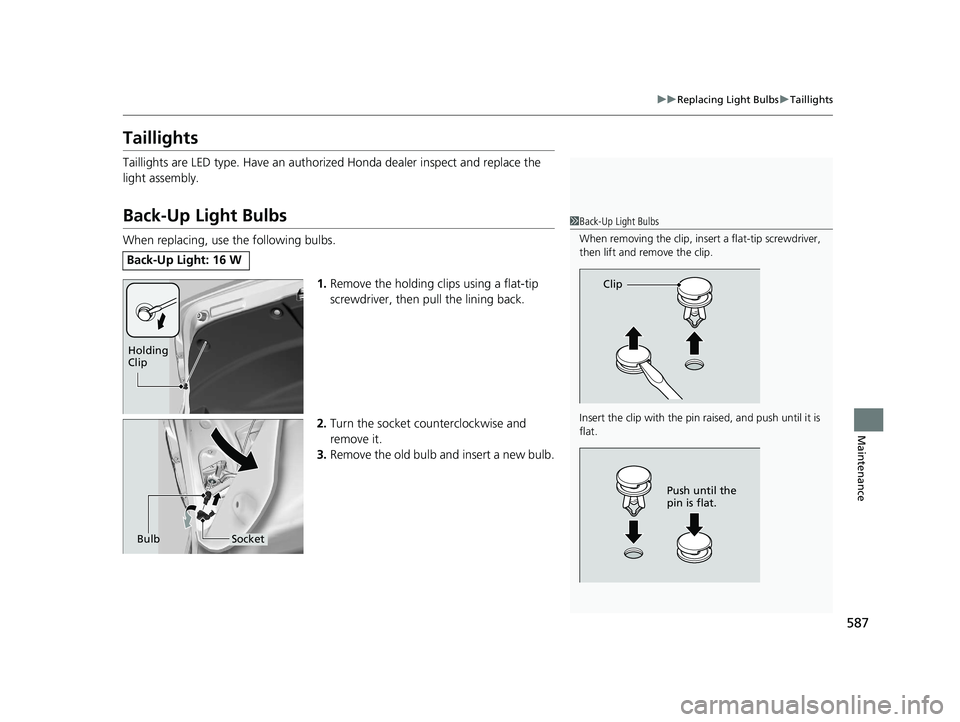

Taillights
Taillights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
2. Turn the socket counterclockwise and
remove it.
3. Remove the old bulb and insert a new bulb.
Back-Up Light: 16 W
1Back-Up Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat.
Holding
Clip
BulbSocket
21 INSIGHT-31TXM6200.book 587 ページ ２０２０年２月５日　水曜日　午前１０時０分

588
uuReplacing Light Bulbs uRear License Plate Light
Maintenance

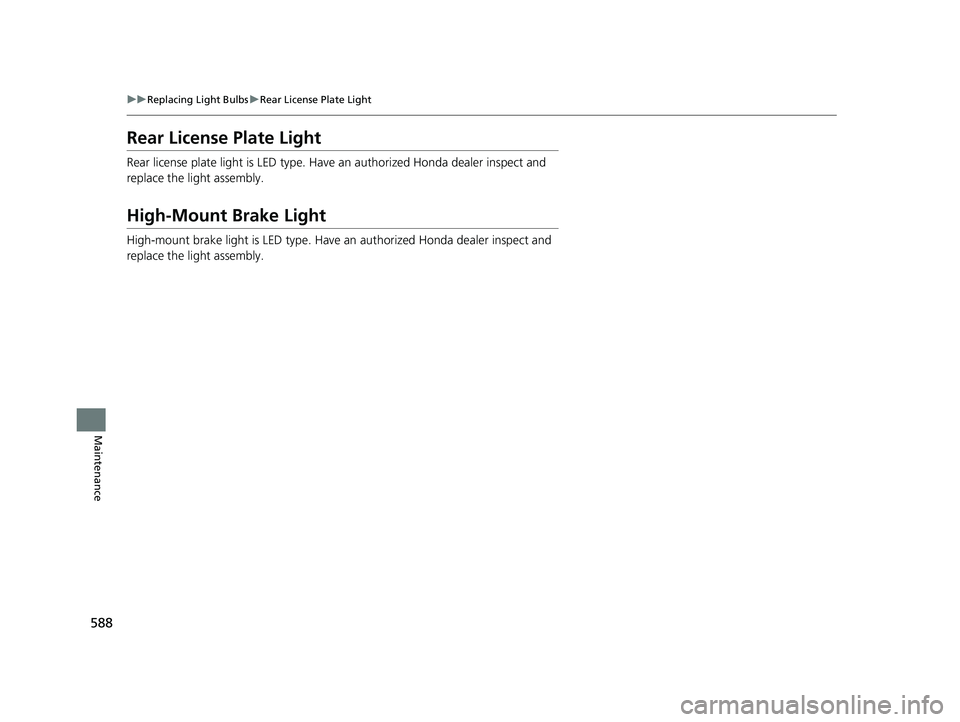

Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
