parking sensors HONDA INSIGHT 2021 Owner's Manual (in English)

551
uuParking Your Vehicle uCross Traffic Monitor*
Continued
Driving
Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.
The system is convenient when you are backing out of a parking space.1Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
21 INSIGHT-31TXM6200.book 551 ページ ２０２０年２月５日　水曜日　午前１０時０分

uuParking Your Vehicle uCross Traffic Monitor*
552
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 553
2 Customized Features P. 372
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestri ans, bicycles, or stationary objects.
■How the System Works1Cross Traffic Monitor*
Cross traffic monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilt ed due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the sens ors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
21 INSIGHT-31TXM6200.book 552 ページ ２０２０年２月５日　水曜日　午前１０時０分

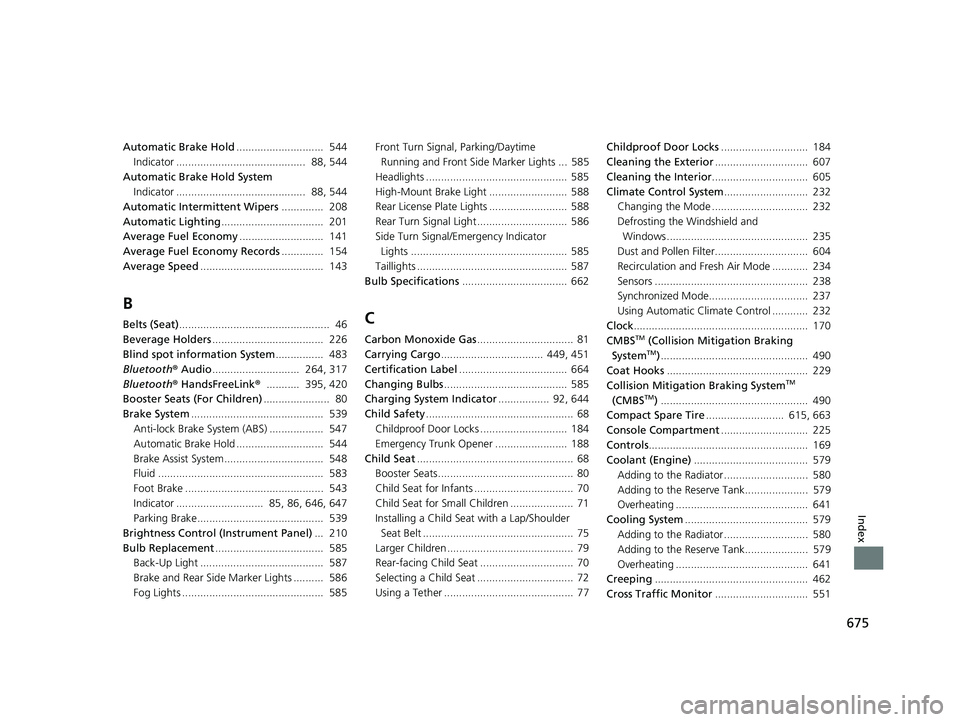

675
Index
Automatic Brake Hold............................. 544
Indicator ........................................... 88, 544
Automatic Brake Hold System Indicator ........................................... 88, 544
Automatic Intermittent Wipers .............. 208
Automatic Lighting .................................. 201
Average Fuel Economy ............................ 141
Average Fuel Economy Records .............. 154
Average Speed ......................................... 143
B
Belts (Seat).................................................. 46
Beverage Holders ..................................... 226
Blind spot information System ................ 483
Bluetooth ® Audio ............................. 264, 317
Bluetooth ® HandsFreeLink ®........... 395, 420
Booster Seats (For Children) ...................... 80
Brake System ............................................ 539
Anti-lock Brake System (ABS) .................. 547
Automatic Brake Hold ............................. 544
Brake Assist System................................. 548
Fluid ....................................................... 583
Foot Brake .............................................. 543
Indicator ............................. 85, 86, 646, 647
Parking Brake.......................................... 539
Brightness Control (Instrument Panel) ... 210
Bulb Replacement .................................... 585
Back-Up Light ......................................... 587
Brake and Rear Side Marker Lights .......... 586
Fog Lights ............................................... 585 Front Turn Signal,
Parking/Daytime
Running and Front Side Marker Lights ... 585
Headlights ............................................... 585
High-Mount Brake Light .......................... 588
Rear License Plate Lights .......................... 588
Rear Turn Signal Light .............................. 586
Side Turn Signal/Em ergency Indicator
Lights .................................................... 585
Taillights .................................................. 587
Bulb Specifications ................................... 662C
Carbon Monoxide Gas ................................ 81
Carrying Cargo .................................. 449, 451
Certification Label .................................... 664
Changing Bulbs ......................................... 585
Charging System Indicator ................. 92, 644
Child Safety ................................................. 68
Childproof Door Locks ............................. 184
Emergency Trunk Opener ........................ 188
Child Seat .................................................... 68
Booster Seats ............................................. 80
Child Seat for Infants ................................. 70
Child Seat for Small Children ..................... 71
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 75
Larger Children .......................................... 79
Rear-facing Child Seat ............................... 70
Selecting a Child Seat ................................ 72
Using a Tether ........................................... 77 Childproof Door Locks
............................. 184
Cleaning the Exterior ............................... 607
Cleaning the Interior ................................ 605
Climate Control System ............................ 232
Changing the Mode ................................ 232
Defrosting the Windshield and Windows ............................................... 235
Dust and Pollen Filter............................... 604
Recirculation and Fresh Air Mode ............ 234
Sensors ................................................... 238
Synchronized Mode................................. 237
Using Automatic Climate Control ............ 232
Clock .......................................................... 170
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 490
Coat Hooks ............................................... 229
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 490
Compact Spare Tire .......................... 615, 663
Console Compartment ............................. 225
Controls ..................................................... 169
Coolant (Engine) ...................................... 579
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 641
Cooling System ......................................... 579
Adding to the Radiator ............................ 580
Adding to the Reserve Tank..................... 579
Overheating ............................................ 641
Creeping ................................................... 462
Cross Traffic Monitor ............................... 551
21 INSIGHT-31TXM6200.book 675 ページ ２０２０年２月５日　水曜日　午前１０時０分
