uuChild Safety uSafety of Infants and Small Children
72
Safe Driving

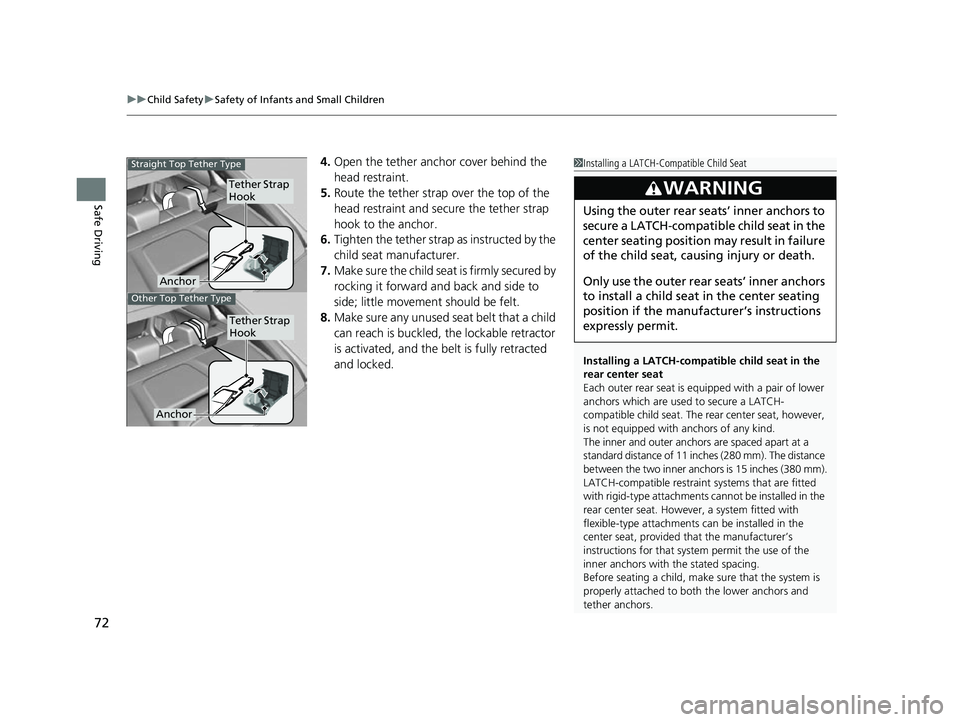

4. Open the tether anchor cover behind the
head restraint.
5. Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor.
6. Tighten the tether strap as instructed by the
child seat manufacturer.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a LATCH-Compatible Child Seat
Installing a LATCH-compatible child seat in the
rear center seat
Each outer rear seat is equi pped with a pair of lower
anchors which are used to secure a LATCH-
compatible child seat. The rear center seat, however,
is not equipped with anchors of any kind.
The inner and outer anchors are spaced apart at a
standard distance of 11 in ches (280 mm). The distance
between the two inner anchors is 15 inches (380 mm).
LATCH-compatible restraint systems that are fitted
with rigid-type attachments cannot be installed in the
rear center seat. However, a system fitted with
flexible-type attachments can be installed in the
center seat, provided that the manufacturer’s
instructions for that system permit the use of the
inner anchors with the stated spacing.
Before seating a child, make sure that the system is
properly attached to both the lower anchors and
tether anchors.
3WARNING
Using the outer rear seats’ inner anchors to
secure a LATCH-compatible child seat in the
center seating position may result in failure
of the child seat, causing injury or death.
Only use the outer rear seats’ inner anchors
to install a child seat in the center seating
position if the manufa cturer’s instructions
expressly permit.
Anchor
Tether Strap
Hook
Anchor
Tether Strap
Hook
Straight Top Tether Type
Other Top Tether Type
22 INSIGHT HMIN-31TXM6300.book 72 ページ ２０２１年２月２４日　水曜日　午後３時４５分

79
Safe Driving

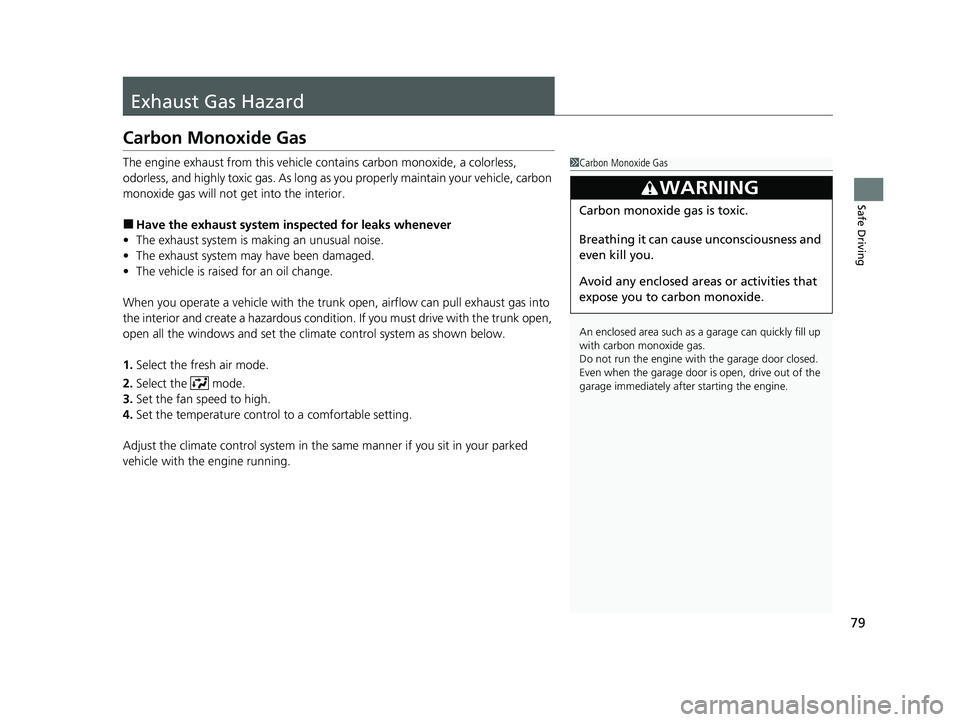

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is ma king an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
22 INSIGHT HMIN-31TXM6300.book 79 ページ ２０２１年２月２４日　水曜日　午後３時４５分

80
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the da shboard label which may be removed by the owner), contact a deal er for a
replacement.
Sun Visor
Radiator Cap Dashboard
Air Conditioner SystemRadiator Cap
22 INSIGHT HMIN-31TXM6300.book 80 ページ ２０２１年２月２４日　水曜日　午後３時４５分

82
Instrument Panel

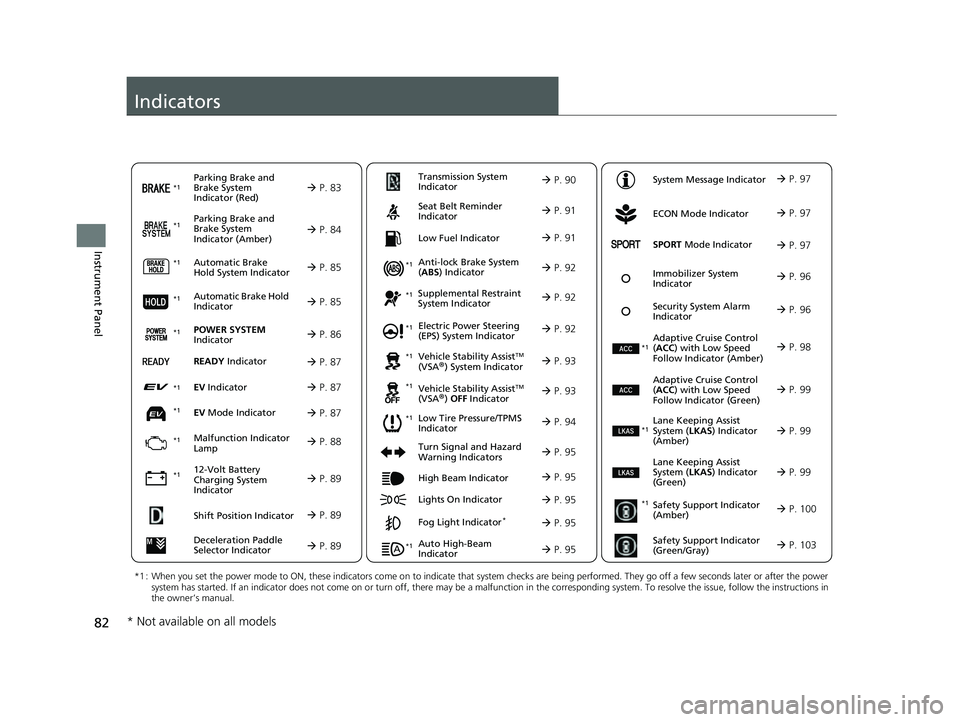

Indicators
Deceleration Paddle
Selector Indicator P. 89
1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN

*OEJDBUPS
3FE

1BSLJOH
#SBLF
BOE

#SBLF
4ZTUFN

*OEJDBUPS
"NCFS

"VUPNBUJD
#SBLF

)PME
4ZTUFN
*OEJDBUPS
"VUPNBUJD
#SBLF
)PME

*OEJDBUPS
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To re solve the issue, follow the instructions in
the owner’s manual.
 P. 83
.BMGVODUJPO
*OEJDBUPS

-BNQ
7PMU
#BUUFSZ

$IBSHJOH
4ZTUFN

*OEJDBUPS
"OUJMPDL
#SBLF
4ZTUFN

ABS ) Indicator
Seat Belt Reminder
Indicator
Low Fuel Indicator
Vehicle Stability AssistTM
(VSA®) System Indicator
Vehicle Stability Assist
TM
(VSA®) OFF Indicator
Supplemental Restraint
System Indicator
Auto High-Beam
Indicator
Low Tire Pressure/TPMS
Indicator Electric Power Steering
(EPS) System Indicator
Turn Signal and Hazard
Warning Indicators
Lights On Indicator High Beam Indicator
Fog Light Indicator*
ECON Mode Indicator
System Message Indicator
SPORT
Mode Indicator
Adaptive Cruise Control
( ACC ) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist
System ( LKAS) Indicator
(Amber)
Safety Support Indicator
(Amber)
Safety Support Indicator
(Green/Gray)
 P. 84
 P. 85
 P. 85
 P. 88
 P. 89
*1
*1 *1

P. 94
*1
*1
Shift Position Indicator P. 89
Transmission System
Indicator P. 90
 P. 91
 P. 91
 P. 92
 P. 92
 P. 95

P. 93
*1
*1
*1
 P. 93
*1 P. 92
 P. 95 
P. 98
*1
 P. 95
 P. 95 
P. 97
 P. 95 
P. 97
 P. 97
 P. 99
 P. 100
 P. 103
*1
Adaptive Cruise Control
(ACC ) with Low Speed
Follow Indicator (Green) P. 99
*1
Lane Keeping Assist
System ( LKAS) Indicator
(Green) P. 99
*1
POWER SYSTEM
Indicator P. 86*1
READY Indicator P. 87
EV Indicator P. 87*1
EV Mode Indicator P. 87*1
*1
Immobilizer System
Indicator P. 96
4FDVSJUZ
4ZTUFN
"MBSN

*OEJDBUPS
 P. 96
*1 *1
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 82 ページ ２０２１年２月２４日　水曜日　午後３時４５分

83
uuIndicators u
Continued
Instrument Panel

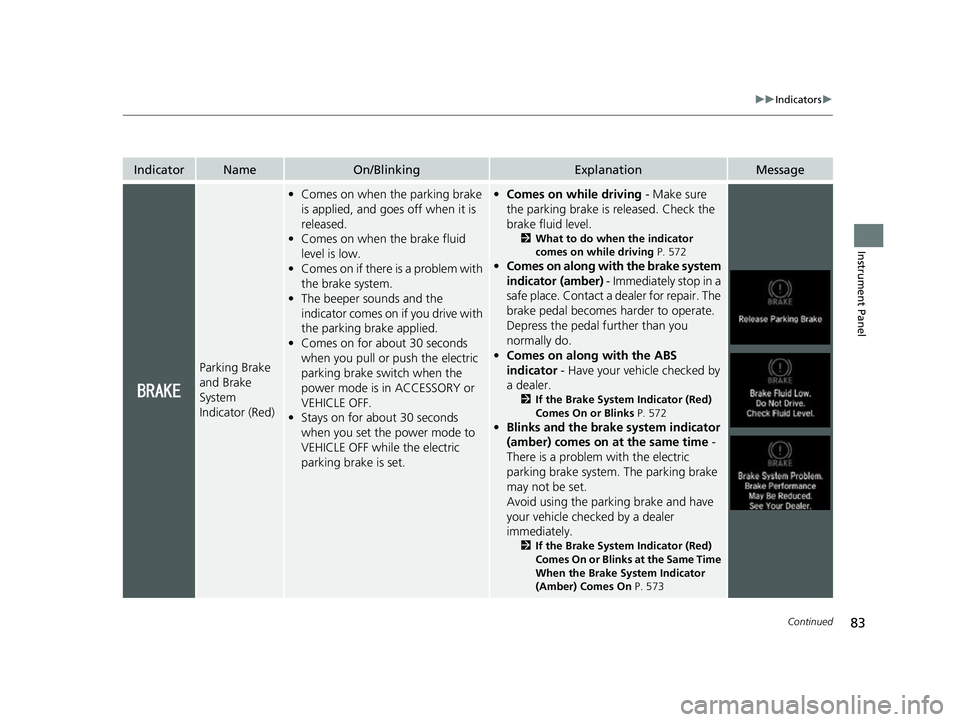

IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator (Red)
•Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem with
the brake system.
• The beeper sounds and the
indicator comes on if you drive with
the parking brake applied.
• Comes on for about 30 seconds
when you pull or push the electric
parking brake switch when the
power mode is in ACCESSORY or
VEHICLE OFF.
• Stays on for about 30 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is set.•Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 572
•Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
• Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 572
•Blinks and the brake system indicator
(amber) comes on at the same time -
There is a problem with the electric
parking brake system. The parking brake
may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same Time
When the Brake System Indicator
(Amber) Comes On P. 573
22 INSIGHT HMIN-31TXM6300.book 83 ページ ２０２１年２月２４日　水曜日　午後３時４５分

84
uuIndicators u
Instrument Panel

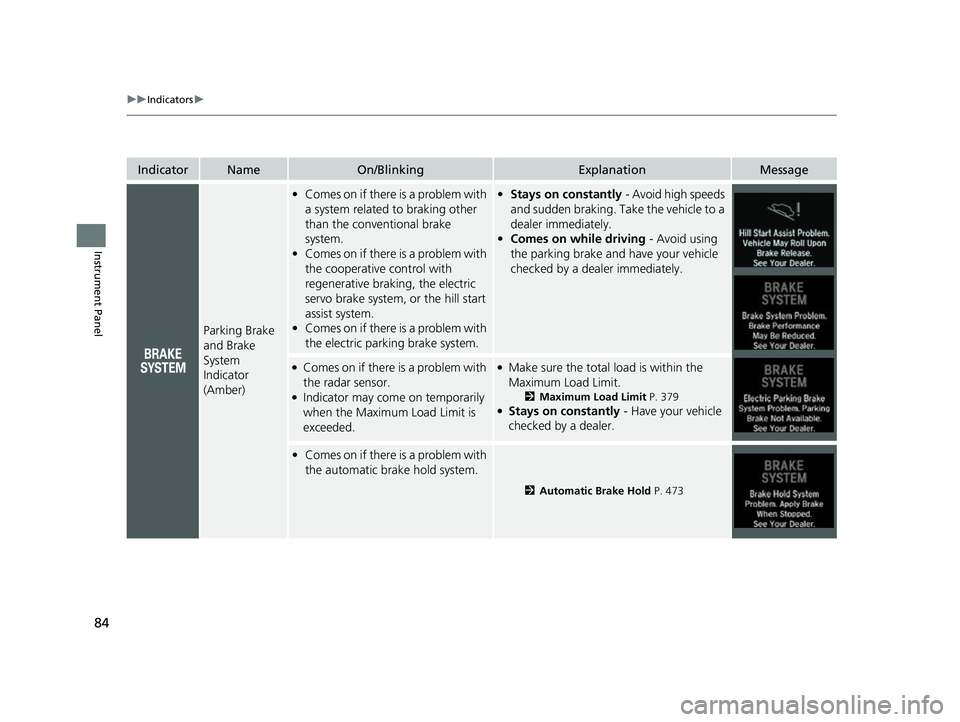

IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System
Indicator
(Amber)
•Comes on if there is a problem with
a system related to braking other
than the conventional brake
system.
• Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
• Comes on if there is a problem with
the electric parking brake system.• Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to a
dealer immediately.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
●Comes on if there is a problem with
the radar sensor.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 379●Stays on constantly - Have your vehicle
checked by a dealer.
• Comes on if there is a problem with
the automatic brake hold system.
2 Automatic Brake Hold P. 473
22 INSIGHT HMIN-31TXM6300.book 84 ページ ２０２１年２月２４日　水曜日　午後３時４５分

85
uuIndicators u
Continued
Instrument Panel

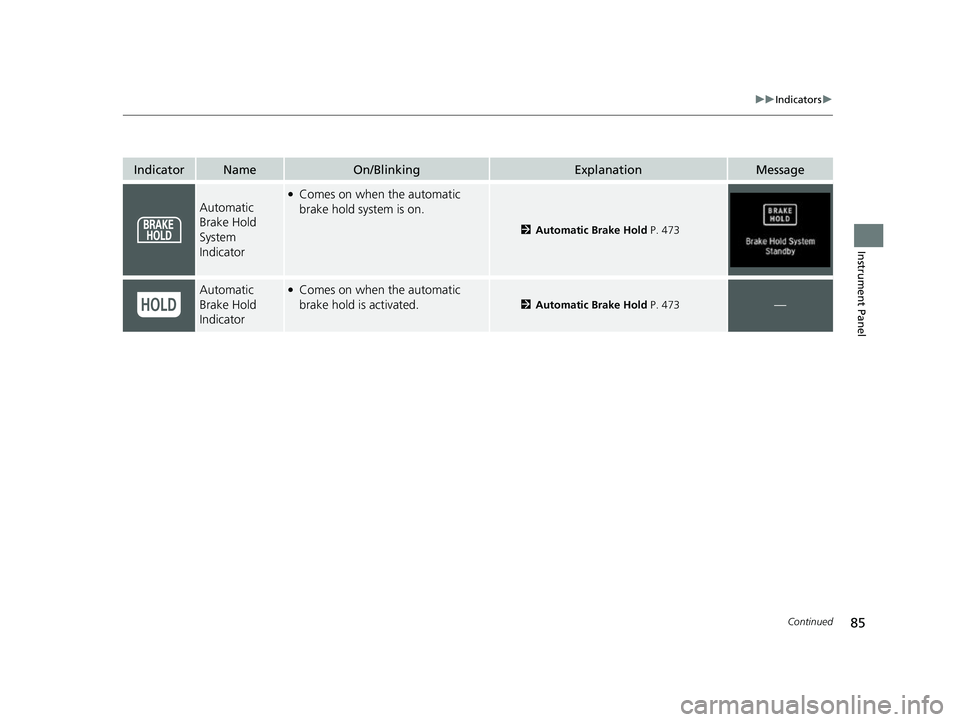

IndicatorNameOn/BlinkingExplanationMessage
Automatic
Brake Hold
System
Indicator
●Comes on when the automatic
brake hold system is on.
2Automatic Brake Hold P. 473
Automatic
Brake Hold
Indicator●Comes on when the automatic
brake hold is activated.
2Automatic Brake Hold P. 473—
22 INSIGHT HMIN-31TXM6300.book 85 ページ ２０２１年２月２４日　水曜日　午後３時４５分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on if there is a problem with
the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes high.
●Have your vehicle checked by a dealer.
22 INSIGHT HMIN-31TXM6300.book 86 ページ ２０２１年２月２４日　水曜日　午後３時４５分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

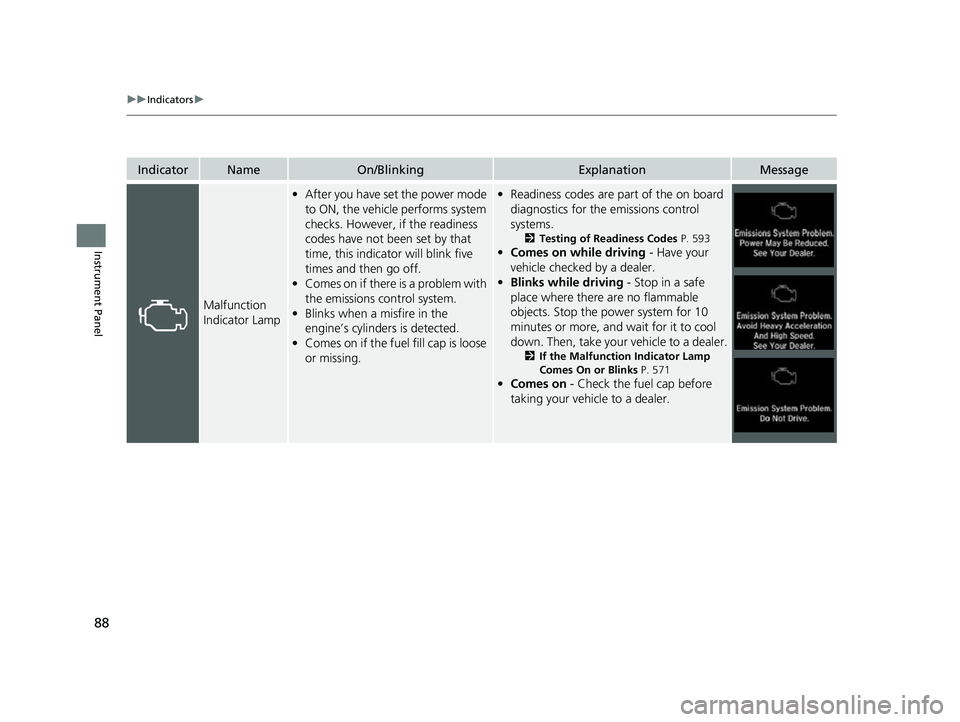

Malfunction
Indicator Lamp
•After you have set the power mode
to ON, the vehicle performs system
checks. However, if the readiness
codes have not been set by that
time, this indicator will blink five
times and then go off.
• Comes on if there is a problem with
the emissions control system.
• Blinks when a misfire in the
engine’s cylinders is detected.
• Comes on if the fuel fill cap is loose
or missing.• Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 593
•Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to cool
down. Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 571
•Comes on - Check the fuel cap before
taking your vehicle to a dealer.
22 INSIGHT HMIN-31TXM6300.book 88 ページ ２０２１年２月２４日　水曜日　午後３時４５分

89
uuIndicators u
Continued
Instrument Panel

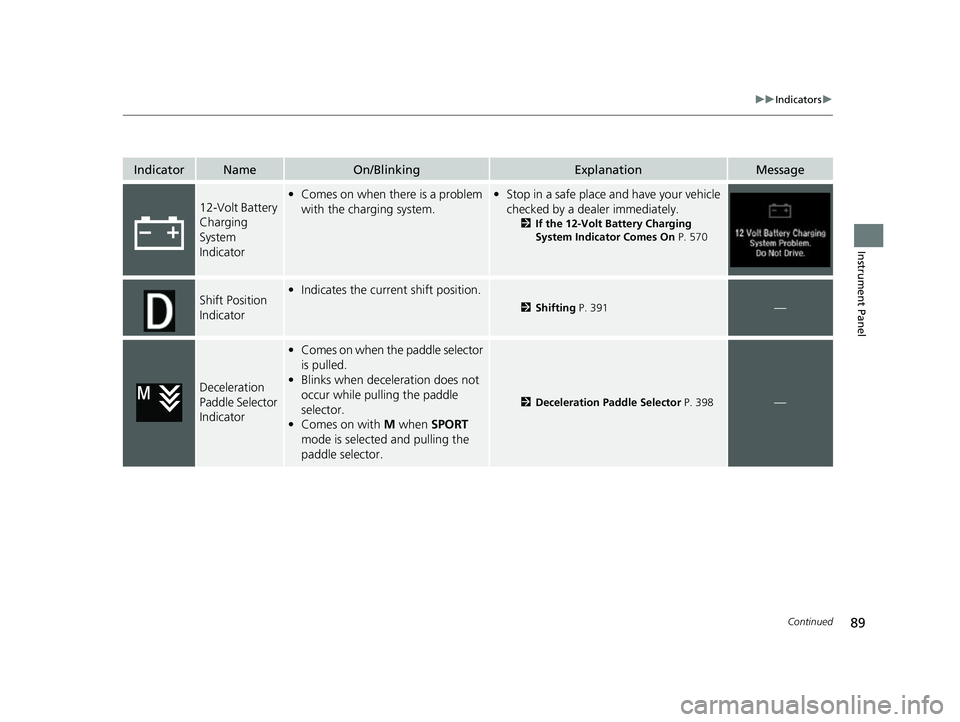

IndicatorNameOn/BlinkingExplanationMessage
12-Volt Battery
Charging
System
Indicator•Comes on when there is a problem
with the charging system.•Stop in a safe place and have your vehicle
checked by a dealer immediately.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 570
Shift Position
Indicator•Indicates the current shift position.
2 Shifting P. 391—
Deceleration
Paddle Selector
Indicator
•Comes on when the paddle selector
is pulled.
• Blinks when deceleration does not
occur while pulling the paddle
selector.
• Comes on with M when SPORT
mode is selected and pulling the
paddle selector.
2 Deceleration Paddle Selector P. 398—
22 INSIGHT HMIN-31TXM6300.book 89 ページ ２０２１年２月２４日　水曜日　午後３時４５分
