System HONDA INSIGHT 2022 Repair Manual

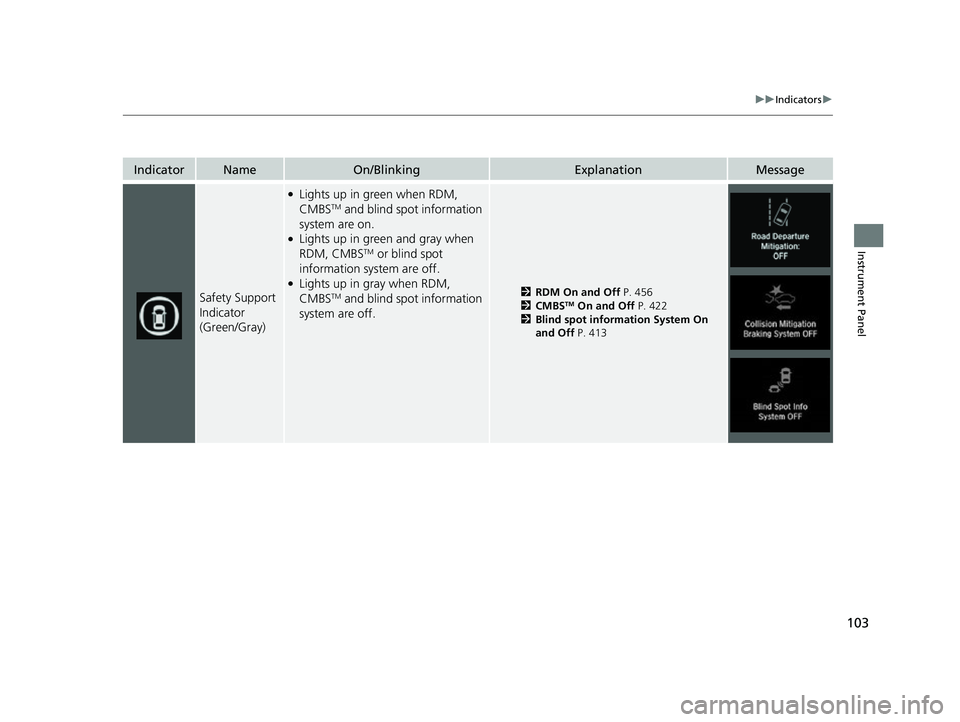

103
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Green/Gray)
●Lights up in green when RDM,
CMBSTM and blind spot information
system are on.
●Lights up in green and gray when
RDM, CMBSTM or blind spot
information system are off.
●Lights up in gray when RDM,
CMBSTM and blind spot information
system are off.2 RDM On and Off P. 456
2 CMBSTM On and Off P. 422
2 Blind spot information System On
and Off P. 413
22 INSIGHT HMIN-31TXM6300.book 103 ページ ２０２１年２月２４日　水曜日　午後３時４５分

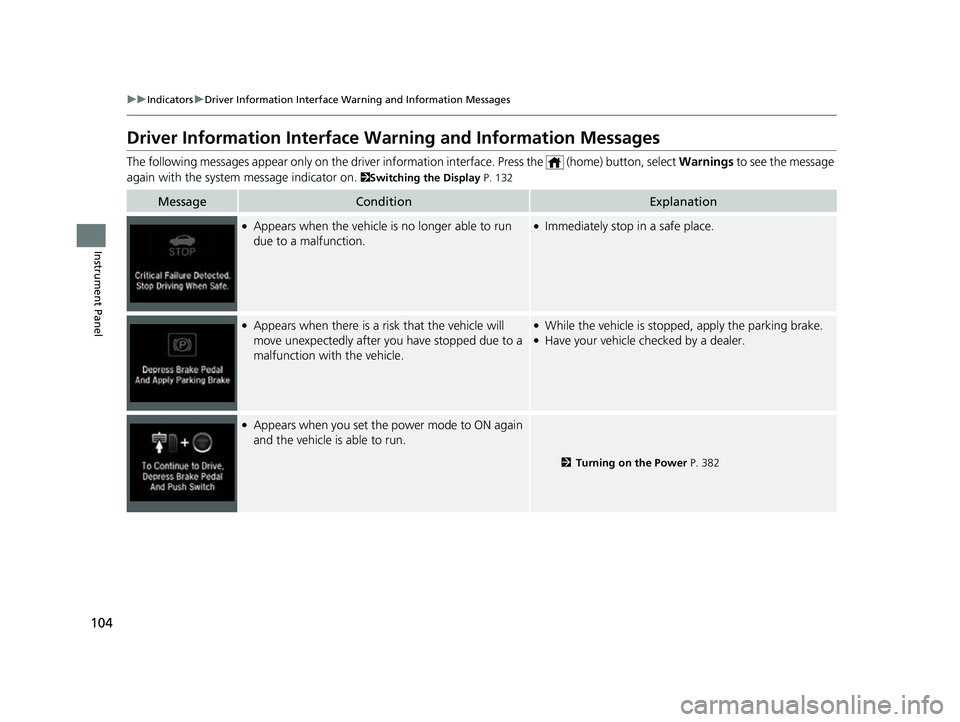

104
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings to see the message
again with the system message indicator on.
2Switching the Display P. 132
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when there is a risk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2 Turning on the Power P. 382
22 INSIGHT HMIN-31TXM6300.book 104 ページ ２０２１年２月２４日　水曜日　午後３時４５分

106
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 495
●Appears when there is a pr oblem with the sensor on
the 12-volt battery.●Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 528
●Appears if there is a problem with the cooling
system.●Drive slowly to prevent ov erheating and have your
vehicle checked by a deal er as soon as possible.
●Appears when the fuel fill cap is loose or is not
installed.
2Tighten Fuel Cap Message P. 571
22 INSIGHT HMIN-31TXM6300.book 106 ページ ２０２１年２月２４日　水曜日　午後３時４５分

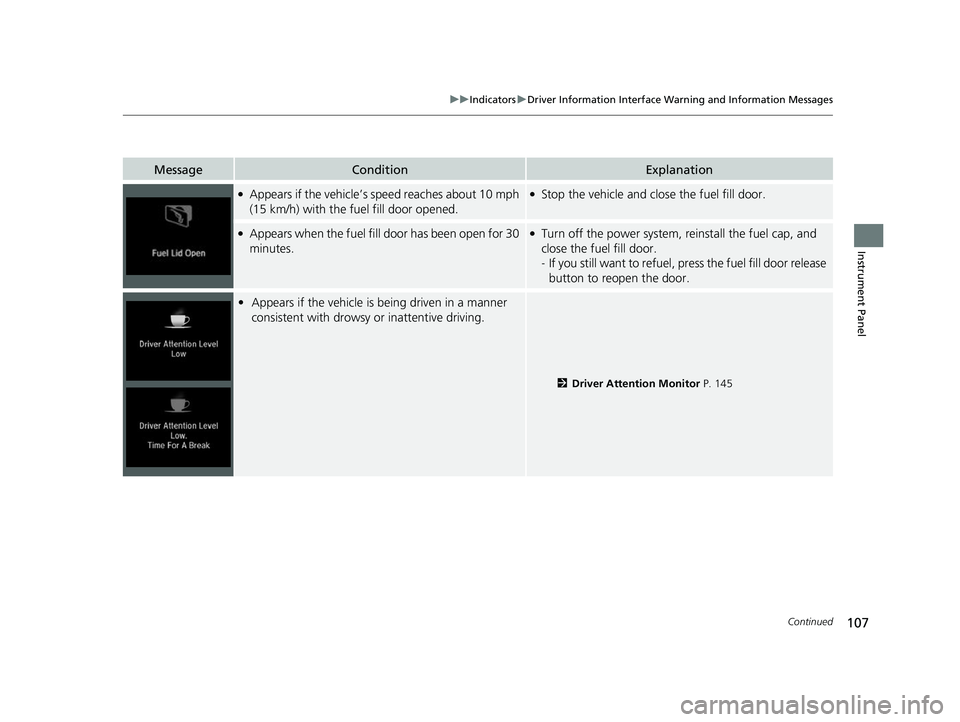

107
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the vehicle’s speed reaches about 10 mph
(15 km/h) with the fuel fill door opened.●Stop the vehicle and close the fuel fill door.
●Appears when the fuel fill door has been open for 30
minutes.●Turn off the power system, re install the fuel cap, and
close the fuel fill door.
- If you still want to refuel, press the fuel fill door release
button to reopen the door.
• Appears if the vehicle is being driven in a manner
consistent with drowsy or inattentive driving.
2 Driver Attention Monitor P. 145
22 INSIGHT HMIN-31TXM6300.book 107 ページ ２０２１年２月２４日　水曜日　午後３時４５分

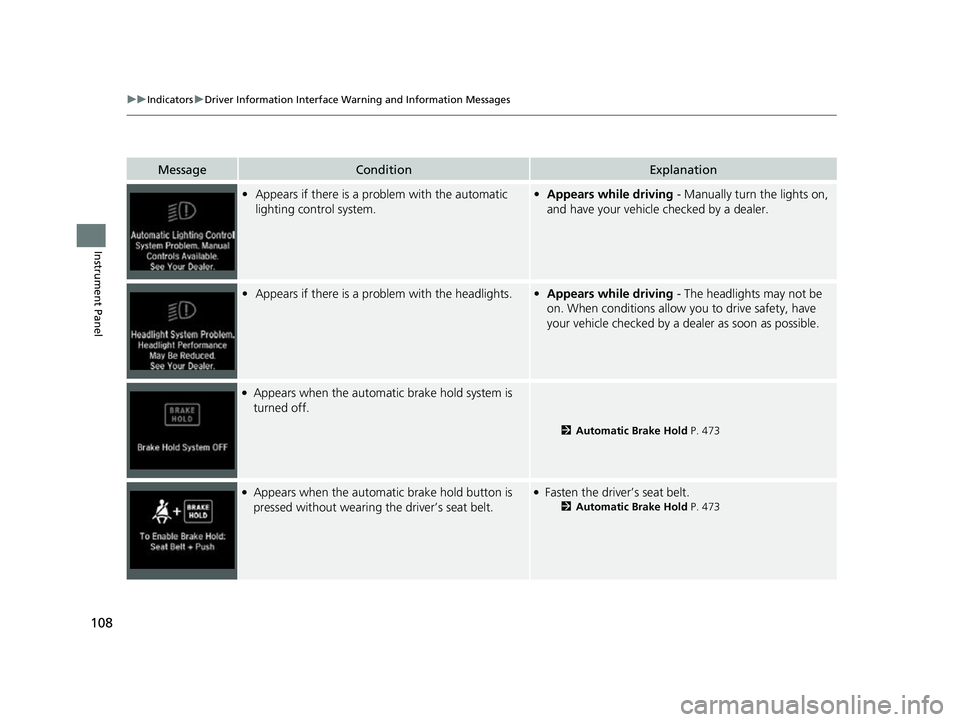

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the automatic
lighting control system.•Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a de aler as soon as possible.
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 473
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 473
22 INSIGHT HMIN-31TXM6300.book 108 ページ ２０２１年２月２４日　水曜日　午後３時４５分

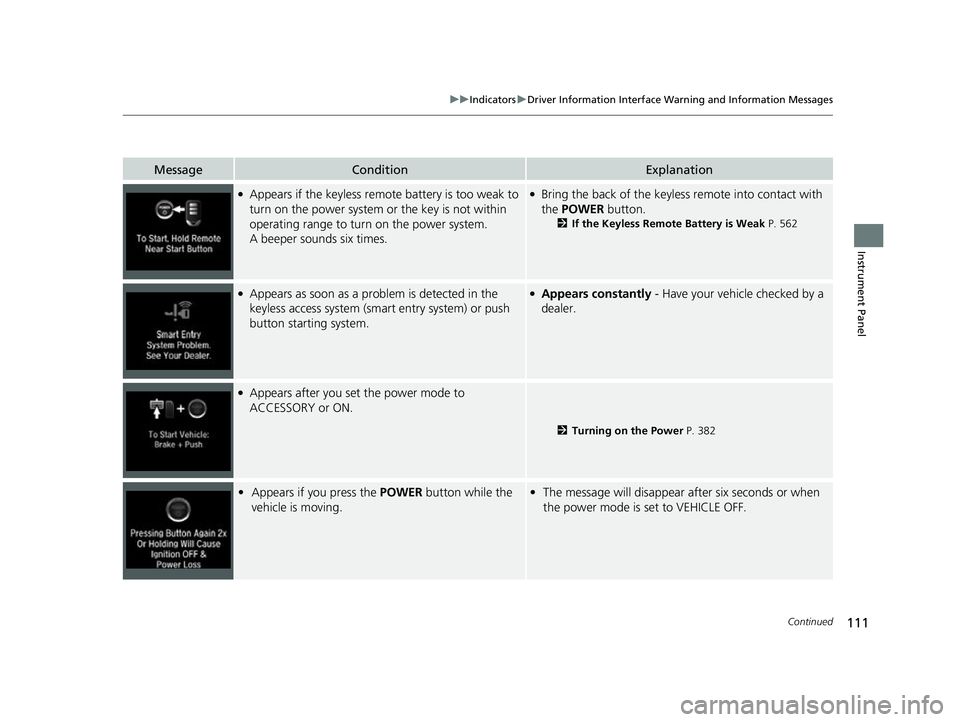

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the keyless remote battery is too weak to
turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.●Bring the back of the keyless remote into contact with
the POWER button.
2If the Keyless Remote Battery is Weak P. 562
●Appears as soon as a problem is detected in the
keyless access system (smart entry system) or push
button starting system.●Appears constantly - Have your vehicle checked by a
dealer.
●Appears after you set the power mode to
ACCESSORY or ON.
2 Turning on the Power P. 382
•Appears if you press the POWER button while the
vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
22 INSIGHT HMIN-31TXM6300.book 111 ページ ２０２１年２月２４日　水曜日　午後３時４５分

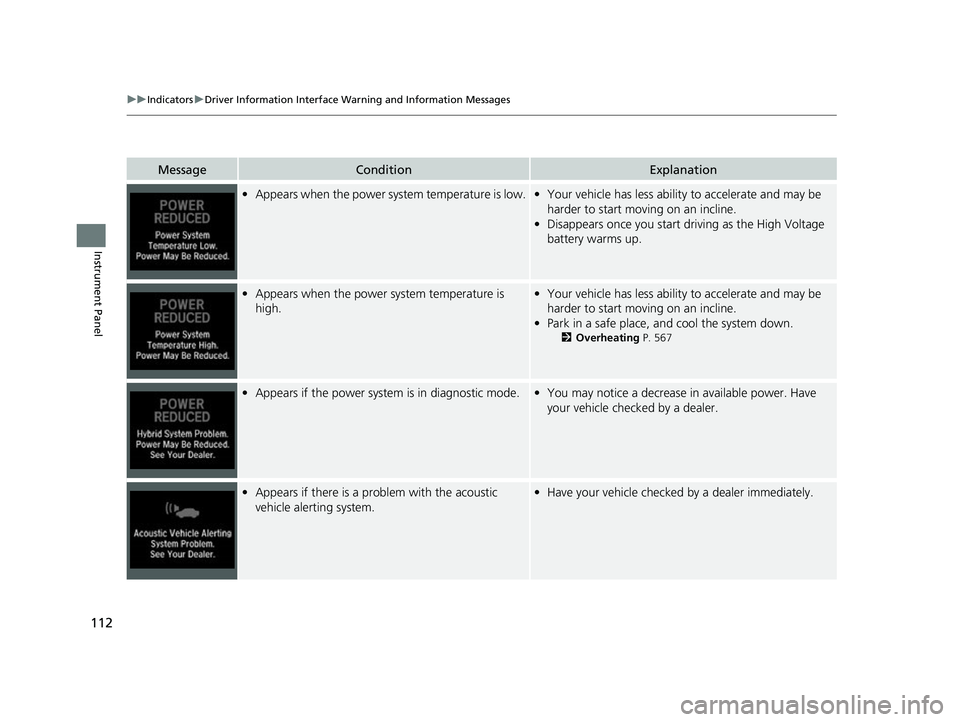

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the power system temperature is low.•Your vehicle has less abilit y to accelerate and may be
harder to start moving on an incline.
• Disappears once you start dr iving as the High Voltage
battery warms up.
• Appears when the power system temperature is
high.•Your vehicle has less abilit y to accelerate and may be
harder to start moving on an incline.
• Park in a safe place, and cool the system down.
2 Overheating P. 567
•Appears if the power system is in diagnostic mode.•You may notice a decrease in available power. Have
your vehicle checked by a dealer.
• Appears if there is a problem with the acoustic
vehicle alerting system.•Have your vehicle checked by a dealer immediately.
22 INSIGHT HMIN-31TXM6300.book 112 ページ ２０２１年２月２４日　水曜日　午後３時４５分

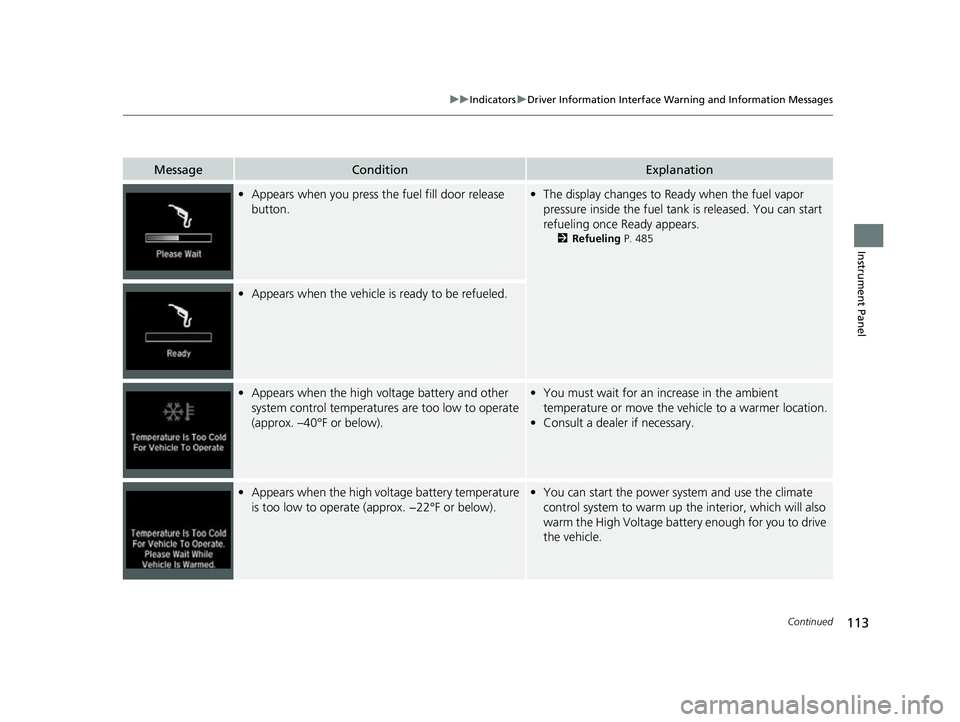

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you press the fuel fill door release
button.• The display changes to Ready when the fuel vapor
pressure inside the fuel tank is released. You can start
refueling once Ready appears.
2 Refueling P. 485
•Appears when the vehicle is ready to be refueled.
•Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –40°F or below).• You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Consult a dealer if necessary.
•Appears when the high voltage battery temperature
is too low to operate (approx. −22°F or below).•You can start the power system and use the climate
control system to warm up the interior, which will also
warm the High Voltage battery enough for you to drive
the vehicle.
22 INSIGHT HMIN-31TXM6300.book 113 ページ ２０２１年２月２４日　水曜日　午後３時４５分

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place, set the parking brake,
then restart the power system. If the message
disappears, continue driving.
• Appears if the vehicle is st opped and the driver’s seat
belt is unfastened, as there is a possibility that the
vehicle may roll.• When the power system is ON or when you are parking
or exiting the vehicle, put the transmission into
(P
before releasing the brake pedal.
2 Shift Operation P. 393
•Appears if you depress the accelerator pedal when
the transmission is in
(N.
•Release the accelerator pedal. After that, depress the
brake pedal and change the transmission position.
●Appears if the shift position is repeatedly changed
between
(P and another position.
●Wait awhile, then chan ge the shift position.
●Appears if the 12V battery is not charged enough to
make it possible to change shift positions.●Keep the power system on and wait awhile.●The battery may be nearing the end of its life.
Have it checked by a dealer.
22 INSIGHT HMIN-31TXM6300.book 117 ページ ２０２１年２月２４日　水曜日　午後３時４５分

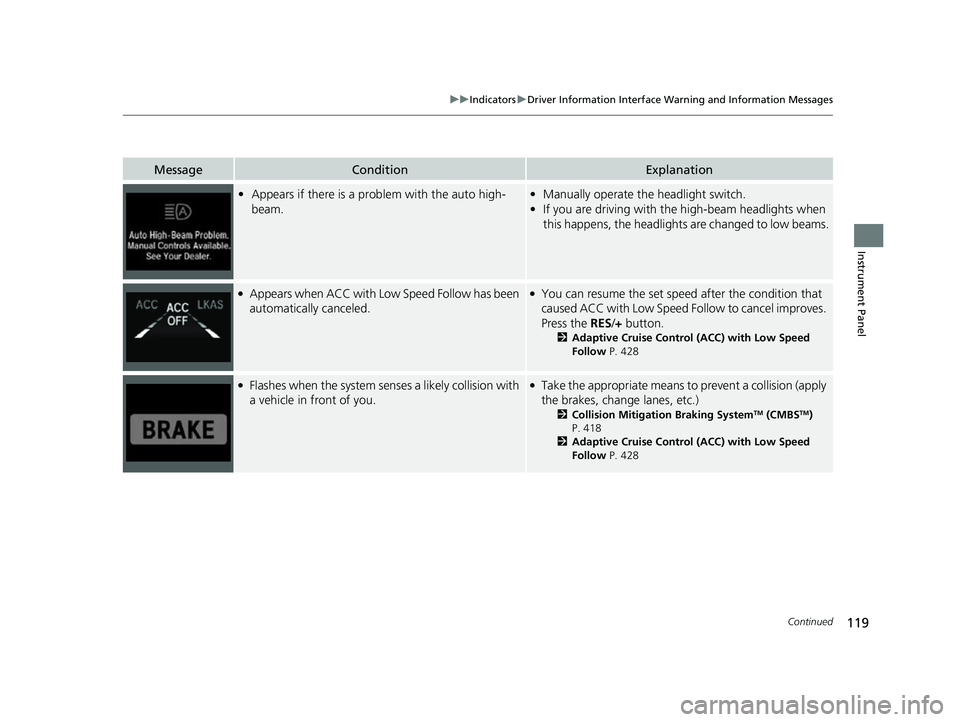

119
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with th e high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with Lo w Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Fo llow to cancel improves.
Press the RES/+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
●Flashes when the system senses a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2Collision Mitigation Braking SystemTM (CMBSTM)
P. 418
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 428
22 INSIGHT HMIN-31TXM6300.book 119 ページ ２０２１年２月２４日　水曜日　午後３時４５分
