System HONDA INSIGHT 2022 Owners Manual

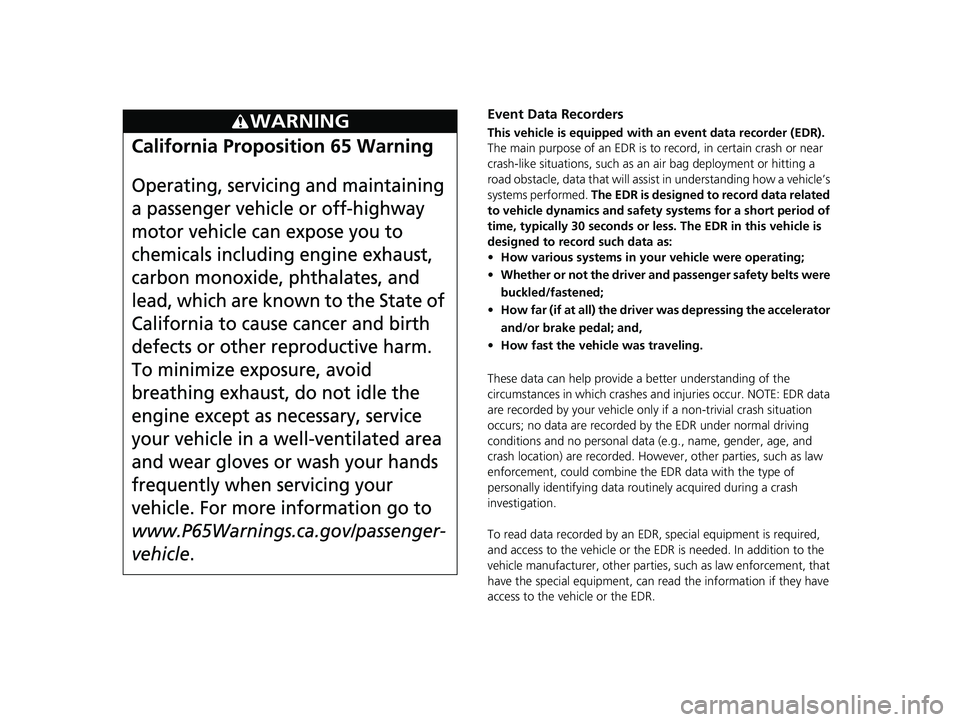

Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data rout inely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the ED R is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can r ead the information if they have
access to the vehicle or the EDR.
22 INSIGHT HMIN-31TXM6300.book 1 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Contents

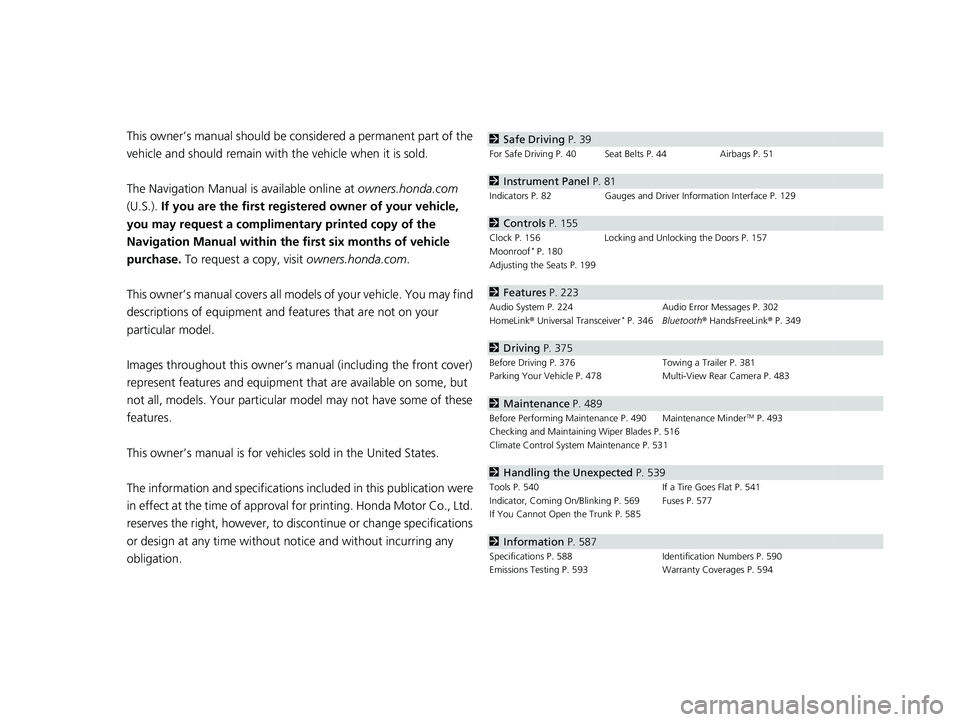

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.honda.com
(U.S.). If you are the first registered owner of your vehicle,
you may request a complimenta ry printed copy of the
Navigation Manual within the first six months of vehicle
purchase. To request a copy, visit owners.honda.com.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicl es sold in the United States.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 39
For Safe Driving P. 40 Seat Belts P. 44 Airbags P. 51
2Instrument Panel P. 81
Indicators P. 82 Gauges and Driver Information Interface P. 129
2Controls P. 155
Clock P. 156 Locking and Unlocking the Doors P. 157
Moonroof* P. 180
Adjusting the Seats P. 199
2 Features P. 223
Audio System P. 224 Audio Error Messages P. 302
HomeLink ® Universal Transceiver* P. 346 Bluetooth ® HandsFreeLink ® P. 349
2 Driving P. 375
Before Driving P. 376 Towing a Trailer P. 381
Parking Your Vehicle P. 478 Multi-View Rear Camera P. 483
2Maintenance P. 489
Before Performing Maintenance P. 490 Maintenance MinderTM P. 493
Checking and Maintaining Wiper Blades P. 516
Climate Control System Maintenance P. 531
2Handling the Unexpected P. 539
Tools P. 540 If a Tire Goes Flat P. 541
Indicator, Coming On/Blinking P. 569 Fuses P. 577
If You Cannot Open the Trunk P. 585
2Information P. 587
Specifications P. 588 Identification Numbers P. 590
Emissions Testing P. 593 Warranty Coverages P. 594
22 INSIGHT HMIN-31TXM6300.book 4 ページ ２０２１年２月２４日　水曜日　午後３時４５分

Contents
Child Safety P. 66Exhaust Gas Hazard P. 79Safety Labels P. 80
Opening and Closing the Trunk P. 171 Security System P. 174 Opening and Closing the Windows P. 177
Operating the Switches Around the Steering Wheel P. 181 Adjusting the Mirrors P. 197
Interior Lights/Interior Convenience It ems P. 207 Climate Control System P. 216
General Information on the Audio System P. 304 Customized Features P. 326
Refuel Recommend P. 374
When Driving P. 382 Honda Sensing® P. 415 Braking P. 468
Refueling P. 485 Fuel Economy and CO
2 Emissions P. 488
Maintenance Under the Hood P. 499 Replacing Light Bulbs P. 512
Checking and Maintaining Tires P. 519 12-Volt Battery P. 528 Remote Transmitter Care P. 530
Cleaning P. 532 Accessories and Modifications P. 537
Power System Won’t Start P. 561 If the 12-Volt Battery Is Dead P. 564 Overheating P. 567
Emergency Towing P. 583 If You Cannot Unlock the Fuel Fill Door P. 584
Devices that Emit Radio Waves P. 591 Reporting Safety Defects P. 592
Authorized Manuals P. 597 Customer Service Information P. 598
Quick Reference GuideP. 6
Safe DrivingP. 39
Instrument PanelP. 81
ControlsP. 155
FeaturesP. 223
DrivingP. 375
MaintenanceP. 489
Handling the UnexpectedP. 539
InformationP. 587
IndexP. 599
22 INSIGHT HMIN-31TXM6300.book 5 ページ ２０２１年２月２４日　水曜日　午後３時４５分

6
Quick Reference Guide
Quick Reference Guide

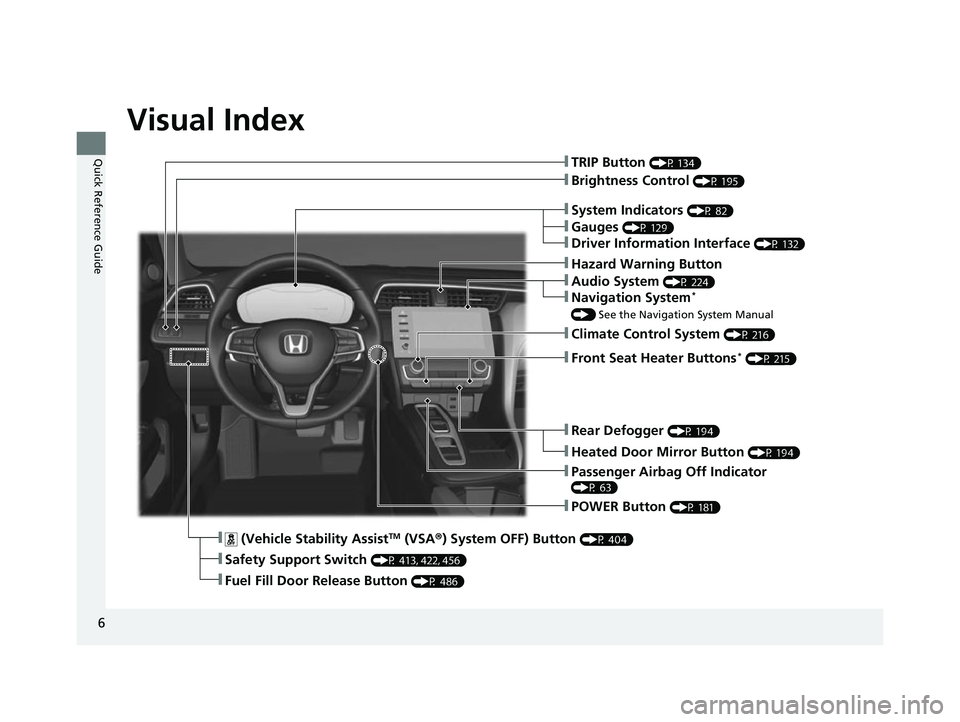

Visual Index
❚ (Vehicle Stability AssistTM (VSA®) System OFF) Button (P 404)
❚Safety Support Switch (P 413, 422, 456)
❚TRIP Button (P 134)
❚System Indicators (P 82)
❚Gauges (P 129)
❚Driver Information Interface (P 132)
❚Brightness Control (P 195)
❚POWER Button (P 181)
❚Climate Control System (P 216)
❚Rear Defogger (P 194)
❚Heated Door Mirror Button (P 194)
❚Hazard Warning Button
❚Audio System (P 224)
❚Navigation System*
() See the Navigation System Manual
❚Passenger Airbag Off Indicator
(P 63)
❚Front Seat Heater Buttons* (P 215)
❚Fuel Fill Door Release Button (P 486)
22 INSIGHT HMIN-31TXM6300.book 6 ページ ２０２１年２月２４日　水曜日　午後３時４５分

7

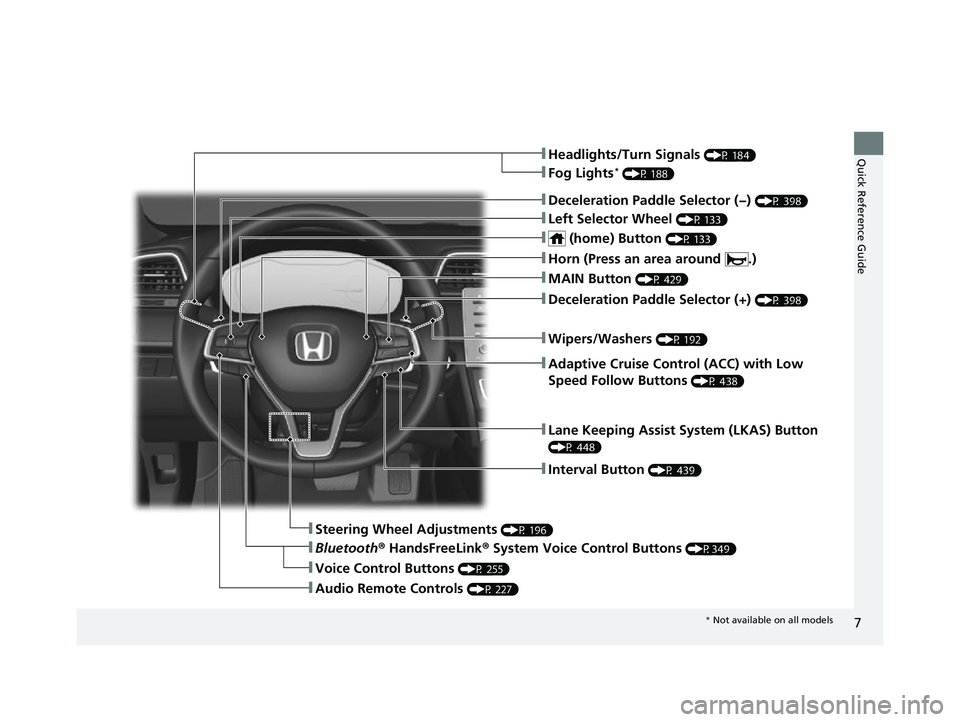

Quick Reference Guide❚Headlights/Turn Signals (P 184)
❚Fog Lights* (P 188)
❚Lane Keeping Assist System (LKAS) Button
(P 448)
❚Interval Button (P 439)
❚Steering Wheel Adjustments (P 196)
❚Bluetooth® HandsFreeLink ® System Voice Control Buttons (P349)
❚Audio Remote Controls (P 227)
❚Voice Control Buttons (P 255)
❚Deceleration Paddle Selector (−) (P 398)
❚Left Selector Wheel (P 133)
❚ (home) Button (P 133)
❚MAIN Button (P 429)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 438)
❚Wipers/Washers (P 192)
❚Deceleration Paddle Selector (+) (P 398)
❚Horn (Press an area around .)
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 7 ページ ２０２１年２月２４日　水曜日　午後３時４５分

11
Quick Reference Guide

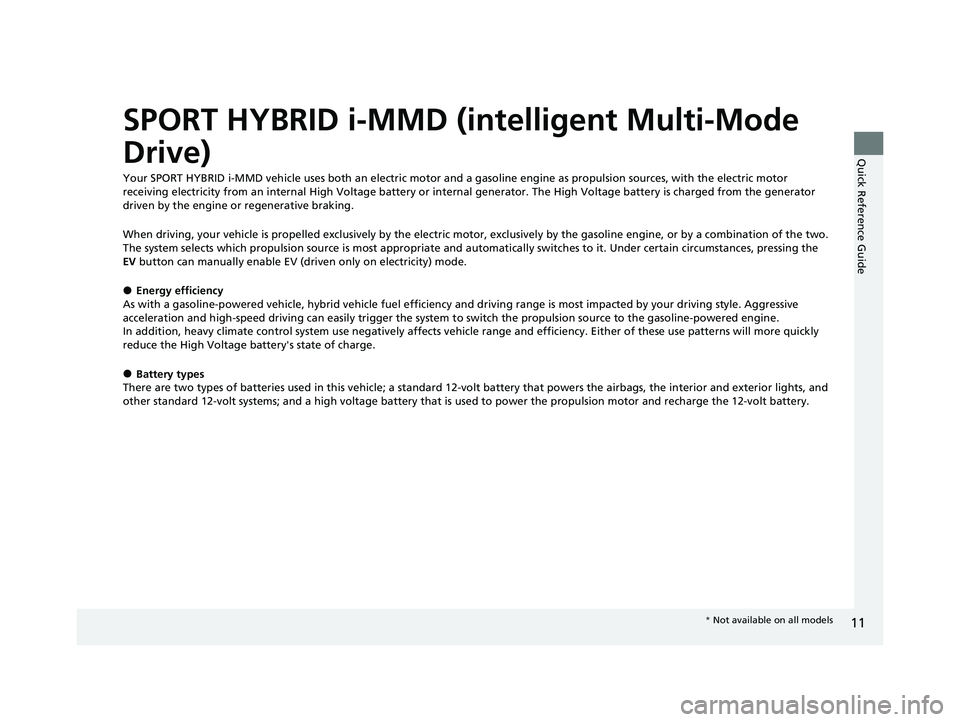

SPORT HYBRID i-MMD (intelligent Multi-Mode
Drive)
Your SPORT HYBRID i-MMD vehicle uses both an electric motor and a gasoline engine as propulsion sources, with the electric motor
receiving electricity from an internal High Voltage battery or in ternal generator. The High Voltage battery is charged from the generator
driven by the engine or regenerative braking.
When driving, your vehicle is propelled exclusively by the electric motor, exclusively by the gasoline engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it. Under certain circumstances, pressing the
EV button can manually enable EV (driven only on electricity) mode.
●Energy efficiency
As with a gasoline-powered vehicle, hybrid vehicle fuel efficien cy and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engin e.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.
●Battery types
There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motor and recharge the 12-volt battery.
* Not available on all models
22 INSIGHT HMIN-31TXM6300.book 11 ページ ２０２１年２月２４日　水曜日　午後３時４５分

12
Quick Reference Guide

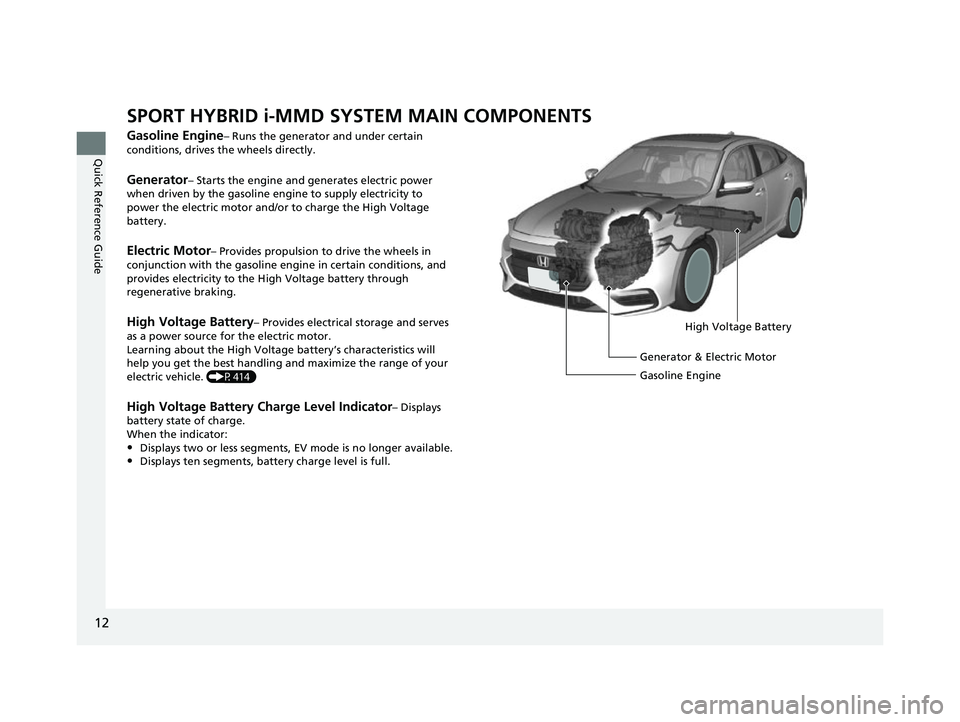

SPORT HYBRID i-MMD SYSTEM MAIN COMPONENTS
Gasoline Engine– Runs the generator and under certain
conditions, drives the wheels directly.
Generator– Starts the engine and generates electric power
when driven by the gasoline engine to supply electricity to
power the electric motor and/or to charge the High Voltage
battery.
Electric Motor– Provides propulsion to drive the wheels in
conjunction with the gasoline engine in certain conditions, and
provides electricity to the High Voltage battery through
regenerative braking.
High Voltage Battery– Provides electrical storage and serves
as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximize the range of your
electric vehicle. (P414)
High Voltage Battery Charge Level Indicator– Displays
battery state of charge.
When the indicator:
•Displays two or less segments, EV mode is no longer available.
•Displays ten segments, battery charge level is full.
High Voltage Battery
Generator & Electric Motor
Gasoline Engine
22 INSIGHT HMIN-31TXM6300.book 12 ページ ２０２１年２月２４日　水曜日　午後３時４５分

14
Quick Reference Guide

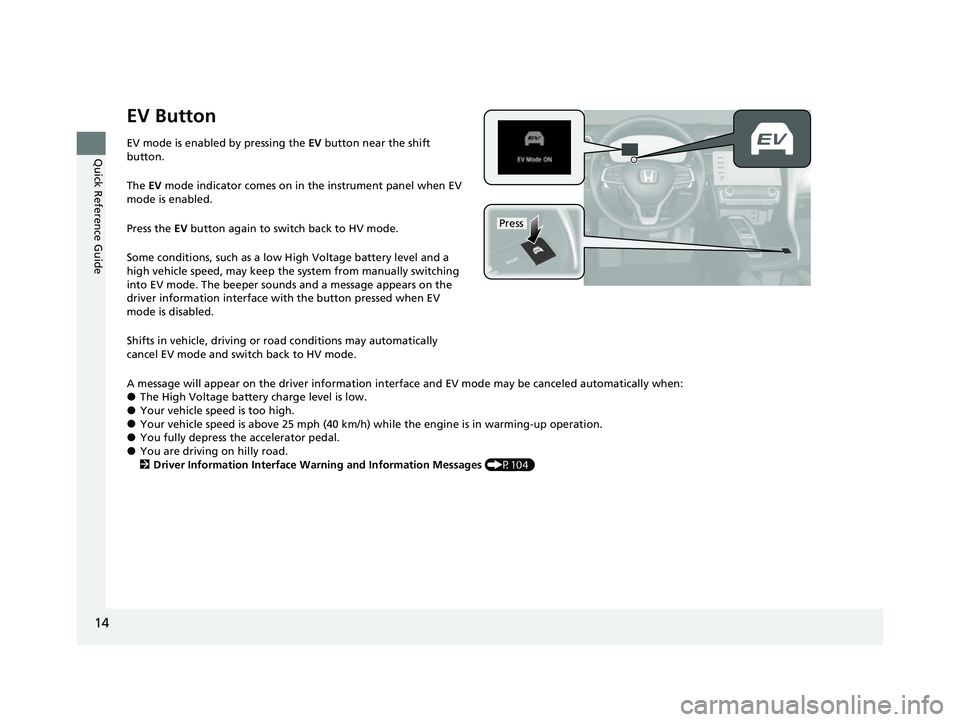

EV Button
EV mode is enabled by pressing the EV button near the shift
button.
The EV mode indicator comes on in the instrument panel when EV
mode is enabled.
Press the EV button again to switch back to HV mode.
Some conditions, such as a low High Voltage battery level and a
high vehicle speed, may keep the system from manually switching
into EV mode. The beeper sounds and a message appears on the
driver information interface with the button pressed when EV
mode is disabled.
Shifts in vehicle, driving or ro ad conditions may automatically
cancel EV mode and switch back to HV mode.
A message will appear on the driver information interface and EV mode may be canceled automatically when:
●The High Voltage battery charge level is low.●Your vehicle speed is too high.●Your vehicle speed is above 25 mph (40 km/h) while the engine is in warming-up operation.●You fully depress the accelerator pedal.●You are driving on hilly road.
2 Driver Information Interface Warning and Information Messages (P104)
Press
22 INSIGHT HMIN-31TXM6300.book 14 ページ ２０２１年２月２４日　水曜日　午後３時４５分

16
Quick Reference Guide

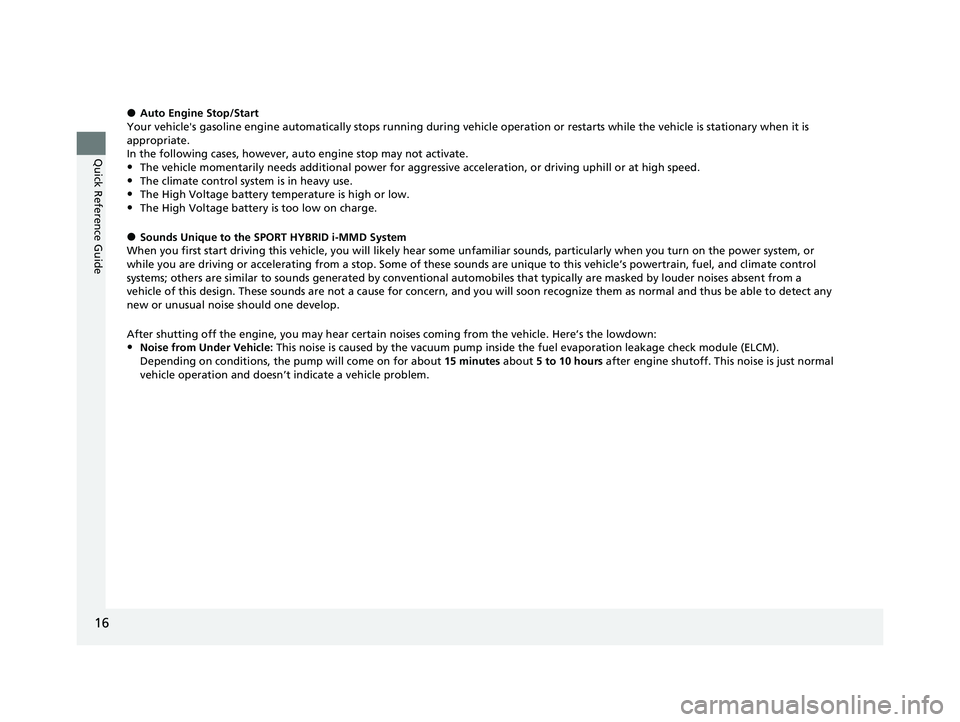

●Auto Engine Stop/Start
Your vehicle's gasoline engine automatically stops running duri ng vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, au to engine stop may not activate.
•The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.
•The climate control system is in heavy use.•The High Voltage battery temperature is high or low.
•The High Voltage battery is too low on charge.
●Sounds Unique to the SPORT HYBRID i-MMD System
When you first start driving this vehicle, you will likely hear some unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of these sounds are unique to this vehicle’s powertrain, fuel, and clim ate control
systems; others are similar to sounds generate d by conventional automobiles that typically are masked by louder noises absent f rom a
vehicle of this design. These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able t o detect any
new or unusual noise should one develop.
After shutting off the engi ne, you may hear certain noises coming from the vehicle. Here’s the lowdown:
•Noise from Under Vehicle: This noise is caused by the vacuum pump inside the fuel evaporation leakage check module (ELCM).
Depending on conditions, the pump will come on for about 15 minutes about 5 to 10 hours after engine shutoff. This noise is just normal
vehicle operation and doesn’t indicate a vehicle problem.
22 INSIGHT HMIN-31TXM6300.book 16 ページ ２０２１年２月２４日　水曜日　午後３時４５分

17
Quick Reference Guide

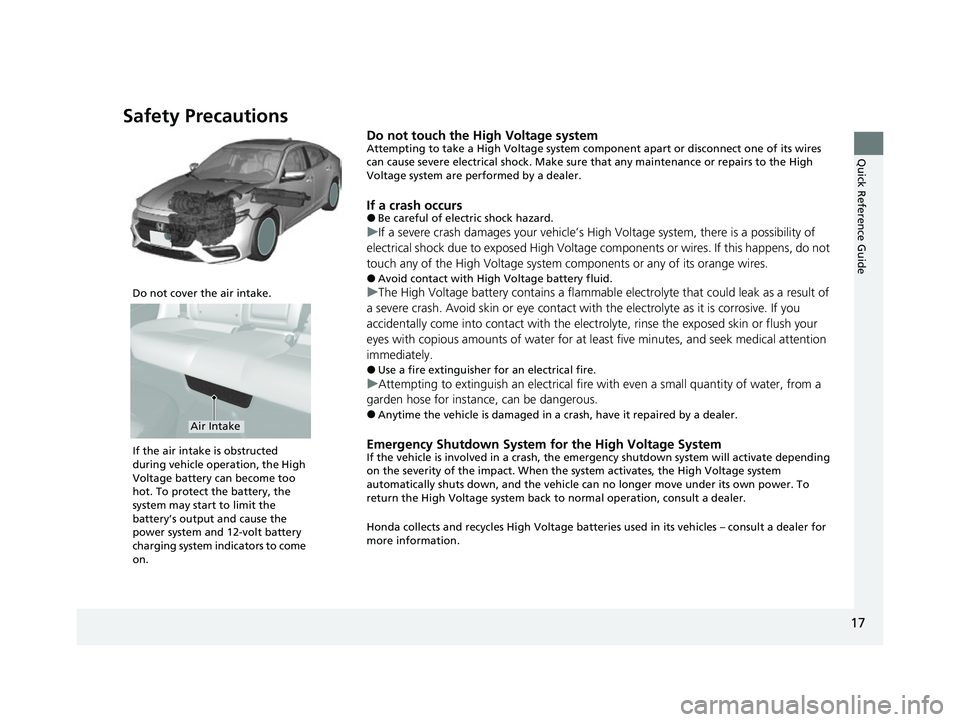

Safety Precautions
Do not touch the High Voltage systemAttempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system are performed by a dealer.
If a crash occurs●Be careful of electric shock hazard.
u If a severe crash damages your vehicle’s Hi gh Voltage system, there is a possibility of
electrical shock due to exposed Hi gh Voltage components or wires. If this happens, do not
touch any of the High Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.
u The High Voltage battery contains a flammable electrolyte that could leak as a result of
a severe crash. Avoid skin or eye contact with the electrolyte as it is corrosive. If you
accidentally come into contac t with the electrolyte, rinse the exposed skin or flush your
eyes with copious amounts of water for at least five minutes, and seek medical attention
immediately.
●Use a fire extinguisher for an electrical fire.
u Attempting to extinguish an electrical fire with even a small quantity of water, from a
garden hose for instance, can be dangerous.
●Anytime the vehicle is damaged in a crash, have it repaired by a dealer.
Emergency Shutdown System fo r the High Voltage SystemIf the vehicle is involved in a crash, the em ergency shutdown system will activate depending
on the severity of the impact. When the system activates, the High Voltage system
automatically shuts down, and the vehicle can no longer move under its own power. To
return the High Voltage system back to normal operation, consult a dealer.
Honda collects and recycles High Voltage batteries used in its vehicles – consult a dealer for
more information.
Do not cover the air intake.
If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may start to limit the
battery’s output and cause the
power system and 12-volt battery
charging system indicators to come
on.
Air Intake
22 INSIGHT HMIN-31TXM6300.book 17 ページ ２０２１年２月２４日　水曜日　午後３時４５分
