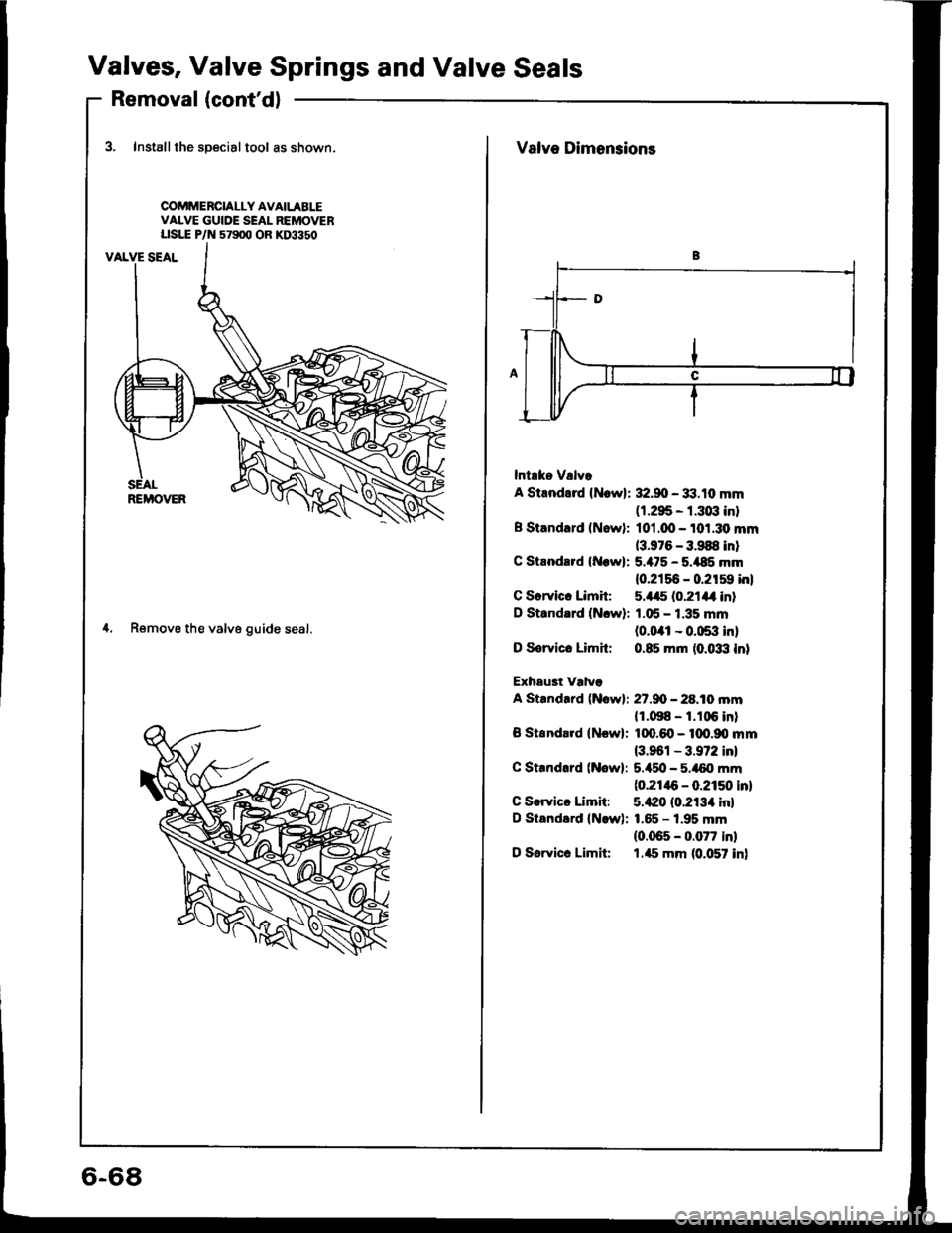

Valves, Valve Springs and Valve Seals
Removal (cont'dl
3. Installthe specialtool as shown
COMMERCIALLY AVAILABLEVALVE GUIDE SEAL REMOVERLrst"E P/N s79(x' OR KD3350
4. Remove the valve guide seal.
6-68
Valve Dimensions
lntrko ValYo
A Standsrd (N.wl: ilil.go - *t.10 mm(1.295 - 1.303 inl
B Standard (Newl: 101.00- 101.30 mm(3.976 - 3.988 inl
C Standard (N.w): 5.a75 - 5.185 mm(0.2156 - 0.2159 inl
C Sorvicc Limit 5.i!15 (0.21.lt in)
D Standard (Ncw): 1.05 - 1.35 mm(0.04i - 0.05:t in)
D Sorvicc Limh: 0.85 mm (0.033 inl
Exhau3t Valve
A Stand.rd (Ncwl 27.90 - 28.10 mm
11.098 - 1.106 inl
B Standard (Ncwl: 1qr.6lt - loo.glt mm(3.961 - 3.972 inl
C St.nd.rd (Now| 5./L51, - 5.460 mm(0.2146 - 0.215|, inl
C Servico Limit: 5.a20 (0.2134 inl
D Standsrd lNewl: 1.65 - 1.95 mm
{0.065 - 0.077 inl
D Sorvicc Limit 1.45 mm (0.057 inl
