hatch trim HONDA INTEGRA 1994 4.G Workshop Manual

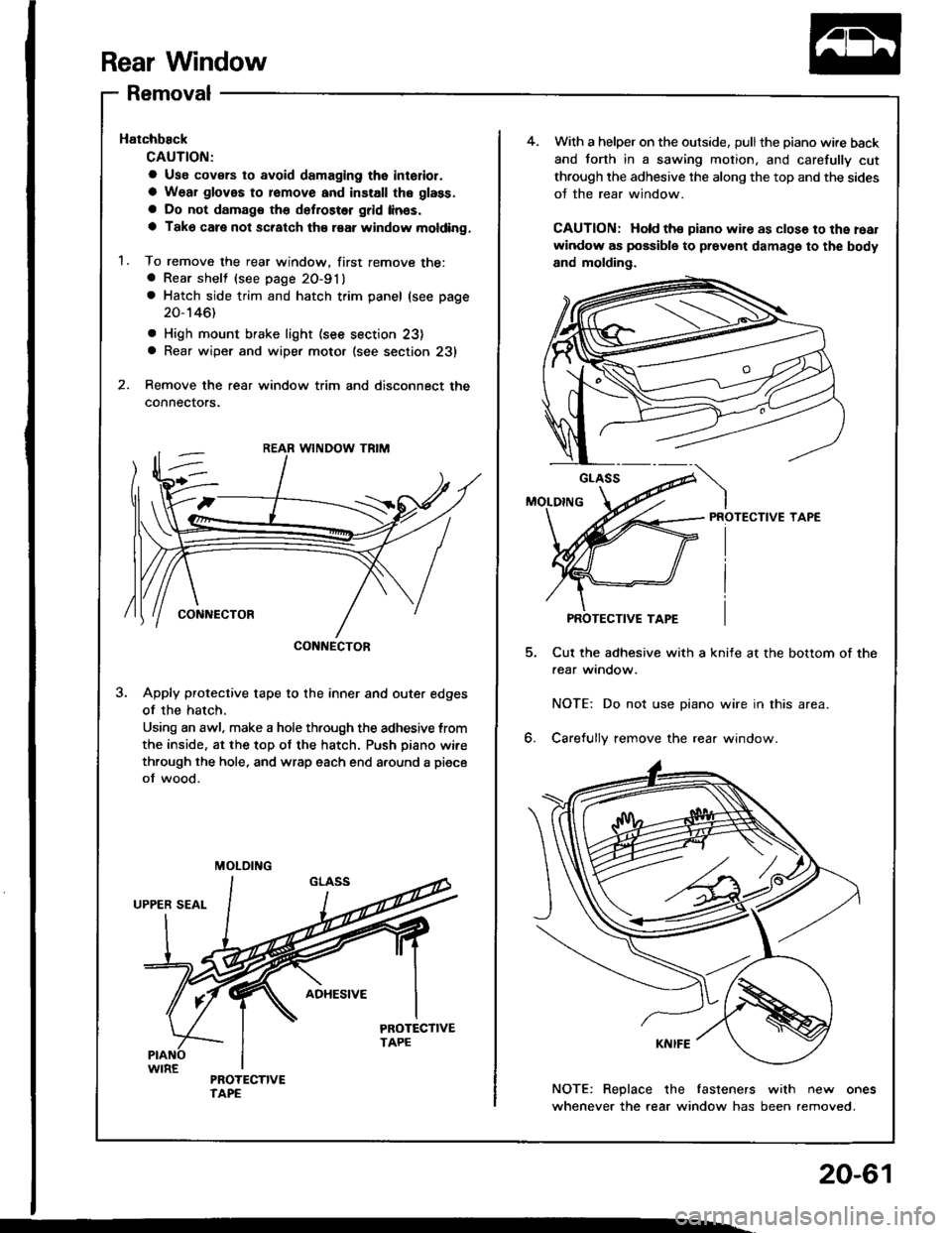

Rear Window
Removal
Hatchback
CAUTION;
a Use covsrs to avoid damaging tho interior.
a Wear gloves to romove and install the glass.
a Do not damags the defroster grid linss.
a Tako care not scratch th€ raar window molding,
1. To remove the rear window. first remove the:a Rear shelt (see page 20-91)
a Hatch side trim and hatch trim panel (see page
20-146)
. High mount brake light (see section 23)a Rear wiper and wiper motor (see section 231
2. Remove the rear window trim and disconnect the
connectors.
3. Apply protective tape to the inner and outer edges
of the hatch.
Using an awl. make a hole th.ough the adhesive trom
the inside. at the top ot the hatch. Push piano wire
through the hole, and wrap each end a.ound a piece
of wood.
CONNECTOR
MOLOING
4.With a helper on the outside, pullthe piano wire back
and forth in a sawing motion, and carefully cut
through the adhesive the along the top and the sides
oJ the rear window.
CAUTION: Hold ths piano wire as clos€ to the roat
window as possible to prevont damage to the body
and molding.
PROTECTIVE TAPE
Cut the adhesive with a knife at the bottom of the
aear window.
NOTE: Do not use piano wire in this area.
6. Carefully remove the rear window.
NOTE: Replace the fasteners with new ones
whenever the rear window has been removed.
PROTECTIVE TAPE
20-61

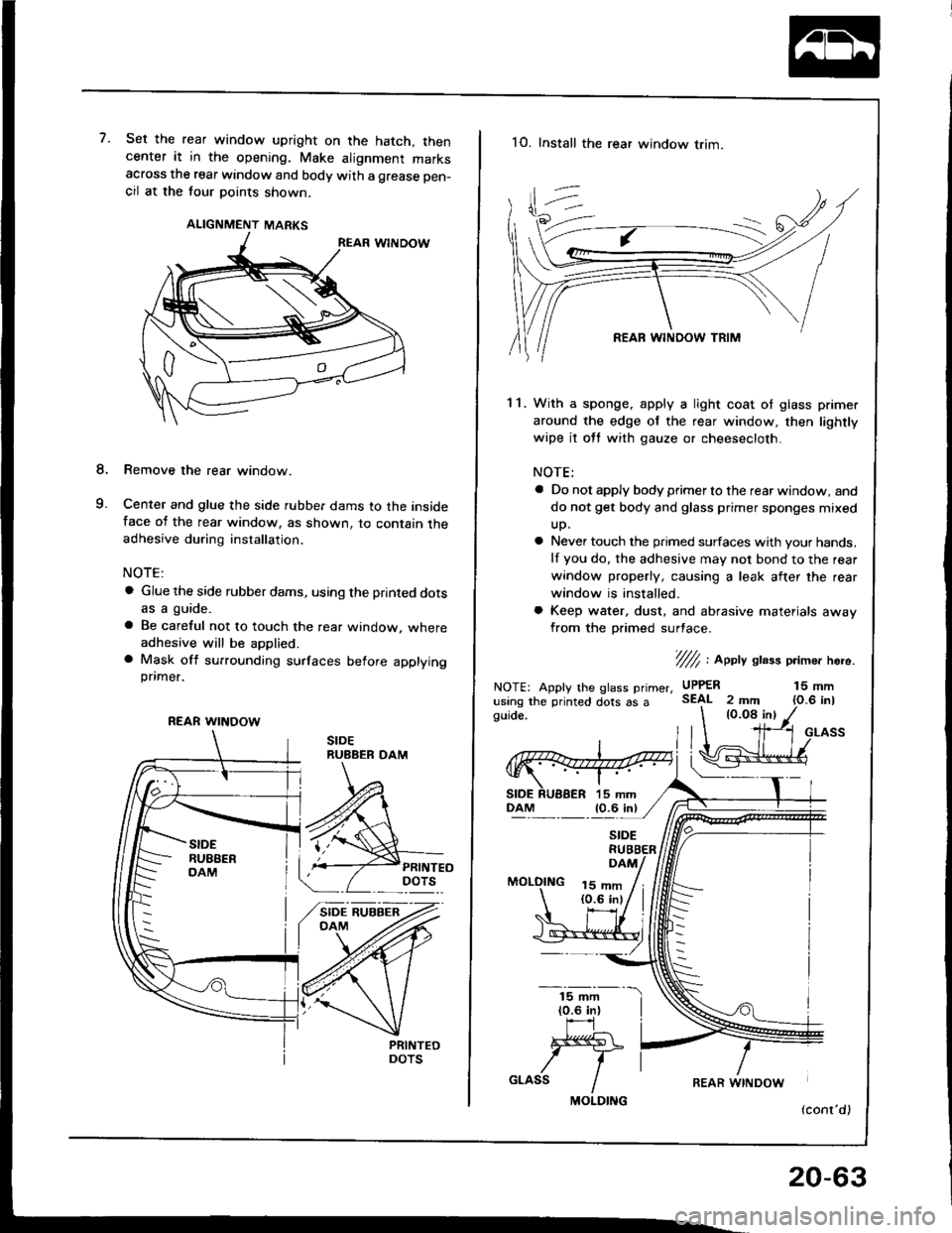

7.Set the rear window upright on the hatch, thencenter it in the opening. Make alignment marksacross the rear window and body with a grease pen-
cil at the tour points shown.
ALIGNMENT MARKS
Remove the rear window.
Center and glue the side rubbe. dams to the insideface of the rear window, as shown, to contain theadhesive during installation.
NOTE:
a Glue the side rubber dams, using the printed dotsas a guide-
a Be careful not to touch the rear window, whereadhesive will be applied.a Mask off surrounding surfaces before applyingpnmeI.
8.
cl
REAR WINDOW
1O. Install the rear window trim.
1 1. With a sponge, apply a light coat of glass primer
around the edge of the rear window, then lightly
wipe it ott with gauze or cheesecloth.
NOTE:
a Do not apply body primer to the rear window, and
do not get body and glass primer sponges mixed
up.
a Never touch the primed surfaces with your hands.
lf you do, the adhesive mav not bond to the rear
window properly, causing a leak after the rear
window is installed.
a Keep water, dust. and abrasive materials awav
from the primed surlace.
//// , appV glass primor hero.
NOTE: Apply the glass primer,using the printed dots as aguroe.
MOLOING
UPPER 15 mm
(0.0a inl
15 mm{0.6 in}
(cont'd)
10.6 inl
MOLDING
REAR WINDOW
20-63

Interior Trim
Replacement
a W€al gloves to remove and installth€ trim and panols.a When prying with a flat tip screwd.ivor. wrap it withprotective tap€ to prevent damaga.
NOTE: Take care not to bend or scratch the trim andDanels.
Kick panel/Front pillar trim removal:
l. Remove the kick Danel.
< : Clip locations
A< | Cllp, 1 B< : Ctip, 1 CV : C[p, 1
Jtl,Ml*
U ry-ry
NOTE: Remove the driver's kick panel while pullingthe hood release handle.
KICK PANEL
Pull the door trim back, then remove the front oillarrflm.
< : Clip locations, 4
lnstallation is the reverse of the removal procedure.
NOTE: lf necessary, .eplace any damaged clips.
FRONT PILLAR
20-91
Hatchback
Rear trim panet/Side trim panel/Ouarter pillar trim p-l16moval:
1. Open the hatch.
2. Remove the .ear shelt.
Remove the rear seat (see page 20-'l08).
Remove the trunk mat and spare tire lid.4.
ao..t dr
REAR SHELF
REAR SHELF
TRUNK MAT
SPARE TIRE LID

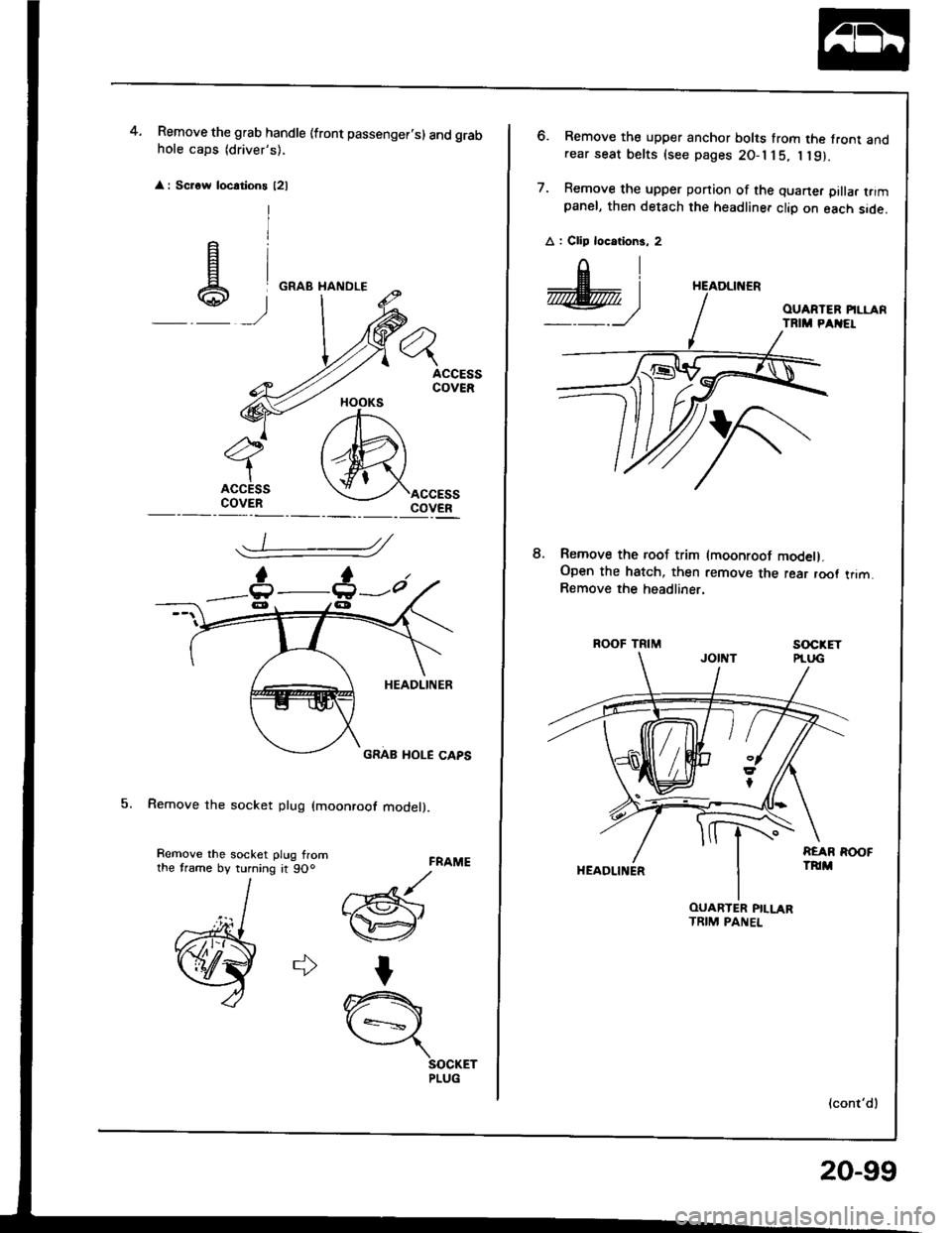

Remove the grab handle (front passenger.s) and grabhole caps (driver's),


: Scrow locations l2l
5. Remove the socket plug (moonroof model).
4.
FRAME
//Gr-@'
I
n{ +=s ,
SOCKETPLUG
HOOKS
_t :
e)
Remove the roof trim (moonroot model).Open the hatch, then remove the rear root trim.Remove the headliner.
ROOF TRIMsocxET
HEADLII{ER
(cont'dl
6. Remove the upper anchor bolts from the front andrear seat belts (see pages 2O-l j 5, I l9).
7. Remove the upper ponion of the quaner pilla. trimpanel, then detach the headliner clio on each side.
A : Clip locotions, 2
8.
HEADLINER
OUARTER PILLARTRIM PANEL
20-99

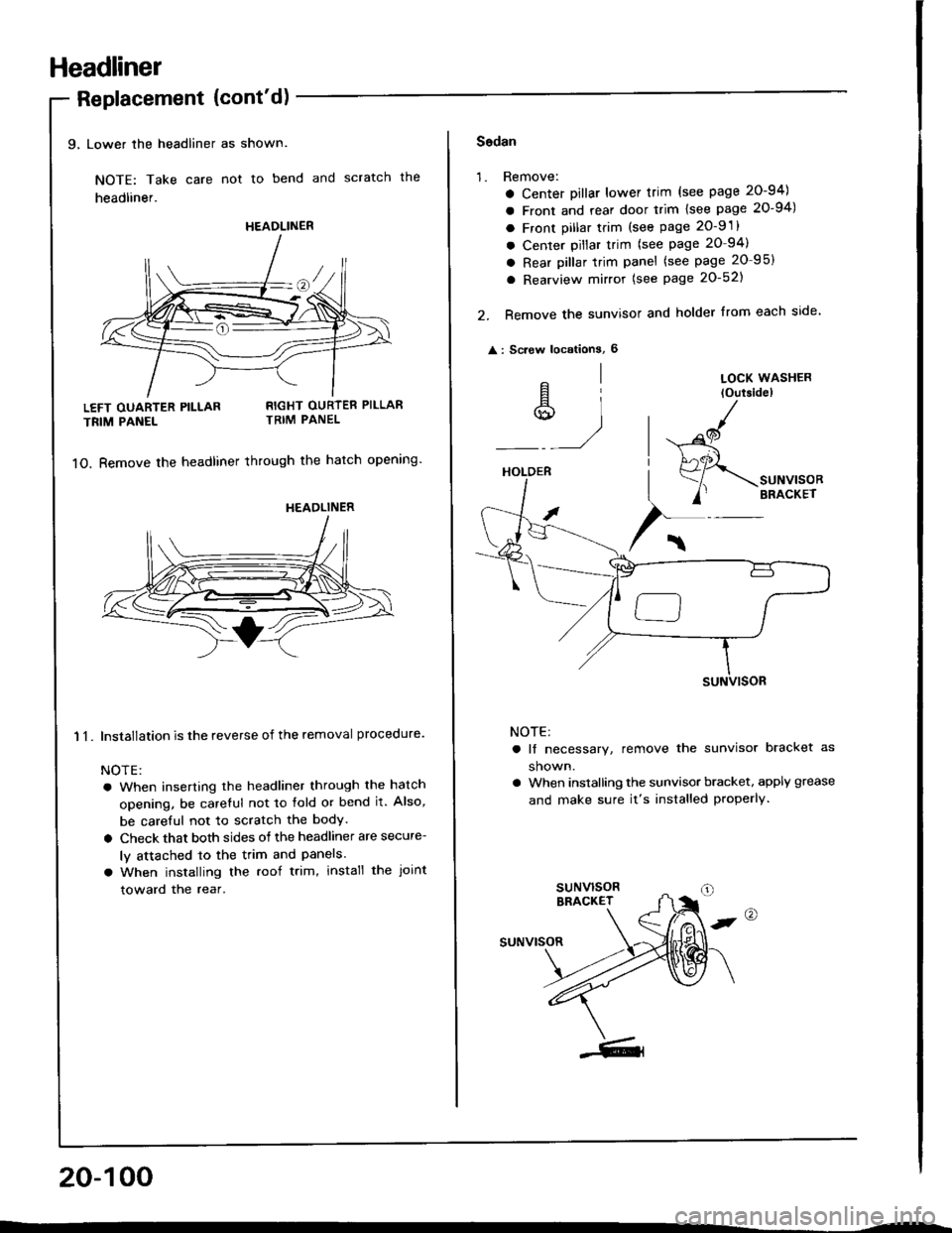

Headliner
9, Lower the headliner as shown.
NOTE: Take care not to bend and scratch the
headliner.
Replacement {cont'd)
LEFT OUARTER PILLAR
TRIM PANEL
11.
RIGHT OURTER PILLARTRIM PANEL
1O. Bemove the headliner through the hatch opening'
Installation is the reverse of the removal procedure.
NOTE:
a When inserting the headliner through the hatch
opening, be careful not to fold or bend it. Also,
be careful not to scratch the bodY.
a Check that both sides of the headliner are secure-
ly attached to the trim and Panels.
a When installing the roof trim, install the Joint
toward the rear.
20-100
HEADLINER
HEADLINER
Sodan
'1.Remove:
a Center Dillar lower trim (see page 20-94)
a Front and rear door trim lsee page 20-94)
a Front pillar trim (see page 2O-9 .
a Center pillar trim (see page 20-94)
a Rear pillar trim panel (see page 20 95)
a Rearview mirror (see Page 20-521
Remove the sunvisor and holder from each side


: Screw locationS, 6
2.
^l
s,1
LOCK WASHER
loutsidel
HOLDER
/
$-.unu,"o"
/' BRACKET
NOTE:
a lf necessary, remove the sunvisor bracket as
shown.
a When installing the sunvisor bracket, apply grease
and make sure it's installed properly.
,@
suNvrsoR

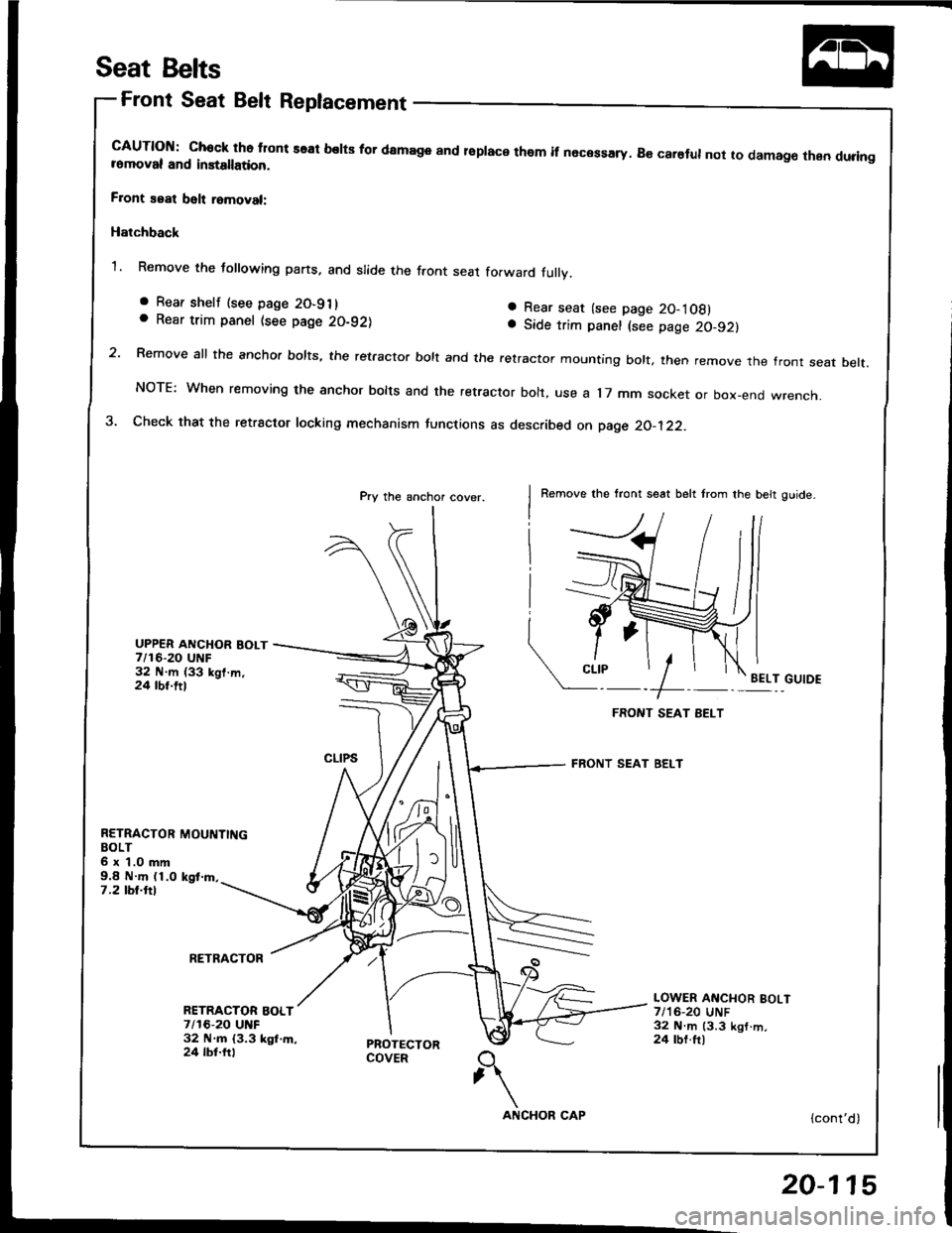

Seat Belts
Front Seat Belt Replacement
cAUTloN: chock tho tlont seal belts for damage and lsplace them if necessary. B€ carelul not to damag€ then duringromoval and installation.
F.ont seat belt romoval:
Hatchback
1. Remove the following parts, and slide the front seat fo.ward fullv.
a Rear seat (see page 20-1Og)a Side trim panel (see page 2c,-92}
2 Remove all the anchor bolts, the retractor bolt and the retractor mountrng bott, then remove the front seat belt.
NOTE: When removing the anchor bolts and the retractor bolt, use a l7 mm socket or box-end wrench.
3. Check that the retractor locking mechanism functions as described on page 20_122-
Pry the anchor cover.Remove the tront seat belt trom the belt ouide-
UPPER ANCHOR BOLT7/16-20 UNF32 N.m (33 kgl.m,24 tbt.ttlEELT GUIDE
RETRACTOR MOUNTINGBOLT6 x 1.O mm9.8 N.m (1.0 kgt.rn.7.2 tbl.ftl
RETRACTOR
. Rear shelf (see page 20-911. Rear trim panel (see page 20-921
RETRACTOR BOLT7/16-20 UNF32 ltl.m {3.3 kgl,m,24 tbt.ftl
LOWER ANCHOR BOLT7/'16-20 UNF32 N.m 13.3 kgl.m,24 rbf.ft)
{cont'd)
20-115

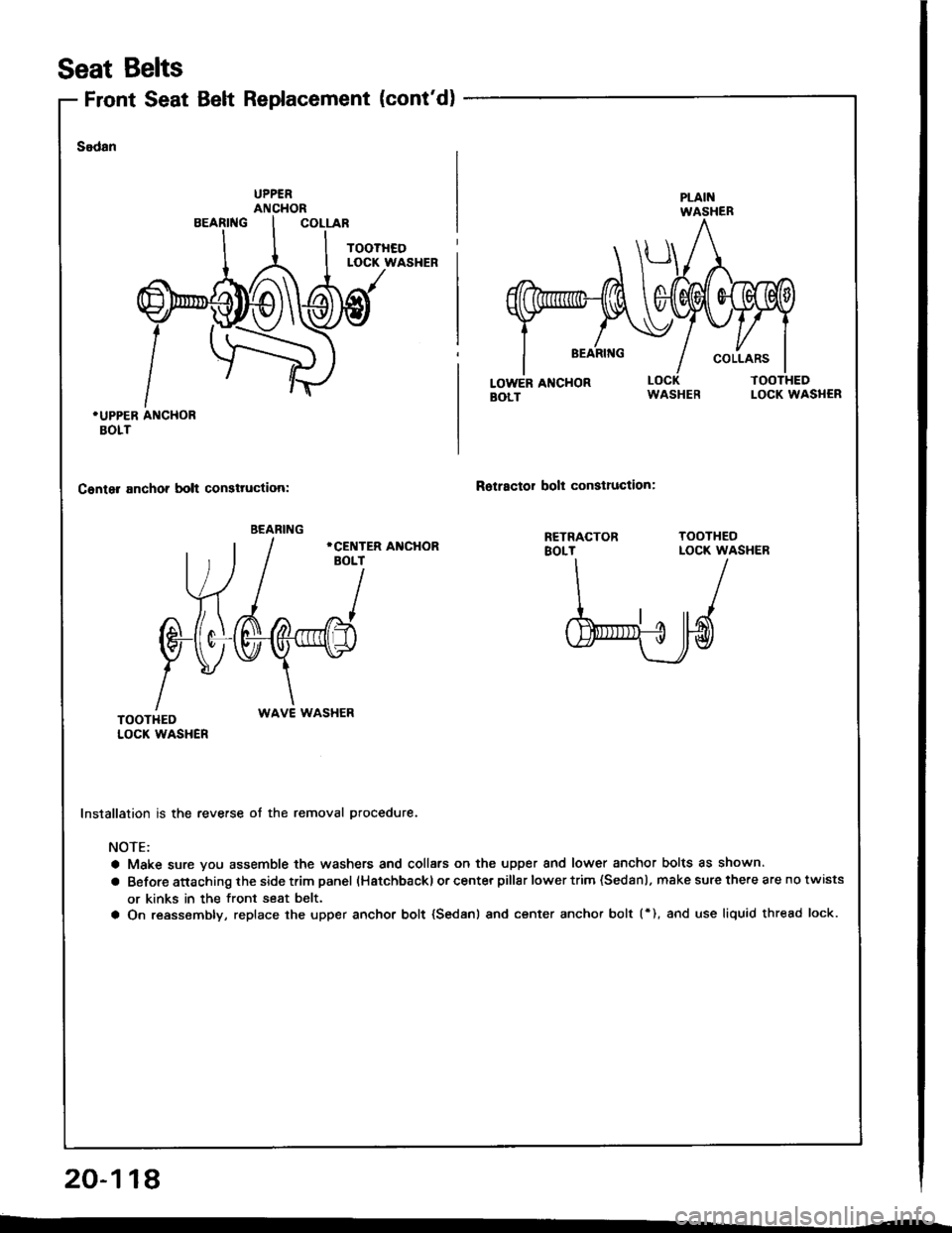

Front Seat Belt Replacement (cont'd)
Seat Belts
Sodan
.UPPER ANCHORBOLT
Canter anchor bolt consttuction:Rotractor bolt conslruction:
WAVE WASHER
Installation is the reverse ot the removal procedure.
NOTE:
a Make sure you assemble the washers and collars on the upper and lower anchor bolts as shown.
a Before attaching the side trim panel (Hatchbackl or center pillar lower trim (Sedan l. make sure the.e are no twists
or kinks in the front seat belt.
a On reassembly, replace the upper anchor bolt {Sedanl and center anchor bolt (*), and use liquid thread lock.
20-118
BEARING

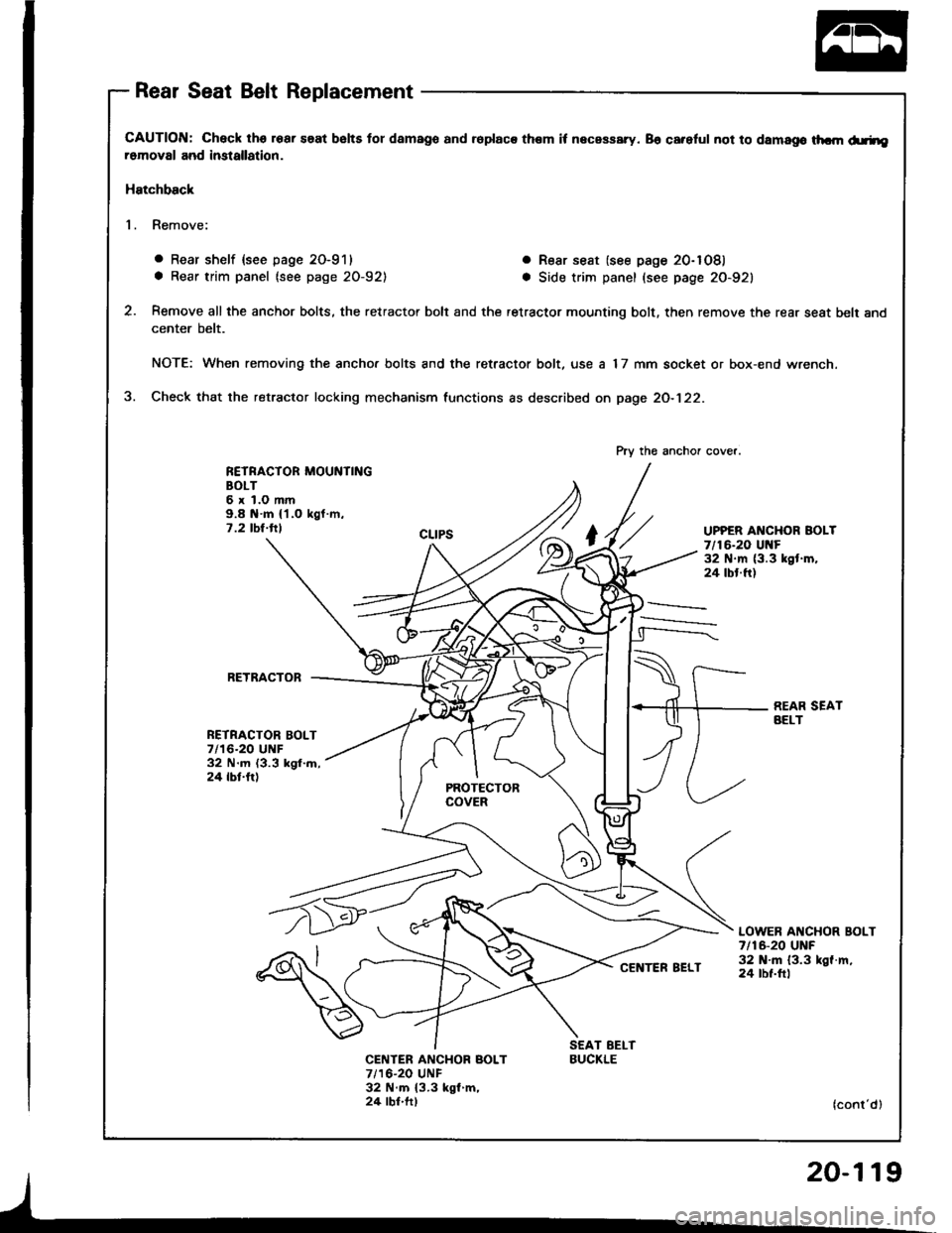

Rear Seat Belt Replacement
CAUTION: Check lhs roar saat bslts tor damago and ioplaca them it necassary. 86 careful not to damago thcm d.rheromoval and imtallation.
Hatchback
1. Remove:
o Rear shelf {see page 20-911
a Rear trim panel (see page 20-921
. R€ar seat (see page 20-1081
a Side trim panel (see page 20-921
Remove all the anchor bolts, the retractor bolt and the retractor mounting bolt, then remove the rear seat belt and
center belt.
NOTE: When removing the ancho. bolts and the retractor bolt, use a 17 mm socket or box-end wrench.
Check that the retractor locking mechanism functions as described on page 2O-122.
RETRACTOR MOUNTINGBOLT6xl.Omm9.8 N.m {'l.O kgf.m,7 .2 tbt.ttlUPPER ANCHOR BOLT7/16-20 Ul{F32 N.m (3.3 kgt.m,24 tbt.ft)
RETRACTOB
NETRACTOR BOLT7/16-20 UNF32 N.m (3.3 kgl.m,24 tbt.fr)
REAR SEATAELT
LOWER ANCHOR BOLT7 t16-20 UNF32 N'm 13.3 kgf.m,24 tbt.ftl
CENTER ANCHOR BOLT7/16-20 UNF32 N.m {3.3 kgl m,24 lbf.ft)
Pry the anchor cover.
BUCKLE
(cont'd)

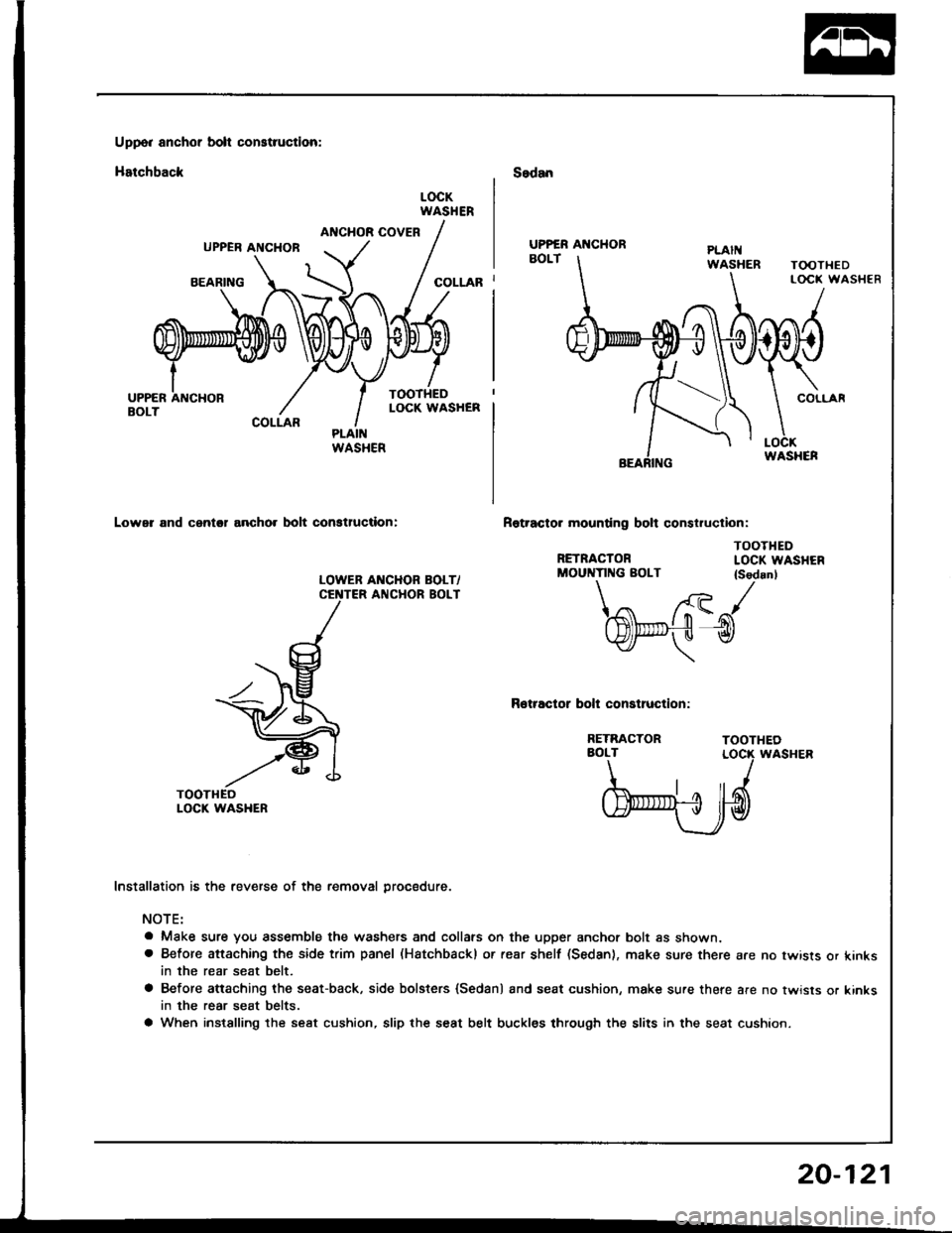

Uppo. anchor bolt construction:
Hatchback
ANCHOR COVERUPPER ANCHOB
BEARING
COLLAR
Lower and cantol ancho. bolt conatluction:
LOWEB AI{CHOR BOLT/ANCHOR BOLT
Sedan
Rotracto. mounting bolt construclion:
RETRACTOR
LOCKWASHER
COLLAR
TOOTHEDLOCK WASHEN
TOOTHEDLOCK WASHER
TOOTHEDLOCK WASHER
TOOTHEOLOCK WASHER
UPPER AI{CHOR
WASHER
MOUNTING BOLT {Sedanl\/ /{- tr- J
l$t".,-,fu l-n(tYlf- u tY
\
Rotractor bolt construction:
RETRACTORAOLT
b'ryd
Installation is the reverse of the removal procedure.
NOTE:
a Make sure you assemble the washers and collars on the upper anchor bolt as shown.a Before attaching the side trim panel (Hatchbackl or rear shelf (Sedan), make sure there are no twists or kinksin the rear seat belt.
a Before attaching the seat-back, side bolsters {Sedan) and seat cushion, make sure there are no twisls or kinksin the rear seat belts.
a When instslling the seat cushion, slip the seat belt buckles through the slits in the seat cushion.
20-121

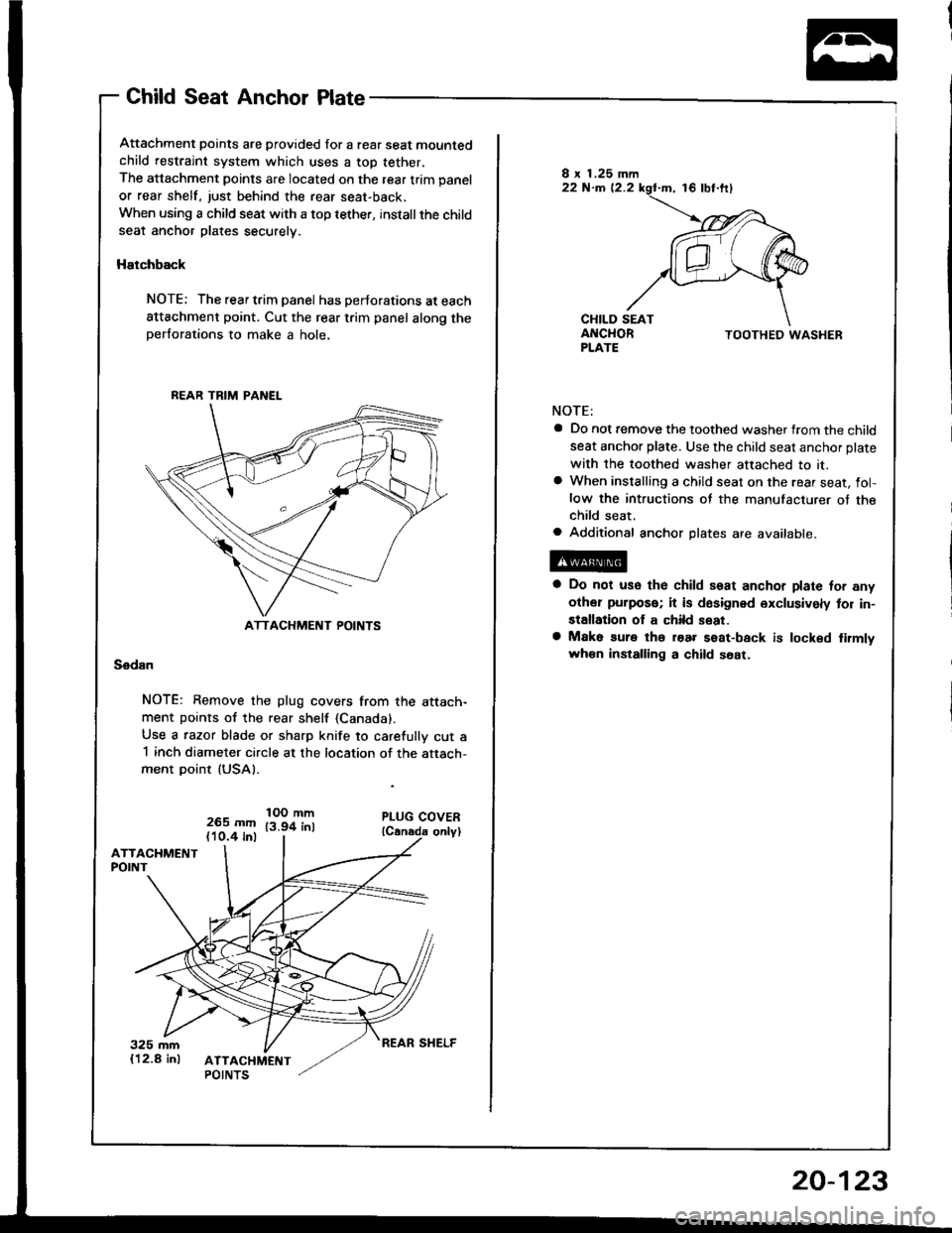

Child Seat Anchor Plate
Attachment points are provided for a rear seat mountedchild restraint system which uses a top tether,
The attachment points are located on the rear trim panel
or rear shelf, just behind the rear seat-back.
When using a child seat with a top tether, installthe childseat anchor plates securely.
Hatchback
NOTE: The rear trim panel has perJorations at each
attachment point. Cut the rear trim panel along theperforations to make a hole,
Sedan
NOTE: Remove the plug covers from the attach-ment points of the rear shelf (Canada).
Use a razor blade or sharp knife to carefully cut a1 inch diameter circle at the location of the attach-ment point (USAI.
265 mm(10.4 inl
IOO mm13.94 inl
BEAR TRIM PANEL
ATTACHMENT POINTS
TOOTHED WASHER
NOTE:
a Do not remove the toothed washer from the child
seat anchor plate. Use the child seat anchor plate
with the toothed washer attached to it.a When installing a child seat on the rear seat, fol-low the intructions of the manufacturer of thechild seat,a Additional anchor plates are available.
a Do not use the child seat anchor plate for any
other puipos€; it is dosigned exclusively tor in-
stallation of a child seat.
a Mako sure tho roar seat-back is locked firmlvwh€n installing a child soat.
REAR SHELF
20-123
