Design Specifications
{cont'd}
lTEMMETRICI€iIGLISHINOTES
TRANSMISSIONTypeEngine typoManual transmission81881 | 818C1
G6ar Ratio 1st2nd3rd4th5thRov€rs€
3.2301.9001.2690.966o.7113.000
3.230r.9(X)1.3601.0340.'t873.000
Fin6l Reduction Gear typeGear ratioSingle helicalge.r4.2664.400
TypeAutomatic transmission
Gear Ratio 'l6t
znd3rd4thRevelse
2.7221.4640.97s0.6381.954
Final R€duction Goar typoGear ratioSingle helic6lgoar4.357
AIRCONDITIONINGCooling Capacity3,570 Kcal/h14,166 BTU/I
Compr6ssor Type/MakeNo. ol CylinderCaPtcityMax. SpsedLubricant C6pacity
Lubricrnt Type
swash-plare/NIPPoNDENSO10150 ml /rcv | 9.15 cu-in/r€v7,600 rpm140 mf | 1-2Bll ozI l.;3 tmp ozND-O|L8 (P/N 38899 - PR7 - A01)
Cond6ns€r TypeCorrugated fin
Evaporator TypeCorrugatod tin
Blower TypeMotor InputSpeed ControMax. Capachy
Sirocco tan200 w12 v4-speed450 m3/h | 15,900 cu lvh
Temperature ControlAirmix type
Compressor Clutch TypePowor ConsumptionDry, singlo plate, poly-V-b€lt driv640 W max./12 V at 68"F {20'C)
Refrigerant TypeOu.ntityHFC-134a (R-134a)
zoo-Ss I 24.7-l.aoe
STEERINGSYSTEMTypeOverall RatioTurns, Lock-to-LockSreering Wheel Dia.
Power assisted, rack and pinion16.12.98380 mm | 15.0 in
SUSPENSIONType Front
Roar
Shock Absorb€r, Front and Rear
Independent double wishbono,coil spring with st6bilizerIndependont double wishbong.coil spring with stabilizerTelescopic, hydraulic nitrogen gas-tilled
3-18
Doors

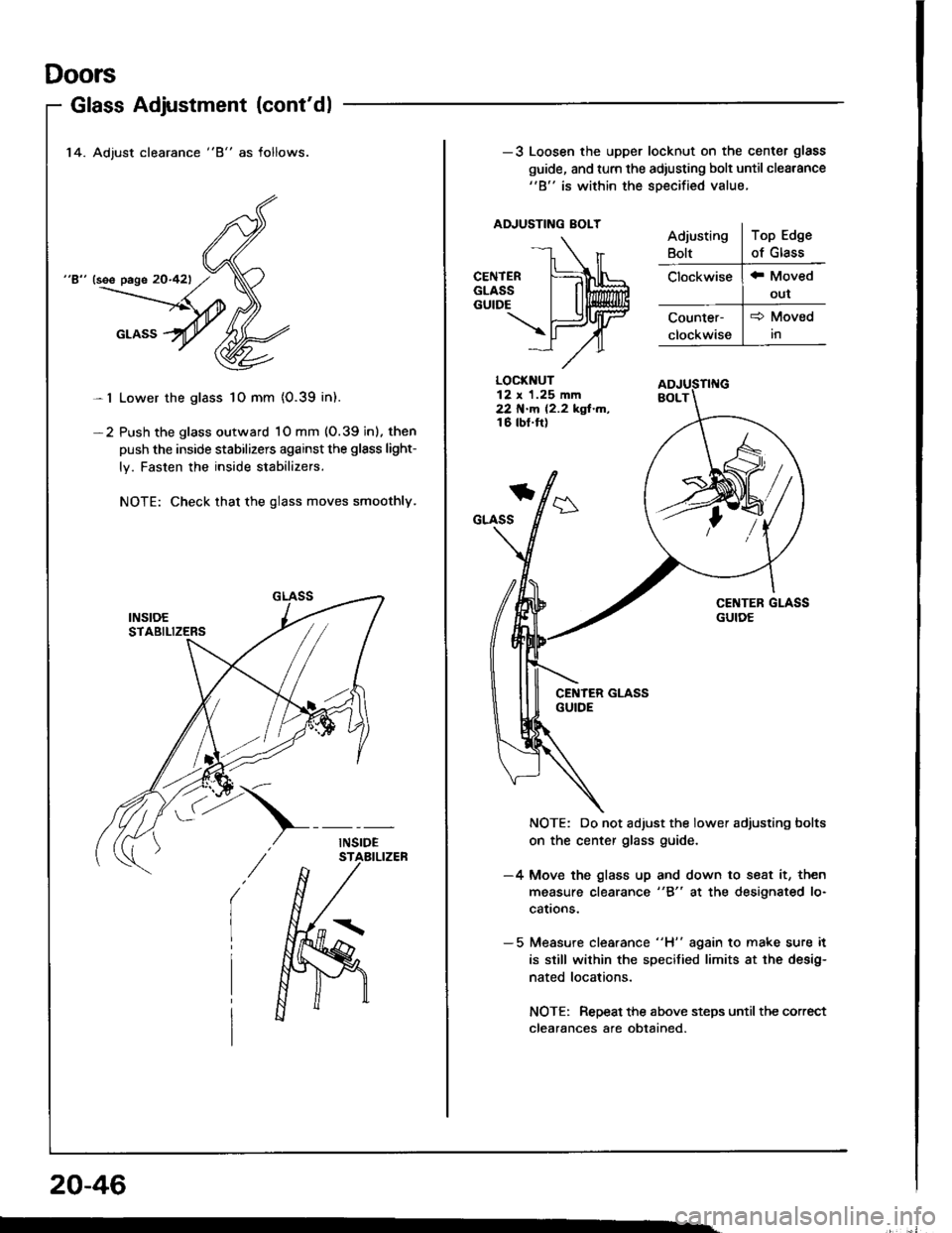

14. Adjust clearance "8" as follows.
"8" (see page 20-421
Lower the glass 1O mm {0.39 in).
Push the glass outward 1O mm (O.39 inl. then
push the inside stabilizers against the glsss light-
ly. Fasten the inside stabilizers.
NOTE: Check that the glass moves smoothly.
Glass Adjustment (cont'dl
-l
-2
20-46
-3 Loosen the upper locknut on the center glass
guide, and turn the adiusting bolt until cleatance"B" is within the soecified value.
ADJUSTING EOLT
LOCKNUT12 x 1.25 mm22 N.m 12.2 kgf.m,16 tbt.ft)
*
GLASS
NOTE: Do not adjust the lower adjusting bolts
on the center glass guide.
-4 Move the glass up and down to seat it, then
measure clearance "8" at the designated lo-
cattons.
- 5 Measure clea.ance "H" again to make sure it
is still wilhin the specified limits at the desig-
nated locations.
NOTE: Repeat the above steps until the correct
clearances afe obtained.
