Emissions Control s
The burning of gasoline in your
vehicle's engine produces several by-products. Some of these are carbon
monoxide (CO), oxides of nitrogen (NO
x) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO, and HC is important to the environ-
ment. Under certain conditions ofsunlight and climate, NOx and HC
react to form photochemical "smog." Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
Th e Clea n Ai r Ac t
The United States Clean Air Act*
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
work and what to do to maintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
230.
* In Canada, Honda vehicles comply
with the Canadian Motor Vehicle
Safety Standards (CMVSS) for
Emissions valid at the time they are
manufactured.
Crankcas e Emission s Contro l
System
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the engine's crankcase from going into
the atmosphere. The Positive Crank- case Ventilation valve routes them
from the crankcase back to the
intake manifold. They are then drawn into the engine and burned.
Evaporativ e Emission s Contro l
Syste m
As gasoline evaporates in the fuel tank, an evaporative emissions
control canister filled with charcoaladsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine and burned during driving.
Technica l Informatio n

Emissions Control s
Exhaus t Emission s Control s
The exhaust emissions controls include four systems: PGM-FI,
Ignition Timing Control, ExhaustGas Recirculation and Three Way
Catalytic Converter. These four
systems work together to control the
engine's combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
PGM-FI System
The PGM-FI System uses sequential multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Powertrain Control Module (PCM) uses various sensors to
determine how much air is going
into the engine. It then controls how
much fuel to inject under all operat-
ing conditions.
Ignition Timing Control System
This system constantly adjusts the ignition timing, reducing the amountof HC, CO and NOx produced.
Exhaust Gas Recirculation (EGR)
System
The Exhaust Gas Recirculation (EGR) system takes some of the
exhaust gas and routes it back into
the intake manifold. Adding exhaust
gas to the air/fuel mixture reduces
the amount of NOx produced when
the fuel is burned.
Three Way Catalytic Converter
The three way catalytic converter is in the exhaust system. Through
chemical reactions, it converts HC,CO, and NOx in the engine's exhaust
to carbon dioxide (CO
2), dinitrogen
(N
2), and water vapor. Replacemen
t Part s
The emissions control systems are designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions remain low, you should use only newGenuine Honda replacement parts or
their equivalent for repairs. Using
lower quality parts may increase the emissions from your vehicle.
The emissions control systems are covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa- tion.
Technica l Informatio n

Three Wa y Catalyti c Converte r
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it. Park your vehicle away from high
grass, dry leaves, or other flamma-
bles.
A defective three way catalytic converter contributes to air pollution,and can impair your engine's per-
formance. Follow these guidelines to protect your vehicle's three way
catalytic converter.
Always use unleaded gasoline.Even a small amount of leaded
gasoline can contaminate the catalyst metals, making the three
way catalytic converter ineffective. Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Technica l Informatio n
THREE WA Y CATALYTI C CONVERTE R

Warranty an d Custome r Relation s
Customer Relations
Information................................. 332
U.S. Zone Office Map.................... 333 Canada Zone Office Map.............. 334
Warranty Coverages..................... 335
Reporting Safety Defects (U.S. Vehicles)........................... 336
Authorized Manuals...................... 33 7
Warranty an d Custome r Relation s

Customer Relation s Informatio n
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions. If you encounter a problem that your
dealership does not solve to yoursatisfaction, please discuss it with
the dealership's management. The Service Manager or General
Manager can help. Almost all
problems are solved in this way. If you are dissatisfied with the
decision made by the dealership's
management, contact your Honda Customer Relations Zone Office.
Refer to the U.S. and Canadian ZoneOffice maps on the following pages.When you call or write, please give
us this information:
Vehicle Identification Number
(see page 320)
Name and address of the dealer
who services your vehicle Date of purchaseMileage on your vehicle
Your name, address, and tele- phone number
A detailed description of the problem
Name of the dealer who sold the
vehicle to you
Warrant y an d Custome r Relation s

U.S
. Zon e Offic e Ma p

Western Zone P.O. Box 2260
700 Van Ness Avenue
Torrance, California

90509-2260
(310) 781-4565
Northwestern Zone

P.O. Box 20186

12439 N.E. Airport Way
Portland, Oregon 97230

(503) 256-0943

(also includes Alaska and
Hawaii)
Mid-Atlantic Zone

902 Wind River Ln., Suite 200
Gaithersburg, Maryland 20878

(301) 990-2020

Southeastern Zone1500 Morrison Parkway
Alpharetta, Georgia 30004
(770) 442-2045

North Central Zone
601 Campus Drive, Suite A-9
Arlington Heights, Illinois 60004
(847) 870-5600

The addresses and telephone numbers are subject to change. If you cannot reach your Zone office, ask your Honda dealer for the current information. Northeastern Zone

P.O. Box 337

Eastgate Industrial Park 115 Gaither Drive
Moorestown, New Jersey 08057

(609) 235-5533

Includes: NYC Metro area and
Fairfield County, CT area New England Zone
555 Old County Road
Windsor Locks, Connecticut 06096
(860) 623-3310
See Zone 5 for:
NYC Metro area and Fairfield County, CT area
West Central Zone1600 South Abilene Street, Suite D
Aurora, Colorado 80012
(303) 696-3935

Puerto Rico and U.S. V.I.
Bella International

P.O. Box 190816

San Juan, PR 00919-0816

(787) 250-4318

Warranty and Customer Relations

South Central Zone

4529 Royal Lane

Irving, Texas 75063

(972) 929-5481

Central Zone101 South Stanfield Road
Troy, Ohio 45373
(937) 332-6250

Canad
a Zon e Offic e Ma p
CUSTOMER RELATION S
RELATION S AVE C L A CLIENTEL E
Honda Canada Inc.

715 Milner Avenue

Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9 Fax: Toll-free 1-877-939-0909 Toronto (416) 287-4776

Warrant y an d Custome r Relation s Hond
a Canad a Inc .
Nationa l Offic e

Warranty Coverage s
U.S. Owner s
Your new Honda is covered by these
warranties:
New Car Limited Warranty — covers
your new vehicle, except for the
battery, emissions control systems
and accessories, against defects in
materials and workmanship.
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty — these two
warranties cover your vehicle's emis- sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
information.
Original Equipment Battery Limited
Warranty — this warranty gives up
to 100 percent credit toward a
replacement battery.
Seat Belt Limited Warranty — a seat
belt that fails to function properly is covered for the useful life of the
vehicle.
Rust Perforation Limited Warranty
— all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Accessory Limited Warranty —
Genuine Honda Accessories are
covered under this warranty. Time
and mileage limits depend on the
type of accessory and other factors. Please read your warranty manual
for details.
Replacement Parts Limited
Warranty — covers all Genuine
Honda replacement parts against
defects in materials and workman-
ship.
Replacement Battery Limited
Warranty — provides prorated
coverage for a replacement battery
purchased from a Honda dealer.
Replacement Muffler Lifetime
Limited Warranty — provides
coverage for as long as the pur-
chaser of the muffler owns the
vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2000 Honda Warranty Information
booklet that came with your car for
precise information on warranty coverages. Your Honda's original
tires are covered by their manufacturer. Tire warranty infor-
mation is in a separate booklet.
Canadia n Owner s
Please refer to the 2000 Warranty
Manual that came with your car.
Warrant y an d Custome r Relation s

Reporting Safet y Defect s (U.S . Vehicles )
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to notifying American Honda MotorCo., Inc. If NHTSA receives similar com-
plaints, it may open an investigation, and if it finds that a safety defect
exists in a group of vehicles, it mayorder a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc. To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to: NHTSA, U.S. Department of
Transportation, Washington, D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Warrant y an d Custome r Relation s

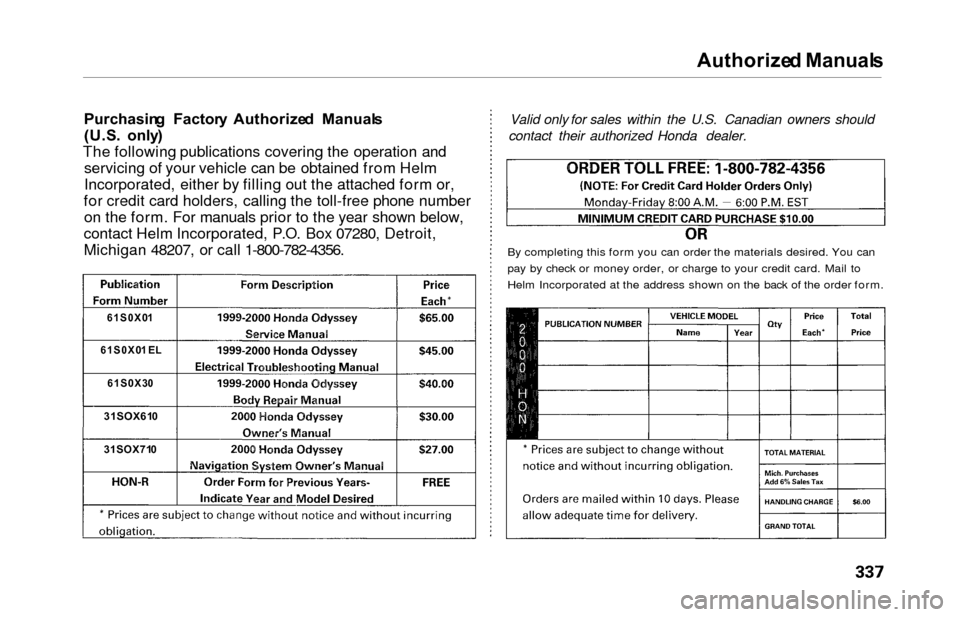

Authorized Manual s
Purchasin g Factor y Authorize d Manual s
(U.S . only )
The following publications covering the operation and servicing of your vehicle can be obtained from Helm
Incorporated, either by filling out the attached form or,
for credit card holders, calling the toll-free phone number on the form. For manuals prior to the year shown below,
contact Helm Incorporated, P.O. Box 07280, Detroit,
Michigan 48207, or call 1-800-782-4356.Valid only for sales within the U.S. Canadian owners should
contact their authorized Honda dealer.
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
61S0X0 1
61S0X0 1 E L
61S0X3 0
31SOX61 0
31SOX71 0
