HONDA ODYSSEY 2004 RB1-RB2 / 3.G Owners Manual

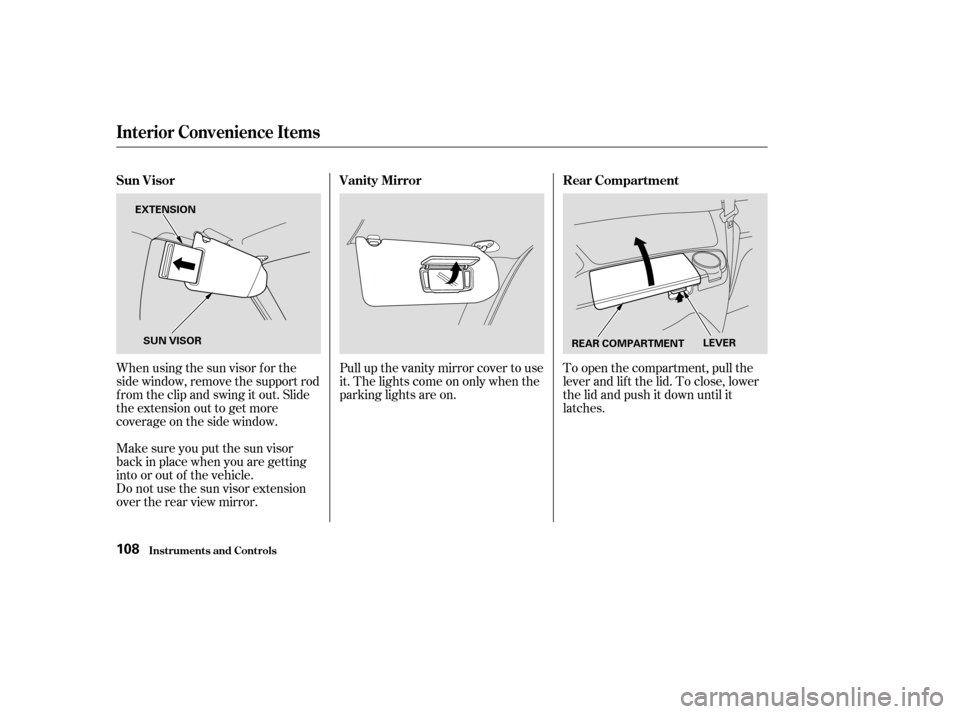

Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip and swing it out. Slide
the extension out to get more
coverage on the side window.Pull up the vanity mirror cover to use
it. The lights come on only when the
parking lights are on.
To open the compartment, pull the
lever and lif t the lid. To close, lower
the lid and push it down until it
latches.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Do not use the sun visor extension
over the rear view mirror.
Interior Convenience Items
Inst rument s and Cont rols
Sun Visor Vanity MirrorRear Compartment
108
REAR COMPARTMENTLEVER
EXTENSION
SUN VISOR

Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.These sockets are intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
None of the sockets will power an
automotive type cigarette lighter
element. When more than one
socket is being used, the combined
power rating of the accessories
should be 120 watts or less
(10 amps).
Interior Convenience Items
Inst rument s and Cont rols
Glove Box
A ccessory Power Sockets
109
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.

Open the center pocket by pulling
thehandle.Closeitwithafirmpush.
The light in the pocket comes on
when the instrument panel lights are
on.Push up the handle to open the
center pocket.The coin holder is located in the
f ront beverage holder. To open it,
pull on the bottom edge. Close it
with a firm push.
On EX and EX-L models
On U.S. EX-L with optional
Rear Entertainment System
Interior Convenience Items
Inst rument s and Cont rols
Center Pocket Coin Holder
110
CENTER
POCKET

A storage box is located under the
f ront passenger’s seat. To use it, pull
the handle and slide the box out.To remove the box for cleaning,
push on the lock tab under the seat
bottom and pull the tray out. Do not
try to f orce the box. You could
damage it.
To use a coat hook, push on the lid.
Close it with a f irm push.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed f or large or heavy
items.
On EX and EX-L models
(Except f or vehicles with navigationSystem)
Interior Convenience Items
Inst rument s and Cont rols
Storage Box Coat Hook
111
STORAGE BOXLOCK TAB
LID

The light control switch has three
positions: OFF, Door Activated, and
ON.OFF
None of the lights come on when a
door or the tailgate is opened.
The individual map lights in the
f ront can be turned on and of f with
the switches next to the lights. The individual map lights in the
second and third rows cannot be
turned on.
The cargo area light can be turned
on with the switch in the light.
Door
Activated The individual map lights in the
f ront come on when any door or
thetailgateisopened.Whenthe
doors and the tailgate are closed,
eachlightcanbeturnedonandoff
with the switch next to the light.
The individual map lights in the
second and third rows come on
whenanydoororthetailgateis
opened. When the doors and the
tailgate are closed, each light can
be turned on and of f by pushing
on the lens. The cargo area light comes on
when any door or the tailgate is
opened if the light control switch
is in the door activated (center)
position. When the doors and the
tailgate are closed, the cargo area
lightcanbeturnedonwiththe
switch in the light.
ON All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
The cargo area light comes on and
stays on if the light control switch
is in the door activated (center)
position.
When this switch is in the position: When the switch is in the
position: When the light control switch is in theposition:
Inst rument s and Cont rols
Interior Lights
L ight Control Switch
112
LIGHT CONTROL SWITCH
ON
DOOR
ACTIVATED
POSITION
OFF

The lights go out about six seconds
after all the doors and the tailgate
are closed.
With the light control switch in the
Door Activated position, all the
individual map lights and the cargo
area light (with its switch in the
center position) come on when you
unlock the door with the remote
transmitter (see page ).
Withanydoororthetailgateleft
open, the lights stay on about 3

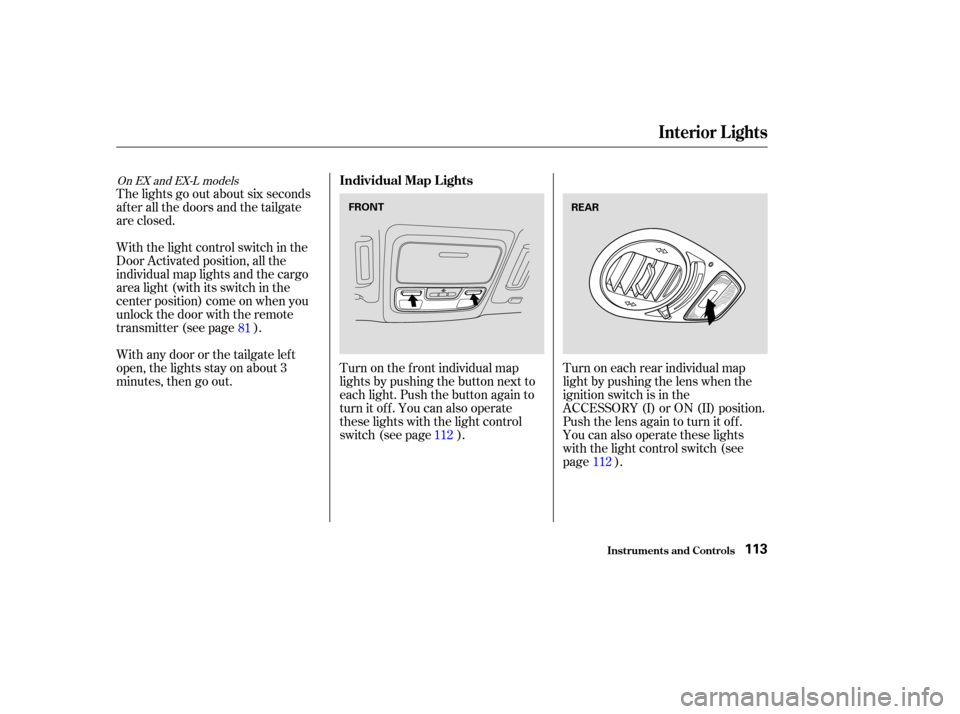

minutes, then go out.Turn on the f ront individual map
lights by pushing the button next to
each light. Push the button again to
turn it off. You can also operate
these lights with the light control
switch (see page ).Turn on each rear individual map
light by pushing the lens when the
ignition switch is in the
ACCESSORY (I) or ON (II) position.
Push the lens again to turn it off.
You can also operate these lights
with the light control switch (see
page ).
112
81
112
On EX and EX-L models
Interior Lights
Inst rument s and Cont rols
Individual Map L ights
113
FRONTREAR

The cargo area light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, it comes on when
you open the tailgate. In the ON
position, it stays on continuously.
This light also works with the light
control switch (see page ).The ignition switch light comes on
when you open the driver’s door, and
stays on several seconds after you
close the door.
112
Interior Lights
Inst rument s and Cont rols
Cargo A rea L ight Ignition Switch L ight
114
OFF
ON

The heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.)
The security system helps to dis-
courage vandalism and thef t of your
Honda. Your Honda has an anti-thef t audio
system that requires a code number
to enable it..............
Vents, Heating, and A/C . 116
.........................
Airflow Buttons .117
Using Automatic Climate ...................................
Control .121
...................
Rear Climate Control . 124
..............
Climate Control Sensors . 125
..........................
Playing the Radio .126
............................
Radio Reception .130
..................................
Playing a CD .132
Operating the Optional CD .....................................
Changer .134
....................
Protecting Your CDs .135
.........
CD Player Error Messages . 136
.....
CD Changer Error Messages . 137
...............................
Playing a Tape .139
.............
Steering Wheel Controls . 143
.................
Radio Thef t Protection . 144
........
Rear Entertainment System . 145
..............................
Playable DVDs .154
............................
Security System .159
...............................
Cruise Control .160
HomeLink Universal ................................
Transceiver .163
On EX and EX-L models
Comf ort and Convenience Features
Comf ort and Convenience Feat ures115

Vents, Heating, and A/C
Comf ort and Convenience Feat ures
LX modelEX model and EX-L model wit hout Navigat ion Syst em EX-L model wit h Navigat ion Syst em
116
MODE BUTTONS
REAR A/C
CONTROL DIAL
FAN CONTROL
DIAL
RECIRCULATION
BUTTON REAR WINDOW DEFOGGER BUTTONTEMPERATURE CONTROL
DIAL
TEMPERATURE
CONTROL DIAL AUTO
BUTTON
OFF BUTTON
DEFROST BUTTON
TEMPERATURE
DISPLAY
RECIRCULATION
BUTTON
MODE ICONS AIR CONDITIONING (A/C) ICONS
AIR CONDITIONING BUTTON AIR CONDITIONING BUTTON TEMPERATURE BUTTON
MODE BUTTON FAN CONTROL ICONS
FULL AUTO
DISPLAY
OFF BUTTON FAN CONTROL DIAL
REAR A/C CONTROL DIAL
AUTO BUTTON
RECIRCULATION BUTTON DEFROST BUTTON MODE
ICONS
REAR WINDOW
DEFOGGER BUTTON
REAR WINDOW
DEFOGGER BUTTON

ÛÝ
For automatic climate control and
manual operation on EX and EX-L
models, see page .
Turn this dial clockwise to increase
fan speed and increase the airflow.
You can manually select the f an
speed. Press the A/C button to view
the display, then press any of the fan
control icons. Turning this dial clockwise increases
the temperature of the airflow.
To select the desired temperature,
press either side of the temperature
(TEMP) button ( or ).
This button turns the air
conditioning on and of f . On LX
models, the light in the button is on
when the A/C is on. On EX and EX-L
models, you will see A/C ON or A/C
OFF selected in the display.Press the A/C button to view the
display. Touching ON or OFF in the
display turns the air conditioning on
andoff.YouwillseeA/CONorA/C
OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
121
On all models without Navigation
System
On EX-L model with Navigation System On all models without Navigation
System
On EX-L model with Navigation System
On all models without NavigationSystem On EX-L model with Navigation System
On EX and EX-L models
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Fan Control T emperature Control
Air Conditioning (A/C) Button/
Icons
Airf low Buttons
117
