Page 68 of 524

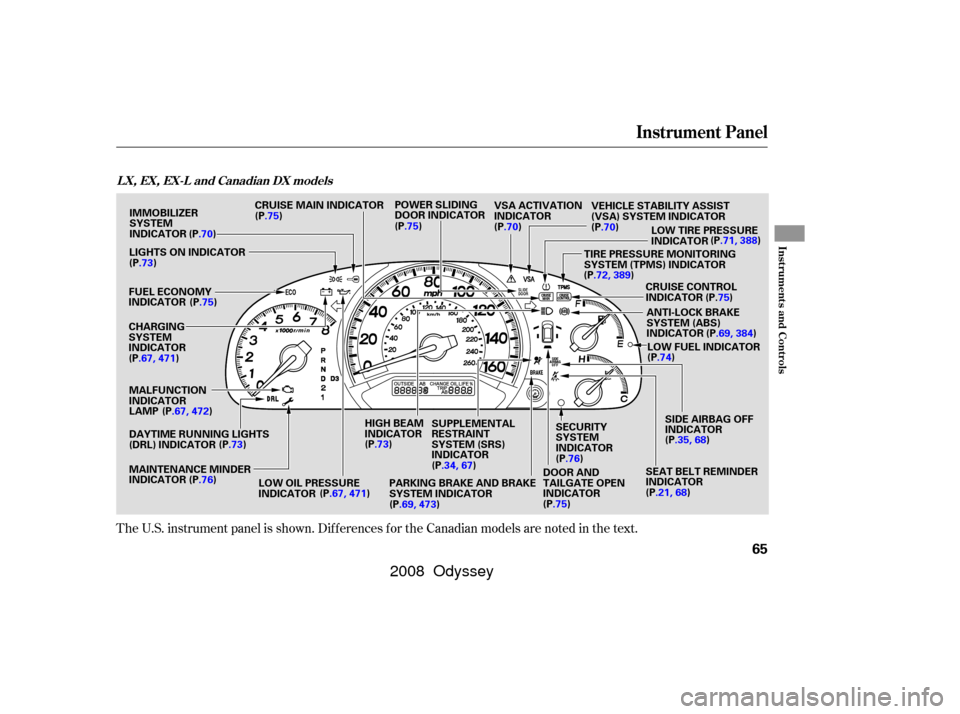

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
LX, EX, EX-L and Canadian DX models
65
HIGH BEAM
INDICATOR
IMMOBILIZER
SYSTEM
INDICATOR
POWER SLIDING
DOOR INDICATOR
DOOR AND
TAILGATE OPEN
INDICATOR
CHARGING
SYSTEM
INDICATOR FUEL ECONOMY
INDICATOR
MALFUNCTION
INDICATOR
LAMP LOW TIRE PRESSURE
INDICATOR
LIGHTS ON INDICATOR CRUISE MAIN INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
CRUISE CONTROL
INDICATOR
LOW FUEL INDICATOR
SEAT BELT REMINDER
INDICATOR SIDE AIRBAG OFF
INDICATOR
SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)
INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR SECURITY
SYSTEM
INDICATOR
(P
.70)
(P .75)
(P .76) (P
.34, 67)
(P.75)(P
.76)
(P.21, 68)(P
.35, 68)
(P
.74) (P.
75)
(P
.70)
(P
.70)
(P
.75)
(P.75)
(P .73)
(P.73) TIRE PRESSURE MONITORING
SYSTEM (TPMS) INDICATOR
(P .73)
MAINTENANCE MINDER
INDICATOR LOW OIL PRESSURE
INDICATOR
DAYTIME RUNNING LIGHTS
(DRL) INDICATOR VSA ACTIVATION
INDICATOR
(P .67, 471)
(P.67, 472)
(P.67, 471) (P
.72, 389) (P
.71, 388)
(P .69, 384)
(P .69, 473)
—
— y
y
( y y
2008 Odyssey
Page 69 of 524

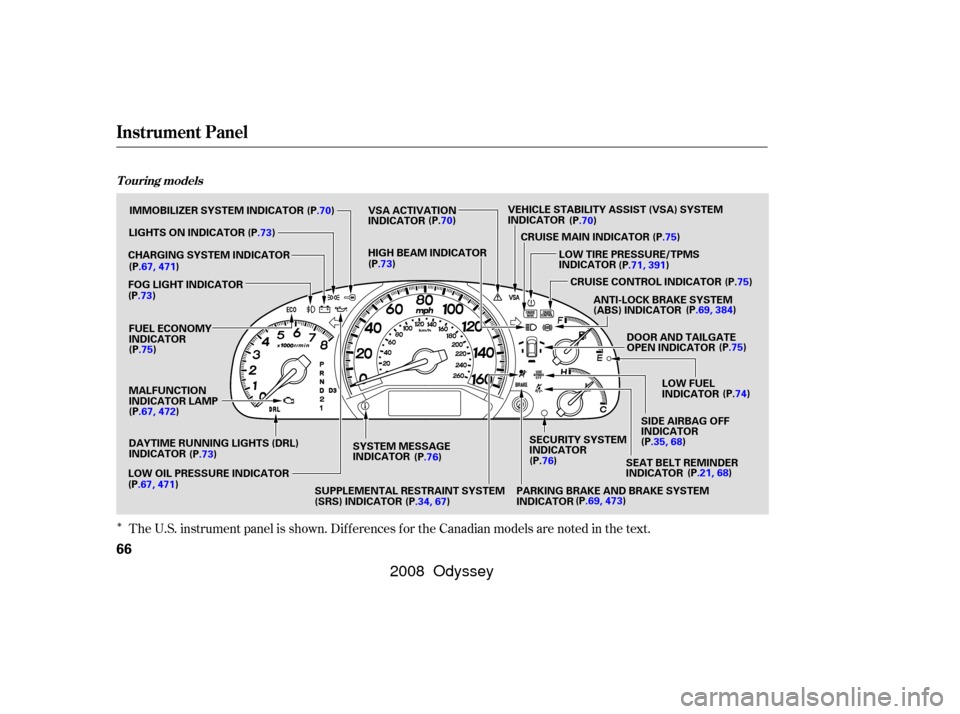

ÎThe U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
T ouring models
66
SEAT BELT REMINDER
INDICATORDOOR AND TAILGATE
OPEN INDICATOR
SECURITY SYSTEM
INDICATOR SIDE AIRBAG OFF
INDICATOR
(P. 76)
(P.21, 68)
(P
.35, 68) (P
.75)
(P.
75)
(P
.70)
(P
.70)
(P.70)
(P .76)
FUEL ECONOMY
INDICATOR
(P
.75)
MALFUNCTION
INDICATOR LAMP LIGHTS ON INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
CRUISE CONTROL INDICATOR
CRUISE MAIN INDICATOR (P
.75)
CHARGING SYSTEM INDICATOR
FOG LIGHT INDICATOR IMMOBILIZER SYSTEM INDICATOR
HIGH BEAM INDICATOR
SYSTEM MESSAGE
INDICATOR
LOW OIL PRESSURE INDICATOR LOW FUEL
INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) INDICATOR (P.
74)
(P .34, 67)
(P
.73)
(P .73)
DAYTIME RUNNING LIGHTS (DRL)
INDICATOR (P.73) (P
.73) LOW TIRE PRESSURE/TPMS
INDICATOR
VSA ACTIVATION
INDICATOR
VEHICLE STABILITY ASSIST (VSA) SYSTEM
INDICATOR
(P .67, 472)
(P .67, 471) (P
.71, 391)
(P.69, 384)
(P .69, 473)
(P
.67, 471)
— — y
y
( y
y
2008 Odyssey
Page 74 of 524
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). For more
inf ormation, see page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost pressure on the multi-
inf ormation display, and determine
the cause. If it is because of a flat tire,
have the flat tire repaired as soon as
possible. If two or more tires are
underinf lated, call a prof essional
towing service. For more
inf ormation, see page .
This indicator has two f unctions:
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
You will also see a ‘‘CHECK TIRE
PRESSURE’’ message on the multi-
inf ormation display (see page ).
Check the tire pressure monitor on
the multi-inf ormation display and
determinethecause(seepage ). Your vehicle has Michelin PAX tires.
Repair or replacement of PAX tires
must be done by a Honda dealer or
an authorized Michelin PAX system
dealer. For more inf ormation, see
page .
1.
88
457
480 388 393480
449
CONT INUED
On Touring models
U.S. model (If equipped)
On LX, EX, EX-L and Canadian DX
models
Instrument Panel Indicators
Low Tire Pressure
Indicator Low Tire Pressure/
TPMS Indicator
Inst rument s and Cont rols
71
—
— y
y
( y y
2008 Odyssey
Page 75 of 524
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle f lash. The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
If this indicator begins to f lash,
there is a problem with the tire
pressure monitoring system
(TPMS). You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display. The indicator continues to
f lash f or a while (approximately 1
minute), then stays on. If this
happens, have your dealer check
the system as soon as possible.
For more inf ormation, see page
. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
2.
395 430 433
On LX, EX, EX-L and Canadian DX
models
Instrument Panel Indicators
Turn Signal and Hazard Warning
Indicators
Tire Pressure Monitoring
System (T PMS) Indicator
72
—
— y
y
( y y
2008 Odyssey
Page 87 of 524
If you press the INFO button while
AVERAGE FUEL is displayed, you
will see the tire pressure monitor in
both segments. This monitor is a
part of the tire pressure monitoring
system (TPMS). See page f or
more inf ormation.
Pressing the INFO button again
brings the display back to the initial
display of the trip computer ‘‘INST.
MPG’’ (U.S. models) or ‘‘INST. L/
100 km’’ (Canadian models).393
Multi-Inf ormation Display
84
Press the INFO button
— — y
y
( y y
2008 Odyssey
Page 97 of 524
This message, and the indicator to
the lef t of the message, is part of the
parking sensor system. If you are
approaching too close to an object,
you will see ‘‘WARNING:
APPROACHING OBJECT’’ on the
display and hear a beeper. See pagef or more inf ormation.
If the passenger’s side airbag has
automatically shut of f , you will see
‘‘PASSENGER SIDE AIRBAG OFF’’
on the multi-inf ormation display. See
page f or more inf ormation.
If one or more of your vehicle tires
are low on pressure, you will see a
‘‘CHECK TIRE PRESSURE’’
message on the display. See page
f or more inf ormation on the tire
pressure monitoring system (TPMS).
35
353
391
Multi-Inf ormation Display
Passenger Side A irbag Of f
Check T ire PressureWarning: A pproaching Object
94
U.S.
Canada
— — y
y
( y y
2008 Odyssey
Page 98 of 524
CONT INUED
When the engine oil lif e reaches 15%,
the display shows ‘‘SERVICE DUE
SOON’’ and the code f or the
maintenance items to be perf ormed.
When the engine oil lif e reaches 5%,
the display shows ‘‘SERVICE DUE
NOW’’ along with the same
maintenance items.If there is a problem in the tire
pressure monitoring system (TPMS),
you will see ‘‘CHECK TPMS
SYSTEM’’ on the multi-inf ormation
display. If you see this message, the
TPMS is not monitoring tire
pressures. Have the TPMS checked
by your dealer as soon as possible
(see page ).
Have your dealer do the indicated
maintenance as soon as you see this
message, and have them reset the
display af ter completing the service.
If you do not perf orm the indicated
maintenance or do not reset the
display, the message changes to
‘‘SERVICE PAST DUE’’ when the
engine oil lif e becomes 0%.
These messages appear on the multi-
inf ormation display each time you
turn the ignition switch to the ON
(II) position.
For details on engine oil lif e and
maintenance messages, ref er to page
.
Also ref er to page f or important
maintenance saf ety precautions. 409
406 395
Multi-Inf ormation Display
Maint enance Messages Check T PMS Syst em
Inst rument s and Cont rols
95
— — y
y
( y
y
2008 Odyssey
Page 372 of 524
Removing parts f rom your vehicle,
or replacing components with
non-Honda components could
seriously af f ect your vehicle’s
handling, stability, and reliability.Larger or smaller wheels and tires
can interf ere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Modif ying your steering wheel or
any other part of your vehicle’s
saf ety systems could make the
systems inef f ective.
Raising your vehicle with a
non-Honda suspension kit can
af f ect the handling and stability.
Herearesomeexamples: Lowering the vehicle with a non-
Honda suspension kit that
signif icantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy. Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components and will not be
compatible with the tire pressure
monitoring system (TPMS).
If you plan to modif y your vehicle,
consult your dealer.
Modif ying Your Vehicle
A ccessories and Modif ications
Bef ore Driving
369
— — y y
( y y
2008 Odyssey
Page 378 of 524
This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important inf ormation on
parking your vehicle, the braking
system, the vehicle stability assist
system, the tire pressure monitoring
system, and f acts you need if you are
planning to tow a trailer.........................
Preparing to Drive .376
.......................
Starting the Engine .377
..............
Automatic Transmission . 378
...........................................
Parking .382
.............................
Braking System .383
...............
Anti-lock Brakes (ABS) . 384
Vehicle Stability Assist (VSA) ........................................
System .386
Tire Pressure Monitoring System ......................................
(TPMS) .388
...........................
Towing a Trailer .396
...................
Towing Your Vehicle . 403
Driving
Driving
375
— — y y
( y y
2008 Odyssey
Page 389 of 524
When VSA activates, you will see the
VSA activation indicator blink (see
page ).
The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surf aces. It does this
by regulating the engine’s output and
by selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. There may also
be some noise f rom the VSA
hydraulic system. You will also see
the VSA activation indicator blink.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display if there is a
problem with the VSA system. If the VSA system indicator comes
on while driving, pull to the side of
theroadwhenitissafe,andturnoff
the engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on or comes
back on while driving, have the VSA
system inspected by your dealer.
If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.Without VSA, your vehicle still has
normal braking and cornering ability,
but it does not have VSA traction and
stability enhancement.
The VSA system automatically turns
on every time you start the engine,
even if you turned it of f the last time
you drove the vehicle.
If the low tire pressure indicator or
TPMS indicator comes on, see
page .
If the low tire pressure/TPMS
indicator comes on, see page .
Or, if the multi-inf ormation display
shows a ‘‘CHECK TPMS
SYSTEM’’ message with the
indicator f lashing, see page .
In this case, you cannot turn of f the
VSA using the OFF switch again.
70
88
388
391
On Touring models only Except Touring models
Touring model
VSA A ctivation Indicator
VSA System Indicator
Vehicle Stability Assist (VSA) System
386
— — y y
( y
y
2008 Odyssey
