The tailgate can also be closed by
pressing the button on the tailgate. If
you press the button again while the
tailgate is closing, you will hear three
beeps, and the tailgate will stop
moving, reverse direction, and stop
at the f ully opened position.
Press and hold the tailgate button on
the remote transmitter or the
dashboard switch f or about 1 second
to open or close the tailgate. Each
time you press the button on the
remote transmitter or the dashboard
switch, you will hear a beep, and
some f ront and rear lights will f lash.
To open or close the tailgate
manually, see page .
If you push the same button or
switch again while the tailgate is
opening or closing, you will hear
three beeps, and the tailgate will stop
moving, reverse direction, and stop
at the f ully opened or closed position.
The tailgate can be opened and
closed with the remote transmitter
or the switch on the dashboard when
both f ront doors are unlocked.
160On EX-L and Touring models
Power Tailgate
Tailgate
158

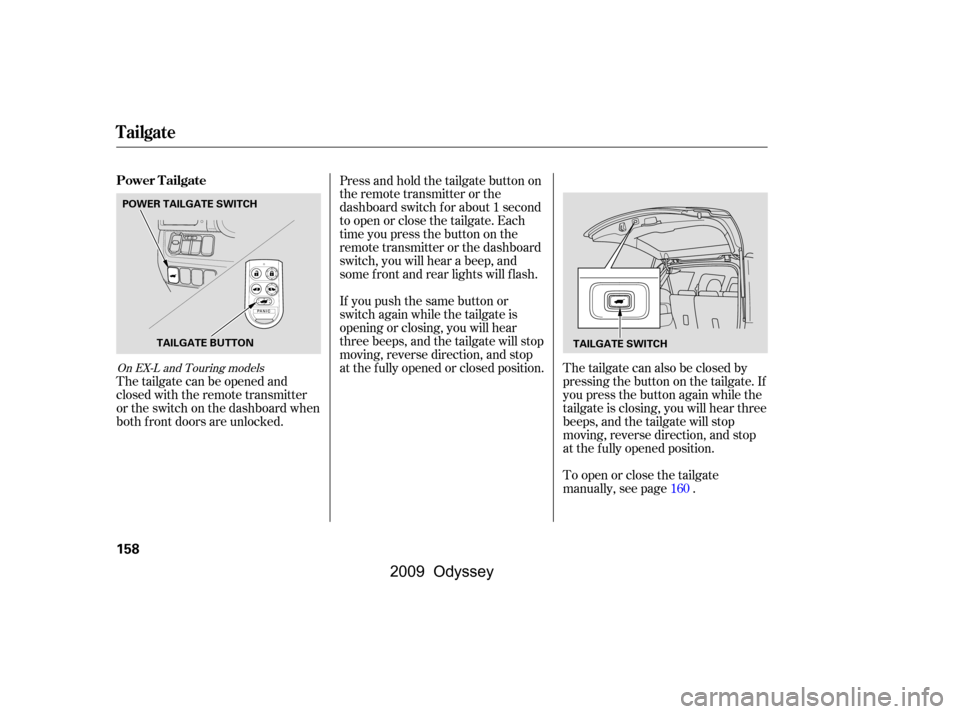

TAILGATE SWITCH
POWER TAILGATE SWITCH
TAILGATE BUTTON
\f—\f—
y

\fy
(\fy\f
y
2009 Odyssey

The power tailgate has an auto-
reverse f eature. If it meets
resistance while opening or closing,
it will beep three times and reverse
direction. However, the tailgate may
not reverse immediately. Always
make sure passengers and objects
are clear of the tailgate before
opening or closing it.
Also check that passengers,
especially children, do not have their
hands on the edge of the tailgate or
on the tailgate sill. The auto reverse
featurestopsworkingwhenthe
tailgate is about to latch so the motor
can pull the tailgate shut.
If your vehicle’s battery is
disconnected, goes dead, or the f use
is removed while the tailgate is f ully
open, the power tailgate needs to be
reset. After connecting the battery
or installing the f use, close the
tailgate f ully by hand.
The power tailgate may not open or
close under the these conditions:
Whenthetailgateortheroof is
covered with snow or ice.
Do not install any accessories on the
tailgate. It may cause the tailgate to
malf unction. If there is snow or ice
on the tailgate, make sure to remove
it bef ore you operate the tailgate.
When the vehicle is swayed in a
strong wind.
The vehicle is parked on a steep
hill.
If you pull the tailgate release handle
while the tailgate is opening or
closing, it will stop moving. You need
to open or close it the rest of the way
manually.
The tailgate has sensors on both
sides. Be caref ul not to damage them.
If the sensors are damaged, the
power tailgate does not f unction
properly.
CONT INUED
A ut o-Reverse
Tailgate
Inst rument s and Cont rols
159
Closing a power tailgate while
anyone is in the path of the
tailgate can cause serious
injury.
Make sure everyone is clear
before closing the power
tailgate.
——
y

y
(y
y
2009 Odyssey

If you try to drive off with the
tailgate not closed completely, a
beeper sounds and a ‘‘DOOR &
TAILGATE OPEN’’ message is
shown on the multi-inf ormation
display.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
f rom getting into the interior. Seeon page
.
If there is a problem in the power
tailgate system, you will see a
‘‘CHECK POWER TAILGATE’’
message on the multi-inf ormation
display. Have the system checked by
your dealer.
With this message shown on the
multi-inf ormation display, you can
still open or close the tailgate
manually. If the power door lock system cannot
unlock the tailgate, unlock it
manually.

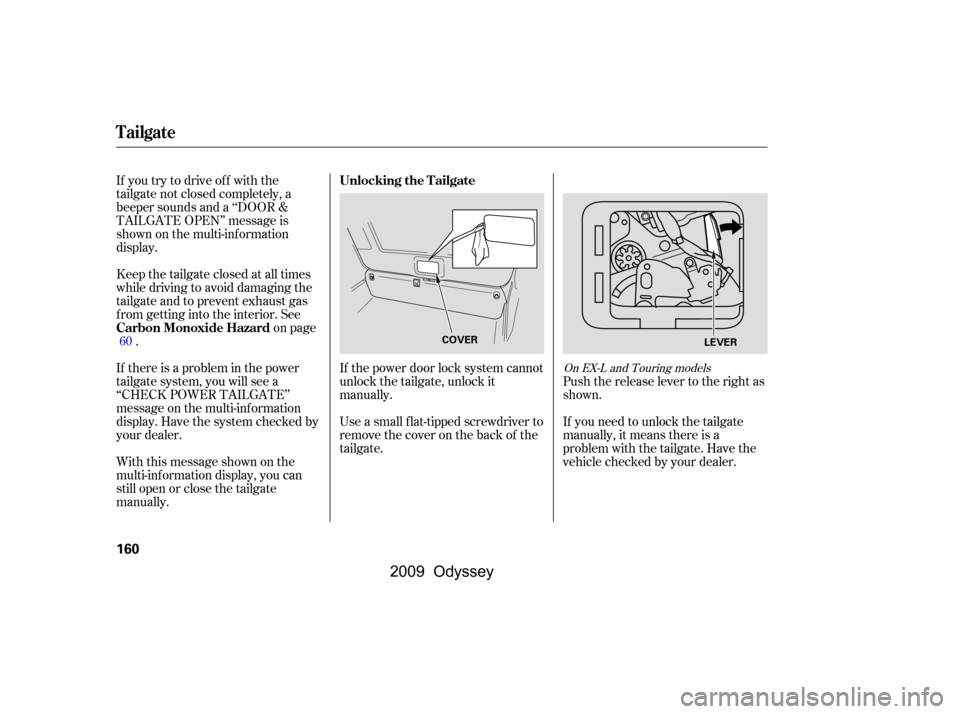

Use a small flat-tipped screwdriver to
remove the cover on the back of the
tailgate.
Push the release lever to the right as
shown.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
60
On EX-L and Touring models
Unlocking the T ailgate
Carbon Monoxide Hazard
Tailgate
160
LEVER
COVER
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

To open, pull the inside or outside
door handle, and slide the door back.
It will latch in the f ully open position.
When opening f rom the inside, the
childproof door lock must be
unlocked.
To close, pull either handle, and slide
the door closed. Make sure the door
is closed and latched securely bef ore
driving, and all passengers are clear
of the sliding doors bef ore closing
them.
When opening a sliding door, it stops
about halfway if the window is open
morethan3in(8cm).If thevehicle
is f acing downhill, the sliding door
will slam shut when you release the
door handle. Always close the
window f ully bef ore opening the
sliding door.
Usethekeytounlockthetailgateas
shown, then pull the outer handle to
open the tailgate.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer. The doors are electrically powered
and can be operated with the remote
transmitter, the door handles, or the
dashboard switches. To operate the
doors:
The shift lever must be in Park or
neutral. To operate the doors with
the shift lever in neutral, the
ignition switch must be in the ON
(II) position with the brake pedal
pressed or the parking brake
applied.
TheMAINswitchmustbeinthe
ON position.
The doors must be unlocked.
CONT INUED
On LX and Canadian DX models
On LX, EX and Canadian DX models On EX, EX-L and Touring models
Power Sliding Doors
Opening and Closing Manual
Sliding Doors
T ailgate, Sliding Doors
Inst rument s and Cont rols
161
Unlock Lock
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

When the shift lever is in Park:When the shift lever is in neutral andthe ignition switch is in the ON (II)position:
If you shif t out of Park while a door
is closing, you will hear a beep until
the door closes.
When you shif t out of Park while a
door is opening, you will hear a
continuous tone and the door will
stop moving if you release the brake
pedal or the parking brake. Stop the
vehicle and close the door. To open the door with the inside
door handle, pull the handle
backward. Push it f orward to close
the door. If you pull backward or
push f orward on the door handle
while a door is opening or closing,
the door stops moving. Pull
backward or push f orward to open or
close the door f ully.
To open or close the door with the
outside door handle, pull the door
handle. If you pull the door handle
while a door is opening or closing,
the door stops moving. If you pull the
door handle again, the door will open
f ully.
The dashboard switches to the lef t
of the steering column allow you to
open or close the power sliding doors.
The MAIN switch on the dashboard
controls power to the sliding doors.
If you shif t out of neutral or release
the brake pedal or the parking brake
while a door is opening, you will hear
a continuous tone and the door will
stop moving. Stop the vehicle and
close the door.
If you shif t out of neutral or release
the brake pedal or the parking brake
while a door is closing, you will hear
a beep until the door closes.
Door Handles Dashboard Switches
Sliding Doors
162
POWER SLIDING
DOOR SWITCHES
MAIN SWITCH
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

To open a power sliding door, push
and release the bottom of the
appropriate switch. If you f orget to
unlock the door, you will hear three
beeps. Unlock the door, and try
again.To open and close a power sliding
door, press and hold the appropriate
button f or at least 1 second. If you
f orget to unlock the door, you will
hear three beeps. Unlock the door,
and try again.Each power sliding door has an auto-
reverse f eature. If a door meets
resistance while closing, it will beep
three times and reverse direction.
However, the door may not reverse
immediately and may cause some
bruising or discomf ort. Always make
sure passengers and objects are
clear of the doors bef ore closing
them.
If a rear window is open more than
3 in (8 cm), the power sliding door is
designed to stop about half way to
avoid accidents. If this happens,
close the door with the door handles,
the dashboard switch, or the remote
transmitter. Close the window and
open the sliding door. Make sure the
window is f ully closed bef ore you
operate the power sliding door.
To stop movement, push the
appropriate door button; you will
hear three beeps. Push and hold the
same button again f or at least 1
second and the door will reverse
direction.
When the MAIN switch is in the
OFF position, you have to operate
the doors manually.
To stop a door, push either the top or
bottom of the switch. The door will
stop and you will hear three beeps.
Push the switch again to resume
movement.
To close a sliding door, push and
release the top of the switch.Remote Transmitter
Auto-Reverse
Sliding Doors
Inst rument s and Cont rols
163

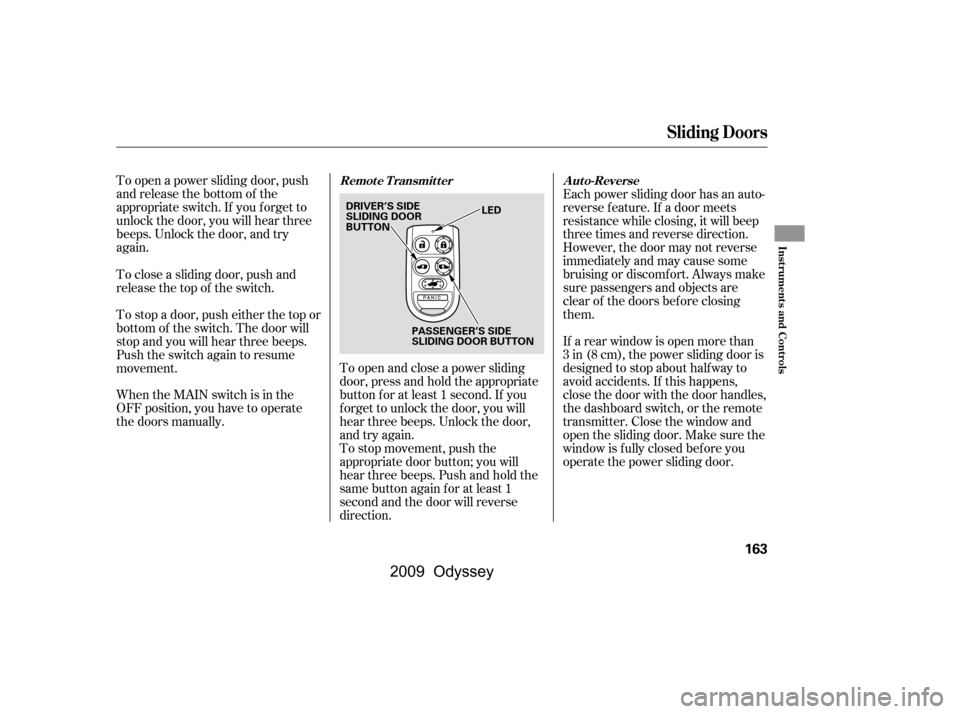

LED
DRIVER’S SIDE
SLIDING DOOR
BUTTON
PASSENGER’S SIDE
SLIDING DOOR BUTTON
\f—\f—
y

\fy
(\fy\f
y
2009 Odyssey

You can manually open or close the
sliding doors. The MAIN switch
must be in the OFF position. To
open a door, pull the inside or
outside door handle, and slide the
door back. It will latch in the f ully
open position. To close, pull either
handle and slide the door f orward.
When the door is almost closed, the
auto-closer will pull the door shut.
If there is an obstacle in the door sill,
the power sliding door may not open
or close properly. When removing
the obstacle f rom the door sill, make
sure to turn off the main switch on
the dashboard.
When replacing a flat tire, make sure
to turn of f the power sliding door
main switch on the dashboard.
Do not allow anyone to step on the
lower arm of the sliding door while
the door is open. This could damage
the sliding door mechanism.
Whenyoudrivewithchildreninyour
vehicle, use the childproof door
locks (see page ). This will
prevent children f rom opening the
doors accidentally.
Do not put any item in the door
pocket that sticks out f rom the
pocket. It can prevent the doors f rom
opening or closing properly, and
damage the vehicle body.
Bef ore operating the sliding doors,
check that passengers, especially
children, do not have their hands on
the edge of the sliding door or on the
door pillar. The auto-reverse motor
stops working when the door is
about to latch so the auto-closer can
pull the door shut.
157
On all models
On EX, EX-L and Touring models
Manually Opening/Closing t he
Power Sliding Door
Important Sliding Door
Precautions
Sliding Doors
164
Closing a sliding door while any
part of a passenger is in the
door’s path can cause serious
injury.
Make sure all passengers are
clear of the doorway before
closing a sliding door.
——
y


y
(y
y
2009 Odyssey

When you release the f uel f ill door,
the driver’s side sliding door
automatically locks so it cannot open
and interfere with the fuel door. If a
passenger attempts to unlock the
door by cycling the lock knob several
times, the door can be opened.
If a passenger needs to get out while
you are ref ueling, instruct that
person to exit on the passenger’s
side.
When you close the f uel f ill door, the
driver’s side sliding door unlocks if it
was unlocked when you opened the
fuel fill door.When parking f acing downhill, make
sure the doors are latched in the
f ully open position, and then hold the
door open f or your passengers. Do
not pull the inside or outside door
handle, or the door will slam shut.
If you leave the vehicle on a steep
downhill with a power sliding door
half open and the engine of f , the
magnetic lock will turn off after 30
minutes and the sliding door will
automatically open or close. In this
case you will hear a continuous tone.
If your vehicle is f acing downhill, do
not turn the main switch to OFF
while the door is opening because
thedoormayslamshut.
If you open the f uel f ill door while
the driver’s side sliding door is
opening, the sliding door stops. If
this happens, the door must be
operated manually. Make sure the main switch on the
dashboard is in the ON position.
When parking f acing downhill on a
steep grade, the power sliding doors
may not open or close as they do
normally.
On EX, EX-L and Touring models
On EX, EX-L and Touring models
Ref ueling
Parking on a Hill
Sliding Doors
Inst rument s and Cont rols
165
\f—\f—
y

y
(\fy\f
\fy
2009 Odyssey

If the power sliding door indicator
comesonandstayson,thereisa
problem in the system. Turn the
MAIN switch to OFF, and have the
system inspected by a dealer.
Each sliding door has a pinch sensor
on the f ront edge. Do not damage
this sensor, or the power sliding door
may not operate properly. If there is a problem in the power
sliding door system, you will see a
‘‘CHECK LEFT SLIDING DOOR’’ or
‘‘CHECK RIGHT SLIDING DOOR’’
message on the multi-information
display (see page ). If this
message stays on, turn the MAIN
switch to OFF, and have the system
inspected by your dealer.
If the battery is disconnected or goes
dead, close the sliding door
completely by hand. If it still does
not operate properly af ter the
battery is reconnected, have your
vehicle checked by a dealer.
89
On EX and EX-L models On Touring models
On EX, EX-L and Touring models
Pinch Sensor Power Sliding Door Indicator
Sliding Doors
166
PINCH SENSOR
POWER SLIDING DOOR INDICATOR
U.S. model is shown
\f—\f—
y


y
(\fy\f

y
2009 Odyssey

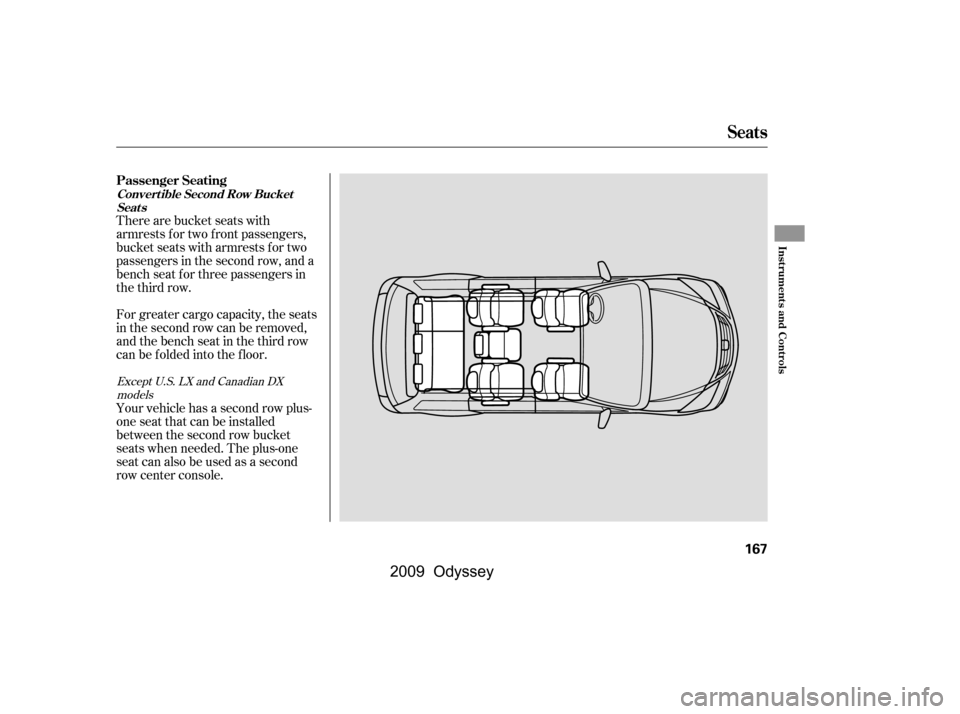

There are bucket seats with
armrests for two front passengers,
bucket seats with armrests for two
passengers in the second row, and a
bench seat f or three passengers in
the third row.
For greater cargo capacity, the seats
in the second row can be removed,
andthebenchseatinthethirdrow
can be f olded into the f loor.
Your vehicle has a second row plus-
one seat that can be installed
between the second row bucket
seats when needed. The plus-one
seat can also be used as a second
row center console.
Except U.S. LX and Canadian DXmodels
Passenger Seating
Convert ible Second Row BucketSeat s
Seats
Inst rument s and Cont rols
167
\f—\f—
y

y
(\fy\f
y
2009 Odyssey
