HONDA ODYSSEY 2009 RB3-RB4 / 4.G Owners Manual

When your selection is entered, you
will see the above display for several
seconds, and then the display
changes to ‘‘CUSTOMIZE MENU.’’If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘KEYLESS LOCK
ACKNOWLEDGEMENT,’’ press the
INFO button until you see ‘‘EXIT,’’
then press the SEL/RESET button.
Multi-Inf ormation Display
128
\f—\f—
y



\fy
(\fy\f
y
2009 Odyssey

If you unlock the doors and the
tailgate with the remote transmitter,
but do not open any of the doors or
thetailgatewithin30seconds,the
doors and the tailgate automatically
relock and the security system sets.
You can change this relock time

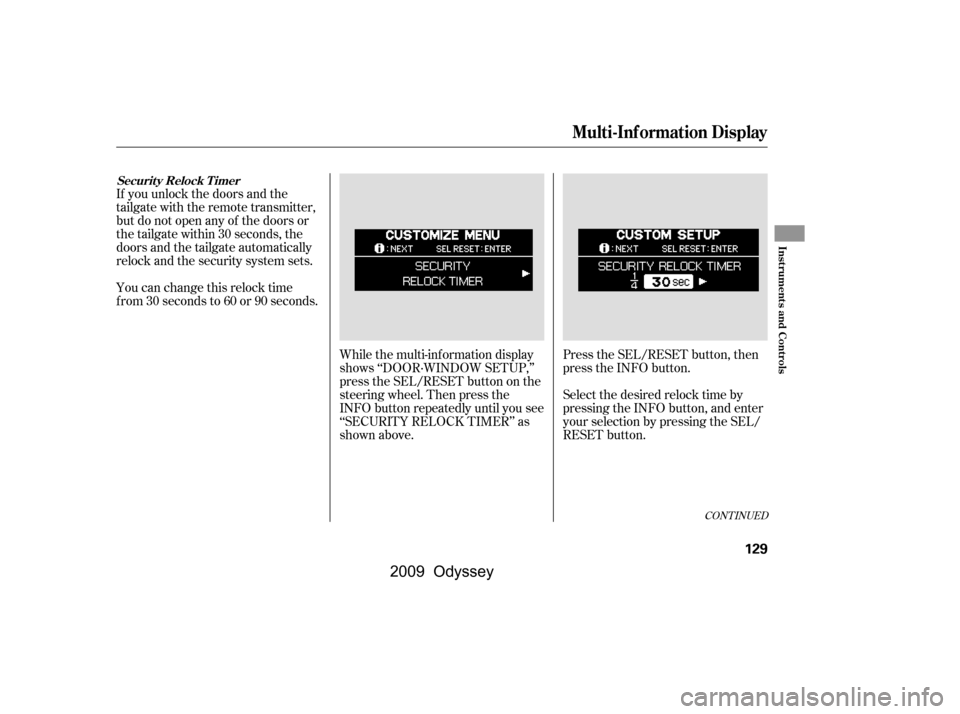

f rom 30 seconds to 60 or 90 seconds.While the multi-information display
shows ‘‘DOOR·WINDOW SETUP,’’
press the SEL/RESET button on the
steering wheel. Then press the
INFO button repeatedly until you see
‘‘SECURITY RELOCK TIMER’’ as
shown above.Press the SEL/RESET button, then
press the INFO button.
Select the desired relock time by
pressing the INFO button, and enter
your selection by pressing the SEL/
RESET button.
CONT INUED
Securit y Relock T imer
Multi-Inf ormation Display
Inst rument s and Cont rols
129
\f—\f—
y



y
(\fy\f
y
2009 Odyssey

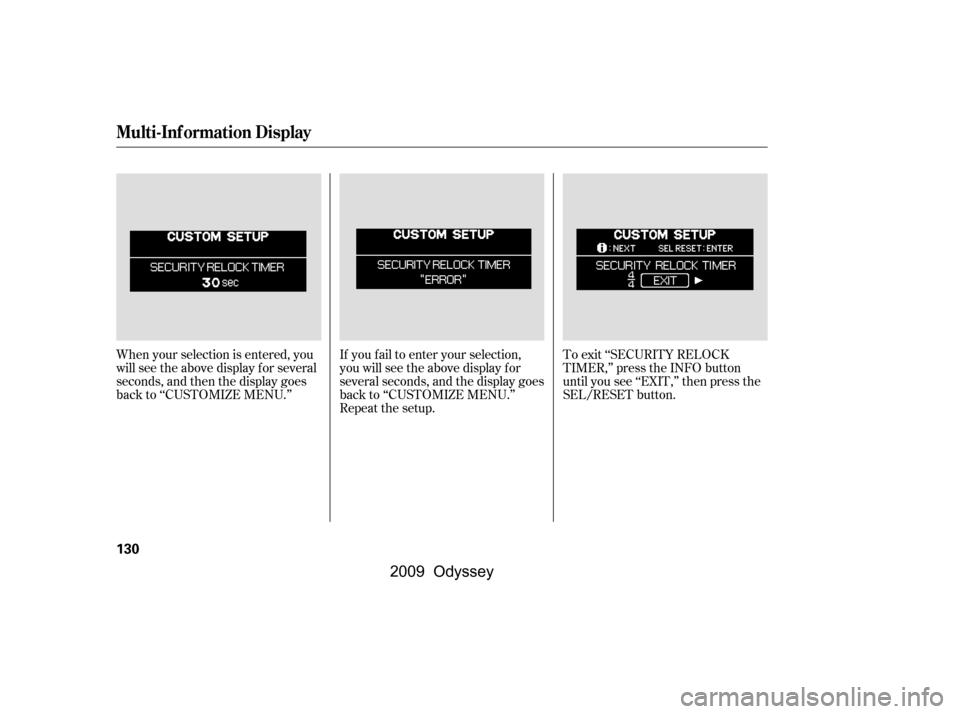

If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.To exit ‘‘SECURITY RELOCK
TIMER,’’ press the INFO button
until you see ‘‘EXIT,’’ then press the
SEL/RESET button.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’
Multi-Inf ormation Display
130
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µµ

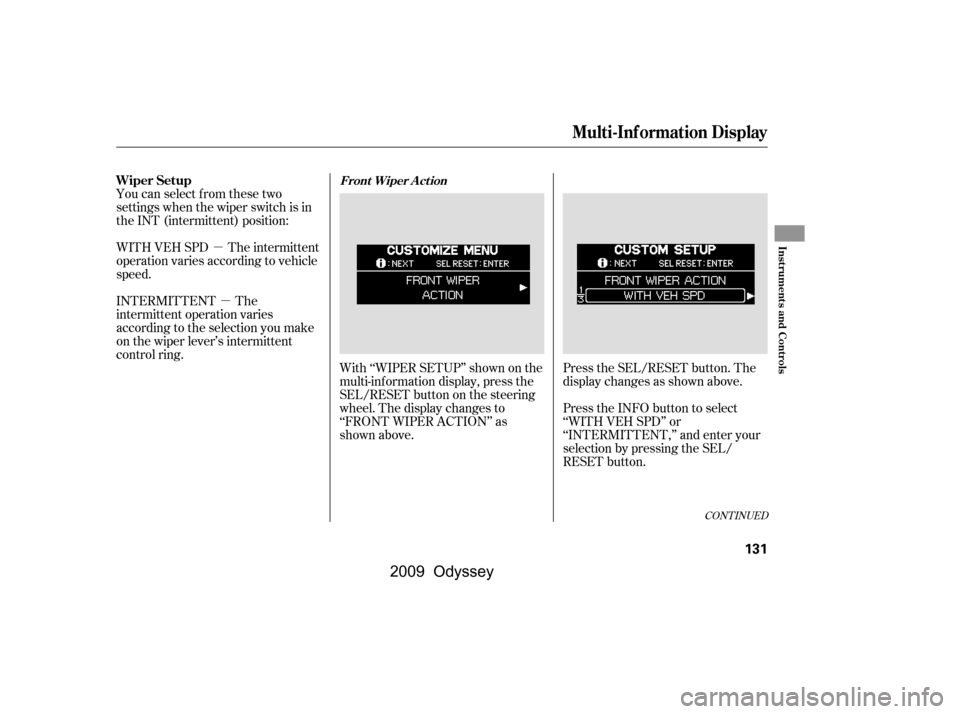

With ‘‘WIPER SETUP’’ shown on the
multi-inf ormation display, press the
SEL/RESET button on the steering
wheel. The display changes to
‘‘FRONT WIPER ACTION’’ as
shown above.
You can select from these two
settings when the wiper switch is in
the INT (intermittent) position:
WITH VEH SPD The intermittent
operation varies according to vehicle
speed.
INTERMITTENT The
intermittent operation varies
according to the selection you make
on the wiper lever’s intermittent
control ring.
Press the SEL/RESET button. The
display changes as shown above.
Press the INFO button to select
‘‘WITH VEH SPD’’ or
‘‘INTERMITTENT,’’ and enter your
selection by pressing the SEL/
RESET button.
CONT INUED
Wiper SetupFront Wiper A ct ion
Multi-Inf ormation Display
Inst rument s and Cont rols
131
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

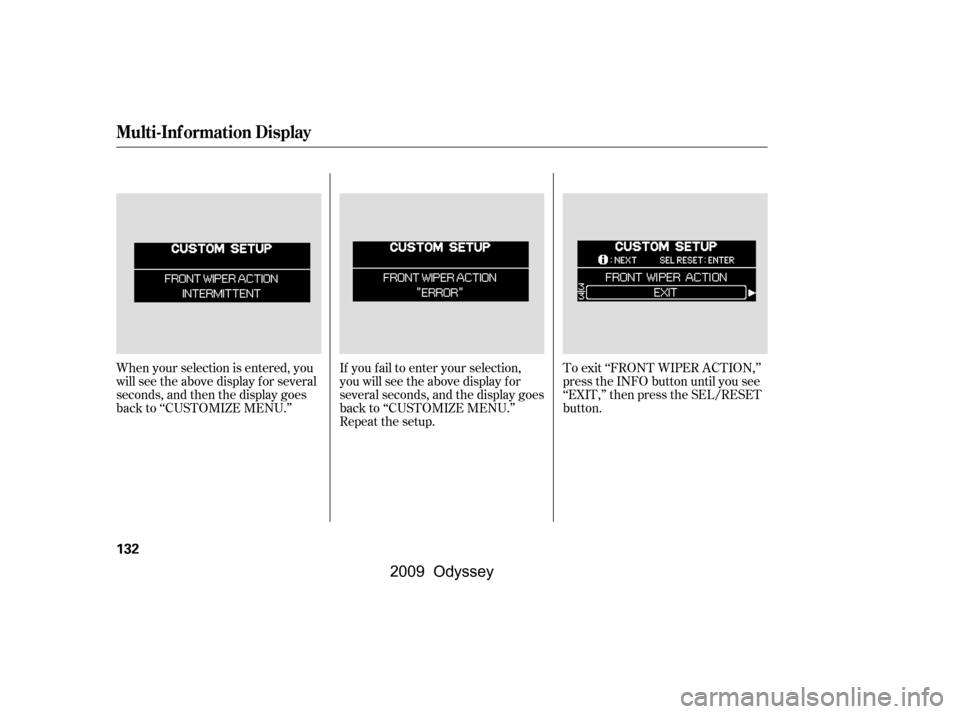

To exit ‘‘FRONT WIPER ACTION,’’
press the INFO button until you see
‘‘EXIT,’’ then press the SEL/RESET
button.
When your selection is entered, you
will see the above display for several
seconds, and then the display goes
back to ‘‘CUSTOMIZE MENU.’’ If you f ail to enter your selection,
you will see the above display f or
several seconds, and the display goes
back to ‘‘CUSTOMIZE MENU.’’
Repeat the setup.
Multi-Inf ormation Display
132
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

ÎÎ
Î
Î Î
Î Î ÎÎ
Î
Î
Î
Î
Î
Î
ÎOnly on vehicles equipped with navigation system. Ref er to the navigation system manual.
To use the horn, press the center pad of the steering wheel.
1:
2:
3: If equipped
Controls Near the Steering Wheel
Inst rument s and Cont rols
133
HAZARD WARNING
BUTTON
WINDSHIELD WIPERS/WASHERS
REAR WINDOW WIPER/WASHER
CRUISE CONTROL
BUTTONS
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH PASSENGER
AIRBAG OFF
INDICATOR
LIGHT CONTROL
SWITCH
STEERING WHEEL
ADJUSTMENT (P.35)
NAVIGATION
SYSTEM
BUTTONS HORN
(P.193)
(P.189) (P.282)
(P.352) (P.141) (P.134)
(P.135)
(P.319)
(P.281)
(P.140)
(P.221,285)
(P.205) REAR WINDOW
DEFOGGER BUTTON
(P.140)
PEDAL POSITION
ADJUSTMENT SWITCH
POWER SLIDING DOOR
SWITCH
MOONROOF SWITCH
POWER TAILGATE
SWITCHPARKING SENSOR
SYSTEM SWITCH MULTI-INFORMATION
BUTTONSAUDIO SYSTEM/
REAR
ENTERTAINMENT
SYSTEM
CLOCK
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
(P.162)
(P.158)/
(P.82)
(P.135,138)
REMOTE AUDIO
CONTROL BUTTONS (P.395)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH (P.395) BLUETOOTH
HANDSFREELINKBUTTONS (P.327)
2 1
3
3 3
3 3 33
3
3
3
3
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µ
µ
µ µ
µ
µ
µ µ
µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
Push the right lever up or down to
select a position. The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
The length of the wipe
interval is varied automatically
according to vehicle’s speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h). You can customize some windshield
wiper settings. See page f or
more inf ormation.
1.
2.
3.
4.
5.
6. 131
On Touring models
MIST
OFF
LO
HIWindshield Washer
INT
Windshield Wipers and Washers
134
ADJUSTMENT RING
\f—\f—
y


y
(\fy\f
y
2009 Odyssey

µµ
To turn on the rear window wiper,
rotate the switch clockwise to ON.
It operates intermittently.
OFF
Hold past ON to turn the window
wiper on and the window washer
on. When you shif t the transmission to
the reverse position with the f ront
windshield wipers activated, the rear
window wiper operates automatically.
When the wiper control lever is
positioned as f ollows:
The rear window wiper
operates intermittently.
The rear window wiper
operates continuously.
Rotate the switch
counterclockwise to spray the
window washer. Turn signal
Of f
Parking and indicator lights
AUTO (Touring models)
Headlights on
High beams
Flashhighbeams
Fog lights of f (Touring models)
Fog lights on (Touring models)
1.
2.
3.
4.
1.
2.
3.
4.
5.
6.
7.
8.
9.
Turn Signal and Headlights
Rear Window Wiper and Washer
INT
LO or HI
Windshield Wipers and Washers, Turn Signal and Headlights
Inst rument s and Cont rols
135
\f—\f—
y


\fy
(\fy\f
\fy
2009 Odyssey

µµµ
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. The rotating switch
on the lef t lever controls the lights.
Turning this switch to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position. To switch f rom low
beams to high beams, push the lef t
lever f orward until you hear a click.
The high beam indicator will come
on (see page ). Pull it back to
return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back. 73
Turn Signal
Headlights
High Beams
Turn Signal, Headlights
136
\f—\f—
y


y
(\fy\f

y
2009 Odyssey

µThe lights turn of f automatically
when you turn the ignition switch to
the LOCK (0) position. To turn them
on again, either turn the ignition
switch to the ON (II) position, or
turn the light switch to the
position.
Even with the automatic lighting
f eature turned on, we recommend
thatyouturnonthelightsmanually
when driving at night or in a dense
f og, or when you enter dark areas
such as long tunnels or parking
f acilities. The automatic lighting f eature is
controlledbyasensorlocatedontop
of the dashboard. Do not cover this
sensor or spill liquids on it.
The automatic lighting
f eature turns on the headlights, all
other exterior lights, and the
instrument panel lights when it
senses low ambient light.
To turn on the automatic lighting,
turn the light switch to the AUTO
position at any time. The lights will
come on automatically when the
outside light level becomes low (at
dusk, f or example). The lights on
indicator comes on as a reminder.
The lights and indicator turn of f
automatically when the system
senses high ambient light.
On Touring models
Headlights
AUTO
Inst rument s and Cont rols
137
SENSOR
\f—\f—
y

y
(\fy\f
y
2009 Odyssey
